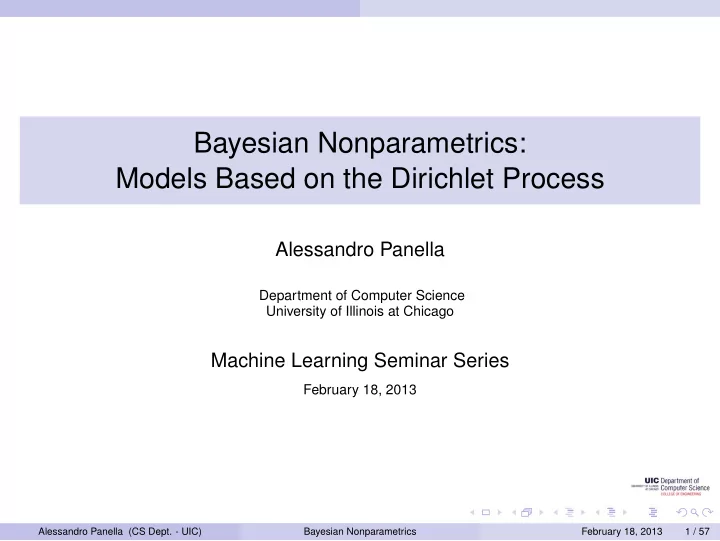

Bayesian Nonparametrics: Models Based on the Dirichlet Process Alessandro Panella Department of Computer Science University of Illinois at Chicago Machine Learning Seminar Series February 18, 2013 Alessandro Panella (CS Dept. - UIC) Bayesian
Alessandro Panella
Department of Computer Science University of Illinois at Chicago
Machine Learning Seminar Series
February 18, 2013
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 1 / 57
Tutorials (slides)
P . Orbanz and Y.W. Teh, Modern Bayesian Nonparametrics. NIPS 2011.
Articles etc.
E.B. Sudderth, Chapter in PhD thesis, 2006.
Y.W. Teh, Dirichlet Processes. Encyclopedia of Machine Learning, 2010. Springer. ...
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 2 / 57
1
Introduction and background Bayesian learning Nonparametric models
2
Finite mixture models Bayesian models Clustering with FMMs Inference
3
Dirichlet process mixture models Going nonparametric! The Dirichlet process DP mixture models Inference
4
A little more theory. . . De Finetti’s REDUX Dirichlet process REDUX
5
The hierarchical Dirichlet process
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 3 / 57
Introduction and background
1
Introduction and background Bayesian learning Nonparametric models
2
Finite mixture models Bayesian models Clustering with FMMs Inference
3
Dirichlet process mixture models Going nonparametric! The Dirichlet process DP mixture models Inference
4
A little more theory. . . De Finetti’s REDUX Dirichlet process REDUX
5
The hierarchical Dirichlet process
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 4 / 57
Introduction and background Bayesian learning
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 5 / 57
Introduction and background Bayesian learning
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 5 / 57
Introduction and background Bayesian learning
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 5 / 57
Introduction and background Bayesian learning
Estimate a parameter θ ∈ Θ after observing data x.
Maximum Likelihood (ML): ˆ θMLE = argmaxθ p(x|θ) = argmaxθ L(θ : x)
Bayes Rule: p(θ|x) = p(x|θ)p(θ)
p(x)
Bayesian prediction (using the whole posterior, not just one estimator) p(xnew|x) =
p(xnew|θ)p(θ|x) dθ Maximum A Posteriori (MAP) ˆ θMAP = argmax
θ
p(x|θ)p(θ)
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 6 / 57
Introduction and background Bayesian learning
Estimate a parameter θ ∈ Θ after observing data x.
Maximum Likelihood (ML): ˆ θMLE = argmaxθ p(x|θ) = argmaxθ L(θ : x)
Bayes Rule: p(θ|x) = p(x|θ)p(θ)
p(x)
Bayesian prediction (using the whole posterior, not just one estimator) p(xnew|x) =
p(xnew|θ)p(θ|x) dθ Maximum A Posteriori (MAP) ˆ θMAP = argmax
θ
p(x|θ)p(θ)
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 6 / 57
Introduction and background Bayesian learning
Estimate a parameter θ ∈ Θ after observing data x.
Maximum Likelihood (ML): ˆ θMLE = argmaxθ p(x|θ) = argmaxθ L(θ : x)
Bayes Rule: p(θ|x) = p(x|θ)p(θ)
p(x)
Bayesian prediction (using the whole posterior, not just one estimator) p(xnew|x) =
p(xnew|θ)p(θ|x) dθ Maximum A Posteriori (MAP) ˆ θMAP = argmax
θ
p(x|θ)p(θ)
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 6 / 57
Introduction and background Bayesian learning
A premise:
An infinite sequence random variables (x1, x2, . . .) is said to be (infinitely) exchangeable if, for every N and every possible permutation π on (1, . . . , N), p(x1, x2, . . . , xN) = p(xπ(1), xπ(2) . . . , xπ(N)) Note: exchangeability not equal i.i.d!
An urn contains some red balls and some black balls; an infinite sequence of colors is drawn recursively as follows: draw a ball, mark down its color, then put the ball back in the urn along with an additional ball of the same color.
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 7 / 57
Introduction and background Bayesian learning
A premise:
An infinite sequence random variables (x1, x2, . . .) is said to be (infinitely) exchangeable if, for every N and every possible permutation π on (1, . . . , N), p(x1, x2, . . . , xN) = p(xπ(1), xπ(2) . . . , xπ(N)) Note: exchangeability not equal i.i.d!
An urn contains some red balls and some black balls; an infinite sequence of colors is drawn recursively as follows: draw a ball, mark down its color, then put the ball back in the urn along with an additional ball of the same color.
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 7 / 57
Introduction and background Bayesian learning
A sequence of random variables (x1, x2, . . .) is infinitely exchangeable if for all N, there exists a random variable θ and a probability measure p on it such that p(x1, x2, . . . , xN) =
p(θ)
N
p(xi|θ) dθ i.e., there exists a parameter space and a measure on it that makes the variables iid! The representation theorem motivates (and encourages!) the use of Bayesian statistics.
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 8 / 57
Introduction and background Bayesian learning
A sequence of random variables (x1, x2, . . .) is infinitely exchangeable if for all N, there exists a random variable θ and a probability measure p on it such that p(x1, x2, . . . , xN) =
p(θ)
N
p(xi|θ) dθ i.e., there exists a parameter space and a measure on it that makes the variables iid! The representation theorem motivates (and encourages!) the use of Bayesian statistics.
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 8 / 57
Introduction and background Bayesian learning
Hypothesis space H Given data D, compute p(h|D) = p(D|h)p(h) p(D) Then, we probably want to predict some future data D′, by either:
Average over H, i.e. p(D′|D) =
Choose the MAP h (or compute it directly), i.e. p(D′|D) = p(D′|hMAP) Sample from the posterior ...
H can be anything! Bayesian learning as a general learning framework We will consider the case in which h is a probabilistic model itself, i.e. a parameter vector θ.
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 9 / 57
Introduction and background Bayesian learning
Infer the bias θ ∈ [0, 1] of a coin after observing N tosses. H = 1, T = 0, p(H) = θ h = θ, hence H = [0, 1] Sequence of Bernoulli trials: p(x1, . . . , xn|θ) = θnH(1 − θ)N−nH where nH = # heads. Unknown θ: p(x1, . . . , xN) = 1 θnH(1 − θ)nH−kp(θ) dθ Need to find a “good” prior p(θ). . . Beta distribution!
θ x1 x2 xN θ xi N
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 10 / 57
Introduction and background Bayesian learning
Beta distribution: θ ∼ Beta(a, b) p(θ|a, b) =
1 B(a,b)θa−1(1 − θ)b−1
Bayesian learning: p(h|D) ∝ p(D|h)p(h); for us: p(θ|x1, . . . , xN) ∝ p(x1, . . . , xn|θ)p(θ) = θnH(1 − θ)nT 1 B(a, b)θa−1(1 − θ)b−1 ∝ θnH+a−1(1 − θ)nT+b−1 i.e. θ|x1, . . . , xN ∼ Beta(a + NH, b + NT) We’re lucky! The Beta distribution is a conjugate prior to the binomial distribution.
Beta(0.1, 0.1) Beta(1, 1) Beta(2, 3) Beta(10, 10)
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 11 / 57
Introduction and background Bayesian learning
Beta distribution: θ ∼ Beta(a, b) p(θ|a, b) =
1 B(a,b)θa−1(1 − θ)b−1
Bayesian learning: p(h|D) ∝ p(D|h)p(h); for us: p(θ|x1, . . . , xN) ∝ p(x1, . . . , xn|θ)p(θ) = θnH(1 − θ)nT 1 B(a, b)θa−1(1 − θ)b−1 ∝ θnH+a−1(1 − θ)nT+b−1 i.e. θ|x1, . . . , xN ∼ Beta(a + NH, b + NT) We’re lucky! The Beta distribution is a conjugate prior to the binomial distribution.
Beta(0.1, 0.1) Beta(1, 1) Beta(2, 3) Beta(10, 10)
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 11 / 57
Introduction and background Bayesian learning
Three sequences of four tosses:
H T H H H H H T H H H H Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 12 / 57
Introduction and background Nonparametric models
“Nonparametric” doesn’t mean “no parameters”! Rather, The number of parameters grows as more data are observed. ∞-dimensional parameter space.
Finite data ⇒ Bounded number of parameters
A nonparametric model is a Bayesian model on an ∞-dimensional parameter space.
x2 x1 µ
Parametric
p(x)
Nonparametric
(from Orbanz and Teh, NIPS 2011)
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 13 / 57
Introduction and background Nonparametric models
“Nonparametric” doesn’t mean “no parameters”! Rather, The number of parameters grows as more data are observed. ∞-dimensional parameter space.
Finite data ⇒ Bounded number of parameters
A nonparametric model is a Bayesian model on an ∞-dimensional parameter space.
x2 x1 µ
Parametric
p(x)
Nonparametric
(from Orbanz and Teh, NIPS 2011)
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 13 / 57
Finite mixture models
1
Introduction and background Bayesian learning Nonparametric models
2
Finite mixture models Bayesian models Clustering with FMMs Inference
3
Dirichlet process mixture models Going nonparametric! The Dirichlet process DP mixture models Inference
4
A little more theory. . . De Finetti’s REDUX Dirichlet process REDUX
5
The hierarchical Dirichlet process
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 14 / 57
Finite mixture models Bayesian models
Generative process. Expresses how we think the data is generated. Contains hidden variables (the subject of learning.) Specifies relations between variables. E.g. graphical models.
Knowing p(D|M, θ). . . ← “how data is generated” . . . compute p(θ|M, D) Akin to “reversing” the generative process.
p(θ)
p(D|M, θ)
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 15 / 57
Finite mixture models Bayesian models
Generative process. Expresses how we think the data is generated. Contains hidden variables (the subject of learning.) Specifies relations between variables. E.g. graphical models.
Knowing p(D|M, θ). . . ← “how data is generated” . . . compute p(θ|M, D) Akin to “reversing” the generative process.
p(θ)
p(D|M, θ) p(θ|D, M)
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 15 / 57
Finite mixture models Clustering with FMMs
Bayesian approach to clustering. Each data point is assumed to belong to
A sequence of data points x = (x1, . . . , xN) each with probability p(xi|π, θ1, . . . , θK) =
K
πk f(xi|θk) π ∈ ΠK−1
For each i: Draw a cluster assignment zi ∼ π Draw a data point xi ∼ F(θzi).
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 16 / 57
Finite mixture models Clustering with FMMs
θk = (µk, σk) xi ∼ N(µk, σk) p(xi|π, µ, σ) =
K
πk fN (xi; µk, σk)
−2 2 4 6 8 0.05 0.1 0.15 0.2 0.25 0.3 0.35
N(1, 1) N(4, .5) N(6, .7) π = (0.15, 0.25, 0.6)
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 17 / 57
Finite mixture models Clustering with FMMs
Need priors for π, θ Usually, π is given a (symmetric) Dirichlet distribution prior. θk’s are given a suitable prior H, depending on the data.
π α zi xi θk H N K
π ∼ Dir(α/K, . . . , α/K) θk|H ∼ H k = 1 . . . K zi|π ∼ π xi|θ, zi ∼ F(θzi) i = 1 . . . N
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 18 / 57
Finite mixture models Clustering with FMMs
Multivariate generalization of Beta.
(from Teh, MLSC 2008)
Dir(1, 1, 1) Dir(2, 2, 2) Dir(5, 5, 5) Dir(5, 5, 2) Dir(5, 2, 2) Dir(0.7, 0.7, 0.7)
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 19 / 57
Finite mixture models Clustering with FMMs
π ∼ Dir(α/K, . . . , α/K) iff p(π1, . . . , πK) = Γ(α)
K
πα/K−1
k
Conjugate prior to categorical/multinomial, i.e. π ∼ Dir( α
K , . . . , α K )
zi ∼ π i = 1 . . . N implies π|z1, . . . , zN ∼ Dir α K + n1, α K + n2, . . . , α K + nK
p(z1, . . . , zN|α) = Γ(α) Γ(α + N)
K
Γ(nk + α/K) Γ(α/K) and p(zi = k|z(−i), α) = n(−i)
k
+ α/K α + N − 1
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 20 / 57
Finite mixture models Inference
p(z|x, α, H) = p(x|z, H)p(z|α)
where
p(z|α) = Γ(α) Γ(α + N)
K
Γ(nk + α/K) Γ(α/K) p(x|z, H) =
N
p(xi|θzi)
K
H(θk)
π α zi xi θk H N K
p(π, θ|x, α, H) =
K
p(θk|x, H)
⇒ No analytic procedure.
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 21 / 57
Finite mixture models Inference
p(z|x, α, H) = p(x|z, H)p(z|α)
where
p(z|α) = Γ(α) Γ(α + N)
K
Γ(nk + α/K) Γ(α/K) p(x|z, H) =
N
p(xi|θzi)
K
H(θk)
π α zi xi θk H N K
p(π, θ|x, α, H) =
K
p(θk|x, H)
⇒ No analytic procedure.
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 21 / 57
Finite mixture models Inference
p(z|x, α, H) = p(x|z, H)p(z|α)
where
p(z|α) = Γ(α) Γ(α + N)
K
Γ(nk + α/K) Γ(α/K) p(x|z, H) =
N
p(xi|θzi)
K
H(θk)
π α zi xi θk H N K
p(π, θ|x, α, H) =
K
p(θk|x, H)
⇒ No analytic procedure.
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 21 / 57
Finite mixture models Inference
p(z|x, α, H) = p(x|z, H)p(z|α)
where
p(z|α) = Γ(α) Γ(α + N)
K
Γ(nk + α/K) Γ(α/K) p(x|z, H) =
N
p(xi|θzi)
K
H(θk)
π α zi xi θk H N K
p(π, θ|x, α, H) =
K
p(θk|x, H)
⇒ No analytic procedure.
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 21 / 57
Finite mixture models Inference
p(z|x, α, H) = p(x|z, H)p(z|α)
where
p(z|α) = Γ(α) Γ(α + N)
K
Γ(nk + α/K) Γ(α/K) p(x|z, H) =
N
p(xi|θzi)
K
H(θk)
π α zi xi θk H N K
p(π, θ|x, α, H) =
K
p(θk|x, H)
⇒ No analytic procedure.
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 21 / 57
Finite mixture models Inference
No exact inference because of the unknown clusters identifiers z
Widely used, but we will focus on MCMC because of the connection with Dirichlet Process.
Markov chain Monte Carlo (MCMC) integration method Set of random variables v = {v1, v2, . . . , vM}. We want to compute p(v). Randomly initialize their values. At each iteration, sample a variable vi and hold the rest constant: v(t)
i
∼ p(vi|v(t−1)
j
, j = i) ← usually tractable v(t)
j
= v(t−1)
j
This creates a Markov chain with p(v) as equilibrium distribution.
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 22 / 57
Finite mixture models Inference
State variables: z1, . . . , zN, θ1, . . . , θK, π. Conditional distributions: p(π|z, θ) = Dir α K + n1, . . . , α K + nk
p(xi|θk) = H(θk)
Fθk(xi) p(zi = k|π, θ, x) ∝ p(zi = k|πk)p(xi|zi = k, θk) = πk Fθk(xi) We can avoid sampling π: p(zi = k|z−i, θ, x) ∝ p(xi|θk)p(zi = k|z−i) ∝ Fθk(xi)
k
+ α/K
α zi xi θk H N K
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 23 / 57
Finite mixture models Inference
Normal-inverse Wishart prior on θk = (µk, Σk), conjugate to normal distribution. Σk ∼ W(ν, ∆) µk ∼ N(ϑ, Σk/κ)
log p(x | !, ") = −539.17 log p(x | !, ") = −404.18 log p(x | !, ") = −397.40
T=2 T=10 T=40
(from Sudderth, 2008) Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 24 / 57
Finite mixture models Inference
π α zi xi θk H N K
π ∼ Dir(α) θk ∼ H zi ∼ π xi ∼ F(θzi)
G α ¯ θi xi N H
2
θ
1
θ
2
x
1
x
G(θ) =
K
πkδ(θ, θk) θk ∼ H π ∼ Dir(α) ¯ θi ∼ G xi ∼ F(¯ θi)
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 25 / 57
Dirichlet process mixture models
1
Introduction and background Bayesian learning Nonparametric models
2
Finite mixture models Bayesian models Clustering with FMMs Inference
3
Dirichlet process mixture models Going nonparametric! The Dirichlet process DP mixture models Inference
4
A little more theory. . . De Finetti’s REDUX Dirichlet process REDUX
5
The hierarchical Dirichlet process
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 26 / 57
Dirichlet process mixture models Going nonparametric!
What if K is unknown? How many parameters?
Let’s use ∞ parameters! We want something of the kind: p(xi|π, θ1, θ2, . . .) =
∞
πk p(xi|θk)
We’d like the nice conjugancy properties of Dirichlet to carry on. . . Is there such a thing, the ∞ limit of a Dirichlet?
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 27 / 57
Dirichlet process mixture models Going nonparametric!
What if K is unknown? How many parameters?
Let’s use ∞ parameters! We want something of the kind: p(xi|π, θ1, θ2, . . .) =
∞
πk p(xi|θk)
We’d like the nice conjugancy properties of Dirichlet to carry on. . . Is there such a thing, the ∞ limit of a Dirichlet?
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 27 / 57
Dirichlet process mixture models Going nonparametric!
What if K is unknown? How many parameters?
Let’s use ∞ parameters! We want something of the kind: p(xi|π, θ1, θ2, . . .) =
∞
πk p(xi|θk)
We’d like the nice conjugancy properties of Dirichlet to carry on. . . Is there such a thing, the ∞ limit of a Dirichlet?
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 27 / 57
Dirichlet process mixture models The Dirichlet process
Think µ for a Gaussian. . . . . . but in the space of probability measures.
Controls the dispersion around the mean H.
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 28 / 57
Dirichlet process mixture models The Dirichlet process
A draw G ∼ DP(α, H) is an infinite discrete probability measure: G(θ) =
∞
πkδ(θ, θk), where θk ∼ H, and π is sampled from a “stick-breaking prior.”
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5(from Orbanz & Teh, 2008)
G Θ
Imagine a stick of length one. For k = 1 . . . ∞, do the following: Break the stick at a point drawn from Beta(1, α). Let πk be such value and keep the remainder of the stick. Following standard convention, we write π ∼ GEM(α). (Details in second part of talk)
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 29 / 57
Dirichlet process mixture models The Dirichlet process
A draw G ∼ DP(α, H) is an infinite discrete probability measure: G(θ) =
∞
πkδ(θ, θk), where θk ∼ H, and π is sampled from a “stick-breaking prior.”
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5(from Orbanz & Teh, 2008)
G Θ
Imagine a stick of length one. For k = 1 . . . ∞, do the following: Break the stick at a point drawn from Beta(1, α). Let πk be such value and keep the remainder of the stick. Following standard convention, we write π ∼ GEM(α). (Details in second part of talk)
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 29 / 57
Dirichlet process mixture models The Dirichlet process
β1
β2 β3 β4 β5 1−β1 1−β2 1−β3 1−β4
5 10 15 20 0.1 0.2 0.3 0.4 0.5 k !k 5 10 15 20 0.1 0.2 0.3 0.4 0.5 k !k 5 10 15 20 0.1 0.2 0.3 0.4 0.5 k !k 5 10 15 20 0.1 0.2 0.3 0.4 0.5 k !k
α = 1 α = 5
(from Sudderth, 2008)
Small α ⇒ lots of weight assigned to few θk’s. ⇒ G will be very different from base measure H. Large α ⇒ weights equally distributed on θk’s. ⇒ G will resemble the base measure H.
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 30 / 57
Dirichlet process mixture models The Dirichlet process (from Navarro et al., 2005)
H G
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 31 / 57
Dirichlet process mixture models DP mixture models
Let’s use G ∼ DP(α, H) to build an infinite mixture model.
G α ¯ θi xi N H
2
θ
1
θ
2
x
1
x
G ∼ DP(α, H) ¯ θi ∼ G xi ∼ F¯
θi
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 32 / 57
Dirichlet process mixture models DP mixture models
Using explicit clusters indicators z = (z1, z2, . . . , zN).
π α zi xi θk H N ∞
π ∼ GEM(α) θk ∼ H k = 1, . . . , ∞ zi ∼ π xi ∼ Fθzi i = 1, . . . , N
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 33 / 57
Dirichlet process mixture models DP mixture models
So far, we only have a generative model. Is there a “nice” conjugancy property to use during inference? It turns out (details in part 2) that, if π ∼ GEM(α) zi ∼ π the distribution p(z|α) =
as the Chinese restaurant process (CRP).
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 34 / 57
Dirichlet process mixture models DP mixture models
Restaurant with ∞ tables with ∞ capacity.
1 2 3 4
zi = table at which customer i sits upon entering. Customer 1 sits at table 1 Customer 2 sits:
at table 1 w. prob ∝ 1 at table 2 w. prob. ∝ α
Customer i sits:
at table k w. prob. ∝ nk (# ppl at k) at new table w. prob. ∝ α
p(zi = k) = nk α + i − 1 p(zi = knew) = α α + i − 1
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 35 / 57
Dirichlet process mixture models DP mixture models
Restaurant with ∞ tables with ∞ capacity.
1 2 3 4
1
zi = table at which customer i sits upon entering. Customer 1 sits at table 1 Customer 2 sits:
at table 1 w. prob ∝ 1 at table 2 w. prob. ∝ α
Customer i sits:
at table k w. prob. ∝ nk (# ppl at k) at new table w. prob. ∝ α
p(zi = k) = nk α + i − 1 p(zi = knew) = α α + i − 1
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 35 / 57
Dirichlet process mixture models DP mixture models
Restaurant with ∞ tables with ∞ capacity.
1 2 3 4
1 2
zi = table at which customer i sits upon entering. Customer 1 sits at table 1 Customer 2 sits:
at table 1 w. prob ∝ 1 at table 2 w. prob. ∝ α
Customer i sits:
at table k w. prob. ∝ nk (# ppl at k) at new table w. prob. ∝ α
p(zi = k) = nk α + i − 1 p(zi = knew) = α α + i − 1
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 35 / 57
Dirichlet process mixture models DP mixture models
Restaurant with ∞ tables with ∞ capacity.
1 2 3 4
1 2 3
zi = table at which customer i sits upon entering. Customer 1 sits at table 1 Customer 2 sits:
at table 1 w. prob ∝ 1 at table 2 w. prob. ∝ α
Customer i sits:
at table k w. prob. ∝ nk (# ppl at k) at new table w. prob. ∝ α
p(zi = k) = nk α + i − 1 p(zi = knew) = α α + i − 1
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 35 / 57
Dirichlet process mixture models DP mixture models
Restaurant with ∞ tables with ∞ capacity.
1 2 3 4
1 2 3 4 5 6 7
zi = table at which customer i sits upon entering. Customer 1 sits at table 1 Customer 2 sits:
at table 1 w. prob ∝ 1 at table 2 w. prob. ∝ α
Customer i sits:
at table k w. prob. ∝ nk (# ppl at k) at new table w. prob. ∝ α
p(zi = k) = nk α + i − 1 p(zi = knew) = α α + i − 1
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 35 / 57
Dirichlet process mixture models Inference
Via the CRP , we can find the conditional distributions for Gibbs sampling. State: θ1, . . . , θk, z. p(θk|x, z) ∝ p(θk)
p(xi|θk) = h(θk)f(xi|θk) p(zi = k|z−i, θ, x) ∝ p(xi|θk)p(zi = k|z−i) ∝
k
f(xi|θk) exising k α f(xi|θk) new k
π α zi xi θk H N ∞
K grows as more data are observed, asymptotically as α log n.
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 36 / 57
Dirichlet process mixture models Inference
T=2 T=10 T=40
(from Sudderth, 2008) log p(x | !, ") = −399.82 log p(x | !, ") = −399.08 log p(x | !, ") = −396.71 Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 37 / 57
Dirichlet process mixture models Inference
END OF FIRST PART.
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 38 / 57
A little more theory. . .
1
Introduction and background Bayesian learning Nonparametric models
2
Finite mixture models Bayesian models Clustering with FMMs Inference
3
Dirichlet process mixture models Going nonparametric! The Dirichlet process DP mixture models Inference
4
A little more theory. . . De Finetti’s REDUX Dirichlet process REDUX
5
The hierarchical Dirichlet process
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 39 / 57
A little more theory. . . De Finetti’s REDUX
A sequence of random variables (x1, x2, . . .) is infinitely exchangeable if for all N, there exists a random variable θ and a probability measure p on it such that p(x1, x2, . . . , xN) =
p(θ)
N
p(xi|θ) dθ The theorem wouldn’t be true if θ’s range is limited to Euclidean’s vector spaces. We need to allow θ to range over measures. ⇒ p(θ) is a distribution on measures, like the DP .
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 40 / 57
A little more theory. . . De Finetti’s REDUX
A sequence of random variables (x1, x2, . . .) is infinitely exchangeable if for all N, there exists a random variable θ and a probability measure p on it such that p(x1, x2, . . . , xN) =
p(θ)
N
p(xi|θ) dθ The theorem wouldn’t be true if θ’s range is limited to Euclidean’s vector spaces. We need to allow θ to range over measures. ⇒ p(θ) is a distribution on measures, like the DP .
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 40 / 57
A little more theory. . . Dirichlet process REDUX
Let Θ be a measurable space (of parameters), H be a probability distribution
random probability measure G over Θ, such that for any finite partition (T1, . . . , Tk) of Θ, we have (G(T1), . . . , G(TK)) ∼ Dir(αH(T1), . . . , αH(TK)).
1
2
3
1
2
3
4
5
Θ
(from Sudderth, 2008)
E[G(Tk)] = H(Tk)
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 41 / 57
A little more theory. . . Dirichlet process REDUX
Via the conjugancy of the Dirichlet distribution, we know that: p(G(T1), . . . , G(TK)|¯ θ ∈ Tk) = Dir(αH(T1), . . . , αH(Tk) + 1, . . . , αH(TK)) Formalizing this analysis, we obtain that if G ∼ DP(α, H) ¯ θi ∼ G i = 1, . . . , N, the posterior measure also follows a Dirichlet process: p(G|¯ θ1, . . . , ¯ θN, α, H) = DP
1 α + N
N
δ¯
θi
spaces.
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 42 / 57
A little more theory. . . Dirichlet process REDUX
Sethuraman (1995): equivalent definition of the Dirichlet process, through the stick-breaking construction. G(θ) ∼ DP(α, H) iff G(θ) =
∞
πkδ(θ, θk), where θ ∼ H, and πk = βk
k−1
(1 − βl) βl ∼ Beta(1, α)
β1
β2 β3 β4 β5 1−β1 1−β2 1−β3 1−β4
5 10 15 20 0.1 0.2 0.3 0.4 0.5 k !k 5 10 15 20 0.1 0.2 0.3 0.4 0.5 k !k 5 10 15 20 0.1 0.2 0.3 0.4 0.5 k !k 5 10 15 20 0.1 0.2 0.3 0.4 0.5 k !k
α = 1 α = 5
(from Sudderth, 2008) Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 43 / 57
A little more theory. . . Dirichlet process REDUX
We know that (posterior): G ∼ DP(α, H) θ|G ∼ G ⇔ θ ∼ H G|θ ∼ DP
α+1
(G(Θ), G(Θ \ θ)) ∼ Dir
α + 1 (θ), (α + 1)αH + δθ α + 1 (Θ \ θ)
G has point mass located at θ: G = βδθ + (1 − β)G′ β ∼ Beta(1, α) and G′ is the renormalized probability measure with the point mass removedÉ What is G′?
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 44 / 57
A little more theory. . . Dirichlet process REDUX
We know that (posterior): G ∼ DP(α, H) θ|G ∼ G ⇔ θ ∼ H G|θ ∼ DP
α+1
(G(Θ), G(Θ \ θ)) ∼ Dir
α + 1 (θ), (α + 1)αH + δθ α + 1 (Θ \ θ)
G has point mass located at θ: G = βδθ + (1 − β)G′ β ∼ Beta(1, α) and G′ is the renormalized probability measure with the point mass removedÉ What is G′?
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 44 / 57
A little more theory. . . Dirichlet process REDUX
We know that (posterior): G ∼ DP(α, H) θ|G ∼ G ⇔ θ ∼ H G|θ ∼ DP
α+1
(G(Θ), G(Θ \ θ)) ∼ Dir
α + 1 (θ), (α + 1)αH + δθ α + 1 (Θ \ θ)
G has point mass located at θ: G = βδθ + (1 − β)G′ β ∼ Beta(1, α) and G′ is the renormalized probability measure with the point mass removedÉ What is G′?
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 44 / 57
A little more theory. . . Dirichlet process REDUX
We know that (posterior): G ∼ DP(α, H) θ|G ∼ G ⇔ θ ∼ H G|θ ∼ DP
α+1
(G(Θ), G(Θ \ θ)) ∼ Dir
α + 1 (θ), (α + 1)αH + δθ α + 1 (Θ \ θ)
G has point mass located at θ: G = βδθ + (1 − β)G′ β ∼ Beta(1, α) and G′ is the renormalized probability measure with the point mass removedÉ What is G′?
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 44 / 57
A little more theory. . . Dirichlet process REDUX
We have: G ∼ DP(α, H) θ|G ∼ G ⇒ θ ∼ H G|θ ∼ DP
α+1
= βδθ + (1 − β)G′ β ∼ Beta(1, α) Consider a further partition θ, T1, . . . , TK) of Θ: (G(θ), G(T1), . . . , G(TK)) = (β, (1 − β)G′(T1), . . . , (1 − β)G′(TK)) ∼ Dir(1, αH(T1), . . . , αH(TK)) Using the agglomerative/decimative property of Dirichlet, we get (G′(T1), . . . , G′(TK)) ∼ Dir(αH(T1), . . . , αH(TK)) G′ ∼ DP(α, H)
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 45 / 57
A little more theory. . . Dirichlet process REDUX
We have: G ∼ DP(α, H) θ|G ∼ G ⇒ θ ∼ H G|θ ∼ DP
α+1
= βδθ + (1 − β)G′ β ∼ Beta(1, α) Consider a further partition θ, T1, . . . , TK) of Θ: (G(θ), G(T1), . . . , G(TK)) = (β, (1 − β)G′(T1), . . . , (1 − β)G′(TK)) ∼ Dir(1, αH(T1), . . . , αH(TK)) Using the agglomerative/decimative property of Dirichlet, we get (G′(T1), . . . , G′(TK)) ∼ Dir(αH(T1), . . . , αH(TK)) G′ ∼ DP(α, H)
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 45 / 57
A little more theory. . . Dirichlet process REDUX
We have: G ∼ DP(α, H) θ|G ∼ G ⇒ θ ∼ H G|θ ∼ DP
α+1
= βδθ + (1 − β)G′ β ∼ Beta(1, α) Consider a further partition θ, T1, . . . , TK) of Θ: (G(θ), G(T1), . . . , G(TK)) = (β, (1 − β)G′(T1), . . . , (1 − β)G′(TK)) ∼ Dir(1, αH(T1), . . . , αH(TK)) Using the agglomerative/decimative property of Dirichlet, we get (G′(T1), . . . , G′(TK)) ∼ Dir(αH(T1), . . . , αH(TK)) G′ ∼ DP(α, H)
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 45 / 57
A little more theory. . . Dirichlet process REDUX
Therefore, G ∼ DP(α, H) G = β1δθ1 + (1 − β1)G1 G = β1δθ1 + (1 − β1)(β2δθ2 + (1 − β2)G2) . . . G =
∞
πkδθk where πk = βk
k−1
(1 − βl) βl ∼ Beta(1, α), which is the stick-breaking construction.
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 46 / 57
A little more theory. . . Dirichlet process REDUX
Once again, we start from the posterior: p(G|¯ θ1, . . . , ¯ θN, α, H) = DP
1 α + N
N
δ¯
θi
E
θ1, . . . , ¯ θN, α, H
1 α + N
N
δ¯
θi(T)
θi}N
i=1 ∼ G take identical values.
Assume K ≤ N unique values: E
θ1, . . . , ¯ θN, α, H
1 α + N
K
Nkδ¯
θi(T)
Bayesian Nonparametrics February 18, 2013 47 / 57
A little more theory. . . Dirichlet process REDUX
Once again, we start from the posterior: p(G|¯ θ1, . . . , ¯ θN, α, H) = DP
1 α + N
N
δ¯
θi
E
θ1, . . . , ¯ θN, α, H
1 α + N
N
δ¯
θi(T)
θi}N
i=1 ∼ G take identical values.
Assume K ≤ N unique values: E
θ1, . . . , ¯ θN, α, H
1 α + N
K
Nkδ¯
θi(T)
Bayesian Nonparametrics February 18, 2013 47 / 57
A little more theory. . . Dirichlet process REDUX
Once again, we start from the posterior: p(G|¯ θ1, . . . , ¯ θN, α, H) = DP
1 α + N
N
δ¯
θi
E
θ1, . . . , ¯ θN, α, H
1 α + N
N
δ¯
θi(T)
θi}N
i=1 ∼ G take identical values.
Assume K ≤ N unique values: E
θ1, . . . , ¯ θN, α, H
1 α + N
K
Nkδ¯
θi(T)
Bayesian Nonparametrics February 18, 2013 47 / 57
A little more theory. . . Dirichlet process REDUX
A bit informally. . . Let Tk contain θk and shrink it arbitrarily. To the limit, we have that p(¯ θN+1 = θ|¯ θ1, . . . , ¯ θN, α, H) = 1 α + N
K
Nkδ¯
θi(θ)
An urn contains one ball for each preceding observation, with a different color for each distinct θk. For each ball drawn from the urn, we replace that ball and add one more ball of the same color. There is a special “weighted” ball which is drawn with probability proportional to α normal balls, and has a new, previously unseen color θ¯
This allows to sample from a Dirichlet process without explicitly constructing the underlying G ∼ DP(α, H).
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 48 / 57
A little more theory. . . Dirichlet process REDUX
A bit informally. . . Let Tk contain θk and shrink it arbitrarily. To the limit, we have that p(¯ θN+1 = θ|¯ θ1, . . . , ¯ θN, α, H) = 1 α + N
K
Nkδ¯
θi(θ)
An urn contains one ball for each preceding observation, with a different color for each distinct θk. For each ball drawn from the urn, we replace that ball and add one more ball of the same color. There is a special “weighted” ball which is drawn with probability proportional to α normal balls, and has a new, previously unseen color θ¯
This allows to sample from a Dirichlet process without explicitly constructing the underlying G ∼ DP(α, H).
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 48 / 57
A little more theory. . . Dirichlet process REDUX
The Dirichlet process implicitly partitions the data. Let zi indicate the subset (cluster) associated with the i6th observation, i.e. ¯ θi = θzi. From the previous slide, we get: p(zN+1 = z|z1, . . . , zN, α) = 1 α + N
k) +
K
Nkδ(z, k)
1 2 3 4
1 2 3 4 5 6 7
It induces an exchangeable distribution on partitions. The joint distribution is invariant to the order the observations are assigned to clusters.
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 49 / 57
A little more theory. . . Dirichlet process REDUX
The Dirichlet process implicitly partitions the data. Let zi indicate the subset (cluster) associated with the i6th observation, i.e. ¯ θi = θzi. From the previous slide, we get: p(zN+1 = z|z1, . . . , zN, α) = 1 α + N
k) +
K
Nkδ(z, k)
1 2 3 4
1 2 3 4 5 6 7
It induces an exchangeable distribution on partitions. The joint distribution is invariant to the order the observations are assigned to clusters.
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 49 / 57
A little more theory. . . Dirichlet process REDUX
These representations are all equivalent! Posterior DP: G ∼ DP(α, H) θ|G ∼ G ⇔ θ ∼ H G|θ ∼ DP
α+1
G(θ) =
∞
πkδ(θ, θk) θk ∼ H π ∼ GEM(α) Generalized Polya urn p(¯ θN+1 = θ|¯ θ1, . . . , ¯ θN, α, H) = 1 α + N
K
Nkδ¯
θi(θ)
p(zN+1 = z|z1, . . . , zN, α) = 1 α + N
k) +
K
Nkδ(z, k)
Bayesian Nonparametrics February 18, 2013 50 / 57
The hierarchical Dirichlet process
1
Introduction and background Bayesian learning Nonparametric models
2
Finite mixture models Bayesian models Clustering with FMMs Inference
3
Dirichlet process mixture models Going nonparametric! The Dirichlet process DP mixture models Inference
4
A little more theory. . . De Finetti’s REDUX Dirichlet process REDUX
5
The hierarchical Dirichlet process
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 51 / 57
The hierarchical Dirichlet process
Let’s use G ∼ DP(α, H) to build an infinite mixture model.
G α ¯ θi xi N H
2
θ
1
θ
2
x
1
x
G ∼ DP(α, H) ¯ θi ∼ G xi ∼ F¯
θi
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 52 / 57
The hierarchical Dirichlet process
Dataset with J related groups x = (x1, . . . , xJ). xj = (xj1, . . . , xjNj) contains Nj observations. We want these group to share clusters (transfer knowledge.)
m
1
x2 xmj
j
x1j
xij
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 53 / 57
The hierarchical Dirichlet process
Global probability measure G0 ∼ DP(γ, H)
Defines a set of shared clusters.
G0(θ) =
∞
βkδ(θ, θk) θk ∼ H β ∼ GEM(γ) Group specific distributions Gj ∼ DP(α, G0) Gj(θ) =
∞
˜ πkδ(θ, ˜ θk) ˜ θt ∼ G0 ˜ π ∼ GEM(γ)
Note G0 as base measure! Each local cluster has parameter ˜ θk copied from some global cluster
For each group, data points are generated according to: ¯ θji ∼ Gj xji ∼ F(˜ θji)
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 54 / 57
The hierarchical Dirichlet process
Global probability measure G0 ∼ DP(γ, H)
Defines a set of shared clusters.
G0(θ) =
∞
βkδ(θ, θk) θk ∼ H β ∼ GEM(γ) Group specific distributions Gj ∼ DP(α, G0) Gj(θ) =
∞
˜ πkδ(θ, ˜ θk) ˜ θt ∼ G0 ˜ π ∼ GEM(γ)
Note G0 as base measure! Each local cluster has parameter ˜ θk copied from some global cluster
For each group, data points are generated according to: ¯ θji ∼ Gj xji ∼ F(˜ θji)
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 54 / 57
The hierarchical Dirichlet process
Global probability measure G0 ∼ DP(γ, H)
Defines a set of shared clusters.
G0(θ) =
∞
βkδ(θ, θk) θk ∼ H β ∼ GEM(γ) Group specific distributions Gj ∼ DP(α, G0) Gj(θ) =
∞
˜ πkδ(θ, ˜ θk) ˜ θt ∼ G0 ˜ π ∼ GEM(γ)
Note G0 as base measure! Each local cluster has parameter ˜ θk copied from some global cluster
For each group, data points are generated according to: ¯ θji ∼ Gj xji ∼ F(˜ θji)
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 54 / 57
The hierarchical Dirichlet process
Gj α ¯ θji xji N H G0 γ J
J
12
θ
11
θ
22
θ
21
θ G
1
G
2
G H
12
x
11
x
21
x
22
x
G0 ∼ DP(γ, H) Gj ∼ DP(α, G0) ¯ θji ∼ Gj xji ∼ F ¯
θji
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 55 / 57
The hierarchical Dirichlet process
Gj(θ) =
∞
˜ πkδ(θ, ˜ θk) ˜ θt ∼ G0 ˜ π ∼ GEM(γ) G0 is discrete. Each group might create several copies of the same global cluster. Aggregating the probabilities: Gj(θ) =
∞
πkδ(θ, ˜ θk) πjk =
˜ πjt It can be shown that π ∼ DP(α, β).
β = (β1, β2, . . .): average weight of local clusters. π = (π1, π2, . . .) group-specific weights. α controls the variability of clusters weight across groups.
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 56 / 57
The hierarchical Dirichlet process
THANK YOU. QUESTIONS?
Alessandro Panella (CS Dept. - UIC) Bayesian Nonparametrics February 18, 2013 57 / 57
