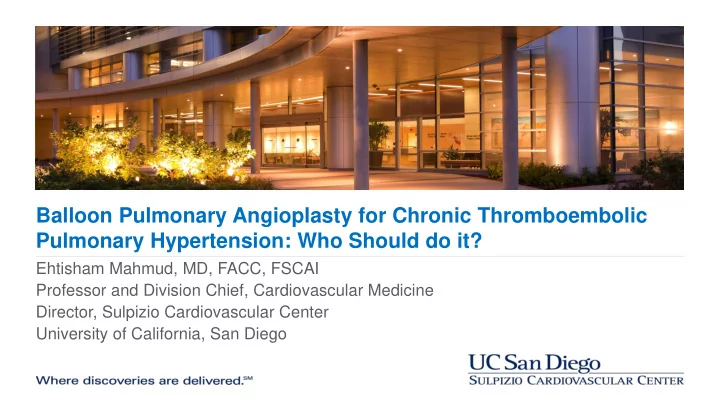

Balloon Pulmonary Angioplasty for Chronic Thromboembolic Pulmonary Hypertension: Who Should do it?

Disclosures

• No relevant disclosures

Surgical Principles

• Well established1,2

– Median sternotomy – Cardiopulmonary bypass – Circulatory arrest – Bilateral endarterectomy – Identification of the plane – Complete endarterectomy

1-Jamieson et al. Cur Prog Surg 2000, 37:165-252 2-Madani et al. Op Tech in Tho & Card Surg 2006, 11:264-274

UCSD PTE: Pre & Post-op Hemodynamics (N>3000)

200 400 600 800 1000 PVR (dynes/sec/cm-5) 897 245 10 20 30 40 50 Mean PA (mm Hg) 45.9 26 20 40 60 80 Sys PA (mm Hg) 79 45 2 4 6 C.O. (Lit/min) 3.6 5.8 Pre-op Post-op

Surgical Classification of CTEPH

Courtesy Irene Lang, MD

Balloon Pulmonary Angioplasty

• Circulation 2001;103:10-13

CHEST 1988 94:1249-53

• First case report 1988
• First Case Series 2001
• 18 Patients

mPAP 43.0+/-12.1 to 33.7+/-10.2 mmHg (P 0.007) vessels remained patent on follow-up

• (61%) → RPE
• (17%) → Mechanical Ventilation
• (5.6%)→ Mortality

Circ Cardiovasc Interv. 2012;5:748-755.

• 68 patients – 255 sessions
• 4 (2-8) sessions per

patient

• Vascular injury 60%
• 6% required mechanical

ventilation

• 1 death (1.5% mortality)

Okayama Experience with BPA for CTEPH

Pre and Post BPA Left Lower Lobe (A8,9,10): Pressure Gradient Based

A10 A9 A8

Pre and Post BPA Left Lower Lobe (A8,9,10): Pressure Gradient Based

A10 A9 A8 A8: BPA with 2.0 and 3.0 Maverick A9: Pd/Pa based with improvement from 0.40 to 0.52 to 0.82 with 2.0 to 3.0 to 4.0 balloons A10: BPA with 2.0 and 3.0 balloons

Pre and Post BPA Left Lower Lobe (A8,9,10): Pressure Gradient Based

A10 A9 A8

Image Guided Treatment: ?IVUS or OCT

Lang et al. Eur Respir Rev 2017; 26: 160119

Physiology Guided Treatment: Pd/Pa

Inami et al. J Am Coll Cardiol Intv 2014;7:1297–306

Mahmud et al. J Am Coll Cardiol 2018;71:2468-86

UC San Diego Equipment and Approach (2018)

• Single plane angiography (biplane for diagnostic)
• 8-9F venous access sheath: femoral rather than internal jugular
• 6-7F long sheath telescoped through 9F introducing sheath
• 6F guide catheter: multipurpose, Judkins right, Hockeystick, EBU
• Anticoagulation: heparin with ACT 200-250s
• Contrast: 50/50
• 0.014” guide wires; no polymer jacketed wires
• 2-5 mm compliant; NC or Sculpting balloon catheters for recalcitrant
• IVUS and OCT rarely used
• Increasingly using resting pressure gradients (Pd/Pa) to target and optimize

Mahmud et al. Interv Cardiol Clin 2018;7:103-117

Tools for Balloon Pulmonary Angioplasty

Yes

• Pressure wire/catheter
• Sculpting/scoring balloons

No

• Polymer jacketed wires
• Cutting balloon

BPA Complications

– Hemoptysis

• Early Signs

– New Cough – Hypoxia

• Vascular injury

– Wire – Balloon – Contrast

• Imaging

– Vascular leak or stain. – New consolidation in treated areas

– Reperfusion pulmonary edema – Radiation Injury

Management of Acute Hemoptysis During BPA

• 1. Immediate balloon tamponade of the injured vessel
• 2. Oxygenation management including oropharyngeal suctioning, supplemental
• xygen, non-invasive positive pressure ventilation (mechanical ventilation/ECMO)
• 3. Cessation/reversal of anticoagulation
• 4. Repeat prolonged balloon tamponade as necessary
• 5. For persistent pulmonary hemorrhage consider bailout transcatheter coil

embolization, covered stent implantation, and/or gelfoam/adipose injection

Mahmud et al. Interv Cardiol Clin 2018;7:103-117

Approach to Pouch Occlusions: Antegrade Wire Escalation

Be Conservative!!

Restoration of Flow to Pouch Occlusions Works: One Year Later

AP LAO 30

Long-term Outcomes after BPA for CTEPH

Inami et al. Circulation 2016;134:2030–2032

Japan: Clinical and Hemodynamic Data

mPAP (mmHg) p<0.00 1 p<0.001 Before After Follow-up

60 50 40 30 20 43.2±11.0 24.3±6.4 22.5±5.4

p<0.001 p=0.002 Before After Follow-up

4.0 3.5 3.0 2.5 2.0

Cardiac index (L/min/m2)

2.6±0.8 2.9±0.7 2.8±0.6

p<0.001 p<0.001 Before After Follow-up

1500 1250 1000 500 250

PVR (dyne/sec/cm5)

750

853.7±450.7 359.5±222.6 288.1±194.5

WHO functional class

Ⅳ Ⅲ Ⅱ Ⅰ

73 Before After Follow-up 1 1 192 34 6 56 181 130 27 46 p<0.001 p<0.001

WHO-FC Cardiac Index mPAP PVR

p<0.001 p=0.002 p=0.002 p=0.002

Ogawa A et al. Circulation Cardiovasc Outcomes 2017 Nov;10(11). pii: e004029

UC San Diego BPA Registry

Pre-BPA Post-BPA P Value RA (mmHg) 7.9 ± 3.2 PA systolic (mmHg) 74.6 ± 12.9 PA diastolic (mmHg) 24.9 ± 4.9 PA mean (mmHg) 43.4 ± 6.1 PCWP (mmHg) 9.7 ± 3.4 Cardiac output (L/min) 5.7 ± 1.7 Cardiac index (L/m/m2) 2.9 ± 0.7 PVR (WU) 6.4 ± 2.7 Hemodynamics

*For subjects with baseline mPAP >30 and ≥3 BPA procedures (n=28)

UC San Diego BPA Registry

Pre-BPA Post-BPA P Value RA (mmHg) 7.9 ± 3.2 5.5 ± 2.3 <0.01 PA systolic (mmHg) 74.6 ± 12.9 56.1 ± 13.2 <0.01 PA diastolic (mmHg) 24.9 ± 4.9 17.5 ± 4.4 <0.01 PA mean (mmHg) 43.4 ± 6.1 32.5 ± 6.4 <0.01 PCWP (mmHg) 9.7 ± 3.4 9.0 ± 3.4 <0.01 Cardiac output (L/min) 5.7 ± 1.7 5.9 ± 1.2 0.27 Cardiac index (L/m/m2) 2.9 ± 0.7 3.1 ± 0.5 0.08 PVR (WU) 6.4 ± 2.7 4.0 ± 1.7 <0.01 Hemodynamics

*For subjects with baseline mPAP >30 and ≥3 BPA procedures (n=28)

UC San Diego BPA Registry

N = 252 sessions (60 subjects) Hemoptysis 23 (9.1%) Lung vascular injury 9 (3.6%) Reperfusion lung edema Non-invasive PPV Intubation Acute kidney injury Inpatient death Adverse Events

UC San Diego BPA Registry

WHO Functional Class

0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% Pre-BPA Post-BPA WHO class I WHO class II WHO class III WHO class IV

P <0.01

*For subjects with mPAP >30 and ≥3 BPA procedures

UC San Diego BPA Registry

6-Minute Walk Distance

*For subjects with mPAP >30 and ≥3 2 BPA procedures 361 420 100 200 300 400 500 600 Pre-BPA Post-BPA Meters

P <0.01

Conclusions

• BPA is a feasible therapeutic option for CTEPH patients with:
• -inoperable disease
• -segmental/subsegmental disease
• -post PTE residual disease
• BPA should be performed as a part of a multidisciplinary CTEPH team
• BPA should be physiology based: perfusion scans and invasive hemodynamic measurements
• Future investigation for BPA to focus on:
• -optimal patient selection and acquisition of objective adjudicated data
• -standardized technique and procedural endpoints
• -long-term patency and clinical success
• -registries and randomized controlled trials
