AVERIST: An Algorithmic VERifier for STability AVERIST ARCHITECTURE AVERIST architecture Linear PSS expressions AVERIST State-space partition Weighted ABSTRACTION MODEL-CHECKING Graph analysis graph Graph construction Counterexample

slide-1
SLIDE 1

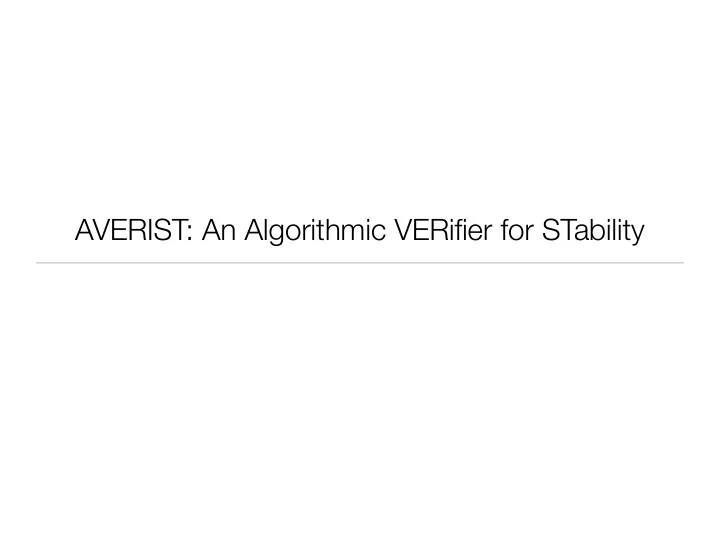

AVERIST: An Algorithmic VERifier for STability

slide-2
SLIDE 2

AVERIST ARCHITECTURE

slide-3
SLIDE 3

AVERIST architecture

AVERIST

ABSTRACTION State-space partition Graph construction MODEL-CHECKING Graph analysis Weighted graph PSS Linear expressions Stable Counterexample

slide-4
SLIDE 4

Model-checking

1 1 1 2 2 3 1 1 2 1 1 1 2 2 1 2 1

Abstract counterexample H stable

slide-5
SLIDE 5

Interactive dialog

slide-6
SLIDE 6

ANALYSIS RESULTS

slide-7
SLIDE 7

Stable PSS

x y quad1 quad2 quad3 quad4

slide-8
SLIDE 8

Stable PSS

Linear expressions Polyhedral switched system x=0, y=0 STABILITY ANSWER = Stable

AVERIST

slide-9
SLIDE 9

Unstable PSS - Blow-up

x y quad1 quad2 quad3 quad4

slide-10
SLIDE 10

Unstable PSS

Linear expressions Polyhedral switched system x=0, y=0 STABILITY ANSWER = Unstable (blow-up)

AVERIST

slide-11
SLIDE 11

Unstable PSS - Counterexample

x y quad1 quad2 quad3 quad4

slide-12
SLIDE 12

Unstable PSS - Counterexample

AVERIST

Linear expressions Polyhedral switched system x=0, y=0 [('quad2', 'Constraint_System {x1==0, -x0>0}’), ('quad3', 'Constraint_System {x0==0, -x1>0}’), ('quad1', 'Constraint_System {x1==0, x0>0}’), ('quad1', 'Constraint_System {x0==0, x1>0}’), ('quad2', 'Constraint_System {x1==0, -x0>0}')] STABILITY ANSWER = Abstract counterexample

slide-13
SLIDE 13

DEPENDENCIES

slide-14
SLIDE 14

Parma Polyhedra Library - PPL

x y

x − y = 0 P x = Variable(0)

1

y = Variable(1)

2

P = NNC Polyhedron(2,’universe’)

3

P.add constraint(y>0)

4

P.add constraint(x-y>0)

5

slide-15
SLIDE 15

Parma Polyhedra Library - PPL

x y

x − y = 0 P x = Variable(0) y = Variable(1) P = NNC Polyhedron(2,’universe’) P.add constraint(x>0) P.add constraint(x-y>0)

slide-16
SLIDE 16

GNU Linear Programming Kit - GLPK

x y

x − y = 0 P

2 1

sage: P.maximize(1*x) {'bounded': True, 'generator': point(2/1, 1/1), 'maximum': True, 'sup_d': 1, 'sup_n': 2} sage: P.maximize(1*y) {'bounded': True, 'generator': closure_point(2/1, 2/1), 'maximum': False, 'sup_d': 1, 'sup_n': 2}

  • 'sup_n': Integer. The numerator of the supremum value.
  • 'sup_d': Non-zero integer. The denominator of the supremum value.
  • 'maximum': Boolean. True if and only if the supremum is also the maximum value.
  • 'generator': a Generator. A point or closure point where expr reaches its supremum value.
slide-17
SLIDE 17

NetworkX

import networkx as nx G=nx.DiGraph() G.add nodes from([1,2,3,4]) G.add weighted edges from([(1,2,1), (2,3,1),(3,4,1),(4,1,1),(2,1,1.2)]) negative cycle = greater than one edge cycle(G)

greater_than_one_edge_cycle() uses a modified Bellman-Ford algorithm in order to consider the product of weights instead the sum of them.

1 2 3 4

1.2 1 1 1 1

slide-18
SLIDE 18

HYBRIDIZATION SLIDES

slide-19
SLIDE 19

Hybridization

  • Hybrid system with linear dynamics is transformed into a hybrid system

with polyhedral dynamics.

  • Lyapunov (asymptotic) stability is preserved.
slide-20
SLIDE 20

Hybridization

  • Hybrid system with linear dynamics is transformed into a hybrid system

with polyhedral dynamics.

  • Lyapunov (asymptotic) stability is preserved.
slide-21
SLIDE 21

Hybridization

  • Hybrid system with linear dynamics is transformed into a hybrid system

with polyhedral dynamics.

  • Lyapunov (asymptotic) stability is preserved.
