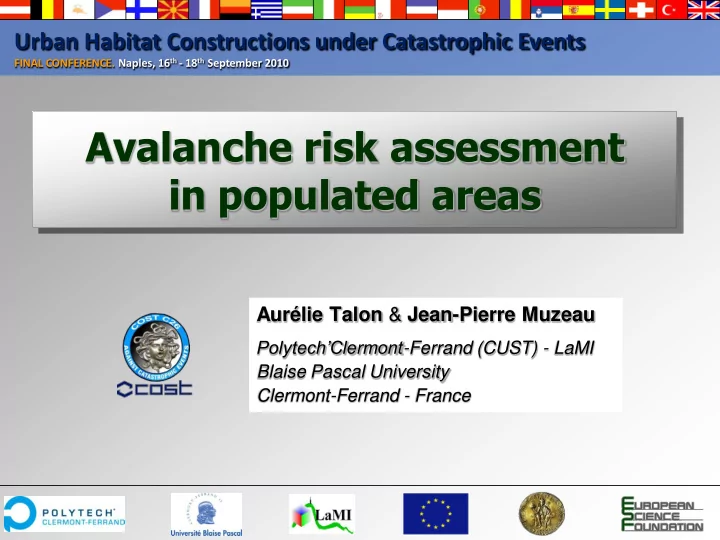

Urban Habitat Constructions under Catastrophic Events FINAL CONFERENCE. Naples, 16 th - 18 th September 2010 Avalanche risk assessment in populated areas Aurlie Talon & Jean-Pierre Muzeau PolytechClermont -Ferrand (CUST) - LaMI Blaise

slide-1
SLIDE 1

Urban Habitat Constructions under Catastrophic Events

FINAL CONFERENCE. Naples, 16th - 18th September 2010

Aurélie Talon & Jean-Pierre Muzeau

Polytech’Clermont-Ferrand (CUST) - LaMI Blaise Pascal University Clermont-Ferrand - France

Avalanche risk assessment in populated areas

slide-2
SLIDE 2

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

2/34

Context

Avalanche Persons Structures Infrastructures Communications Environment Economy Damages on issues caused by an avalanche

Hazard Issue Risk

slide-3
SLIDE 3

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

3/34

Starting Process Impacts on issue How to identify and to characterize? How to quantify and to mitigate? How to identify the consequence scenarios?

Hazard Issue Risk

Approach of Risk Analysis

slide-4
SLIDE 4

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

4/34

Scale of avalanche risk analysis System analysis : massif scale and slope scale Risk scenarios : slope scale Quantification of avalanche hazard Quantification of avalanche consequences Mitigation techniques Snowy coat forming Snowy coat properties Avalanche classification Avalanche characteristics and actions

Content of the presentation

slide-5
SLIDE 5

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

5/34

Snowy coat forming Stratification of snowy coat

  • Wind deposit
  • 1 cm / 10 minutes

Comparison: Loess 1 cm / century

Stratification variability

  • Temporal variability: hourly, daily (day, night or morning/afternoon),

weekly, annually, hundred years old, millenary

  • Spatial variability:

vertical or lateral centimeter, meter or decimeter

slide-6
SLIDE 6

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

6/34

Snowy coat properties

Mechanical properties of snow

Unit weight

20 kg/m3 for fresh snow 500 kg/m3 for old snow

Cohesion

8 to 35 kPa = 300 to 460 kg/m3 0 to 20 kPa < 300 kg/m3

Compression resistance

t=58.3 ( / ice)2.65

for plane faces and beakers

t=79.7 ( / ice)2.39

for other kinds of snow

Young Modulus

E=2642

2.826

(in kN/m2)

slide-7
SLIDE 7

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

7/34

Snowy coat properties Snowy coat properties: grain types

Crystal of fresh snow Fine grains Beakers Round grains

Pictures: courtesy of Météo France

slide-8
SLIDE 8

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

8/34

Snowy coat properties Sintering phenomenon of snow

Glass bridge Increasing of the cohesion but failure propagation due to the snowy coat rigidity

Anena

slide-9
SLIDE 9

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

9/34

Avalanche classification Three types of avalanches

  • Powder snow avalanche

air Incorporation of snow Avalanche front Snowy coat

slide-10
SLIDE 10

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

10/34

Avalanche classification Three types of avalanches

  • Powder snow avalanche
  • Plate avalanche
slide-11
SLIDE 11

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

11/34

Avalanche classification Three types of avalanches

  • Powder snow avalanche
  • Plate avalanche
  • Wet snow avalanche
slide-12
SLIDE 12

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

12/34

Avalanche classification

Avalanche sequence

Starting zone Track Runout zone Debris Slope breaking up

Accumulation basin Gorge Bouting

  • ut cone

Upstream Downstream Departure area Flow area

  • FT: traction strength
  • FR: resistance strength

When FT>FR: departure of the avalanche

slide-13
SLIDE 13

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

13/34

Avalanche classification

Morphological classification of avalanches

Area Criterion Distinctive characters Departure Departure type

  • Spontaneous departure: internal causes of snowy coat (spontaneous

avalanche)

  • Provoked departure: external causes of snowy coat (provoked avalanche)
  • non human (cornice, serac, animal, etc.)

human

  • involuntary (accidental avalanche)

voluntary (artificial avalanche) Departure shape

  • Punctual departure: avalanche starting from a point (departure with a pear

shape or a cone)

  • Linear departure: avalanche starting from a line (plate avalanche)

Snow quality Potentiality

  • f liquid

water

  • Null: dry snow avalanche
  • Poor: humid snow avalanche
  • Important: wet snow avalanche

Cohesion

  • Poor: pulverulent snow avalanche
  • Poor to moderate: crumbly plate (stretch) avalanche
  • Important: snow avalanche of hard plate

Type of snow

  • New: - non windswept: fresh snow or recognizable particles
  • windswept: recognizable particles or fine grains
  • Evolved: fine grains, plane faces, recognizable particles or round grains

Position of the sliding plane

  • In the layer of the snowy coat (surface avalanche)
  • On the soil (bottom avalanche)
slide-14
SLIDE 14

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

14/34

Avalanche classification

Morphological classification of avalanches

Area Criterion Distinctive characters Flow Land shape

  • Open slope (side avalanche)
  • Lane or gorge (gorge avalanche)

Dynamic (or flow type)

  • With a cloud of snow particles:
  • at the front level (aerosol avalanche)
  • behind the front (avalanche with a panache)
  • Without a cloud (streaming avalanche)

Corrected snow

  • With
  • Without

Presence of blocks and / or other elements

  • With (tabular blocks, ice, rocks, trees)
  • Without

Deposit Superficial roughness

  • Poor (fine deposit)
  • Important (bad deposit: blocks, bowls)

Snow quality

  • Wet (wet deposit)
  • Dry (dry deposit)

Visible soiling

  • With (soiling avalanche: earth, blocks, trees)
  • Without (clean avalanche)
slide-15
SLIDE 15

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

15/34

Avalanche characteristics and actions

Powder snow avalanche

  • Lengthwise profile of an avalanche: depends on the

wind direction

  • Reference pressure: 10 kPa < Pd < 30 kPa
  • Application height of Pd: all the height of the exposed

walls

Avalanche height: currently 30 to 40 m but may be > 100 m

  • Application direction of Pd: wind direction
slide-16
SLIDE 16

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

16/34

Avalanche characteristics and actions Powder snow avalanche

  • Effects to be taken into account:
  • direction of Pd: wind direction

Pd ( +10 kPa)

  • 0.2 to -0.5 Pd
  • 0.3 to -0.8 Pd
  • 0.2 to -0.5 Pd

Avalanche Avalanche

slide-17
SLIDE 17

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

17/34

Avalanche characteristics and actions Wet snow avalanche

  • Lengthwise profile of an avalanche: 3 zones (accumulation,

flow, deposit)

  • Reference pressure: 30 kPa
  • Application height of Pd: case of non submerged

buildings

Red zone Blue zone White zone 4 m 5 m 2 m

qhF

slide-18
SLIDE 18

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

18/34

Avalanche characteristics and actions Wet snow avalanche

  • Lengthwise profile of an avalanche: 3 zones (accumulation,

flow, deposit)

  • Reference pressure: 30 kPa
  • Application height of Pd: case of submerged buildings

Red zone Blue zone White zone 4 m 6 m

qhF qvF qpF

slide-19
SLIDE 19

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

19/34

Avalanche characteristics and actions Wet snow avalanche

  • Application direction of Pd: direction of the more

down graded slope

  • Effects to take into account:
  • normal stress:

= c Pd

  • tangential stress:

= c Pd

c: shape coefficient that describes the interaction between the work and the snow flow: c = 2 sin2 : coefficient of static friction: 0,2 0,4

slide-20
SLIDE 20

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

20/34

Avalanche characteristics and actions Wet snow avalanche with carried items

  • This impact is to be added to the avalanche stresses
  • Punctual stress of 25 cm of diameter:
  • 100 kN for an avalanche of 30 kPa
  • 66 kN for an avalanche of 20 kPa
  • 33 kN for an avalanche of 10 kPa
slide-21
SLIDE 21

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

21/34

Risk analysis results depend on analysis scale

Mountain Massif Slope Snowy coat Global environmental impacts Local environmental impacts Economical, sociological impacts Behavioral knowledge

Scale of avalanche risk analysis

slide-22
SLIDE 22

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

22/34

System analysis : massif scale and slope scale

With a civil engineering point of view

Massif scale Structural analysis: Functional analysis: Workable massifs Unworkable massifs To be sure for humans To be beneficial To do not make damage on workable massifs

slide-23
SLIDE 23

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

23/34

System analysis : massif scale and slope scale

With a civil engineering point of view

Slope scale

Upstream Starting zone Flow area Downstream

Structural analysis:

Accumulation basin Gorge Booting outcome Fauna and flora Skiers Station personal Habitants Communication system Ski lifts

Runout zone

slide-24
SLIDE 24

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

24/34

Risk scenarios : slope scale Searching of all chaining of events that can lead to:

– injured, dead – economical losses – material damages – environmental losses

Simplified example of a risk scenario:

Avalanche Skier seriously injured Road cut Evacuation of the skier at the stop area by station personal Evacuation to the hospital impossible Death

  • f the

skier

slide-25
SLIDE 25

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

25/34

Quantification of avalanche hazard To collect knowledge on snowy coat all

  • ver the massif and the slopes:

Modeling of the spatial snow deposit

slide-26
SLIDE 26

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

26/34

Quantification of avalanche hazard To collect knowledge on snowy coat all

  • ver the massif and the slopes:

Permanent investigation

  • n avalanches (EPA)

Location map of avalanche phenomena (CLPA)

In France, it is provided and managed by: Office National des Forêts (ONF): collection on the ground CEMAGREF: centralization of the information and map making

slide-27
SLIDE 27

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

27/34

Quantification of avalanche hazard Listing of the avalanche consequences by the ANENA:

October 2007 – September 2008 Repartition of the average number of fatal accidents and the number of deaths by avalanche type

Plate Unknown Localised

slide-28
SLIDE 28

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

28/34

Quantification of avalanche hazard Listing of the avalanche consequences by the SLF:

2007 – 2008 period Repartition of avalanche accidents by slope downgrade

slide-29
SLIDE 29

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

29/34

Time Avalanche event Risk prevention Protection against risks Crisis management Repair Improvement of the prevention and protection actions Gravity Probability Inacceptable risk Acceptable risk Protection Prevention

Mitigation techniques

slide-30
SLIDE 30

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

30/34

Mitigation techniques Prevention - Actions on constructions

Overall constructive disposals – building grouping

Mutual protection, protection of circulations On line

Reinforced building

Avalanche

< 10 m < 10 m

On stem

Avalanche

slide-31
SLIDE 31

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

31/34

Mitigation techniques Prevention - Actions on constructions

Particular constructive disposals

  • Foresee and access and an entrance on the non exposed

facades

  • Design facades without hold-in corner when there are face to

the avalanche

Marc Givry

Bad solution

Need of reinforcement

slide-32
SLIDE 32

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

32/34

Mitigation techniques Prevention - Actions on the snowy coat

Preventive releasing of avalanches Avalhex balloon

Generate explosion of a balloon blown up of Hydrogen & Oxygen Spherical blast wave

Catex

Wire bringing explosives above the snowy coat

Rapin

Gazex

Gas burst (mix of propane & oxygen)

Ancey

“Avalancheur”

Pneumatic bowler of explosive arrows

Duveau Davidof

slide-33
SLIDE 33

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

33/34

Mitigation techniques Prevention - Actions on persons

  • Information provided at the department level
  • Information provided at the level of the ski

station

  • Signalling of the avalanche risk

Yellow flag for poor or limited risks Flag with black and yellow checked board important and marked risks Black flag for very important risks

slide-34
SLIDE 34

Avalanche risk assessment In populated areas

  • A. Talon & J.-P. Muzeau – B. Pascal Univ., France – COST C26 Final Conf., Naples, 16th - 18th September 2010

34/34

Mitigation techniques Protection

  • Permanent active protection: reforestation, wind & snow

barriers, buzzard roof, tire racks, fillets…

  • Permanent passive protection:

Valla, Rapin Valla, Rapin Valla, Rapin

Stem Stopping dike Deflectors

slide-35
SLIDE 35

Urban Habitat Constructions under Catastrophic Events

FINAL CONFERENCE. Naples, 16th - 18th September 2010

Thank you for your attention

Avalanche risk assessment in populated areas
