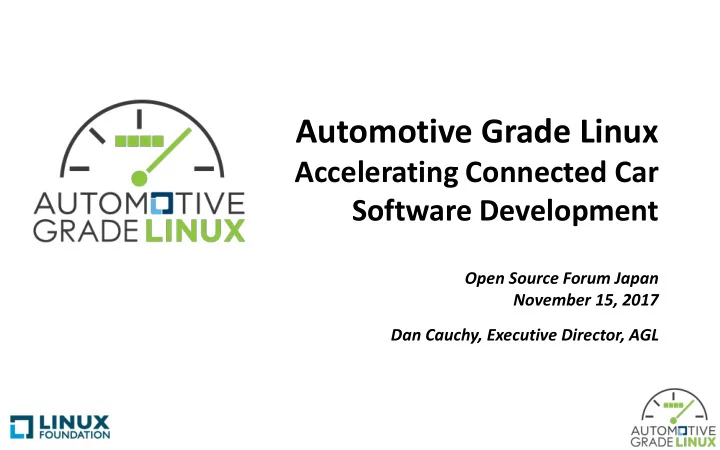

Automotive Grade Linux

Accelerating Connected Car Software Development

Open Source Forum Japan November 15, 2017 Dan Cauchy, Executive Director, AGL

Why do so many people do this?

Slide 2

It’s not just about the cars anymore,

automakers are in the software business

>

It’s not just about the cars anymore,

automakers are in the software business

> "Our thesis is … the entire experience of being in the car will be defined by software.” – Marc Andreessen, Silicon Valley Investor, CNBC Interview, May 22nd, 2017

A B C

Fragmentation Hinders Innovation

Automotive Grade Linux

Collaborating to build the car of the future through rapid innovation

http://AutomotiveLinux.org

Slide 6

What is AGL?

• Non-profit
• Open source Linux-based collaborative project
• Hosted at Linux Foundation
• Focused on rapid innovation of vehicle software

Slide 7

• Build a single software platform for the entire industry
• Develop 70-80% of the starting point for a production project
• Reduce fragmentation by combining the best of open source
• Develop an ecosystem of developers, suppliers, expertise

all using a single platform

Slide 8

Project Goals

AGL is a “Code First” organization! Specifications lead to fragmentation!

Autonomous Driving Advanced Driver Assistance Systems (ADAS) Functional Safety Heads-up Display (HUD) Infotainment Instrument Cluster Telematics/ Connectivity

the only

• rganization

addressing all software in the car

AGL Growth

AGL now has 110 members! 10 OEMs are members of AGL Over 60% growth in past year 850+ developers on AGL mailing list

Slide 10

Automaker Support for AGL

AGL Members - Total of 110 companies!

AGL is now 3rd largest Collab Project at Linux Foundation!

AGL in the Media

The media is paying attention to AGL!

Slide 14

> AGL in the 2018 Toyota Camry Shipping now, Lexus to follow later

Camry image for depiction purposes only, actual vehicle may vary.

Automotive Grade Linux AGL Advisory Board

AGL Steering Committee Project Project System Architecture Team Expert Group Project Expert Group Expert Group

Project

Bottom up approach, most decision making is in the hands of the Expert Groups Advisory Board responsible for

• verall direction, budget

Steering Committee oversees AGL technical activities System Architecture Team oversees end-to-end consistency Expert Groups can run one or more projects Projects may be directly managed by SAT, SC, AB – e.g. Marketing activities, development funding

AGL Governance

Slide 16

Expert Group Expert Group

AGL Infrastructure

• Single Sign on Using LF Identity
• Yocto 2.x based Build System
• Git repositories with Gerrit code

review

• https://gerrit.automotivelinux.org
• JIRA used for Project Management

and Bug Tracking

• https://jira.automotivelinux.org
• Jenkins Continuous Integration
• All code changes built by Jenkins prior

to merging

• Daily snapshot builds

https://download.automotivelinux.org/ AGL/snapshots/master/

Slide 17

meta-agl

• meta-agl
• meta-agl-bsp
• meta-ivi-common
• meta-agl-security

meta-agl-extra

• meta-iot-appfw
• meta-qt5

meta-agl-demo

• meta-poky
• meta-oe
• meta-<BSP>

meta-agl-devel

• meta-agl-sota
• meta-<BSP>

AGL Extra Features AGL Demonstrator Code AGL Core Distribution AGL Community Development

Slide 18

AGL VALUES

Standardized open operating system, middleware, services and application framework

• Not under the control of any one company
• Developed collaboratively by many companies
• Lower cost by sharing development work of the common bits

AGL decreases time to market and can provide functionality similar to the smart phone with periodic over-the-air updates

AGL enables an ecosystem of “AGL Ready” suppliers for hardware, software, UI, services, apps

• AGL enables a global app developer ecosystem
• Hit the ground running on new projects

Open Robust

Ecosystem

AGL: the De Facto Industry Standard

Community: Mailing List Subscribers

• Healthy

community!

• 851 developers
• n Automotive-

Discussions list

• 47% growth

year-to-date

Slide 19

Community: Mailing list traffic

• Healthy community!
• 1690 posts year-to-date
• 6.2 posts per day
• Great technical discussions on

the list

• Developers helping each
• ther on daily basis

Slide 20

4.2 Per Day 5.2 Per Day 6.2 Per Day

AGL UCB RELEASES

Slide 21

Thanks for all the fish…

• AGL Releases:

AA – Agile Albacore – Jan 2016

BB – Brilliant Blowfish – July 2016 CC – Charming Chinook – Dec 2016 DD – Daring Dab – July 2017

Slide 22

Daring Dab Highlights

• Released July 28, 2017
• Updated to Yocto 2.2 (morty)
• App Framework enhancements
• App FW Service Binders
• SDK enhancements
• SOTA updates
• Security updates
• Many application improvements
• Added ARM 64 bit support

Slide 23

Daring Dab Patch Releases

Jul Aug Sep Oct Nov Dec Jan Feb

Daring Dab

Stabilize

Patch Updates App Development

Final Release 7.28 4.0.1 9.18 4.0.2 10.15 4.0.3 12.11 4.0.4 02.13

Daring Dab

• Daring Dab branch in git
• Release notes, binary downloads, source code

and more at

https://wiki.automotivelinux.org/agl-distro/release-notes

Slide 25

AGL Documentation

• Documentation site:

http://docs.automotivelinux.org/

• Markdown with web publishing for all AGL

documentation

• Use git/gerrit for version control and reviews

Slide 26

SDK for App Developers

• Docker image to eliminate host dependency issues
• Available for reference boards with published images that

include graphics drivers

• Enables rapid AGL application development Support for Qt

(HTML5 planned in Q1 2018!)

• Documentation
• No Yocto knowledge is needed or assumed for SDK users

Slide 27

Extensive Board Support

• Reference BSPs – Fully supported by manufacturer, CI,

daily builds, etc.

• Renesas R-Car 3 – M3 board (ARM64)
• Renesas R-Car 2 - Porter board (ARM32)
• Intel - MinnowBoard Turbot and Joule (Intel64)
• TI - Jacinto 6 - Vayu board (ARM32)
• QEMU Emulation (Intel64)
• Community BSP – Best effort support by AGL
• Raspberry PI v2 and v3 (ARM32)
• NXP – i.MX6 – SABRE Automotive (ARM32)
• Qualcomm – Dragonboard 410-c (ARM64)
• TI BeagleBone Black (ARM32)
• Qualcomm SnapDragon 820 (ARM64)

Slide 28

ELECTRIC EEL

Slide 29

UCB 5.0 - Electric Eel New Profiles

Slide 31

Instrument Cluster Telematics/ Headless

Electric Eel

Jul Aug Sep Oct Nov Dec Jan

Electric Eel

New Features Developed

Stabilize

Patch Updates App Development

RC1 9.30 RC2 10.30 Final Release 12.15 RC3 11.30 5.0.1 CES 2018

AGL EXPERT GROUPS

Slide 33

“You don’t have to be an expert to work in an Expert Group” – Walt Miner, AGL Community Manager

Expert Groups

• Current AGL Expert Groups (EG)
• Application Framework and Security
• Connectivity
• Continuous Integration and Automated Test
• Graphics and UI
• Navigation
• Virtualization
• Reference Hardware System Architecture

Slide 34

Virtualization (EG-VIRT)

• First milestone achieved
• Built in support for KVM hypervisor for R-Car M3
• Code merged
• EG-VIRT is a key component in our vision of

the complete cockpit architecture

• Run AGL side-by-side with legacy RTOS
• In discussions with hypervisor companies –

they plan to join this effort

Slide 35

Reference Hardware System Arch EG

• EG led by Mazda with Toyota, Suzuki, Honda,

Subaru participating

• First draft of document is ready!
• Document published on AGL wiki
• Defines key hardware components and

interfaces

• Will be used to drive the creation of new HW

boards and software requirements

Slide 36

Established a good base! What’s next?

AA – Agile Albacore – Jan 2016

BB – Brilliant Blowfish – July 2016 CC – Charming Chinook – Dec 2016 DD – Daring Dab – July 2017

Slide 37

It’s time to move up the stack, services, applications.

Proposed Expert Groups

• Vehicle to Cloud (V2C)
• Voice Recognition
• Content Delivery (Streaming Music/Video)
• Security Vulnerability Action Team
• Functional Safety Expert Group

Slide 38

New: V2C Expert Group

• Creation of a Vehicle to Cloud Expert Group
• Split out the following from Connectivity EG
• Cloud Connectivity (e.g. Iotivity)
• Connected Car
• Remote Vehicle Interactions
• ForgeRock volunteered to lead this effort
• Recruiting other AGL members to get involved!
• Recruiting new members

Slide 39

Proposed: Voice Recognition EG

• Nuance and Voicebox have joined AGL
• In discussion with other major players
• Vision is to form a Voice Rec Expert Group
• Define industry standard Voice Rec APIs and

service binders

• Goal is for application providers to easily

integrate Voice Rec within their Apps without needing to know anything about voice rec

Slide 40

Proposed: Content Delivery Streaming EG

• In discussion with major content delivery

companies

• Vision is to form a content delivery Expert

Group

• Define industry standard content streaming

APIs to interface seamlessly with content providers

Slide 41

Proposed: Security Vulnerability Team

• The AGL Advisory Board has reviewed a proposal to create an AGL

Security Vulnerability process

• Setup process to secretly share newly found vulnerabilities related

to AGL code

• AGL would apply with the appropriate software security
• rganizations to get early notifications
• AGL would act upon those notifications and provide fixes/patches
• Denso is leading this effort – thank you!
• Next step:
• Need to define the process and get buy-in
• Need to put in place some security experts that can do this

work for AGL

Slide 42

Proposed: Functional Safety

• ISO26262 and/or other relevant certifications
• Continues to be a hot topic
• AGL Advisory Board approved that we move forward
• Get experts involved and define our roadmap
• Many companies want to get involved
• Next step:
• Recruit expert(s)
• Identify requirements and roadmap
• Form an Expert Group for this activity

Slide 43

Automotive Linux Summit 2017 Tokyo

650 people across 223 companies and 30 countries!

Slide 46

Advanced Driver Information Technology

AGL at CES 2018 – Venetian Las Vegas

Slide 47

Venetian Hotel Ballroom – 3 rooms combined

CES Evening Reception

• Private cocktail evening reception
• Thurs Jan 11th 5-8pm
• Invitation only
• We will setup an RSVP form online
• Will require a code to request an invitation
• AGL Members will be able to invite their

employees, partners, clients, etc.

Slide 49

CONNECT WITH AGL

Slide 51

Connect with AGL Social Media

• Website
• http://automotivelinux.org/
• Twitter
• @AutoGradeLinux
• https://twitter.com/autogradelinux
• Facebook
• https://www.facebook.com/Automotive
• Grade-Linux-1053670224711921/
• LinkedIn
• https://www.linkedin.com/company/aut
• motive-grade-linux

Slide 52

AutomotiveLinux.org

>

AGL is “Code First”
