Automatic Battering Ram Pink A Market Number of fire stations in U.S 50,000 Estimated cost of traditional battering ram $300 Total market $15 million U.S. Fire Administration Video: Problem Benchmarking Hydra-Ram Halligan Bar


slide-1
SLIDE 1

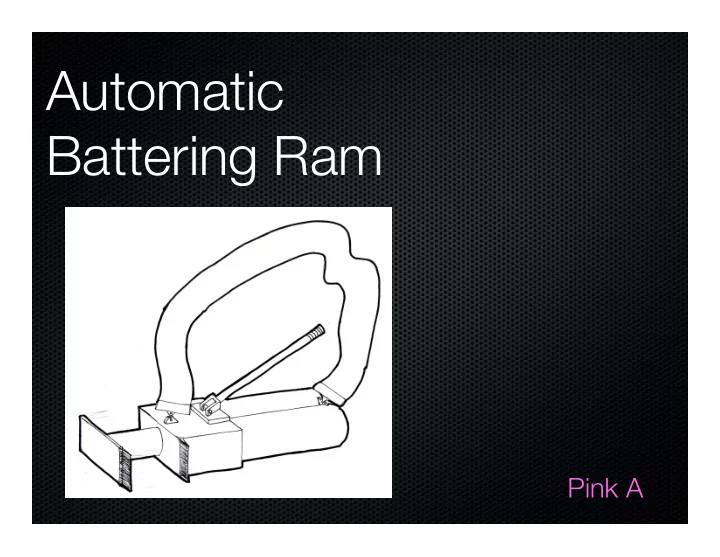

Automatic Battering Ram

Pink A

slide-2
SLIDE 2

Market

Number of fire stations in U.S –50,000 Estimated cost of traditional battering ram –$300 Total market –$15 million

U.S. Fire Administration

slide-3
SLIDE 3

Video: Problem

slide-4
SLIDE 4

Benchmarking

Traditional Battering Ram Hydra-Ram Halligan Bar

slide-5
SLIDE 5

Benchmarking Results

Fatal Funnel Time Size Ease of Use

Traditional Hydra-Ram Halligan Bar

Key problems to address:

–Fatal Funneling –Time/Efficiency

slide-6
SLIDE 6

Automatic Battering Ram

Solves all 4 issues effectively –Fast and Efficient –Small and Light –Avoids Fatal Funneling –Easy to use Demonstration Demonstration

slide-7
SLIDE 7

Sketch Model Takeaways

–Double-sided blades –Strong blades to support large moment arm

  • Resist 15N-m bending moment

–Blades tapered for easy insert –Strong recoil just from a spring

slide-8
SLIDE 8

Pressure to Breach a Door

Assuming a 3in2 piston cross-sectional area

Target

U.S. Patent 6877988

slide-9
SLIDE 9

Calculated Feasible Methods

Hydraulic –Pump and accumulator Pneumatic –Hand pump, valve, piston/cylinder –Directly from a cartridge Spring-Actuated

  • High pressure air to highly compressed

spring
