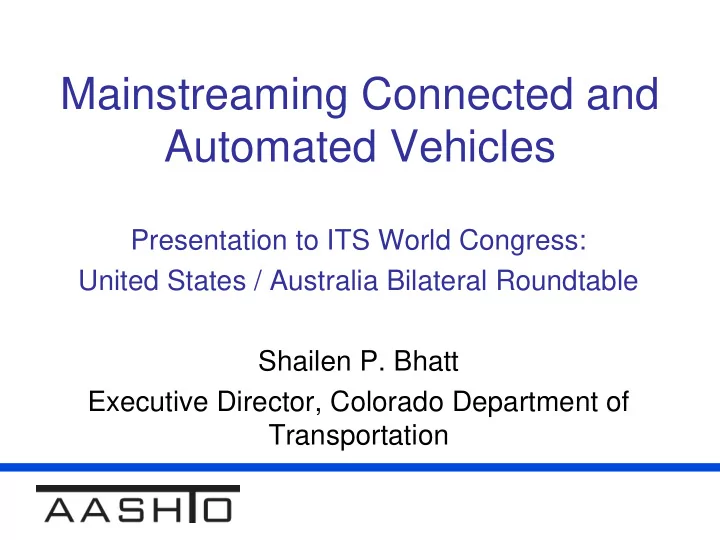

Mainstreaming Connected and Automated Vehicles

Presentation to ITS World Congress: United States / Australia Bilateral Roundtable Shailen P. Bhatt Executive Director, Colorado Department of Transportation

2

Topics

• Introduce the V2I Deployment Coalition

(V2I DC)

• V2I DC Focus Areas
• V2I DC Key Outcomes – Mainstreaming

Connected Vehicles

• Colorado Specific Activities

3

What is the V2I Deployment Coalition?

• V2I DC Concept
• A single point of reference for stakeholders to

meet and discuss V2I deployment related issues

• V2I DC Approach
• USDOT asked AASHTO, ITS America and

ITE to collaborate on organizing and managing the coalition

4

Connected and Automated Vehicle Executive Leadership Team (CAV-ELT) V2IDC Executive Committee USDOT

• ITS JPO
• FHWA
• FTA
• NHTSA

TWG 1: Deployment Initiatives TWG 2: Deployment Research TWG 3: Infrastructure Operator, OEM, and Supplier Partnerships TWG 4: Deployment Guidance TWG 5: Deployment Standards

V2I Deployment Coalition

V2I Deployment Coalition Structure

5

4 Focus Areas of the V2I DC

At the September 2015 V2I DC Executive Committee meeting, four focus areas were defined for the V2I DC Focus Areas Defined by V2I DC

1.Intersections (Signalized and Unsignalized) 2.Queue Warnings 3.Work Zone Management 4.Curve Warnings

6

Key Outcome of V2I DC – The SPaT Challenge

SPaT: A Signal Phase and Timing (SPaT) message defines the current intersection signal light phases. The current state of all lanes at the intersection are provided, as well as any active pre-emption or priority. Some V2I Applications Enabled by SPaT:

• Red Light Violation Warning
• Transit Priority
• Emergency Vehicle Pre-emption
• Eco – Drive
• Others

7

The SPaT Challenge

Challenge state and local public sector transportation Infrastructure Owners & Operators (IO&Os) to deploy DSRC infrastructure with SPaT broadcasts in at least one coordinated corridor or network (approximately 20 signalized intersections) in each state by January 2020.

20 Intersections in 50 states by 2020!

8

Key Outcome of V2I DC – OEM / DOT Workshop

• September, 2016 Workshop of Auto

Manufacturers & State and local DOTs

• Outcomes:
• Defined a “Forum” for future meetings &

project work

• Agreed SPaT Challenge & Data Exchanges

are top priorities

• Agreed Red Light Violation Warning Apps are

a priority supported by SPaT Challenge

9

V2I DC – Phase 2

• Phase 2 will begin January 2017
• Continued focus on the 4 Key Areas
• Expanded focus to include:
• Connected Vehicle use in DOT Fleets
• Interaction with CV Pilot Deployments &

Connected Cities

• Integrate with the OEM/DOT “Forums” for

cooperation

10

Other ‘Mainstreaming Efforts’

Connected Road Classification System Proposal:

• Challenge facing State & local DOTs is the level to

which they equip roads for Automated Vehicles

• USDOT-NHTSA Policy on Automated Vehicles

defines 5 levels of vehicle automation

• Infrastructure Operators need a classification

system to define the level of roadway readiness to support Automated Vehicles

11

Connected Road Classification System Proposal:

• Proposed NCHRP Research project
• Outcome would:
• Define Infrastructure Levels
• Develop Uniform Standardized Decision Matrix / Tool
• Sample Illustration:

Level 1: Unpaved / non striped roads Level 2: Paved roads w/ MUTCD signage Level 6: All lanes designed for Vehicle Level 4 Automation

Minimum safety & mobility Cell coverage but no DSRC No signs, signals, striping needed

RoadX VISION: Crash-free, Injury-free, Delay-free and Technologically- transformed travel in Colorado. RoadX MISSION: Team with public and industry partners to make Colorado one of the most technologically advanced transportation systems in the nation, and a leader in safety and reliability. Colorado Is Open For Business – Colorado invites partners to join us in accelerating the adoption and deployment of technological solutions.

Using detection and cloud-based software that understands and can report available parking spots to truckers, reducing:

• Truckers wasted time and fuel
• Excess wear and tear on Colorado’s roadways
• Excess pollution

The first phase of this project will integrate six existing parking facilities into the Smart Truck Parking System.

CDOT has partnered with an international mapping firm, HERE to provide drivers with the most real-time data possible to allow drivers to make better decisions when traveling through the mountains. Imagine Waze on

• steroids. Drivers will be equipped with the knowledge of when they can

expect critical safety warnings such as:

• Low visibility
• Multi-vehicle pileups
• Sun glare

Smart 70 will accelerate the advancement of autonomous vehicles by giving autonomous systems instantaneous data and warnings from connected

vehicles.
