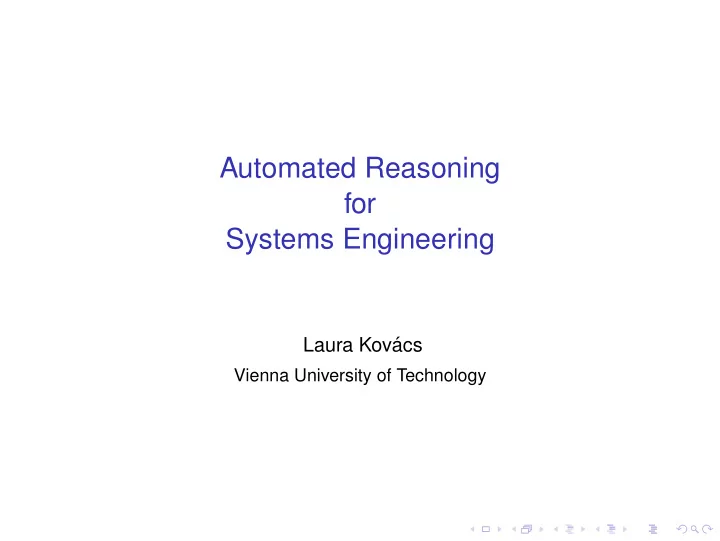

Automated Reasoning for Systems Engineering

Laura Kov´ acs

Vienna University of Technology

slide-2
SLIDE 2

Future and Our Motivation

  • 1. Automated reasoning, in particular theorem proving will remain

central in software verification and program analysis. The role of theorem proving in these areas will be growing.

  • 2. Theorem provers will be used by a large number of users who do

not understand theorem proving and by users with very elementary knowledge of logic.

  • 3. Reasoning with both quantifiers and theories will remain the

main challenge in practical applications of theorem proving (at least) for the next decade.

  • 4. Theorem provers will be used in reasoning with very large
  • theories. These theories will appear in knowledge mining and

natural language processing.

slide-3
SLIDE 3

Future and Our Motivation

  • 1. Automated reasoning, in particular theorem proving will remain

central in software verification and program analysis. The role of theorem proving in these areas will be growing.

  • 2. Theorem provers will be used by a large number of users who do

not understand theorem proving and by users with very elementary knowledge of logic.

  • 3. Reasoning with both quantifiers and theories will remain the

main challenge in practical applications of theorem proving (at least) for the next decade.

  • 4. Theorem provers will be used in reasoning with very large
  • theories. These theories will appear in knowledge mining and

natural language processing.

slide-4
SLIDE 4

Future and Our Motivation

  • 1. Automated reasoning, in particular theorem proving will remain

central in software verification and program analysis. The role of theorem proving in these areas will be growing.

  • 2. Theorem provers will be used by a large number of users who do

not understand theorem proving and by users with very elementary knowledge of logic.

  • 3. Reasoning with both quantifiers and theories will remain the

main challenge in practical applications of theorem proving (at least) for the next decade.

  • 4. Theorem provers will be used in reasoning with very large
  • theories. These theories will appear in knowledge mining and

natural language processing.

slide-5
SLIDE 5

Future and Our Motivation

  • 1. Automated reasoning, in particular theorem proving will remain

central in software verification and program analysis. The role of theorem proving in these areas will be growing.

  • 2. Theorem provers will be used by a large number of users who do

not understand theorem proving and by users with very elementary knowledge of logic.

  • 3. Reasoning with both quantifiers and theories will remain the

main challenge in practical applications of theorem proving (at least) for the next decade.

  • 4. Theorem provers will be used in reasoning with very large
  • theories. These theories will appear in knowledge mining and

natural language processing.

slide-6
SLIDE 6

Outline

Automated Theorem Proving - An Overview Challenges of Automated Theorem Proving

slide-7
SLIDE 7

First-Order Theorem Proving. Example

Group theory theorem: if a group satisfies the identity x2 = 1, then it is commutative.

slide-8
SLIDE 8

First-Order Theorem Proving. Example

Group theory theorem: if a group satisfies the identity x2 = 1, then it is commutative. More formally: in a group “assuming that x2 = 1 for all x prove that x · y = y · x holds for all x, y.”

slide-9
SLIDE 9

First-Order Theorem Proving. Example

Group theory theorem: if a group satisfies the identity x2 = 1, then it is commutative. More formally: in a group “assuming that x2 = 1 for all x prove that x · y = y · x holds for all x, y.” What is implicit: axioms of the group theory. ∀x(1 · x = x) ∀x(x−1 · x = 1) ∀x∀y∀z((x · y) · z = x · (y · z))

slide-10
SLIDE 10

Formulation in First-Order Logic

∀x(1 · x = x) Axioms (of group theory): ∀x(x−1 · x = 1) ∀x∀y∀z((x · y) · z = x · (y · z)) Assumptions: ∀x(x · x = 1) Conjecture: ∀x∀y(x · y = y · x)

slide-11
SLIDE 11

In the TPTP Syntax

The TPTP library (Thousands of Problems for Theorem Provers), http://www.tptp.org contains a large collection of first-order problems. For representing these problems it uses the TPTP syntax, which is understood by all modern theorem provers, including our Vampire prover.

slide-12
SLIDE 12

In the TPTP Syntax

The TPTP library (Thousands of Problems for Theorem Provers), http://www.tptp.org contains a large collection of first-order problems. For representing these problems it uses the TPTP syntax, which is understood by all modern theorem provers, including our Vampire prover. First-Order Logic (FOL) TPTP ⊥, ⊤ $false, $true ¬F ˜F F1 ∧ . . . ∧ Fn F1 & ... & Fn F1 ∨ . . . ∨ Fn F1 | ... | Fn F1 → Fn F1 => Fn (∀x1) . . . (∀xn)F ! [X1,...,Xn] : F (∃x1) . . . (∃xn)F ? [X1,...,Xn] : F

slide-13
SLIDE 13

Example in the TPTP Syntax

%---- 1 * x = x fof(left identity,axiom,( ! [X] : mult(e,X) = X )). %---- i(x) * x = 1 fof(left inverse,axiom,( ! [X] : mult(inverse(X),X) = e )). %---- (x * y) * z = x * (y * z) fof(associativity,axiom,( ! [X,Y,Z] : mult(mult(X,Y),Z) = mult(X,mult(Y,Z)) )). %---- x * x = 1 fof(group of order 2,hypothesis, ! [X] : mult(X,X) = e ). %---- prove x * y = y * x fof(commutativity,conjecture, ! [X,Y] : mult(X,Y) = mult(Y,X) ).

slide-14
SLIDE 14

Example in the TPTP Syntax

◮ Comments;

%---- 1 * x = x fof(left identity,axiom,( ! [X] : mult(e,X) = X )). %---- i(x) * x = 1 fof(left inverse,axiom,( ! [X] : mult(inverse(X),X) = e )). %---- (x * y) * z = x * (y * z) fof(associativity,axiom,( ! [X,Y,Z] : mult(mult(X,Y),Z) = mult(X,mult(Y,Z)) )). %---- x * x = 1 fof(group of order 2,hypothesis, ! [X] : mult(X,X) = e ). %---- prove x * y = y * x fof(commutativity,conjecture, ! [X,Y] : mult(X,Y) = mult(Y,X) ).

slide-15
SLIDE 15

Example in the TPTP Syntax

◮ Comments; ◮ Input formula names;

%---- 1 * x = x fof(left identity,axiom,( ! [X] : mult(e,X) = X )). %---- i(x) * x = 1 fof(left inverse,axiom,( ! [X] : mult(inverse(X),X) = e )). %---- (x * y) * z = x * (y * z) fof(associativity,axiom,( ! [X,Y,Z] : mult(mult(X,Y),Z) = mult(X,mult(Y,Z)) )). %---- x * x = 1 fof(group of order 2,hypothesis, ! [X] : mult(X,X) = e ). %---- prove x * y = y * x fof(commutativity,conjecture, ! [X,Y] : mult(X,Y) = mult(Y,X) ).

slide-16
SLIDE 16

Example in the TPTP Syntax

◮ Comments; ◮ Input formula names; ◮ Input formula roles (very important);

%---- 1 * x = x fof(left identity,axiom,( ! [X] : mult(e,X) = X )). %---- i(x) * x = 1 fof(left inverse,axiom,( ! [X] : mult(inverse(X),X) = e )). %---- (x * y) * z = x * (y * z) fof(associativity,axiom,( ! [X,Y,Z] : mult(mult(X,Y),Z) = mult(X,mult(Y,Z)) )). %---- x * x = 1 fof(group of order 2,hypothesis, ! [X] : mult(X,X) = e ). %---- prove x * y = y * x fof(commutativity,conjecture, ! [X,Y] : mult(X,Y) = mult(Y,X) ).

slide-17
SLIDE 17

Example in the TPTP Syntax

◮ Comments; ◮ Input formula names; ◮ Input formula roles (very important); ◮ Equality

%---- 1 * x = x fof(left identity,axiom,( ! [X] : mult(e,X) = X )). %---- i(x) * x = 1 fof(left inverse,axiom,( ! [X] : mult(inverse(X),X) = e )). %---- (x * y) * z = x * (y * z) fof(associativity,axiom,( ! [X,Y,Z] : mult(mult(X,Y),Z) = mult(X,mult(Y,Z)) )). %---- x * x = 1 fof(group of order 2,hypothesis, ! [X] : mult(X,X) = e ). %---- prove x * y = y * x fof(commutativity,conjecture, ! [X,Y] : mult(X,Y) = mult(Y,X) ).

slide-18
SLIDE 18

Running a Theorem Prover on a TPTP file

is easy: for example vampire <filename>

slide-19
SLIDE 19

Running a Theorem Prover on a TPTP file

is easy: for example vampire <filename> One can also run Vampire with various options. For example, save the group theory problem in a file group.tptp and try vampire group.tptp

slide-20
SLIDE 20

Running a Theorem Prover on a TPTP file

is easy: for example vampire <filename> One can also run Vampire with various options. For example, save the group theory problem in a file group.tptp and try vampire --thanks ECSS group.tptp

slide-21
SLIDE 21

Proof by Vampire (Slightliy Modified)

Refutation found.

  • 270. $false [trivial inequality removal 269]
  • 269. mult(sk0,sk1) != mult (sk0,sk1) [superposition 14,125]
  • 125. mult(X2,X3) = mult(X3,X2) [superposition 21,90]
  • 90. mult(X4,mult(X3,X4)) = X3 [forward demodulation 75,27]
  • 75. mult(inverse(X3),e) = mult(X4,mult(X3,X4)) [superposition 22,19]
  • 27. mult(inverse(X2),e) = X2 [superposition 21,11]
  • 22. mult(inverse(X4),mult(X4,X5)) = X5 [forward demodulation 17,10]
  • 21. mult(X0,mult(X0,X1)) = X1 [forward demodulation 15,10]
  • 19. e = mult(X0,mult(X1,mult(X0,X1))) [superposition 12,13]
  • 17. mult(e,X5) = mult(inverse(X4),mult(X4,X5)) [superposition 12,11]
  • 15. mult(e,X1) = mult(X0,mult(X0,X1)) [superposition 12,13]
  • 14. mult(sK0,sK1) != mult(sK1,sK0) [cnf transformation 9]
  • 13. e = mult(X0,X0) [cnf transformation 4]
  • 12. mult(X0,mult(X1,X2)) = mult(mult(X0,X1),X2) [cnf transformation 3]
  • 11. e = mult(inverse(X0),X0) [cnf transformation 2]
  • 10. mult(e,X0) = X0 [cnf transformation 1]
  • 9. mult(sK0,sK1) != mult(sK1,sK0) [skolemisation 7,8]
  • 8. ?[X0,X1]: mult(X0,X1) != mult(X1,X0) <=> mult(sK0,sK1) != mult(sK1,sK0)

[choice axiom]

  • 7. ?[X0,X1]: mult(X0,X1) != mult(X1,X0) [ennf transformation 6]
  • 6. ˜![X0,X1]: mult(X0,X1) = mult(X1,X0) [negated conjecture 5]
  • 5. ![X0,X1]: mult(X0,X1) = mult(X1,X0) [input]
  • 4. ![X0]: e = mult(X0,X0)[input]
  • 3. ![X0,X1,X2]: mult(X0,mult(X1,X2)) = mult(mult(X0,X1),X2) [input]
  • 2. ![X0]: e = mult(inverse(X0),X0) [input]
  • 1. ![X0]: mult(e,X0) = X0 [input]
slide-22
SLIDE 22

Proof by Vampire (Slightliy Modified)

Refutation found.

  • 270. $false [trivial inequality removal 269]
  • 269. mult(sk0,sk1) != mult (sk0,sk1) [superposition 14,125]
  • 125. mult(X2,X3) = mult(X3,X2) [superposition 21,90]
  • 90. mult(X4,mult(X3,X4)) = X3 [forward demodulation 75,27]
  • 75. mult(inverse(X3),e) = mult(X4,mult(X3,X4)) [superposition 22,19]
  • 27. mult(inverse(X2),e) = X2 [superposition 21,11]
  • 22. mult(inverse(X4),mult(X4,X5)) = X5 [forward demodulation 17,10]
  • 21. mult(X0,mult(X0,X1)) = X1 [forward demodulation 15,10]
  • 19. e = mult(X0,mult(X1,mult(X0,X1))) [superposition 12,13]
  • 17. mult(e,X5) = mult(inverse(X4),mult(X4,X5)) [superposition 12,11]
  • 15. mult(e,X1) = mult(X0,mult(X0,X1)) [superposition 12,13]
  • 14. mult(sK0,sK1) != mult(sK1,sK0) [cnf transformation 9]
  • 13. e = mult(X0,X0) [cnf transformation 4]
  • 12. mult(X0,mult(X1,X2)) = mult(mult(X0,X1),X2) [cnf transformation 3]
  • 11. e = mult(inverse(X0),X0) [cnf transformation 2]
  • 10. mult(e,X0) = X0 [cnf transformation 1]
  • 9. mult(sK0,sK1) != mult(sK1,sK0) [skolemisation 7,8]
  • 8. ?[X0,X1]: mult(X0,X1) != mult(X1,X0) <=> mult(sK0,sK1) != mult(sK1,sK0)

[choice axiom]

  • 7. ?[X0,X1]: mult(X0,X1) != mult(X1,X0) [ennf transformation 6]
  • 6. ˜![X0,X1]: mult(X0,X1) = mult(X1,X0) [negated conjecture 5]
  • 5. ![X0,X1]: mult(X0,X1) = mult(X1,X0) [input]
  • 4. ![X0]: e = mult(X0,X0)[input]
  • 3. ![X0,X1,X2]: mult(X0,mult(X1,X2)) = mult(mult(X0,X1),X2) [input]
  • 2. ![X0]: e = mult(inverse(X0),X0) [input]
  • 1. ![X0]: mult(e,X0) = X0 [input]

◮ Each inference derives a formula from zero or more other formulas;

slide-23
SLIDE 23

Proof by Vampire (Slightliy Modified)

Refutation found.

  • 270. $false [trivial inequality removal 269]
  • 269. mult(sk0,sk1) != mult (sk0,sk1) [superposition 14,125]
  • 125. mult(X2,X3) = mult(X3,X2) [superposition 21,90]
  • 90. mult(X4,mult(X3,X4)) = X3 [forward demodulation 75,27]
  • 75. mult(inverse(X3),e) = mult(X4,mult(X3,X4)) [superposition 22,19]
  • 27. mult(inverse(X2),e) = X2 [superposition 21,11]
  • 22. mult(inverse(X4),mult(X4,X5)) = X5 [forward demodulation 17,10]
  • 21. mult(X0,mult(X0,X1)) = X1 [forward demodulation 15,10]
  • 19. e = mult(X0,mult(X1,mult(X0,X1))) [superposition 12,13]
  • 17. mult(e,X5) = mult(inverse(X4),mult(X4,X5)) [superposition 12,11]
  • 15. mult(e,X1) = mult(X0,mult(X0,X1)) [superposition 12,13]
  • 14. mult(sK0,sK1) != mult(sK1,sK0) [cnf transformation 9]
  • 13. e = mult(X0,X0) [cnf transformation 4]
  • 12. mult(X0,mult(X1,X2)) = mult(mult(X0,X1),X2) [cnf transformation 3]
  • 11. e = mult(inverse(X0),X0) [cnf transformation 2]
  • 10. mult(e,X0) = X0 [cnf transformation 1]
  • 9. mult(sK0,sK1) != mult(sK1,sK0) [skolemisation 7,8]
  • 8. ?[X0,X1]: mult(X0,X1) != mult(X1,X0) <=> mult(sK0,sK1) != mult(sK1,sK0)

[choice axiom]

  • 7. ?[X0,X1]: mult(X0,X1) != mult(X1,X0) [ennf transformation 6]
  • 6. ˜![X0,X1]: mult(X0,X1) = mult(X1,X0) [negated conjecture 5]
  • 5. ![X0,X1]: mult(X0,X1) = mult(X1,X0) [input]
  • 4. ![X0]: e = mult(X0,X0)[input]
  • 3. ![X0,X1,X2]: mult(X0,mult(X1,X2)) = mult(mult(X0,X1),X2) [input]
  • 2. ![X0]: e = mult(inverse(X0),X0) [input]
  • 1. ![X0]: mult(e,X0) = X0 [input]

◮ Each inference derives a formula from zero or more other formulas; ◮ Input, preprocessing, new symbols introduction, superposition calculus

slide-24
SLIDE 24

Proof by Vampire (Slightliy Modified)

Refutation found.

  • 270. $false [trivial inequality removal 269]
  • 269. mult(sk0,sk1) != mult (sk0,sk1) [superposition 14,125]
  • 125. mult(X2,X3) = mult(X3,X2) [superposition 21,90]
  • 90. mult(X4,mult(X3,X4)) = X3 [forward demodulation 75,27]
  • 75. mult(inverse(X3),e) = mult(X4,mult(X3,X4)) [superposition 22,19]
  • 27. mult(inverse(X2),e) = X2 [superposition 21,11]
  • 22. mult(inverse(X4),mult(X4,X5)) = X5 [forward demodulation 17,10]
  • 21. mult(X0,mult(X0,X1)) = X1 [forward demodulation 15,10]
  • 19. e = mult(X0,mult(X1,mult(X0,X1))) [superposition 12,13]
  • 17. mult(e,X5) = mult(inverse(X4),mult(X4,X5)) [superposition 12,11]
  • 15. mult(e,X1) = mult(X0,mult(X0,X1)) [superposition 12,13]
  • 14. mult(sK0,sK1) != mult(sK1,sK0) [cnf transformation 9]
  • 13. e = mult(X0,X0) [cnf transformation 4]
  • 12. mult(X0,mult(X1,X2)) = mult(mult(X0,X1),X2) [cnf transformation 3]
  • 11. e = mult(inverse(X0),X0) [cnf transformation 2]
  • 10. mult(e,X0) = X0 [cnf transformation 1]
  • 9. mult(sK0,sK1) != mult(sK1,sK0) [skolemisation 7,8]
  • 8. ?[X0,X1]: mult(X0,X1) != mult(X1,X0) <=> mult(sK0,sK1) != mult(sK1,sK0)

[choice axiom]

  • 7. ?[X0,X1]: mult(X0,X1) != mult(X1,X0) [ennf transformation 6]
  • 6. ˜![X0,X1]: mult(X0,X1) = mult(X1,X0) [negated conjecture 5]
  • 5. ![X0,X1]: mult(X0,X1) = mult(X1,X0) [input]
  • 4. ![X0]: e = mult(X0,X0)[input]
  • 3. ![X0,X1,X2]: mult(X0,mult(X1,X2)) = mult(mult(X0,X1),X2) [input]
  • 2. ![X0]: e = mult(inverse(X0),X0) [input]
  • 1. ![X0]: mult(e,X0) = X0 [input]

◮ Each inference derives a formula from zero or more other formulas; ◮ Input, preprocessing, new symbols introduction, superposition calculus

slide-25
SLIDE 25

Proof by Vampire (Slightliy Modified)

Refutation found.

  • 270. $false [trivial inequality removal 269]
  • 269. mult(sk0,sk1) != mult (sk0,sk1) [superposition 14,125]
  • 125. mult(X2,X3) = mult(X3,X2) [superposition 21,90]
  • 90. mult(X4,mult(X3,X4)) = X3 [forward demodulation 75,27]
  • 75. mult(inverse(X3),e) = mult(X4,mult(X3,X4)) [superposition 22,19]
  • 27. mult(inverse(X2),e) = X2 [superposition 21,11]
  • 22. mult(inverse(X4),mult(X4,X5)) = X5 [forward demodulation 17,10]
  • 21. mult(X0,mult(X0,X1)) = X1 [forward demodulation 15,10]
  • 19. e = mult(X0,mult(X1,mult(X0,X1))) [superposition 12,13]
  • 17. mult(e,X5) = mult(inverse(X4),mult(X4,X5)) [superposition 12,11]
  • 15. mult(e,X1) = mult(X0,mult(X0,X1)) [superposition 12,13]
  • 14. mult(sK0,sK1) != mult(sK1,sK0) [cnf transformation 9]
  • 13. e = mult(X0,X0) [cnf transformation 4]
  • 12. mult(X0,mult(X1,X2)) = mult(mult(X0,X1),X2) [cnf transformation 3]
  • 11. e = mult(inverse(X0),X0) [cnf transformation 2]
  • 10. mult(e,X0) = X0 [cnf transformation 1]
  • 9. mult(sK0,sK1) != mult(sK1,sK0) [skolemisation 7,8]
  • 8. ?[X0,X1]: mult(X0,X1) != mult(X1,X0) <=> mult(sK0,sK1) != mult(sK1,sK0)

[choice axiom]

  • 7. ?[X0,X1]: mult(X0,X1) != mult(X1,X0) [ennf transformation 6]
  • 6. ˜![X0,X1]: mult(X0,X1) = mult(X1,X0) [negated conjecture 5]
  • 5. ![X0,X1]: mult(X0,X1) = mult(X1,X0) [input]
  • 4. ![X0]: e = mult(X0,X0)[input]
  • 3. ![X0,X1,X2]: mult(X0,mult(X1,X2)) = mult(mult(X0,X1),X2) [input]
  • 2. ![X0]: e = mult(inverse(X0),X0) [input]
  • 1. ![X0]: mult(e,X0) = X0 [input]

◮ Each inference derives a formula from zero or more other formulas; ◮ Input, preprocessing, new symbols introduction, superposition calculus

slide-26
SLIDE 26

Proof by Vampire (Slightliy Modified)

Refutation found.

  • 270. $false [trivial inequality removal 269]
  • 269. mult(sk0,sk1) != mult (sk0,sk1) [superposition 14,125]
  • 125. mult(X2,X3) = mult(X3,X2) [superposition 21,90]
  • 90. mult(X4,mult(X3,X4)) = X3 [forward demodulation 75,27]
  • 75. mult(inverse(X3),e) = mult(X4,mult(X3,X4)) [superposition 22,19]
  • 27. mult(inverse(X2),e) = X2 [superposition 21,11]
  • 22. mult(inverse(X4),mult(X4,X5)) = X5 [forward demodulation 17,10]
  • 21. mult(X0,mult(X0,X1)) = X1 [forward demodulation 15,10]
  • 19. e = mult(X0,mult(X1,mult(X0,X1))) [superposition 12,13]
  • 17. mult(e,X5) = mult(inverse(X4),mult(X4,X5)) [superposition 12,11]
  • 15. mult(e,X1) = mult(X0,mult(X0,X1)) [superposition 12,13]
  • 14. mult(sK0,sK1) != mult(sK1,sK0) [cnf transformation 9]
  • 13. e = mult(X0,X0) [cnf transformation 4]
  • 12. mult(X0,mult(X1,X2)) = mult(mult(X0,X1),X2) [cnf transformation 3]
  • 11. e = mult(inverse(X0),X0) [cnf transformation 2]
  • 10. mult(e,X0) = X0 [cnf transformation 1]
  • 9. mult(sK0,sK1) != mult(sK1,sK0) [skolemisation 7,8]
  • 8. ?[X0,X1]: mult(X0,X1) != mult(X1,X0) <=> mult(sK0,sK1) != mult(sK1,sK0)

[choice axiom]

  • 7. ?[X0,X1]: mult(X0,X1) != mult(X1,X0) [ennf transformation 6]
  • 6. ˜![X0,X1]: mult(X0,X1) = mult(X1,X0) [negated conjecture 5]
  • 5. ![X0,X1]: mult(X0,X1) = mult(X1,X0) [input]
  • 4. ![X0]: e = mult(X0,X0)[input]
  • 3. ![X0,X1,X2]: mult(X0,mult(X1,X2)) = mult(mult(X0,X1),X2) [input]
  • 2. ![X0]: e = mult(inverse(X0),X0) [input]
  • 1. ![X0]: mult(e,X0) = X0 [input]

◮ Each inference derives a formula from zero or more other formulas; ◮ Input, preprocessing, new symbols introduction, superposition calculus

slide-27
SLIDE 27

Proof by Vampire (Slightliy Modified)

Refutation found.

  • 270. $false [trivial inequality removal 269]
  • 269. mult(sk0,sk1) != mult (sk0,sk1) [superposition 14,125]
  • 125. mult(X2,X3) = mult(X3,X2) [superposition 21,90]
  • 90. mult(X4,mult(X3,X4)) = X3 [forward demodulation 75,27]
  • 75. mult(inverse(X3),e) = mult(X4,mult(X3,X4)) [superposition 22,19]
  • 27. mult(inverse(X2),e) = X2 [superposition 21,11]
  • 22. mult(inverse(X4),mult(X4,X5)) = X5 [forward demodulation 17,10]
  • 21. mult(X0,mult(X0,X1)) = X1 [forward demodulation 15,10]
  • 19. e = mult(X0,mult(X1,mult(X0,X1))) [superposition 12,13]
  • 17. mult(e,X5) = mult(inverse(X4),mult(X4,X5)) [superposition 12,11]
  • 15. mult(e,X1) = mult(X0,mult(X0,X1)) [superposition 12,13]
  • 14. mult(sK0,sK1) != mult(sK1,sK0) [cnf transformation 9]
  • 13. e = mult(X0,X0) [cnf transformation 4]
  • 12. mult(X0,mult(X1,X2)) = mult(mult(X0,X1),X2) [cnf transformation 3]
  • 11. e = mult(inverse(X0),X0) [cnf transformation 2]
  • 10. mult(e,X0) = X0 [cnf transformation 1]
  • 9. mult(sK0,sK1) != mult(sK1,sK0) [skolemisation 7,8]
  • 8. ?[X0,X1]: mult(X0,X1) != mult(X1,X0) <=> mult(sK0,sK1) != mult(sK1,sK0)

[choice axiom]

  • 7. ?[X0,X1]: mult(X0,X1) != mult(X1,X0) [ennf transformation 6]
  • 6. ˜![X0,X1]: mult(X0,X1) = mult(X1,X0) [negated conjecture 5]
  • 5. ![X0,X1]: mult(X0,X1) = mult(X1,X0) [input]
  • 4. ![X0]: e = mult(X0,X0)[input]
  • 3. ![X0,X1,X2]: mult(X0,mult(X1,X2)) = mult(mult(X0,X1),X2) [input]
  • 2. ![X0]: e = mult(inverse(X0),X0) [input]
  • 1. ![X0]: mult(e,X0) = X0 [input]

◮ Each inference derives a formula from zero or more other formulas; ◮ Input, preprocessing, new symbols introduction, superposition calculus ◮ Proof by refutation, generating and simplifying inferences, unused formulas . . .

slide-28
SLIDE 28

Proof by Vampire (Slightliy Modified)

Refutation found.

  • 270. $false [trivial inequality removal 269]
  • 269. mult(sk0,sk1) != mult (sk0,sk1) [superposition 14,125]
  • 125. mult(X2,X3) = mult(X3,X2) [superposition 21,90]
  • 90. mult(X4,mult(X3,X4)) = X3 [forward demodulation 75,27]
  • 75. mult(inverse(X3),e) = mult(X4,mult(X3,X4)) [superposition 22,19]
  • 27. mult(inverse(X2),e) = X2 [superposition 21,11]
  • 22. mult(inverse(X4),mult(X4,X5)) = X5 [forward demodulation 17,10]
  • 21. mult(X0,mult(X0,X1)) = X1 [forward demodulation 15,10]
  • 19. e = mult(X0,mult(X1,mult(X0,X1))) [superposition 12,13]
  • 17. mult(e,X5) = mult(inverse(X4),mult(X4,X5)) [superposition 12,11]
  • 15. mult(e,X1) = mult(X0,mult(X0,X1)) [superposition 12,13]
  • 14. mult(sK0,sK1) != mult(sK1,sK0) [cnf transformation 9]
  • 13. e = mult(X0,X0) [cnf transformation 4]
  • 12. mult(X0,mult(X1,X2)) = mult(mult(X0,X1),X2) [cnf transformation 3]
  • 11. e = mult(inverse(X0),X0) [cnf transformation 2]
  • 10. mult(e,X0) = X0 [cnf transformation 1]
  • 9. mult(sK0,sK1) != mult(sK1,sK0) [skolemisation 7,8]
  • 8. ?[X0,X1]: mult(X0,X1) != mult(X1,X0) <=> mult(sK0,sK1) != mult(sK1,sK0)

[choice axiom]

  • 7. ?[X0,X1]: mult(X0,X1) != mult(X1,X0) [ennf transformation 6]
  • 6. ˜![X0,X1]: mult(X0,X1) = mult(X1,X0) [negated conjecture 5]
  • 5. ![X0,X1]: mult(X0,X1) = mult(X1,X0) [input]
  • 4. ![X0]: e = mult(X0,X0)[input]
  • 3. ![X0,X1,X2]: mult(X0,mult(X1,X2)) = mult(mult(X0,X1),X2) [input]
  • 2. ![X0]: e = mult(inverse(X0),X0) [input]
  • 1. ![X0]: mult(e,X0) = X0 [input]

◮ Each inference derives a formula from zero or more other formulas; ◮ Input, preprocessing, new symbols introduction, superposition calculus ◮ Proof by refutation, generating and simplifying inferences, unused formulas . . .

slide-29
SLIDE 29

Proof by Vampire (Slightliy Modified)

Refutation found.

  • 270. $false [trivial inequality removal 269]
  • 269. mult(sk0,sk1) != mult (sk0,sk1) [superposition 14,125]
  • 125. mult(X2,X3) = mult(X3,X2) [superposition 21,90]
  • 90. mult(X4,mult(X3,X4)) = X3 [forward demodulation 75,27]
  • 75. mult(inverse(X3),e) = mult(X4,mult(X3,X4)) [superposition 22,19]
  • 27. mult(inverse(X2),e) = X2 [superposition 21,11]
  • 22. mult(inverse(X4),mult(X4,X5)) = X5 [forward demodulation 17,10]
  • 21. mult(X0,mult(X0,X1)) = X1 [forward demodulation 15,10]
  • 19. e = mult(X0,mult(X1,mult(X0,X1))) [superposition 12,13]
  • 17. mult(e,X5) = mult(inverse(X4),mult(X4,X5)) [superposition 12,11]
  • 15. mult(e,X1) = mult(X0,mult(X0,X1)) [superposition 12,13]
  • 14. mult(sK0,sK1) != mult(sK1,sK0) [cnf transformation 9]
  • 13. e = mult(X0,X0) [cnf transformation 4]
  • 12. mult(X0,mult(X1,X2)) = mult(mult(X0,X1),X2) [cnf transformation 3]
  • 11. e = mult(inverse(X0),X0) [cnf transformation 2]
  • 10. mult(e,X0) = X0 [cnf transformation 1]
  • 9. mult(sK0,sK1) != mult(sK1,sK0) [skolemisation 7,8]
  • 8. ?[X0,X1]: mult(X0,X1) != mult(X1,X0) <=> mult(sK0,sK1) != mult(sK1,sK0)

[choice axiom]

  • 7. ?[X0,X1]: mult(X0,X1) != mult(X1,X0) [ennf transformation 6]
  • 6. ˜![X0,X1]: mult(X0,X1) = mult(X1,X0) [negated conjecture 5]
  • 5. ![X0,X1]: mult(X0,X1) = mult(X1,X0) [input]
  • 4. ![X0]: e = mult(X0,X0)[input]
  • 3. ![X0,X1,X2]: mult(X0,mult(X1,X2)) = mult(mult(X0,X1),X2) [input]
  • 2. ![X0]: e = mult(inverse(X0),X0) [input]
  • 1. ![X0]: mult(e,X0) = X0 [input]

◮ Each inference derives a formula from zero or more other formulas; ◮ Input, preprocessing, new symbols introduction, superposition calculus ◮ Proof by refutation, generating and simplifying inferences, unused formulas . . .

slide-30
SLIDE 30

Vampire

◮ Completely automatic: once you started a proof attempt, it can

  • nly be interrupted by terminating the process.
slide-31
SLIDE 31

Vampire

◮ Completely automatic: once you started a proof attempt, it can

  • nly be interrupted by terminating the process.

◮ Champion of the CASC world-cup in first-order theorem proving:

won CASC 38 times.

slide-32
SLIDE 32

What an Automated Theorem Prover is Expected to Do

Input:

◮ a set of axioms (first order formulas) or clauses; ◮ a conjecture (first-order formula or set of clauses).

Output:

◮ proof (hopefully).

slide-33
SLIDE 33

Proof by Refutation

Given a problem with axioms and assumptions F1, . . . , Fn and conjecture G,

  • 1. negate the conjecture (¬G);
  • 2. establish unsatisfiability of the set of formulas F1, . . . , Fn, ¬G.
slide-34
SLIDE 34

Proof by Refutation

Given a problem with axioms and assumptions F1, . . . , Fn and conjecture G,

  • 1. negate the conjecture (¬G);
  • 2. establish unsatisfiability of the set of formulas F1, . . . , Fn, ¬G.

Thus, we reduce the theorem proving problem to the problem of checking unsatisfiability.

slide-35
SLIDE 35

Proof by Refutation

Given a problem with axioms and assumptions F1, . . . , Fn and conjecture G,

  • 1. negate the conjecture (¬G);
  • 2. establish unsatisfiability of the set of formulas F1, . . . , Fn, ¬G.

Thus, we reduce the theorem proving problem to the problem of checking unsatisfiability. In this formulation the negation of the conjecture ¬G is treated like any other formula. In fact, Vampire (and other provers) internally treat conjectures differently, to make proof search more goal-oriented.

slide-36
SLIDE 36

General Scheme (simplified)

◮ Read a problem; ◮ Determine proof-search options to be used for this problem; ◮ Preprocess the problem; ◮ Convert it into a normal form (CNF); ◮ Run a saturation algorithm on it, try to derive false. ◮ If false is derived, report the result, maybe including a refutation.

slide-37
SLIDE 37

General Scheme (simplified)

◮ Read a problem; ◮ Determine proof-search options to be used for this problem; ◮ Preprocess the problem; ◮ Convert it into a normal form (CNF); ◮ Run a saturation algorithm on it, try to derive false. ◮ If false is derived, report the result, maybe including a refutation.

Trying to derive false using a saturation algorithm is the hardest part, which in practice may not terminate or run out of memory.

slide-38
SLIDE 38

How to Establish Unsatisfiability?

Idea:

◮ Take a set of clauses S (the search space), initially S = S0.

Repeatedly apply inferences to clauses in S and add their conclusions to S, unless these conclusions are already in S.

◮ If, at any stage, we obtain false, we terminate and report

unsatisfiability of S0.

slide-39
SLIDE 39

Saturation Algorithms

search space

slide-40
SLIDE 40

Saturation Algorithms

search space given clause

slide-41
SLIDE 41

Saturation Algorithms

search space given clause candidate clause

slide-42
SLIDE 42

Saturation Algorithms

search space given clause candidate clause children

slide-43
SLIDE 43

Saturation Algorithms

search space children

slide-44
SLIDE 44

Saturation Algorithms

search space children

slide-45
SLIDE 45

Saturation Algorithms

search space

slide-46
SLIDE 46

Saturation Algorithms

search space given clause

slide-47
SLIDE 47

Saturation Algorithms

search space given clause candidate clause

slide-48
SLIDE 48

Saturation Algorithms

search space given clause candidate clause children

slide-49
SLIDE 49

Saturation Algorithms

search space children

slide-50
SLIDE 50

Saturation Algorithms

search space children

slide-51
SLIDE 51

Saturation Algorithms

search space

slide-52
SLIDE 52

Saturation Algorithms

search space

slide-53
SLIDE 53

Saturation Algorithms

search space

MEMORY

slide-54
SLIDE 54

Saturation Algorithm in Practice

In practice there are three possible scenarios:

  • 1. At some moment false is generated, in this case the input set of

clauses is unsatisfiable.

  • 2. Saturation will terminate without ever generating false, in this

case the input set of clauses in satisfiable.

  • 3. Saturation will run until we run out of resources, but without

generating false. In this case it is unknown whether the input set is unsatisfiable.

slide-55
SLIDE 55

From Theory to Practice

In practice, saturation theorem provers implement:

◮ Preprocessing and CNF transformation; ◮ Superposition system; ◮ Orderings and selection functions; ◮ Fairness (saturation algorithms); ◮ Deletion and generation of clauses in the search space; ◮ Many, many proof options and stragegies

.

slide-56
SLIDE 56

From Theory to Practice

In practice, saturation theorem provers implement:

◮ Preprocessing and CNF transformation; ◮ Superposition system; ◮ Orderings and selection functions; ◮ Fairness (saturation algorithms); ◮ Deletion and generation of clauses in the search space; ◮ Many, many proof options and stragegies

.

slide-57
SLIDE 57

From Theory to Practice

In practice, saturation theorem provers implement:

◮ Preprocessing and CNF transformation; ◮ Superposition system; ◮ Orderings and selection functions; ◮ Fairness (saturation algorithms); ◮ Deletion and generation of clauses in the search space; ◮ Many, many proof options and stragegies

– example: limited resource strategy.

slide-58
SLIDE 58

From Theory to Practice

In practice, saturation theorem provers implement:

◮ Preprocessing and CNF transformation; ◮ Superposition system; ◮ Orderings and selection functions; ◮ Fairness (saturation algorithms); ◮ Deletion and generation of clauses in the search space; ◮ Many, many proof options and stragegies

– example: limited resource strategy. Try: vampire --age weight ratio 10:1

  • -time limit 86400

GRP140-1.p

slide-59
SLIDE 59

Outline

Automated Theorem Proving - An Overview Challenges of Automated Theorem Proving

slide-60
SLIDE 60

Automated Theorem Prover was Expected to Do

Input:

◮ a set of axioms (first order formulas) or clauses; ◮ a conjecture (first-order formula or set of clauses).

Output:

◮ proof (hopefully).

slide-61
SLIDE 61

What an Automated Theorem Prover is Expected to Do

Input:

◮ a set of axioms (first order formulas) or clauses; ◮ a conjecture (first-order formula or set of clauses).

Output:

◮ readable proof; ◮ relevant lemmas extracted from proofs; ◮ Craig interpolants extraced from software safety proofs; ◮ program analysis; ◮ invariant generation; ◮ inductive reasoning; ◮ Reasoning with first-order theories of data structures; ◮ . . .

slide-62
SLIDE 62

Chalmers

Chalmers

Laura Kovács

Focus of my Research:

Automated Reasoning for Program Analysis

(ex. ~200kLoC, Vampire prover)

slide-63
SLIDE 63

Chalmers

Chalmers

Laura Kovács

a=0, b=0, c=0; while (a<n) do if A[a]>0 then B[b]=A[a]+h(b); b=b+1; else C[c]=A[a]; c=c+1; a=a+1; end do

Focus of my Research:

Automated Reasoning for Program Analysis

slide-64
SLIDE 64

Chalmers

Chalmers

Laura Kovács

a=0, b=0, c=0; while (a<n) do if A[a]>0 then B[b]=A[a]+h(b); b=b+1; else C[c]=A[a]; c=c+1; a=a+1; end do

Program property: (∀p)(0≤p<b ⇒ (∃q)(0≤q<a ∧ B[p]=A[q]+h(p) ∧ A[q]>0)

Focus of my Research:

Automated Reasoning for Program Analysis

slide-65
SLIDE 65

Chalmers

Chalmers

Laura Kovács

a=0, b=0, c=0; while (a<n) do if A[a]>0 then B[b]=A[a]+h(b); b=b+1; else C[c]=A[a]; c=c+1; a=a+1; end do cnt=0, fib1=1, fib2=0; while (cnt<n) do t=fib1; fib1=fib1+fib2; fib2=t; cnt++; end do h

Focus of my Research:

Automated Reasoning for Program Analysis

slide-66
SLIDE 66

Chalmers

Chalmers

Laura Kovács

a=0, b=0, c=0; while (a<n) do if A[a]>0 then B[b]=A[a]+h(b); b=b+1; else C[c]=A[a]; c=c+1; a=a+1; end do cnt=0, fib1=1, fib2=0; while (cnt<n) do t=fib1; fib1=fib1+fib2; fib2=t; cnt++; end do h

Program property: fib14+ fib24 + 2*fib1*fib23 – 2 fib13*fib2 - fib12*fib22 -1 = 0

Focus of my Research:

Automated Reasoning for Program Analysis

slide-67
SLIDE 67

Chalmers

Chalmers

Laura Kovács

a=0, b=0, c=0; while (a<n) do if A[a]>0 then B[b]=A[a]+h(b); b=b+1; else C[c]=A[a]; c=c+1; a=a+1; end do cnt=0, fib1=1, fib2=0; while (cnt<n) do t=fib1; fib1=fib1+fib2; fib2=t; cnt++; end do h

Math Logic

fib14+ fib24 + 2*fib1*fib23 – 2 fib13*fib2 - fib12*fib22 -1 = 0 (∀p)(0≤p<b ⇒ (∃q)(0≤q<a ∧ B[p]=A[q]+h(p) ∧ A[q]>0)

Focus of my Research:

Automated Reasoning for Program Analysis

slide-68
SLIDE 68

Chalmers

Chalmers

Laura Kovács

Math Logic Program Analysis

My Research

Vampire prover

slide-69
SLIDE 69

Chalmers

Chalmers

Laura Kovács

Symbolic Computa:on Automated Theorem Proving Program Analysis

My Research

funded by:
