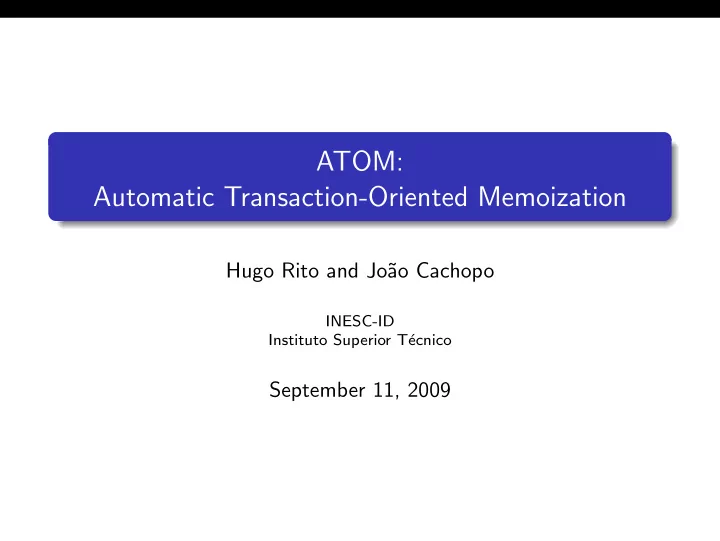

SLIDE 1
ATOM: Automatic Transaction-Oriented Memoization
Hugo Rito and Jo˜ ao Cachopo
INESC-ID Instituto Superior T´ ecnico
September 11, 2009
Overview of Memoization
ATOM: Automatic Transaction-Oriented Memoization Hugo Rito and Jo - - PowerPoint PPT Presentation
ATOM: Automatic Transaction-Oriented Memoization Hugo Rito and Jo - - PowerPoint PPT Presentation
ATOM: Automatic Transaction-Oriented Memoization Hugo Rito and Jo ao Cachopo INESC-ID Instituto Superior T ecnico September 11, 2009 Overview of Memoization Functional Programming Memoization Overview of Memoization Functional
SLIDE 2
SLIDE 3
Overview of Memoization
Functional Programming
Functional Programming
SLIDE 4
Overview of Memoization
Functional Programming
Memoization
SLIDE 5
Overview of Memoization
Fibonacci function
static int fib(int n) { if (n <= 1) return n; return fib(n-1) + fib(n-2); }
SLIDE 6
Overview of Memoization
fib(4) 1 4 2 1 3 1 2
SLIDE 7
Overview of Memoization
fib(4) 1 4 2 1 3 1 2
SLIDE 8
Overview of Memoization
fib(5) 5 3 1 2 1 1 4 2 1 3 1 2
SLIDE 9
Overview of Memoization
fib(5) 5 3 1 2 1 1 4 2 1 3 1 2
SLIDE 10
Overview of Memoization
fib(5) 5 3 1 2 1 1 4 2 1 3 1 2
SLIDE 11
Overview of Memoization
Memoization Memoization
Optimization technique Function cache Relevant state − → Result
SLIDE 12
Overview of Memoization
Memo fib(5) 5 3 1 2 1 1 4 2 1 3 1 2
SLIDE 13
Overview of Memoization
Memo fib(5) 5 1 4 2 3
SLIDE 14
Limitations of Memoization
Non-Functional Programming
Object-Oriented Imperative Programming
SLIDE 15
Limitations of Memoization
Non-Functional Programming
Memoization
SLIDE 16
Limitations of Memoization
Banking Domain
Client
Account
getTotalBalance() : long 1 * balance : long
SLIDE 17
Limitations of Memoization
Banking Domain
class Client { Set<Account> accounts; long getTotalBalance() { long total = 0; for (Account account : accounts) { total += accounts.getBalance(); } return total; } }
SLIDE 18
Limitations of Memoization
Banking Domain: Relevant State
class Client { Set<Account> accounts; long getTotalBalance() { long total = 0; for (Account account : accounts) { total += accounts.getBalance(); } return total; } }
SLIDE 19
Limitations of Memoization
Banking Domain: Relevant State
class Client { Set<Account> accounts; long getTotalBalance() { long total = 0; for (Account account : accounts) { total += accounts.getBalance(); } return total; } }
SLIDE 20
Limitations of Memoization
Relevant State: Problem
No automatic solutions
SLIDE 21
Limitations of Memoization
Relevant State: Problem
No automatic solutions Manually
Difficult Error-prone
SLIDE 22
Limitations of Memoization
Side-effects
Share state reads difficult...
SLIDE 23
Limitations of Memoization
Side-effects
Share state reads difficult... and side-effects make it worse!
SLIDE 24
Proposed Solution
Proposed Solution
Memoization
SLIDE 25
Proposed Solution
Proposed Solution
Memoization + Software Transactional Memory
SLIDE 26
Proposed Solution
Proposed Solution
SLIDE 27
Proposed Solution
Proposed Solution
Automatic Transaction-Oriented Memoization
SLIDE 28
Proposed Solution
Proposed Solution
Object-Oriented Imperative Programming
SLIDE 29
Proposed Solution
Proposed Solution
Automatic Transaction-Oriented Memoization
SLIDE 30
Proposed Solution
Software Transactional Memory
Concurrent programming
SLIDE 31
Proposed Solution
Software Transactional Memory
Concurrent programming Transaction
SLIDE 32
Proposed Solution
Software Transactional Memory
Concurrent programming Transaction Intercept accesses
SLIDE 33
Proposed Solution
Software Transactional Memory
Concurrent programming Transaction Intercept accesses Read-set / Write-set
SLIDE 34
Proposed Solution
JVSTM Example
class Client { Set<Account> accounts; long getTotalBalance() { long total = 0; for (Account account : accounts) { total += accounts.getBalance(); } return total; } }
SLIDE 35
Proposed Solution
JVSTM Example
class Client { VSet<Account> accounts; long getTotalBalance() { long total = 0; for (Account account : accounts) { total += accounts.getBalance(); } return total; } }
SLIDE 36
Proposed Solution
JVSTM Example
class Client { VSet<Account> accounts; long getTotalBalance() { long total = 0; for (Account account : accounts.get()) { total += accounts.getBalance(); } return total; } }
SLIDE 37
Proposed Solution
JVSTM Example
class Client { VSet<Account> accounts; @Atomic long getTotalBalance() { long total = 0; for (Account account : accounts.get()) { total += accounts.getBalance(); } return total; } }
SLIDE 38
Proposed Solution
The ATOM
Java library
SLIDE 39
Proposed Solution
The ATOM
Java library Uses an STM to..
Build the relevant state Detect side-effects Capture side-effects
SLIDE 40
Proposed Solution
The ATOM
Java library Uses an STM to..
Build the relevant state Detect side-effects Capture side-effects
Simple interface
SLIDE 41
Proposed Solution
Evolution
Cache Search Cache Hit? Execute Method Add New Cache Entry Get Result From Cache Yes No
Memoization
Return Result
SLIDE 42
Proposed Solution
Evolution
Cache Search Cache Hit? Execute Method Add New Cache Entry Get Result From Cache Yes No
Extended Memoization
Return Result Begin Transaction Commit Transaction
Read-set: Relevant state Write-set: Side-effects
SLIDE 43
Proposed Solution
Evolution
Cache Search Cache Hit? Commit Transaction Execute Method Add New Cache Entry Get Result From Cache Yes No
Extended Memoization
Begin Transaction Return Result Yes No Can Memoize? Collect Information
Two memoization strategies: Read-only Write-allowed “Collect Information” caches: Read-set Possibly the write-set
SLIDE 44
Proposed Solution
Evolution
Cache Search Cache Hit? Commit Transaction Execute Method Add New Cache Entry Get Result From Cache Yes No
Extended Memoization
Begin Transaction Return Result Read Only? Yes No Can Memoize? Collect Information Yes No Apply Changes
Possibly apply the write-set
SLIDE 45
Proposed Solution
Evolution
Cache Hit? Commit Transaction Execute Method Add New Cache Entry Get Result From Cache Yes No
Extended Memoization
Begin Transaction Return Result Read Only? Yes No Apply Changes Can Memoize? Collect Information Yes No Cache Search
Two caching policies: Version Value
SLIDE 46
Proposed Solution
ATOM Example
@Atomic long getTotalBalance() { /* Body of getTotalBalance() */ }
SLIDE 47
Proposed Solution
ATOM Example
@Memo long getTotalBalance() { /* Body of getTotalBalance() */ }
SLIDE 48
Experimental Results
STMBench7 benchmark
Customizable Evaluate STM implementations CAD domain
SLIDE 49
Experimental Results
Experimental Setting
Dual-Quadcore Nehalem Xeon, 12Gb of RAM 1, 2, 4, 8, and 16 threads Read-dominated workload Three mixes of operations
SLIDE 50
Experimental Results
Results
1 2 4 8 16 1000 2000 3000 4000 5000 6000
No read-write traversals / No structural modifications
ATOM JVSTM
Number of Threads O p e r a t i
- n
s / s e c
- n
d
SLIDE 51
Experimental Results
Results
1 2 4 8 16 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000
No traversals
ATOM JVSTM
Number of Threads O p e r a t i
- n
s / s e c
- n
d
SLIDE 52
Experimental Results
Results
1 2 4 8 16 5000 10000 15000 20000 25000
No traversals / No structural modifications
ATOM JVSTM
Number of Threads O p e r a t i
- n
s / s e c
- n
d
SLIDE 53
Conclusions
Summary
Memoize object-oriented imperative programs is hard
SLIDE 54
Conclusions
Summary
Memoize object-oriented imperative programs is hard ATOM
Relevant state dynamically constructed Detects/Integrates side-effects Simple interface
SLIDE 55
Conclusions
Summary
Memoize object-oriented imperative programs is hard ATOM
Relevant state dynamically constructed Detects/Integrates side-effects Simple interface
Memoization improves STMs’ performance
SLIDE 56
Conclusions
