Asset Management Program Emerald Lake Village District May 28, 2020 Chris Berg, Wright-Pierce Presentation Overview What are Assets? What is Asset Management? Existing Infrastructure Level of Service (LOS) Analysis Risk Prioritization

slide-1
SLIDE 1

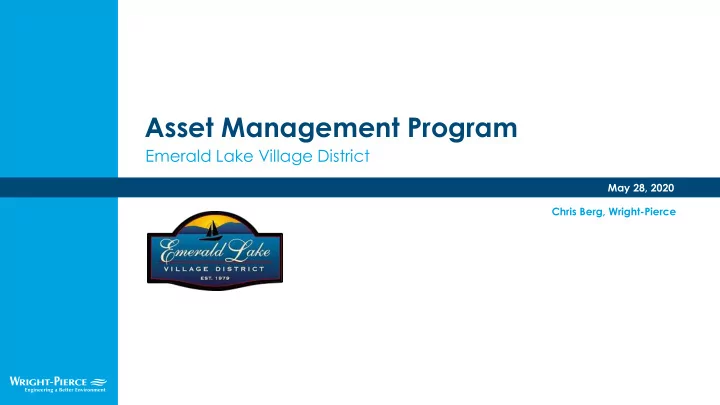

Emerald Lake Village District

Asset Management Program

Chris Berg, Wright-Pierce May 28, 2020
slide-2
SLIDE 2

What are Assets? What is Asset Management? Existing Infrastructure Level of Service (LOS) Analysis Risk Prioritization Recommendations Next Steps

Presentation Overview

2
slide-3
SLIDE 3

Distribution

  • Valves
  • Water Main
  • Hydrants
  • Services

What are Assets?

3

An asset is a resource with economic value and the expectation that it will provide a future benefit. Facilities

  • Storage tank
  • Well pump stations
  • Water treatment plant
slide-4
SLIDE 4

What is Asset Management?

4

Asset Management is a systematic process of

  • perating, maintaining, upgrading and disposing
  • f assets cost-effectively while maintaining a level
  • f service that is acceptable to the customers.

“

slide-5
SLIDE 5

What is Asset Management?

5 This is a continuous process that should be revisited annually.

Existing Infrastructure Level of Service Risk Analysis Risk Prioritization Capital Improvement Plan

This is a continuous process that should be revisited annually.

slide-6
SLIDE 6

Existing Infrastructure - Summary

6

Asset Type Count Bedrock Wells 8, (6 active) Source Water Facilities 4 Storage Tanks 1 Distribution Main ~13 miles Gate Valves 85 Hydrants 11 Zone Meters 4 Service Connections 538 Service Meters

>$15M in assets!

slide-7
SLIDE 7
  • District uses online tools like Google

drive for record information storage and data collection

  • Asset Inventory and condition

assessment information on vertical assets included in ELVD CUPSS for asset inventory

  • Distribution system assets and attributes

included in GIS database

Asset Inventory & Condition Assessment

7
slide-8
SLIDE 8

Level of Service

A Level of Service Agreement (LOS) defines how the utility owners, managers, operators and customers want the system to perform

  • ver the long term.
8

The District chose to create a LOS that covers both vertical and distribution system assets “Report Card” for the system

slide-9
SLIDE 9

Level of Service

9 Goal Target Level Frequency of Measurement All federal and state water quality regulations will be met <MCL Annually Unaccounted-for-Water less than 15% <15% Annually The system will maintain a minimum pressure of 35 psi and a minimum operating pressure of 20 psi under all flows >35 psi Monthly All customer complaints will be investigated within 1 business days of reporting the complaint. 1 day Monthly Breaks will be repaired within 24 hours of being reported 95% of the time. > 95% Monthly Contact the Board of Commissioners at least 48 hours prior to water main shutdown in planned situations and ASAP in emergency situations. < 48 hrs Monthly No adverse event will cause the customers to be without water. 0 events Monthly
slide-10
SLIDE 10
  • Interconnection options with Hillsborough

and Henniker (6 options considered)

  • Each includes a booster pump station and

meter building

  • Water main extension lengths vary from

~10,000 ft to 15,000 ft

  • 3 options include crossing Rt 202A
  • Conceptual project costs vary from $3.9M

to $4.8M

Analysis – Interconnections

10
slide-11
SLIDE 11
  • Supplement current

supply

  • Installation of pressure

transducer and increased monitoring at existing wells

  • Bedrock and sand and

gravel deposits

  • Multiple sand and

gravel sites identified for further investigation

Analysis – Source Water

11
slide-12
SLIDE 12
  • Water main

replacements

  • Breaks, age
  • Storage tank
  • Cleaning and
inspections
  • New zone meters
  • Hemlock
  • Turtle crossing bridge
  • Customer meters

Analysis – Water Main & Storage

12
slide-13
SLIDE 13
  • Temporary waiver from

service meter installation

  • Zone metering
  • 5 meters
  • 2 proposed
  • ~90% of system
covered after installation of add’l meters
  • Service meters

recommended

Analysis – Metering

13
slide-14
SLIDE 14

Factors

  • Break History
  • Asset Age
  • Material Type
  • Pressure

Likelihood of Failure – Water Mains

14 Street Name Asset Life Consumed Material Static Pressure Leak History Condition Ranking 0.3 0.2 0.1 0.4 1-10 Old Lantern Road 7.5 7 7 10 8.4 Deerpoint Road 7.5 7 3 10 8.0 Winter Road 7.5 7 3 7 6.8 Moccasin Trail 7.5 7 7 5 6.4 Raccoon Alley 7.5 7 7 5 6.4 Raccoon Alley 7.5 7 7 5 6.4 Autumn Road 7.5 7 3 5 6.0 Gould Pond Road 7.5 5 7 5 6.0 Gould Pond Road 7.5 7 3 5 6.0 Gould Pond Road 7.5 7 3 5 6.0 Moccasin Trail 7.5 5 7 5 6.0 Beaver Glen Road 7.5 7 7 3 5.6 Bobolink Lane 7.5 7 7 3 5.6 Firefly Lane 7.5 7 7 3 5.6 Rainbows End 7.5 7 7 3 5.6 Red Fox Crossing 7.5 7 7 3 5.6 Gould Pond Road 7.5 5 3 5 5.6 Huntington Drive 7.5 7 3 3 5.2 Skyview Lane 7.5 7 3 3 5.2
slide-15
SLIDE 15

Likelihood of Failure – Water Mains

15

Factors

  • Break History
  • Asset Age
  • Material Type
  • Pressure
slide-16
SLIDE 16

Priority Recommendations

16 Improvement Description Purpose of Improvement Length (ft) Total Project Cost Old Lantern Road Water Main Replacement Breaks, Age, Material 1,200 $252,000 Deerpoint Dr Water Main Replacement Breaks, Age, Material 1,800 $378,000 Well Transducer Installation Inadequate water source production
  • $35,000
Sand & Gravel Well Exploration Inadequate water source production
  • $40,000
Patten Hill Tank Recommendations NHDES Recommendation
  • $12,000
Patten Hill Control Building Recommendations NHDES Recommendation
  • $45,000
Meeting House WTP Recommendations NHDES Recommendation
  • $88,000
New gravel-packed well Inadequate Water Source Production/Water Quality
  • $280,000
Water Storage Tank Inspection Maintenance
  • $5,000
Zone Meters WCP Compliance
  • $20,000
SUBTOTAL $1,155,000
slide-17
SLIDE 17

If new source water development is successful, interconnection may not be necessary or can be delayed. Project costs should be transitioned to water main replacement or service meter installation.

Secondary Recommendations

17 Improvement Description Purpose of Improvement Length (ft) Total Project Cost Interconnection with Neighboring Community** Inadequate water source production/water quality 10,550 $3,934,000 Winter Road Water Main Replacement Breaks, Age 3,200 $672,000 Autumn Road Water Main Replacement Breaks, Age 2,800 $588,000 Water Storage Tank Inspection Maintenance
  • $5,000
SUBTOTAL 16,550 $5,199,000
slide-18
SLIDE 18

Funding Options/Partners

18

NH Municipal Bond Bank Private Loans Cash Grants and Principle Forgiveness Available

slide-19
SLIDE 19

Next Steps: Asset Management Maintenance Plan

19

Revise asset information as inspections, rehabilitation and repair projects are completed. Continue collection of missing assets and asset characteristics. Add asset information assessment information to GIS and CUPSS.

1 2 3

Revise CIP and FIP annually as part of the budget development process. Provide training to staff members who will be maintaining data sets and coordinating with GIS and

  • CUPSS. (Use RCAP)

4 5

slide-20
SLIDE 20

Next Steps

20 This is a continuous process that should be revisited annually.

Existing Infrastructure Level of Service Risk Analysis Risk Prioritization Capital Improvement Plan

This is a continuous process that should be revisited annually. Reapply for DW Grant Program in December?
