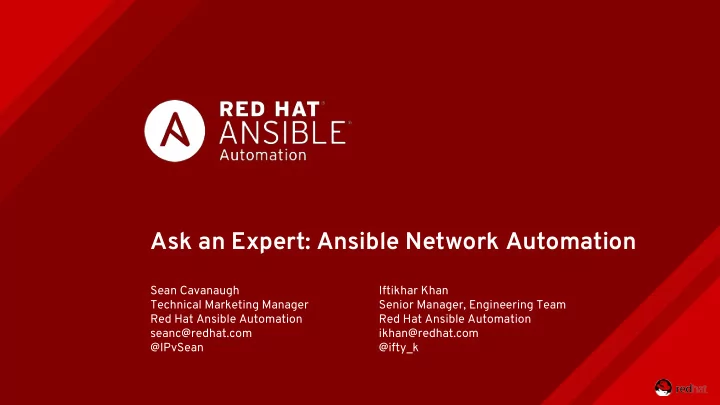

SLIDE 1

Sean Cavanaugh Technical Marketing Manager Red Hat Ansible Automation seanc@redhat.com @IPvSean

Ask an Expert: Ansible Network Automation

Iftikhar Khan Senior Manager, Engineering Team Red Hat Ansible Automation ikhan@redhat.com @ifty_k

SLIDE 2

For more information or to register visit: ansible.com/automates

Tampa, FL November 14, 2018 New York, NY December 4, 2018 Nashville, TN October 25, 2018

SLIDE 3

For more information or to register visit: ansible.com/workshops

Portland, OR November 6, 2018 Houston, TX November 7, 2018 Rochester November 7, 2018

NETWORKING WORKSHOP NETWORKING WORKSHOP NETWORKING WORKSHOP

SLIDE 4

WHAT WE’RE TALKING ABOUT TODAY

httpapi net_get and net_put new netconf modules cli_command and cli_config New Tower 3.3 UI Improvements Tower Credential Management for Network Devices Custom Ansible Environment Support for Ansible Tower Ansible Network Roles Q/A with Ifty and Sean

SLIDE 5

httpapi connection plugin

New top level connection method available on Ansible 2.6 and later
To invoke use connection: httpapi
Initially supports

○ Cisco Nexus NX-API for the NX-OS platform ○ Arista eAPI for the EOS platform

The httpapi method is implied by the ansible_network_os

Networking Platform ansible_network_os httpapi method Arista EOS ansible_network_os=eos eAPI Cisco NX-OS ansible_network_os=nxos NX-API

SLIDE 6

httpapi connection plugin example

name: httpapi Playbook

hosts: leaf01 connection: httpapi gather_facts: false tasks:

name: type a simple arista command

eos_command: commands:

show version | json

register: command_output

name: print command output to terminal window

debug: var: command_output.stdout[0]["version"]

SLIDE 7

net_get and net_put

agnostic network modules
requires connection: network_cli type
Support SCP or SFTP transfer protocols
Requires scp installed and enabled on control and target nodes

SLIDE 8

net_get and net_put example

name: PLAYBOOK SHOWCASING NET_GET AND NET_PUT

hosts: leaf01 connection: network_cli gather_facts: false tasks:

name: COPY FILE FROM THE NETWORK DEVICE TO ANSIBLE CONTROLLER

net_get: src: running_cfg_eos1.txt

name: COPY FILE FROM THE ANSIBLE CONTROLLER TO THE NETWORK DEVICE

net_put: src: temp.txt

SLIDE 9

netconf

network management protocol developed and standardized by the IETF
alternative to SSH command line (network_cli) and device APIs (httpapi)
Three netconf specific modules

○ netconfg_get - fetch configuration/state data from NETCONF enabled network devices ○ netconf_rpc - execute operations on NETCONF enabled network devices ○ netconf_config - netconf device configuration, module allows the user to send a configuration XML file to a netconf device, and detects if there was a configuration change.

SLIDE 10

netconf - converting RPC to a Playbook

name: GET INTERFACE INFO

netconf_rpc: display: json rpc: get-interface-information content: interface-name: "em1.0"

SLIDE 11

name: RUN A NETCONF COMMAND

hosts: juniper gather_facts: no connection: netconf tasks:

name: GET INTERFACE INFO

netconf_rpc: display: json rpc: get-interface-information content: interface-name: "em1.0" register: netconf_info

netconf - full example

SLIDE 12

cli_command and cli_config

agnostic network modules, available Ansible 2.7 and later
requires connection: network_cli type

SLIDE 13

[cisco] rtr1 ansible_host=54.201.149.175 rtr2 ansible_host=34.222.129.140 rtr3 ansible_host=34.219.120.71 [cisco:vars] ansible_user=admin ansible_network_os=ios [arista] leaf01 ansible_host=34.217.176.5 leaf02 ansible_host=34.217.176.6 [arista:vars] ansible_user=admin ansible_network_os=eos ansible_network_os identifies

perating system and plugins to use

Networking Inventory

SLIDE 14

name: AGNOSTIC PLAYBOOK

hosts: cisco gather_facts: no connection: network_cli tasks:

name: CONFIGURE DNS

cli_config: config: ip name-server 8.8.8.8

name: CHECK CONFIGURATION

cli_command: command: show run | i ip name-server register: cisco_output

cli_* - full example

SLIDE 15

What is Tower? Ansible Tower is an enterprise framework for controlling, securing and managing your Ansible automation with a UI and RESTful API.

Red Hat Ansible Tower

https://www.ansible.com/tower

SLIDE 16

Red Hat Ansible Tower

When would I need Tower vs the command-line Ansible?

○ When 2 or more people start using the same Playbooks in their

rganization.

○ When I need a central point of execution ○ When I need an API to control my Playbooks ○ When I need integrations with TACACS+, RADIUS, SAML, AD ○ When I am doing more than just networks

How do I get started?

○ Free Workshops, Free Trials (Linux, Vagrant, AWS EC2) ○ Red Hat Global Learning Services: https://red.ht/2jVOvNg

SLIDE 17

New Tower 3.3 UI Improvements

Credentials Orgs, Users and Teams Notifications

Get more things done, with less clicks!

SLIDE 18

More Top Level Info under Jobs

Who launched this job When the job was launched What the job was launched against

SLIDE 19

Network Credential Management

Treat network devices

just like servers!

SSH keys or

username/pass

Utilizing AES-256 in

CBC mode alongside a SHA-256 HMAC.

SLIDE 20

Ansible Environment

More flexibility
Control which version of

Ansible on a per-Job basis

No more locking of Tower to

specific Engine release

SLIDE 21

https://galaxy.ansible.com/ansible-network

Ansible Network Roles

Network Activities for Operators

Distributed through Ansible

Galaxy

Data driven workflows for

performing network operator tasks

Extensible and adaptable for

any platform, any device

Fully Supported through your

Red Hat Subscription

SLIDE 22

cloud_vpn - Network Role

Purpose Providers Ansible Version Agnostic role for creating IPSEC VPN tunnels between two clouds or endpoints. Cloud: AWS, Azure, OpenStack EndPoints: AWS VPN, VyOS, Cisco CSR, RHEL, CentOS 2.6+ Functions Example

create_vpn
delete_vpn
include_role:

name: ansible-network.cloud_vpn

include_role:

name: ansible-network.cloud_vpn tasks_from: delete_vpn

https://galaxy.ansible.com/ansible-network/cloud_vpn

Cisco CSR on AWS RHEL on Azure VPN

SLIDE 23

config_manager - Network Role

Purpose Providers Ansible Version platform agnostic approach to managing the active (running) configuration file on network devices VyOS, Junos OS, Arista EOS, Cisco IOS, IOS-XR, IOS-XE, NX-OS 2.6+ Functions Example

get
load
save
hosts: network

gather_facts: false roles:

name ansible-network.config_manager

function: get

https://galaxy.ansible.com/ansible-network/config_manager

Cisco IOS-XE Juniper Junos Arista EOS

SLIDE 24

yang - Network Role

Purpose Providers Ansible Version platform agnostic approach to managing the active (running) configuration file on network devices Cisco IOS-XR and Juniper Junos 2.6.2+ Functions Example

configure
spec
fetch
hosts: iosxr

connection: netconf gather_facts: false tasks:

name: include yang role

include_role: name: ansible-network.yang tasks_from: fetch

https://galaxy.ansible.com/ansible-network/yang

Cisco IOS-XE Juniper Junos

SLIDE 25

25

Q / A
