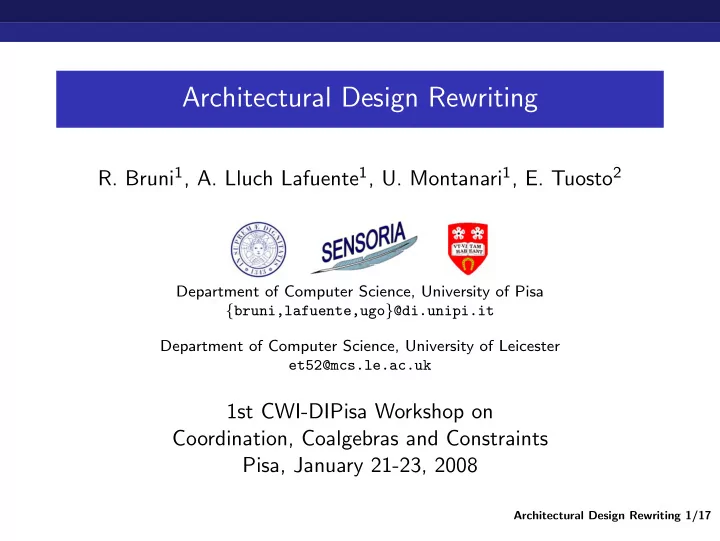

Architectural Design Rewriting

  • R. Bruni1, A. Lluch Lafuente1, U. Montanari1, E. Tuosto2

Department of Computer Science, University of Pisa {bruni,lafuente,ugo}@di.unipi.it Department of Computer Science, University of Leicester et52@mcs.le.ac.uk

1st CWI-DIPisa Workshop on Coordination, Coalgebras and Constraints Pisa, January 21-23, 2008

Architectural Design Rewriting 1/17

slide-2
SLIDE 2

The story

SarA is a Software Architect. She develops software architectures with features such as style-conformance and dynamic

  • reconfiguration. She meets AnDRea, a formal methodist, working
  • n Architectural Design Rewriting.

Architectural Design Rewriting 2/17

slide-3
SLIDE 3

Software Architectures, Graphs

SarA: I need to design filter architectures. Some sort of pipelines that can be put in sequence or in parallel. Things like this diagram: AnDRea: I would call it a graph: components/connectors are hyperedges (boxes), ports/roles are tentacles (arrows), and attachments are nodes (circles).

Architectural Design Rewriting 3/17

slide-4
SLIDE 4

Architectural Styles, Graph Grammars

SarA: I need a mechanism to build configurations in that style to avoid cyclic or broken flows. AnDRea: A graph grammar provides you a style-consistent refinement process. For instance, this rule lets you refine a filter as a sequential composition of filters:

Architectural Design Rewriting 4/17

slide-5
SLIDE 5

Architectural Styles, From Grammars to Algebras

SarA: But I also need to compose designs. AnDRea: You can use a right-to-left algebraic reading of the

  • grammar. For instance, production rule

now becomes operation (design production)

Architectural Design Rewriting 5/17

slide-6
SLIDE 6

An operation?

AnDRea: In your algebra... the sort is FILTER, an edge exposing two nodes, domain are designs - graphs with interfaces - of sort FILTER, an operation is like a design, where some edges are arguments, and substitution means hyperedge replacement. SarA prefers to skip such technical details.

Architectural Design Rewriting 6/17

slide-7
SLIDE 7

More productions: parallel filters

SarA: Filters can be put in parallel, with suitable components to dispatch and collect messages. AnDRea draws...

Architectural Design Rewriting 7/17

slide-8
SLIDE 8

More productions: empty and single filters

SarA: I also need single filters and empty filters. AnDRea draws...

Architectural Design Rewriting 8/17

slide-9
SLIDE 9

All productions

AnDRea shows the whole picture...

Architectural Design Rewriting 9/17

slide-10
SLIDE 10

Interpreting a term

SarA: Show me an example, please. AnDRea draws. seq(filter1,par(filter2,filter3))

Architectural Design Rewriting 10/17

slide-11
SLIDE 11

Interpreting a term

SarA: Show me an example, please. AnDRea draws. seq(filter1,par(filter2,filter3))

Architectural Design Rewriting 10/17

slide-12
SLIDE 12

Interpreting a term

SarA: Show me an example, please. AnDRea draws. seq(filter1,par(filter2,filter3))

Architectural Design Rewriting 10/17

slide-13
SLIDE 13

Interpreting a term

SarA: Show me an example, please. AnDRea draws. seq(filter1,par(filter2,filter3))

Architectural Design Rewriting 10/17

slide-14
SLIDE 14

Interpreting a term

SarA: Show me an example, please. AnDRea draws. seq(filter1,par(filter2,filter3))

Architectural Design Rewriting 10/17

slide-15
SLIDE 15

Reconfigurations

SarA: I also need a mechanism to manipulate configurations: to swap any sequence of filters or to serialise any parallel composition. AnDRea: You can use graph transformation rules. SarA: I don’t want to obtain things like unconnected filters. Is style preservation guaranteed by such rules? AnDRea: You need to proof them style consistent with a theorem

  • r using a semi-decidable procedure or...

SarA: Or? AnDRea: You define rules at the level of terms, exploiting the structure they introduce.

Architectural Design Rewriting 11/17

slide-16
SLIDE 16

Swapping filters

SarA: Show me how to swap filters, please. AnDRea writes and draws... seq(x1,x2) -> seq(x2,x1)

Architectural Design Rewriting 12/17

slide-17
SLIDE 17

Swapping filters

SarA: How can I reconfigure a sequence of three filters? AnDRea: Rule seq(x1,x2) -> seq(x2,x1) has different instances: seq(filter1,filter2,filter3)

  • > seq(filter1,filter3,filter2)

Hint: seq is associative, seq(filter1,seq(filter2,filter3)) = seq(seq(filter1,filter2),filter3)

Architectural Design Rewriting 13/17

slide-18
SLIDE 18

Swapping filters

SarA: How can I reconfigure a sequence of three filters? AnDRea: Rule seq(x1,x2) -> seq(x2,x1) has different instances: seq(filter1,filter2,filter3)

  • > seq(filter1,filter3,filter2)

seq(filter1,filter2,filter3)

  • > seq(filter2,filter3,filter1)

Hint: seq is associative, seq(filter1,seq(filter2,filter3)) = seq(seq(filter1,filter2),filter3)

Architectural Design Rewriting 13/17

slide-19
SLIDE 19

Swapping filters

SarA: How can I reconfigure a sequence of three filters? AnDRea: Rule seq(x1,x2) -> seq(x2,x1) has different instances: seq(filter1,filter2,filter3)

  • > seq(filter1,filter3,filter2)

seq(filter1,filter2,filter3)

  • > seq(filter2,filter3,filter1)

seq(filter1,filter2,filter3)

  • > seq(filter2,filter1,filter3)

Hint: seq is associative, seq(filter1,seq(filter2,filter3)) = seq(seq(filter1,filter2),filter3)

Architectural Design Rewriting 13/17

slide-20
SLIDE 20

Swapping filters

SarA: How can I reconfigure a sequence of three filters? AnDRea: Rule seq(x1,x2) -> seq(x2,x1) has different instances: seq(filter1,filter2,filter3)

  • > seq(filter1,filter3,filter2)

seq(filter1,filter2,filter3)

  • > seq(filter2,filter3,filter1)

seq(filter1,filter2,filter3)

  • > seq(filter2,filter1,filter3)

seq(filter1,filter2,filter3)

  • > seq(filter3,filter1,filter2)

Hint: seq is associative, seq(filter1,seq(filter2,filter3)) = seq(seq(filter1,filter2),filter3)

Architectural Design Rewriting 13/17

slide-21
SLIDE 21

Serialisation

SarA: And how are parallel filters serialised? AnDRea writes and draws... par(x1,x2) -> seq(x1,x2)

Architectural Design Rewriting 14/17

slide-22
SLIDE 22

Propagated Serialisation

SarA: I need serialisation to be propagated... AnDRea: Conditional labelled rules do the job AnDRea: Other rules are needed to propagate and stop the propagation.

Architectural Design Rewriting 15/17

slide-23
SLIDE 23

Propagated Serialisation

SarA: Show me an example, please. AnDRea draws...

Architectural Design Rewriting 16/17

slide-24
SLIDE 24

Architectural Design Rewriting

SarA: What is ADR? Algebra of graphs with interfaces (designs). Conditional, labelled rewrite rules on design terms. SarA: What can I do with ADR? Algebra = architectural style, metamodel, graphical encoding. Rewrite rules = reconfiguration, dynamic binding, ordinary execution. SarA: What is the status of ADR? Other domains of interpretation: constraints? Specification and Verification: e.g. exploiting the structure. Prototypical implementation in Maude. SarA: Where can I get more information on ADR? www.albertolluch.com/adr.html.

Architectural Design Rewriting 17/17

slide-25
SLIDE 25

Epilogue

SarA: What about Coordination? Coalgebras? Constraints? AnDRea: Let’s talk about it later. Let’s say... at dinner?

Architectural Design Rewriting 18/17
