Architectural and Design Review Code Amendments Purpose- Image and Character of the built environment are important components of economic development. Aesthetically visually pleasing development encourages increased investment and

slide-1

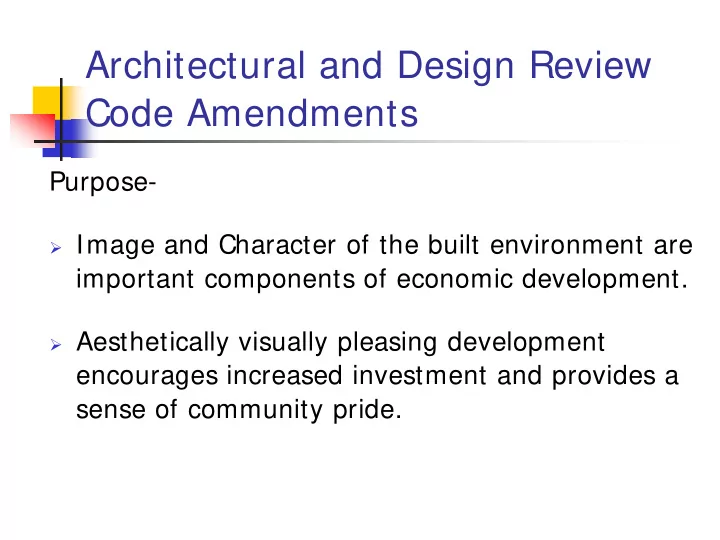

SLIDE 1

Architectural and Design Review Code Amendments

Purpose-

  • Image and Character of the built environment are

important components of economic development.

  • Aesthetically visually pleasing development

encourages increased investment and provides a sense of community pride.

slide-2
SLIDE 2

Architectural and Design Review Code Amendments

History- 2002

  • The Downtown Neighborhood Commission, now

the West End Commission, adopted architectural guidelines for new commercial development on West End.

  • Compliance with the guidelines was voluntary

unless a Development Agreement was negotiated.

slide-3
SLIDE 3

Architectural and Design Review Code Amendments

History- 2009

  • City Council approved Architectural and Design

Guidelines for all commercial development as an appendix to VISTA 2020.

  • Incorporated the west end guidelines.
  • Chapter 151.20 of the Development Code created

which provided for a review process.

slide-4
SLIDE 4

Architectural and Design Review Code Amendments

P&Z Recommendations

  • P&Z Commission held two work sessions,

September 18 and December 4, 2018

  • P&Z approved amendments on February 5, 2019.
  • A number of P&Z recommendations incorporated

within the draft language.

slide-5
SLIDE 5

Architectural and Design Review Code Amendments

Goal of Proposed Amendments

  • Current standards are guidelines and difficult to
  • enforce. Proposed amendments are measured

and enforceable.

  • The amendments will include both flexibility in

design and specific objective standards.

slide-6
SLIDE 6

Architectural and Design Review Code Amendments

Applicability:

  • New buildings and new site development;
  • Exterior façade modifications to existing

buildings requiring a building permit (structural changes);

slide-7
SLIDE 7

Architectural and Design Review Code Amendments

Applicability: Exceptions:

  • Single Family Residences;
  • Multi-Family development with less than 4 units
  • n one lot.
slide-8
SLIDE 8

Architectural and Design Review Code Amendments

Review Authority:

  • Removes the Architectural Review Committee

and replaces with Director of Community Development or designee.

slide-9
SLIDE 9

Architectural and Design Review Code Amendments

Architecture and Design Review Process:

  • Clarifies the overall review process for building

architecture and site design.

  • The architecture and site design can be

submitted with site plan or building plans and reviewed simultaneously.

slide-10
SLIDE 10

Architectural and Design Review Code Amendments

Architecture and Design Standards: Two tiered approach-

  • Developer required to meet specific design

standards;

  • Can choose from a selection of Design

standards;

slide-11
SLIDE 11

Architectural and Design Review Code Amendments

Architecture and Design Standards:

  • Total of 8 Design Elements;
  • Façade Materials (Required)
  • Building Color (Required)
  • Building Scale
  • Building Massing
  • Roof Form
  • Location/Orientation of Building Entrances
  • Windows
  • Site Design
slide-12
SLIDE 12

Architectural and Design Review Code Amendments

Architecture and Design Standards:

  • Required to include the Façade Materials and Building

Colors Elements in the building design;

  • Developer to choose a minimum of three additional

standards from the six remaining Design Elements.

slide-13
SLIDE 13

Architectural and Design Review Code Amendments

Façade Materials-

  • Buildings to be constructed with approved façade

materials such as brick, wood, stucco, and glass, or metal, brick or stone veneers and their artificial derivatives;

  • The total amount of wall façade is based on zoning

and locational considerations; (P&Z Commission

recommendation)

slide-14
SLIDE 14

Architectural and Design Review Code Amendments

Façade Materials-

  • Buildings within a commercial zoning district

and adjacent to arterial roadway-

  • 75 percent of the building wall.
  • Buildings within a commercial zoning district

and adjacent to collector and local roadways-

  • 50 percent of building wall.
slide-15
SLIDE 15
slide-16
SLIDE 16

Architectural and Design Review Code Amendments

Façade Materials-

  • Buildings within an industrial zoning district-
  • 25 percent of building wall.
  • Buildings within residential zoning district-
  • 50 percent of building wall.
slide-17
SLIDE 17

Architectural and Design Review Code Amendments

Façade Materials-

  • Façade improvements required on building walls

which face a public street or face an existing residential use.

  • At least two different façade materials shall be used
  • n all applicable building walls.
slide-18
SLIDE 18

Architectural and Design Review Code Amendments

Building Colors-

  • Muted colors and earth tones for building and roof

with a light reflectance value of 50% or less.

  • A minimum of 75 percent of the total wall and roof

area shall use muted colors and earth tones.

  • Bright colors only to be used as accents.
  • Not applicable to buildings on the West End. (P&Z

Commission recommendation)

slide-19
SLIDE 19

Architectural and Design Review Code Amendments

Building Colors- Earth Tone

slide-20
SLIDE 20

Architectural and Design Review Code Amendments

Building Colors- LRV 50 Percent or Less

slide-21
SLIDE 21

Architectural and Design Review Code Amendments

Building Scale-

  • Define a rhythm and pattern of windows, columns,

awnings, and other architectural features;

  • Provide a human scale to the primary entrance;
  • Express the position of each floor in the external

design of the building.

slide-22
SLIDE 22
slide-23
SLIDE 23

Architectural and Design Review Code Amendments

Building Massing-

  • Wall planes divided into modules that express

traditional dimensions-

  • The primary façade plane shall not exceed 75 in length without

a jog which shall divide the façade into subordinate elements each less than 75 feet in length;

slide-24
SLIDE 24
slide-25
SLIDE 25

Architectural and Design Review Code Amendments

Building Massing-

  • Change the height of a wall plane or building mass by

providing vertical articulation;

  • Change in height shall be at least 20 percent of the vertical

height of an adjacent wall plane or building mass

slide-26
SLIDE 26
slide-27
SLIDE 27

Architectural and Design Review Code Amendments

Building Massing-

  • Change the roof form to express different modules of

the building mass;

  • Divide large wall planes into smaller components by

changing the arrangement of windows and other façade articulation features

slide-28
SLIDE 28
slide-29
SLIDE 29

Architectural and Design Review Code Amendments

Roof Form-

  • Incorporate the following features to add architectural

articulation and reduce perceived scale:

  • Overhanging eaves;
  • Multiple roof planes;
  • Cornice or moldings to define top of parapet;
  • A flat roof with parapet;
  • A sloping roof with a minimum pitch of 4:12
slide-30
SLIDE 30
slide-31
SLIDE 31

Architectural and Design Review Code Amendments

Location and Orientation of Building Entrances-

  • Main entrance shall be clearly identifiable by

emphasizing and enhancing:

  • The level of architectural details such as a change in plane i.e.

porticos, recessed entrance on the street façade;

  • Differentiation in material and color;
  • Enhanced lighting.
slide-32
SLIDE 32
slide-33
SLIDE 33

Architectural and Design Review Code Amendments

Location and Orientation of Building Entrances-

  • Primary entrance of a building shall be oriented to face

a street, plaza, or pedestrian way;

  • Locate utility, mechanical room, or service entrance

service doors away from the public sidewalks.

slide-34
SLIDE 34

Architectural and Design Review Code Amendments

Windows

  • Maximize number of street level façade openings for

windows;

  • Organize placement of windows and doors on the

building elevation relative to each other and the building’s forms to ensure they are balanced and proportionate;

slide-35
SLIDE 35
slide-36
SLIDE 36

Architectural and Design Review Code Amendments

Windows

  • Set storefront window frames at a height above the

finished grade;

  • Recess window frames from a typical wall plane

surface to provide a shadow line and to accentuate the storefront;

  • For upper level facades, provide a pattern that includes

window openings that are greater in height than width;

slide-37
SLIDE 37
slide-38
SLIDE 38

Architectural and Design Review Code Amendments

Windows

  • Include operable windows on the upper level facade;
  • Delineate changes in surface material by a reveal or a

recess detail;

slide-39
SLIDE 39

Architectural and Design Review Code Amendments

Site Design

  • Pedestrian/Outdoor Amenities:
  • Covered walkways or canopies
  • Textured or raised pavement areas for pavement connections

within a site;

  • Courtyards, pedestrian gathering areas; Seating features such

as benches, landscape planters;

  • Pedestrian scale lighting fixtures;
  • Outdoor lighting areas;
slide-40
SLIDE 40
slide-41
SLIDE 41

Architectural and Design Review Code Amendments

Site Design

  • Orientation of Buildings:
  • Orient toward views of activities, architectural landmarks, or

natural features to provide visual interest;

  • Orient to take advantage of solar energy that will allow for

passive heating of building, provide natural light, and harvest solar power.

slide-42
SLIDE 42

Architectural and Design Review Code Amendments

Waivers

  • The Development Review Committee hears all

requests to waive Architectural and Design Standards.

(P&Z recommendation)

  • Reasons for Waiver (meet at least one):

Superior Alternative; Protection of Significant Features Deprivation of Reasonable Use; Technical Impracticality No Relationship to the Development or Its Impacts
