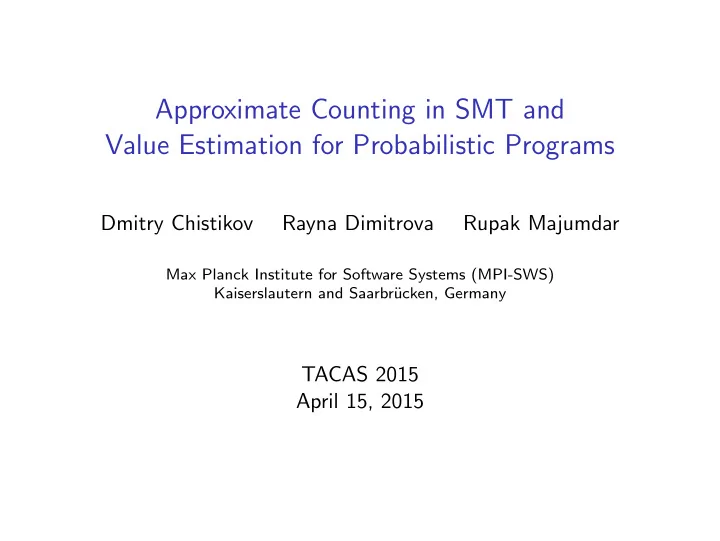

Approximate Counting in SMT and Value Estimation for Probabilistic Programs

Dmitry Chistikov Rayna Dimitrova Rupak Majumdar

Max Planck Institute for Software Systems (MPI-SWS) Kaiserslautern and Saarbr¨ ucken, Germany

TACAS 2015 April 15, 2015

#SMT: Quickstart

SAT

2/37

#SMT: Quickstart

SAT #SAT Add counting

2/37

#SMT: Quickstart

SAT #SAT Add counting SMT Add theories

2/37

#SMT: Quickstart

SAT #SAT Add counting SMT Add theories #SMT

2/37

#SMT: Quickstart

SAT #SAT Add counting SMT Add theories #SMT NP #P PH ⊆ P#P [Toda, FOCS’89]

2/37

Our contributions

• 1. Simple logical framework for #SMT problems
• 2. Approximate #SMT via reduction to black-box SMT

(extend from #SAT)

◮ Bounded integer arithmetic ◮ Linear real arithmetic

• 3. An application: value estimation

for small probabilistic programs with nondeterminism

3/37

Approximate #SMT via reduction to SMT

Idea: Use known SMT techniques as a black box and reduce approximate counting to decision problem Running time: Polynomial (randomized), but with queries to SMT oracle Output: Approximate, but with user-given precision

4/37

Our contributions

• 1. Simple logical framework for #SMT problems
• 2. Approximate #SMT via reduction to black-box SMT

(extend from #SAT)

◮ Bounded integer arithmetic ◮ Linear real arithmetic

• 3. An application: value estimation

for small probabilistic programs with nondeterminism

5/37

Outline

• 1. Example: Probabilistic programs
• 2. #SMT: Logical framework
• 3. Approximate #SMT via reduction to SMT
• 4. Discussion and further directions

6/37

What are probabilistic programs?

Probabilistic programs are a way to express probability distributions. This talk: Imperative, loop-free programs with:

◮ Coin-flipping (uniform distributions) ◮ Bayesian reasoning ◮ Nondeterminism

7/37

Value estimation problem

Input: probabilistic program Output: value of the program Value of program = Pr(Accept | Accept or Reject) = Pr(Accept) Pr(Accept or Reject)

8/37

Example: The Monty Hall problem

[Selvin, American Statistician (1975)]

1 2 3

9/37

Example: The Monty Hall problem

[Selvin, American Statistician (1975)]

1 2 3

9/37

Example: The Monty Hall problem

[Selvin, American Statistician (1975)]

1 2 3

9/37

Example: The Monty Hall problem

[Selvin, American Statistician (1975)]

1 2 3

• I. Player chooses door i ∈ {1, 2, 3}.
• II. Host opens door j = i with goat.
• III. Should the player change her choice?

9/37

Example: The Monty Hall problem

[Selvin, American Statistician (1975)]

1 2 3

• I. Player chooses door i ∈ {1, 2, 3}.
• II. Host opens door j = i with goat.
• III. Should the player change her choice?

9/37

Example: The Monty Hall problem

[Selvin, American Statistician (1975)]

1 2 3

• I. Player chooses door i ∈ {1, 2, 3}.
• II. Host opens door j = i with goat.
• III. Should the player change her choice?

9/37

Example: The Monty Hall problem

[Selvin, American Statistician (1975)]

1 2 3

• I. Player chooses door i ∈ {1, 2, 3}.
• II. Host opens door j = i with goat.
• III. Should the player change her choice?

9/37

Example: A probabilistic program for Monty Hall

a-proc:mh c ∼ Uniform({1, 2, 3}) /* position of car */ i := 1 /* initial choice of player */ choice: /* host opens door j with goat */ case: j := 2; assume(j = c) ; case: j := 3; assume(j = c) ; if i = c then accept; else reject; /* player switches from door i */

10/37

Example: A probabilistic program for Monty Hall

a-proc:mh c ∼ Uniform({1, 2, 3}) /* position of car */ i := 1 /* initial choice of player */ choice: /* host opens door j with goat */ case: j := 2; assume(j = c) ; case: j := 3; assume(j = c) ; if i = c then accept; else reject; /* player switches from door i */ c = 1 c = 2 c = 3 (with Pr = 1/3 each) j := 2 reject

×

accept j := 3 reject accept

×

Reject Accept Accept

10/37

Example: A probabilistic program for Monty Hall

a-proc:mh c ∼ Uniform({1, 2, 3}) /* position of car */ i := 1 /* initial choice of player */ choice: /* host opens door j with goat */ case: j := 2; assume(j = c) ; case: j := 3; assume(j = c) ; if i = c then accept; else reject; /* player switches from door i */ c = 1 c = 2 c = 3 (with Pr = 1/3 each) j := 2 reject

×

accept j := 3 reject accept

×

Reject Accept Accept

10/37

Example: A probabilistic program for Monty Hall

a-proc:mh c ∼ Uniform({1, 2, 3}) /* position of car */ i := 1 /* initial choice of player */ choice: /* host opens door j with goat */ case: j := 2; assume(j = c) ; case: j := 3; assume(j = c) ; if i = c then accept; else reject; /* player switches from door i */ c = 1 c = 2 c = 3 (with Pr = 1/3 each) j := 2 reject

×

accept j := 3 reject accept

×

Reject Accept Accept Value of program = Pr(Accept) Pr(Accept or Reject) = 2/3

10/37

Value estimation problem

Input: probabilistic program Output: value of the program Value of program = Pr(Accept | Accept or Reject) = Pr(Accept) Pr(Accept or Reject)

11/37

Value estimation reduces to #SMT

Program Formulae ϕacc, ϕacc ∨ rej Accept = ϕacc Accept or Reject = ϕacc ∨ rej val(Program) = mc(ϕacc) mc(ϕacc ∨ rej)

12/37

Value estimation reduces to #SMT

[Sankaranarayanan et al., PLDI’13]

Program Formulae ϕacc, ϕacc ∨ rej Accept = ϕacc Accept or Reject = ϕacc ∨ rej val(Program) = mc(ϕacc) mc(ϕacc ∨ rej) Our work: 2 calls to #SMT

12/37

Outline

• 1. Example: Probabilistic programs
• 2. #SMT: Logical framework
• 3. Approximate #SMT via reduction to SMT
• 4. Discussion and further directions

13/37

Logical theories

Logical theory T with fixed interpretation:

◮ formula: ϕ(x1 . . . , xk), variables with domain D ◮ model: (a1, . . . , ak) ∈ Dk such that ϕ(a1, . . . , ak) is true ◮ satisfiability problem: ϕ = ∅ ? ◮ model counting problem: ?

14/37

Measures

The domain D is a measure space: it comes with

◮ σ-algebra F ⊆ 2D

◮ ∅ ∈ F, F is closed under complement and countable ∪

◮ measure µ : F → R

◮ µ is non-negative, µ(∅) = 0 and µ is σ-additive

Lift µ to Dk: µ(A1 × . . . × Ak) = µ(A1) . . . µ(Ak)

15/37

Measured theories

T is measured iff every ϕ is measurable. The model count of ϕ is mc(ϕ) = µ(ϕ).

16/37

Measured theories: Examples

Theory Domain Connectives Quantifiers mc(ϕ) Boolean satisfiability {0, 1} ∧, ∨, ¬ None Number of satisfying assignments Integer arithmetic Z ∩ [a, b] ∧, ∨, ¬ ∃ Number of models Linear programming R ∩ [a, b] ∧ None Volume of polytope Linear real arithmetic R ∩ [a, b] ∧, ∨, ¬ ∃ Volume

17/37

Monty Hall in formulas

◮ Random variable c ∈ {1, 2, 3} ◮ Nondeterministic variables

◮ i, j ∈ {1, 2, 3} ◮ b1, . . . , b5, binit, bacc, brej ∈ {0, 1} (for program locations)

◮ Formula ϕacc(c): there exists an execution of the program

that reaches accept

◮ Formula ϕacc ∨ rej(c): there exists an execution of the program

that reaches accept or reject

18/37

Monty Hall in formulas

◮ Random variable c ∈ {1, 2, 3} ◮ Nondeterministic variables

◮ i, j ∈ {1, 2, 3} ◮ b1, . . . , b5, binit, bacc, brej ∈ {0, 1} (for program locations)

◮ Formula ϕacc(c):

∃ i ∃ j ∃ b1 . . . ∃ b5 ∃ binit ∃ bacc ∃ brej (bacc → (i = c ∧ b5)) ∧ (brej → (i = c ∧ b5)) ∧ (b5 → ((j = c ∧ b3) ∨ (j = c ∧ b4))) ∧ (b4 → (j = 3 ∧ b2)) ∧ (b3 → (j = 2 ∧ b2)) ∧ (b2 → (i = 1 ∧ b1)) ∧ (b1 → binit) ∧ binit ∧ bacc

◮ Formula ϕacc ∨ rej(c): replace last bacc with (bacc ∨ brej)

18/37

Monty Hall in formulas

◮ Random variable c ∈ {1, 2, 3} ◮ Nondeterministic variables

◮ i, j ∈ {1, 2, 3} ◮ b1, . . . , b5, binit, bacc, brej ∈ {0, 1} (for program locations)

◮ Formula ϕacc(c):

∃ i ∃ j ∃ b1 . . . ∃ b5 ∃ binit ∃ bacc ∃ brej (bacc → (i = c ∧ b5)) ∧ (brej → (i = c ∧ b5)) ∧ (b5 → ((j = c ∧ b3) ∨ (j = c ∧ b4))) ∧ (b4 → (j = 3 ∧ b2)) ∧ (b3 → (j = 2 ∧ b2)) ∧ (b2 → (i = 1 ∧ b1)) ∧ (b1 → binit) ∧ binit ∧ bacc

◮ Formula ϕacc ∨ rej(c): replace last bacc with (bacc ∨ brej)

18/37

Monty Hall in formulas

◮ Random variable c ∈ {1, 2, 3} ◮ Nondeterministic variables

◮ i, j ∈ {1, 2, 3} ◮ b1, . . . , b5, binit, bacc, brej ∈ {0, 1} (for program locations)

◮ Formula ϕacc(c):

∃ i ∃ j ∃ b1 . . . ∃ b5 ∃ binit ∃ bacc ∃ brej (bacc → (i = c ∧ b5)) ∧ (brej → (i = c ∧ b5)) ∧ (b5 → ((j = c ∧ b3) ∨ (j = c ∧ b4))) ∧ (b4 → (j = 3 ∧ b2)) ∧ (b3 → (j = 2 ∧ b2)) ∧ (b2 → (i = 1 ∧ b1)) ∧ (b1 → binit) ∧ binit ∧ bacc

◮ Formula ϕacc ∨ rej(c): replace last bacc with (bacc ∨ brej)

18/37

Monty Hall in formulas

◮ Random variable c ∈ {1, 2, 3} ◮ Nondeterministic variables

◮ i, j ∈ {1, 2, 3} ◮ b1, . . . , b5, binit, bacc, brej ∈ {0, 1} (for program locations)

◮ Formula ϕacc(c):

∃ i ∃ j ∃ b1 . . . ∃ b5 ∃ binit ∃ bacc ∃ brej (bacc → (i = c ∧ b5)) ∧ (brej → (i = c ∧ b5)) ∧ (b5 → ((j = c ∧ b3) ∨ (j = c ∧ b4))) ∧ (b4 → (j = 3 ∧ b2)) ∧ (b3 → (j = 2 ∧ b2)) ∧ (b2 → (i = 1 ∧ b1)) ∧ (b1 → binit) ∧ binit ∧ bacc

◮ Formula ϕacc ∨ rej(c): replace last bacc with (bacc ∨ brej)

18/37

#SMT: Model counting

Input: formula ϕ in a measured theory T Output: mc(ϕ)

19/37

Outline

• 1. Example: Probabilistic programs
• 2. #SMT: Logical framework
• 3. Approximate #SMT via reduction to SMT
• 4. Discussion and further directions

20/37

Randomized approximate algorithms

◮ With multiplicative error:

estimate is within (1 + ε)-factor of true value with probability at least 3/4

◮ With additive error:

estimate is within ±γ · Scale of true value with probability at least 3/4

21/37

Randomized approximate algorithms

◮ With multiplicative error:

estimate is within (1 + ε)-factor of true value with probability at least 3/4

◮ With additive error:

estimate is within ±γ · Scale of true value with probability at least 3/4

21/37

Hashing approach for approximate #SAT

[Jerrum, Valiant, Vazirani 1986]

ϕ(x) = ϕ(x1, . . . , xk) Boolean formula mc(ϕ) = ? Idea:

• 1. Take an appropriate hash function h: {0, 1}k → {0, 1}m.
• 2. Take ψ(x) = ϕ(x) ∧ (h(x) = 0).
• 3. On expectation, mc(ψ) = mc(ϕ)/2m.
• 4. ψ is satisfiable with high probability if mc(ϕ) ≫ 2m.

22/37

Hashing approach for #P problems

Theorem [Jerrum, Valiant, Vazirani 1986]

23/37

Hashing approach for #P problems

Theorem [Jerrum, Valiant, Vazirani 1986] approximate #P

23/37

Hashing approach for #P problems

Theorem [Jerrum, Valiant, Vazirani 1986] approximate #P BPP

23/37

Hashing approach for #P problems

Theorem [Jerrum, Valiant, Vazirani 1986] approximate #P BPPNP

23/37

Hashing approach for #P problems

Theorem [Jerrum, Valiant, Vazirani 1986] approximate #P ⊆ BPPNP

23/37

Approximate #SMT for integer arithmetic

Example: Monty Hall c ∈ {1, 2, 3} probabilistic variable; ϕacc(c) ≡ (c = 1) Hash function: h(x) = A · x + b, coefficients from {0, 1} u.a.r. Queries to SMT solver: ϕacc(c) (in integer variables) ∧ (x = bin(c)) (binary encoding) ∧ (A · x + b = 0) (hashing into m bits)

24/37

Approximate #SMT for integer arithmetic

Example: Monty Hall (typical run) Error reduction: repeat 62 times, take majority vote Dimension of hash Satisfiable Unsatisfiable Majority vote

• 0. . . 6

62 Sat

• 7. . . 9

61 1 Sat 10 55 7 Sat 11 50 12 Sat 12 48 14 Sat 13 21 41 Unsat With probability ≥ 0.99, mc(ϕacc) ∈ [1.73, 2.45]. Since the count is integer, mc(ϕacc) = 2. Similarly, mc(ϕacc ∨ rej) = 3 and val(Switch) = 2/3.

25/37

Approximate #SMT: from integers to reals

Discretization:

◮ Partition the domain [a, b]k into cubes ◮ Overapproximate the body with the cubes it intersects

Complexity-theoretic point of view:

◮ Reduce to a #P problem

26/37

Approximate #SMT: from integers to reals

Approximation error: total volume of cut cubes Formula size: log(number of all cubes) Example: Variables x, y ∈ [0, 4] ⊆ R x ≤ 4 y ≥ 1 x − y ≥

y x 1 2 3 4 1 2 3 4

16 cubes 4 cut cubes

27/37

Approximate #SMT: from integers to reals

Approximation error: total volume of cut cubes Formula size: log(number of all cubes) Theorem [Dyer, Frieze 1988] Approximate volume computation (#SMT) for polytopes reduces to #P. Limitation: applicable only to quantifier-free formulas Value estimation: Formulas contain existential quantifiers

27/37

Approximate #SMT for linear real arithmetic

Input: ϕ(x) = ∃ z. Φ(x, z) Output: approximation of mc(ϕ) Example: Variables x, y ∈ [0, 4] ⊆ R, z ∈ R x ≤ 4 y ≥ 1 x − y ≥ x + y − z ≥ z ≥ 4 Projection on (x, y):

y x 1 2 3 4 1 2 3 4

16 cubes 8 cut cubes

28/37

Approximate #SMT for linear real arithmetic

Input: ϕ(x) = ∃ z. Φ(x, z) Output: approximation of mc(ϕ)

Lemma

Number of cutting hyperplanes is at most 2l, where l is the number of atomic predicates in Φ.

Corollary

Number of cubes increases by an exponential factor, number of bit variables increases by a polynomial.

28/37

Summary: Approximate #SMT via reduction to SMT

Theorem

#SMT for bounded integer arithmetic (IA) can be approximated with a multiplicative error by a polynomial-time randomized algorithm that has oracle access to satisfiability of formulas in IA.

Theorem

#SMT for linear real arithmetic (RA) can be approximated with an additive error by a polynomial-time randomized algorithm that has oracle access to satisfiability of formulas in IA + RA.

29/37

Evaluation: probabilistic programs

Solve value estimation for programs over integers: compute approximations of mc(ϕacc) and mc(ϕacc ∨ rej)

• 1. Probabilistic programs with nondeterminism

◮ the Monty Hall problem (1) ◮ the three prisoners problem (2)

• 2. Classical Bayesian network examples

◮ Pearl’s burglar alarm (3) ◮ Wet grass model (4)

• 3. Approximated probabilistic distributions

◮ A medical diagnosis system with simplified input distributions

and manually discretized domains (5)

30/37

Evaluation: results

formula ε p m time(s) (1) ϕacc 0.2 0.01 13 3.37 ϕacc ∨ rej 0.2 0.01 20 4.11 (2) ϕacc 0.5 0.1 0.04 ϕacc ∨ rej 0.5 0.1 20 19.84 (3) ϕacc 0.5 0.1 36 196.54 ϕacc ∨ rej 0.5 0.1 49 132.53 (4) ϕacc 0.5 0.1 34 85.71 ϕacc ∨ rej 0.5 0.1 35 89.37 (5) ϕacc 0.5 0.1 56 295.09 ϕacc ∨ rej 0.5 0.1 57 241.55 1 + ε: multiplicative approximation factor p: error probability m: maximal hash size Further direction: Improved SMT reasoning for XOR (hashing)

31/37

Outline

• 1. Example: Probabilistic programs
• 2. #SMT: Logical framework
• 3. Approximate #SMT via reduction to SMT
• 4. Discussion and further directions

32/37

Discussion: Monte Carlo simulation

Monte Carlo simulation

+ handles complex probabilistic distributions − requires specialized heuristics − sacrifices theoretical guarantees + performs well when probability is non-vanishing

Our approach

− handles only uniform distributions + uses off-the-shelf SMT solver + provides theoretical guarantees + performs well when probability is vanishing

33/37

Discussion: Monte Carlo simulation

Monte Carlo simulation

+ handles complex probabilistic distributions − requires specialized heuristics − sacrifices theoretical guarantees + performs well when probability is non-vanishing

Our approach

− handles only uniform distributions + uses off-the-shelf SMT solver + provides theoretical guarantees + performs well when probability is vanishing

33/37

Discussion: Monte Carlo bottleneck

Probability p small Error threshold δ a multiple of p Must sample Ω( 1

p) times!

More formally: tightness of Chernoff bounds.

34/37

Discussion: Monte Carlo simulation

Monte Carlo simulation

+ handles complex probabilistic distributions − requires specialized heuristics − sacrifices theoretical guarantees + performs well when probability is non-vanishing

Our approach

− handles only uniform distributions + uses off-the-shelf SMT solver + provides theoretical guarantees + performs well when probability is vanishing

35/37

Further directions

• 1. Improved XOR reasoning and scalability

[CryptoMiniSat / Soos et al., SAT’09]

• 2. Other logical theories

[Luu et al., PLDI’14]

• 3. Non-uniform distributions

[Sankaranarayanan et al., PLDI’13]

• 4. Uniform generation of program behaviors

[Chakraborty et al., CAV’13]

• 5. Other applications

[Fredrikson, Jha, LICS’14]

36/37

Our contributions

• 1. Simple framework for #SMT problems
• 2. Approximate #SMT via reduction to black-box SMT

(extend from #SAT)

◮ Bounded integer arithmetic: preserving the formula structure ◮ Linear real arithmetic: with a new projection lemma

• 3. An application: value estimation

for small probabilistic programs with nondeterminism Thank you!

37/37
