How to measure and control effect paints and coatings used in automotive, industrial and architectural applications Felix Schmollgruber Product Manager New Platforms X-Rite Europe GmbH Web Seminar At a glance 10.00 h Welcome Dr. Sonja

slide-1
SLIDE 1

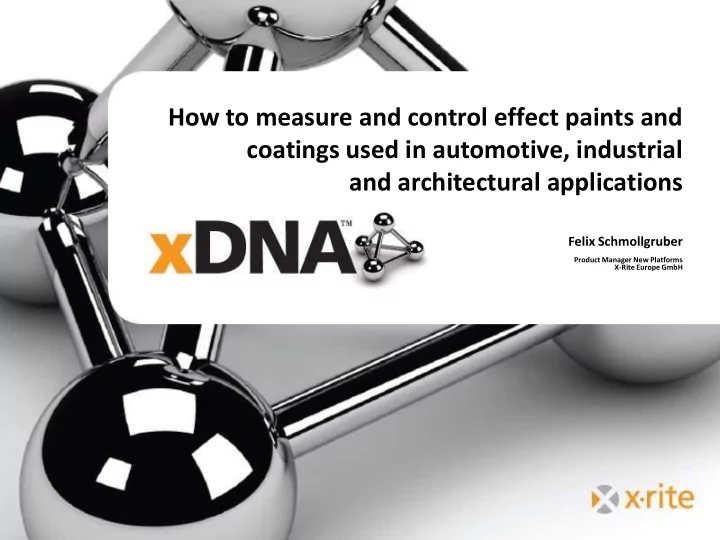

How to measure and control effect paints and coatings used in automotive, industrial and architectural applications

Felix Schmollgruber

Product Manager New Platforms X-Rite Europe GmbH

slide-2
SLIDE 2

Web Seminar – At a glance 10.00 h Welcome

» Dr. Sonja Schulte, Editor in Chief – European Coatings Journal

10.05 h How to measure and control effect paints and coatings used in automotive, industrial and architectural applications

» Felix Schmollgruber, Product Manager New Platforms – X-Rite Europe GmbH

10.45 h Discussion & End of Web-Seminar

Felix Schmollgruber 2

slide-3
SLIDE 3

Why two illuminations

2nd generation effect (interference-) pigments show different color NOT ONLY at different observer angles BUT ALSO at different illumination angles See next an example …

Felix Schmollgruber 3

slide-4
SLIDE 4

The callenge with effect pigments Gonioapparent samples change color by changing illumination and observation angles

Felix Schmollgruber 4

„Face“ steep illumination „Face“ 45 illumination „Flash“ behind gloss 45 illumination Out of plane geometry

slide-5
SLIDE 5
  • 30
  • 5
  • 45
  • 45
  • 80

Measurement geometries

The MA98 is the only portable device equipped with two light sources in order to be compliant to the new standard ASTM E2539 – 08 [http://www.astm.org/Standards/E2539.htm]!

Felix Schmollgruber 5

25 specular specular 45 illumination

Six geometries: 45 asXX

15 illumination

Two additional: 15 asXX

Measured, but not analyzed traditionally

NEW: -15 15 45 75 110

  • 15

15

slide-6
SLIDE 6

15 illumination 45 illumination

second light source

Felix Schmollgruber 6

45as-15 45as15 45as25 45as45 45as75 45as110 15as-15 15as-15

Standard 45/0 instrument Standard 5-angle instrument (e.g.MA94) 6-angle instrument (e.g.MA96) 8-angle instrument MA98 only

slide-7
SLIDE 7

X-Rite’s MA98

Felix Schmollgruber 7

slide-8
SLIDE 8

19 geometries in total

Felix Schmollgruber 8 45as-15 45as15 45as25 45as45 45as75 45as-110 15as-15 15as15 15as-45 15as45 15as80 15as38.3 az43 45as25 az-90 45as60 az-125.3 45as25 az90 45as60 az125.3 15as38.3 az-43 15as46.9 az-104.5 15as46.9 az-104.5

slide-9
SLIDE 9

Why 19 geometries?

Felix Schmollgruber 9

Light from 45 from the back different observation angles Left: ChromaFlair 190 Right: Viola Fantasy + Blue viewed “in-plane”

 Obviously these two panels look very different!

90 turn

slide-10
SLIDE 10

Why 19 geometries?

Felix Schmollgruber 10

Light from 45 from the left SAMPLES AND LIGHT TURNED BY 90

  • bservation from 45

azimuthal viewed “out-of-plane”

 The SAME two Panels create totally different colors

slide-11
SLIDE 11

In plane & out of plane difference

Gonioapparent reflection “in-plane” may be different than reflection from “out-of-plane”

Felix Schmollgruber 11

Z Y X 45 illumination

slide-12
SLIDE 12

Main Influencers on Color & Appearance of effect pigmented paints and coatings

slide-13
SLIDE 13

Different Paint Applications … Pneumatic Application Electrostatic Application High Rotational (Bell) Application High Rotational (Bell) Application with Electrostatic support Coil coating

Felix Schmollgruber 13

slide-14
SLIDE 14

… result into different Paint Layers

Felix Schmollgruber 14

Pneumatic = Flat lying Flakes Electrostatic = unregular lying Flakes  Finally we get different Appearances !!!

slide-15
SLIDE 15

Flow & Atomization

Felix Schmollgruber 15

Same Paint, but different Application …

Low Flow & High Atomization (ESTA Bell) High Flow & Low Atomization Pneumatic

slide-16
SLIDE 16

Viscosity?

Felix Schmollgruber 16

Low Resin Viscosity = Flat lying Flakes High Resin Viscosity = unregular lying Flakes  Finally we get different Appearances !!!

slide-17
SLIDE 17

What do we need to fix? We need to capture the total appearance

  • f a sample and a reference in a
  • Repeatable
  • Reproducible and
  • Consistent way

We need to know whether the issue is

  • The Paint itself or
  • The Process (Application of the Paint)?

We need to know whether the final product will have equal appearance and pass QC requirements We’d want to use easy metrics for that

Felix Schmollgruber 17

slide-18
SLIDE 18

A potential Solution?

Felix Schmollgruber 18

slide-19
SLIDE 19

The Solution xDNA

Captures the whole appearance of an effect paint by measuring and processing a 3D spectral profile Calculates values to tell about total appearance difference Calculates values to tell about ingredient difference These values can be calculated as perceptually weighted as well (illuminant / observer dependant)

Felix Schmollgruber 19

slide-20
SLIDE 20

Simple evaluation

Total Appearance difference Formulation Change

Felix Schmollgruber 20

 deltaG / delta F  deltaGs / delta Fs

slide-21
SLIDE 21

How to xDNA?

xDNA – X-Rite Dynamic Numerical Analysis Arranging the Geometry into a coordinate system Collect all reflectances per wavelength across all angles as vectors Create a curve of all vector end points per wavelength xDNA – The coating gene

Felix Schmollgruber 21

slide-22
SLIDE 22

How to xDNA?

Arranging the Geometry into a XYZ coordinate system

Felix Schmollgruber 22

Z Y X

slide-23
SLIDE 23

How to xDNA?

Collect all reflectances per wavelength across all angles as vectors

Felix Schmollgruber 23

Z Y X 45 illumination

slide-24
SLIDE 24

What is meant by “vectors”? We can build a standard-Spectral Curve out of 30 values for each angle

Felix Schmollgruber 24

45 illumination

One 2D-Spectral Curve per geometry!

slide-25
SLIDE 25

What is meant by “vectors”?

Or we can build a 3D-spectral curve out of each intensity per angle for each wavelength and build a vector chain out of that

Felix Schmollgruber 25

45 illumination

First point of the xDNA 3D Spectral profile

Y Z 400 nm

slide-26
SLIDE 26

What is meant by “vectors”?

Or we can build a 3D-spectral curve out of each intensity per angle for each wavelength and build a vector chain out of that

Felix Schmollgruber 26

45 illumination

Point 11 of the xDNA 3D Spectral profile

Y Z 500 nm

“Many ways lead to Rome” – point can be built in any order

slide-27
SLIDE 27

The finished 3D profile Create a profile (curve) of all vector-end- points per wavelength

Felix Schmollgruber 27

slide-28
SLIDE 28

The new Values

Three steps to Analyze these curves Step 1: Transform Method to place the curve of a sample over the curve of a Standard to see if they match.

Felix Schmollgruber 28

slide-29
SLIDE 29

Transform Move the balance point of the sample profile over the balance point of the standard profile

Felix Schmollgruber 29

slide-30
SLIDE 30

The new Values

Three steps to Analyze these curves Step 2: Align Method to rotate the transformed curves to a closest match

Felix Schmollgruber 30

slide-31
SLIDE 31

Align Rotate the sample profile to “align” best with the standard profile!

Felix Schmollgruber 31

slide-32
SLIDE 32

The new Values

Three steps to Analyze these curves Step 3: Scale Method to scale the aligned curves to see if they match.  Tells about the Change of the Formula, Ingredients of the paint! dGs is the delta for Ingredient Change!

Felix Schmollgruber 32

slide-33
SLIDE 33

Scale Scale the sample profile to match the standards profile best

Felix Schmollgruber 33

slide-34
SLIDE 34

The new Values

Summary xDNA is converted by three methods translate – align – scale dG (before transformation)  is the total appearance difference between two samples dGs (after transformation)  represents ingredient differneces!

Felix Schmollgruber 34

slide-35
SLIDE 35

The new Values

Analysis of perceptual characteristics Similar like 1 Delta E is defined as distance, which can be perceived, 1 dG and 1 dF are defined as the distance in xDNA where a person may be able to distinguish differences! Same like with dG values we find different values for the perceptual deltas

Felix Schmollgruber 35

slide-36
SLIDE 36

The new Values

Analysis of perceptual characteristics (weighed differences) dG  Scaled overall difference of untransformed xDNA profiles dGs  Scaled overall difference of finally transformed (scaled) xDNA profiles dF  wheighted difference

(value changes with selection

  • f D65/10 or A/2 , ...)

dFs  Ingredient Change!

Felix Schmollgruber 36

slide-37
SLIDE 37

How to analyze xDNA metrics

Felix Schmollgruber 37

dG > 1? No Yes Equal Appearance! Check Traditional color values For Details check:

  • 1. dG
  • 2. dGs
slide-38
SLIDE 38

Summary The ability to measure the total appearance of gonioapparent effect pigmented paints and coatings secures good quality whenever such effect material is used The use of a second light source makes sure to capture the full effect with high precision spectrophotometric color measurement xDNA as a combined and simplified method of analyzing equal appearance provides

  • Simple metrics (such as delta E values) for Quality Assurance
  • The ability to differentiate between formulation and process

variations for root cause analyzis

Felix Schmollgruber 38

slide-39
SLIDE 39

Thank you for your kind attention! Your questions please!

Felix Schmollgruber

X-Rite Europe GmbH Product Manager New Platforms
