Analyses of physical factors associated with extreme rainfall over China under global warming Jinzhong Min, Weitao Deng minjz@nuist.edu.cn Nanjing University of Information Science & Technology China

slide-1

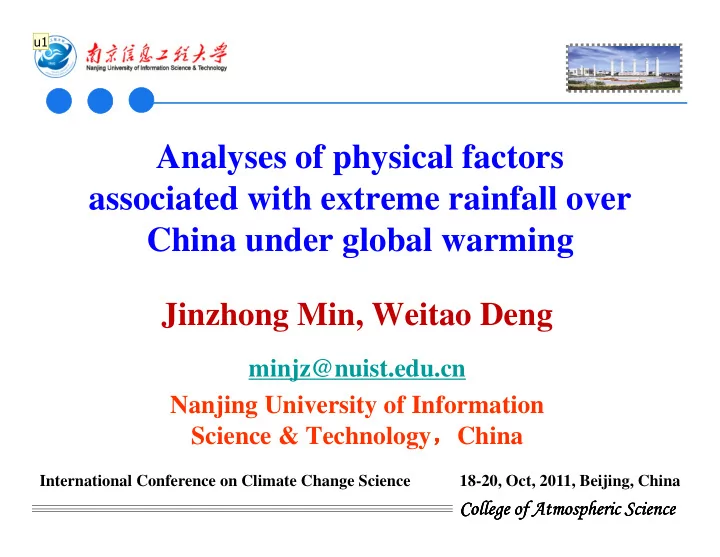

SLIDE 1

大气科学学院 大气科学学院 大气科学学院 大气科学学院

Analyses of physical factors associated with extreme rainfall over China under global warming

Jinzhong Min, Weitao Deng

minjz@nuist.edu.cn Nanjing University of Information Science & Technology， ， ， ，China

  • International Conference on Climate Change Science 18-20, Oct, 2011, Beijing, China
slide-2
SLIDE 2
slide-3
SLIDE 3

大气科学学院 大气科学学院 大气科学学院 大气科学学院

  • Introduction
  • Index representing storm intensities
  • Relationship analyses
  • Summary and discussion
slide-4
SLIDE 4

大气科学学院 大气科学学院 大气科学学院 大气科学学院

Introduction

  • Extreme climate events get more and more attention

– A small change in mean climate or variability might induce larger changes in the frequency and intensity of extreme events – Climate extremes have critical impact on human society, ecosystems and environment

  • Changes in extreme rainfall have different features in each area
  • f China.

– Trend in extreme precipitation events: more intense and frequent in the Mid-lower reaches of Yangtze River. – Trend in extreme rainfall events: less frequent in the Yellow River basin, with little change in intensity. – The change is likely due to global warming

slide-5
SLIDE 5

大气科学学院 大气科学学院 大气科学学院 大气科学学院

  • Open circle: decrease
  • closed circles: increase
  • The largest circles stand

for trends greater than 50% in the 50 years.

  • Cross signs: represent

trends with statistical significant under 95% confidence level. Summer Half Year

slide-6
SLIDE 6

大气科学学院 大气科学学院 大气科学学院 大气科学学院

Trends in number of storm rain days (50 mm/day)

(From Zhai)

summer half year

  • Open circles: decrease
  • closed circles: increase
  • The largest circles stand

for trends greater than 50% in the 50 years.

  • Cross signs represent

trends with statistical significant under 95% confidence level.

slide-7
SLIDE 7

大气科学学院 大气科学学院 大气科学学院 大气科学学院

(From Zhai)

slide-8
SLIDE 8

大气科学学院 大气科学学院 大气科学学院 大气科学学院

  • Why: the extreme rainfall events

become more frequently under global warming?

slide-9
SLIDE 9

大气科学学院 大气科学学院 大气科学学院 大气科学学院

  • Introduction
  • Index representing storm intensities
  • Relationship analyses
  • Summary and discussion
slide-10
SLIDE 10

大气科学学院 大气科学学院 大气科学学院 大气科学学院

  • By using potential pseudo-equivalent temperature

if I<0, potential instability

850 700 se se se

I θ θ θ − = ∆ =

Atmospheric stability index Thermal enthalpy index

  • By using temperature and moisture mixing ratio

if h is larger, it gets more energy

γ γ γ 2500 ) 88 . 1 01 . 1 ( + + = + = t h t C h

i g

slide-11
SLIDE 11

大气科学学院 大气科学学院 大气科学学院 大气科学学院

Wind Vertical shear index

  • Difference between 200hPa and 850hPa horizontal wind

When wind vertical shear becomes large, convection develops more likely.

200 850 200 850 200 850 2 2 200 850 200 850

( ) ( ) ( ) ( ) V V V u u i v v j u u v v ∆ = − = − + − = − + −

slide-12
SLIDE 12

大气科学学院 大气科学学院 大气科学学院 大气科学学院

Moisture content index

  • By using specific humidity

Atmosphere column divided into three layers.

  • −

=

z

p p

dp p q g W ) ( 1

slide-13
SLIDE 13

大气科学学院 大气科学学院 大气科学学院 大气科学学院

  • Introduction
  • Index representing storm intensities
  • Relationship analyses
  • Summary and discussion
slide-14
SLIDE 14

大气科学学院 大气科学学院 大气科学学院 大气科学学院

1964-1973 cool period 1999-2008 warm period Time series of summer average surface temperature in Northern hemisphere 1948-2009 (dot line means 5-year running average)

slide-15
SLIDE 15

大气科学学院 大气科学学院 大气科学学院 大气科学学院

Composite ananlysis

warm period minus cool period

slide-16
SLIDE 16

大气科学学院 大气科学学院 大气科学学院 大气科学学院

Differences in atmospheric stability index between warm period and cool period (unit:K)

slide-17
SLIDE 17

大气科学学院 大气科学学院 大气科学学院 大气科学学院

Differences in thermal enthalpy between warm period and cool period (unit: KJ/Kg)

850hPa 700hPa 500hPa

slide-18
SLIDE 18

大气科学学院 大气科学学院 大气科学学院 大气科学学院

Differences in wind vertical shear between warm period and cool period(unit: m/s)

slide-19
SLIDE 19

大气科学学院 大气科学学院 大气科学学院 大气科学学院

low layer middle layer high layer

Differences in moisture content between warm period and cool period (unit: kg/m2)

slide-20
SLIDE 20

大气科学学院 大气科学学院 大气科学学院 大气科学学院

A B

Mid-lower reaches of Yangtze River North China

slide-21
SLIDE 21

大气科学学院 大气科学学院 大气科学学院 大气科学学院

A area: Mid-low reach of Yangtz River Time series of atmospheric stability index (green line means trend, and blue/red line means cool/warm period average) Vertical profiles: Air temperature(unit: K) and specific humidity anomaly (unit: g/m2) (blue/red line means cool/warm period average)

slide-22
SLIDE 22

大气科学学院 大气科学学院 大气科学学院 大气科学学院

Change (%) in atmospheric stability index in different cases (+/- means warm/cool period cases)

A area: Mid-low reacher of Yangtz River

  • q

+2× × × × +1× × × × +0.5× × × × CL

  • 0.5×

× × ×

  • 1×

× × ×

  • 2×

× × × T +2× × × × ↓ ↓ ↓ ↓45.2% ↓ ↓ ↓ ↓23.1% +1× × × × ↓ ↓ ↓ ↓22.6% ↓ ↓ ↓ ↓11.5% +0.5× × × × ↓ ↓ ↓ ↓11.2% ↓ ↓ ↓ ↓5.7% CL ↓ ↓ ↓ ↓22.1% ↓ ↓ ↓ ↓11.1% ↓ ↓ ↓ ↓5.5% ↓ ↓ ↓ ↓5.0% ↓ ↓ ↓ ↓9.9% ↓ ↓ ↓ ↓19.7%

  • 0.5×

× × × ↑ ↑ ↑ ↑0.5% ↓ ↓ ↓ ↓4.5%

  • 1×

× × × ↑ ↑ ↑ ↑0.7% ↓ ↓ ↓ ↓9.1%

  • 2×

× × × ↑ ↑ ↑ ↑1.2% ↓ ↓ ↓ ↓18.5%

slide-23
SLIDE 23

大气科学学院 大气科学学院 大气科学学院 大气科学学院

Time series of atmospheric stability index (green line means trend, and blue/red line means cool/warm period average) B area：North of China

  • Vertical profiles: Air temperature anomaly (unit:K) and specific humidity anomaly (unit:

g/m2) (blue/red line means cool/warm period average)

slide-24
SLIDE 24

大气科学学院 大气科学学院 大气科学学院 大气科学学院

Changes (%) in atmospheric stability index in different cases (+/- means warm/cool period case)

B area：North of China

  • q

+2× × × × +1× × × × +0.5× × × × CL

  • 0.5×

× × ×

  • 1×

× × ×

  • 2×

× × × T +2× × × × 10.8% 20.6% +1× × × × 5.4% 10.3% +0.5× × × × 2.8% 5.1% CL 9.8% 4.9% 2.3% 6.9% 13.9 % 28.0 %

  • 0.5×

× × × 1.8% 5.1%

  • 1×

× × × 3.6% 10.5 %

  • 2×

× × × 7.2% 21.8 %

slide-25
SLIDE 25

大气科学学院 大气科学学院 大气科学学院 大气科学学院

trend ananlysis

from 1970 to 2010

slide-26
SLIDE 26

大气科学学院 大气科学学院 大气科学学院 大气科学学院

Atmospheric stability index

Trend (unit: K/10yr) Time series (green line means trend)

slide-27
SLIDE 27

大气科学学院 大气科学学院 大气科学学院 大气科学学院

Trend (unit: KJ/kg/10yr)

Thermal enthalpy (850 hPa)

Time series (green line means trend)

slide-28
SLIDE 28

大气科学学院 大气科学学院 大气科学学院 大气科学学院

Trend (unit: m/s/10yr)

Wind vertical shear

Time series (green line means trend)

slide-29
SLIDE 29

大气科学学院 大气科学学院 大气科学学院 大气科学学院

Moisture content (low layer)

Trend (unit: Kg/m2/10yr) Time series (green line means trend)

slide-30
SLIDE 30

大气科学学院 大气科学学院 大气科学学院 大气科学学院

Moisture content (middle layer)

Trend (unit: Kg/m2/10yr) Time series (green line means trend)

slide-31
SLIDE 31

大气科学学院 大气科学学院 大气科学学院 大气科学学院

Moisture content (high layer)

Trend (unit: Kg/m2/10yr) Time series (green line means trend)

slide-32
SLIDE 32

大气科学学院 大气科学学院 大气科学学院 大气科学学院

  • 0.2
  • 0.15
  • 0.1
  • 0.05

0.05 0.1 0.15 suf-700hPa 700-400hPa 400-300hPa

High layer Middle layer Low layer

Air temperature trend Moisture content trend

A area: Mid-low reacher of Yangtz River Low layer：dry warm trend High layer: dry cool trend Low layer：wet warm trend B area：North of China High layer：dry cool trend

slide-33
SLIDE 33

大气科学学院 大气科学学院 大气科学学院 大气科学学院

  • Introduction
  • Index representing storm intensities
  • Relationship analyses
  • Summary and discussion
slide-34
SLIDE 34

大气科学学院 大气科学学院 大气科学学院 大气科学学院

  • Summary and discussion
  • Likely due to global warming, atmosphere circulation

changes obviously, leading to changes in intensity and frequency of rainfall over China. – At mid-low reach of Yangtze River, warm and wet trends in low layer, and cool and dry trends in high layer, leading to unstable stratification and large wind vertical shear in the atmosphere. – In North China, warm and dry trends in low layer, and cool and dry trends in high layer, leading to stable stratification and small wind vertical shear.

slide-35
SLIDE 35

大气科学学院 大气科学学院 大气科学学院 大气科学学院

  • Summary and discussion

– At mid-low reach of Yangtze River, temperature and moisture effects are similarly important in warm period, but temperature effect is more important than moisture in cool period. – In North China, temperature effect is more important than moisture in warm period, but moisture effect is more important than temperature in cool period. – The wind vertical shear has increased when temperature increases at mid-low reach of Yangtze River.

slide-36
SLIDE 36

大气科学学院 大气科学学院 大气科学学院 大气科学学院

  • All these factors can lead to a trend with

strong and frequent rainfall events. That means global warming can be one of factor for extreme precipitation change, but moisture factor can’t be neglected .

Summary and discussion

slide-37
SLIDE 37

大气科学学院 大气科学学院 大气科学学院 大气科学学院

B area： ： ： ：North of China Air temperature moisture content thermal enthalpy Wind vertical shear Stability index

－ － － － － － － － ＋ ＋ ＋ ＋

high layer middle layer low layer

－ － － － － － － － － － － －

high: dry cool low: dry warm

— ＋ ＋ ＋ ＋ ↓ ↓ ↓ ↓

A area: Mid-low reacher of Yangtz River

－ － － － － － － － ＋ ＋ ＋ ＋

high layer middle layer low layer

－ － － － － － － － ＋ ＋ ＋ ＋

high: dry cool low: wet warm

  • ＋

＋ ＋ ＋ ＋ ＋ ＋ ＋

slide-38
SLIDE 38

大气科学学院 大气科学学院 大气科学学院 大气科学学院

slide-39
SLIDE 39

大气科学学院 大气科学学院 大气科学学院 大气科学学院

  • Using IPCC AR4 and AR5 model data, we

plan to analyze extreme precipitation events in different models and different scenario, to quantify the relationships with atmosphere background changes.

  • Using regional model, we can simulate

extreme rainfall-related processes, in order to find the physical mechanisms for extreme rainfall events under global warming.

Next step:
