AMD & SSSD Two SiPM-based scintillation detectors for Auger Johannes Schumacher for the Pierre Auger Collaboration HAP workshop Feb. 2016 Outline Motivation for SiPMs Part 1: AMD Aachen Muon Detector Part 2: SSSD SiPMs

slide-1
SLIDE 1

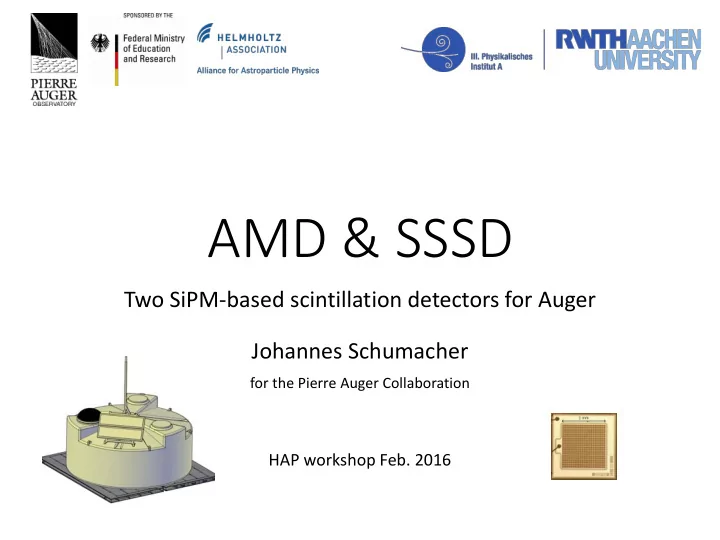

AMD & SSSD

Two SiPM-based scintillation detectors for Auger Johannes Schumacher

for the Pierre Auger Collaboration

HAP workshop Feb. 2016

slide-2
SLIDE 2

Outline

  • Motivation for SiPMs
  • Part 1: AMD – Aachen Muon Detector
  • Part 2: SSSD – SiPMs for the Scintillation Surface

Detector in the scope of AugerPrime

slide-3
SLIDE 3

Silicon Photomultipliers

aka SiPMs, MPPCs, G-APDs, …

6 mm

slide-4
SLIDE 4

1x SiPM ∑ ∫ dt

  • eq. circuit

Rate / arb.u. Charge / arb.u. dark noise

  • nly
slide-5
SLIDE 5

1x SiPM ∑ ∫ dt

  • eq. circuit

dark noise + signal Rate / arb.u. Charge / arb.u.

slide-6
SLIDE 6

Why SiPMs?

… with fibre emission Based on datasheet values WLS fibres

slide-7
SLIDE 7

The Aachen Muon Detector (AMD)

Seed-funded project: a SiPM-based prototype muon detector

PoS(ICRC2015)596

SD tank AMD

slide-8
SLIDE 8

Hamamatsu S12571-50P SiPM

slide-9
SLIDE 9

Seed-funded for ½ detector

Easiroc Steel housing

slide-10
SLIDE 10

Optical coupling (SiPM side) Optical coupling (scint. side)

μ

Scintillator efficiency test stand

measure impacts of different ...

  • ... scintillator wrapping techniques
  • ... fibre conditioning techniques
slide-11
SLIDE 11

Efficiency not matter of wrapping technique, but more likely a matter of wrapping experience!

Example: different wrapping techniques

Slightly varying efficiency remainder: Tyvek Teflon Tyvek UV

slide-12
SLIDE 12

To do list

  • test of water/light tightness
  • f steel housing next months
  • wrapping of remaining 24

naked scintillator tiles by hand

  • test measurements of

scintillator tile efficiency vs. impact position

slide-13
SLIDE 13

SiPMs for the Scintillation Surface Detector (SSD)

In the scope of AugerPrime

slide-14
SLIDE 14

Scintillator bars WLS fibres “Cookie” WLS fibres coupled to a single optical coupling (“cookie“)  single large area photosensor needed

SSD - overview

slide-15
SLIDE 15

Developed May/June 2015 5 weeks development 12 V in DC/DC µC, DAC, LDO SiPM & T-sensor Cone “cookie” enters here Pre-amps Hi & Lo gain out based on 6x6 mm^2 SensL C-series

SiPM solution for prototype detector

slide-16
SLIDE 16

SiPM solution installed in Argentina

slide-17
SLIDE 17

First data

SiPM (hi) SiPM (low) SD PMT 2 (hi) SD PMT 3 (hi) SD PMT 2 (low) SD PMT 3 (low) SD event display

slide-18
SLIDE 18

SiPM noise + electronic noise Signal?

Charge histogram

no “fingers”!!!

(due to electronic problems, i.a.)

slide-19
SLIDE 19

Subtract noise by applying exponential fit to “low p.e.” Signal!

Charge histogram

slide-20
SLIDE 20

Changes

  • Improved electronics

 less electronic noise

  • Improved cone

 higher efficiency

  • “better“ SiPM

 less dark noise, less crosstalk, higher efficiency

slide-21
SLIDE 21
  • Improved electronics
  • Improved cone
  • better SiPM
slide-22
SLIDE 22

Cone SiPM

slide-23
SLIDE 23

“fingers”! Hamamatsu S13360-6050PE, low crosstalk version ≈13 p.e.

slide-24
SLIDE 24

Measurement in Aachen

SSD scintillator bars triggered by AMD sc. tiles SiPM Fibres No cone! (Expect increased efficiency)

slide-25
SLIDE 25

≈23 p.e. thicker bars!

slide-26
SLIDE 26

Summary/outlook

  • Currently working on a two-channel SiPM solution

for AugerPrime

  • electronics will be finished in March
  • shipping in mid-April together with aluminium housing

from KIT to Argentina or in summer

  • tests (optical coupling, efficiency, reliability, noise, ...)

will be done until mid-April

slide-27
SLIDE 27

Conclusion

  • SiPMs are an excellent choice for WLS-fibre read-
  • ut, due to high efficiency
  • Low noise, high dynamic range SiPMs available!
slide-28
SLIDE 28

Appendix

some additional measurements

slide-29
SLIDE 29

≈ 5%

slide-30
SLIDE 30

measurement

slide-31
SLIDE 31

simulation

slide-32
SLIDE 32
slide-33
SLIDE 33

/K courtesy of Hamamatsu

slide-34
SLIDE 34

courtesy of Hamamatsu /K

slide-35
SLIDE 35

courtesy of Hamamatsu

slide-36
SLIDE 36

courtesy of SensL

slide-37
SLIDE 37

courtesy of SensL

slide-38
SLIDE 38

courtesy of SensL

slide-39
SLIDE 39

courtesy of SensL

slide-40
SLIDE 40

courtesy of SensL

slide-41
SLIDE 41

courtesy of SensL
