Algebras of incidence structures: representing regular double p-algebras Christopher Taylor La Trobe University AustMS 2015 Chris Taylor Algebras of incidence structures AustMS 2015 1 / 25 Acknowledgements Thanks to the AustMS Student

slide-1
SLIDE 1

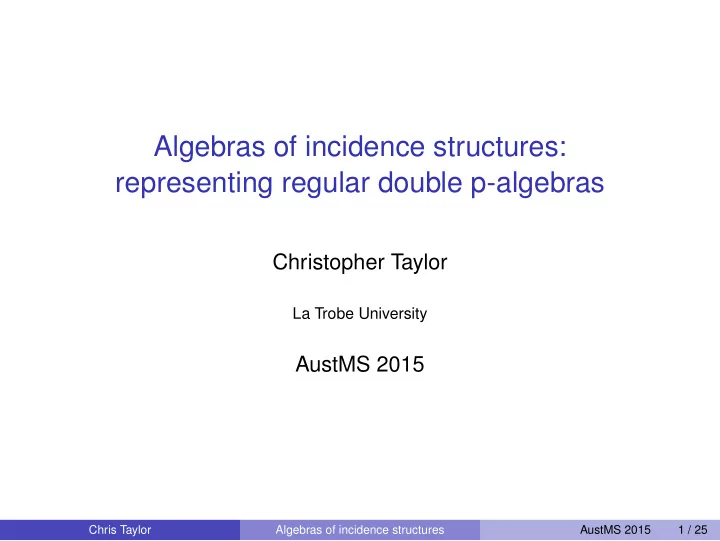

Algebras of incidence structures: representing regular double p-algebras

Christopher Taylor

La Trobe University

AustMS 2015

Chris Taylor Algebras of incidence structures AustMS 2015 1 / 25

slide-2
SLIDE 2

Acknowledgements

Thanks to the AustMS Student Support Scheme for providing additional funding to help attend the conference.

Chris Taylor Algebras of incidence structures AustMS 2015 2 / 25

slide-3
SLIDE 3

Boolean lattices

P({1, 2, 3}) = {∅, {1}, {2}, {3}, {1, 2}, {1, 3}, {2, 3}, {1, 2, 3}}

Chris Taylor Algebras of incidence structures AustMS 2015 3 / 25

slide-4
SLIDE 4

Boolean lattices

P({1, 2, 3}) = {∅, {1}, {2}, {3}, {1, 2}, {1, 3}, {2, 3}, {1, 2, 3}} ∅

Chris Taylor Algebras of incidence structures AustMS 2015 3 / 25

slide-5
SLIDE 5

Boolean lattices

P({1, 2, 3}) = {∅, {1}, {2}, {3}, {1, 2}, {1, 3}, {2, 3}, {1, 2, 3}} ∅ {1}

Chris Taylor Algebras of incidence structures AustMS 2015 3 / 25

slide-6
SLIDE 6

Boolean lattices

P({1, 2, 3}) = {∅, {1}, {2}, {3}, {1, 2}, {1, 3}, {2, 3}, {1, 2, 3}} ∅ {1} {2}

Chris Taylor Algebras of incidence structures AustMS 2015 3 / 25

slide-7
SLIDE 7

Boolean lattices

P({1, 2, 3}) = {∅, {1}, {2}, {3}, {1, 2}, {1, 3}, {2, 3}, {1, 2, 3}} ∅ {1} {2} {3}

Chris Taylor Algebras of incidence structures AustMS 2015 3 / 25

slide-8
SLIDE 8

Boolean lattices

P({1, 2, 3}) = {∅, {1}, {2}, {3}, {1, 2}, {1, 3}, {2, 3}, {1, 2, 3}} ∅ {1} {2} {3} {1, 2}

Chris Taylor Algebras of incidence structures AustMS 2015 3 / 25

slide-9
SLIDE 9

Boolean lattices

P({1, 2, 3}) = {∅, {1}, {2}, {3}, {1, 2}, {1, 3}, {2, 3}, {1, 2, 3}} ∅ {1} {2} {3} {1, 2} {1, 3}

Chris Taylor Algebras of incidence structures AustMS 2015 3 / 25

slide-10
SLIDE 10

Boolean lattices

P({1, 2, 3}) = {∅, {1}, {2}, {3}, {1, 2}, {1, 3}, {2, 3}, {1, 2, 3}} ∅ {1} {2} {3} {1, 2} {1, 3} {2, 3}

Chris Taylor Algebras of incidence structures AustMS 2015 3 / 25

slide-11
SLIDE 11

Boolean lattices

P({1, 2, 3}) = {∅, {1}, {2}, {3}, {1, 2}, {1, 3}, {2, 3}, {1, 2, 3}} ∅ {1} {2} {3} {1, 2} {1, 3} {2, 3} {1, 2, 3}

Chris Taylor Algebras of incidence structures AustMS 2015 3 / 25

slide-12
SLIDE 12

Boolean lattices

Definition

Boolean lattice: a bounded distributive lattice B = B; ∨, ∧, 0, 1 such that every x ∈ B has a (unique) complement.

Chris Taylor Algebras of incidence structures AustMS 2015 4 / 25

slide-13
SLIDE 13

Boolean lattices

Definition

Boolean lattice: a bounded distributive lattice B = B; ∨, ∧, 0, 1 such that every x ∈ B has a (unique) complement.

Theorem

Let L be a finite lattice. Then the following are equivalent.

1

L is a boolean lattice,

2

L ∼ = P(B) for some finite set B,

3

L ∼ = 2n for some n ≥ 0.

Chris Taylor Algebras of incidence structures AustMS 2015 4 / 25

slide-14
SLIDE 14

Some other classifications

Birkhoff’s duality for finite distributive lattices Stone’s duality for boolean algebras Priestley’s duality for bounded distributive lattices Every finite cyclic group is isomorphic to Zn for some n ∈ ω Every finite abelian group is isomorphic to n

i=0 Zqi where each qi

is a power of a prime

Chris Taylor Algebras of incidence structures AustMS 2015 5 / 25

slide-15
SLIDE 15

Graphs

A graph:

Chris Taylor Algebras of incidence structures AustMS 2015 6 / 25

slide-16
SLIDE 16

Graphs

A graph: A subgraph:

Chris Taylor Algebras of incidence structures AustMS 2015 6 / 25

slide-17
SLIDE 17

Graphs

A graph: A subgraph:

Chris Taylor Algebras of incidence structures AustMS 2015 6 / 25

slide-18
SLIDE 18

Graphs

A graph: A subgraph:

Chris Taylor Algebras of incidence structures AustMS 2015 6 / 25

slide-19
SLIDE 19

Graphs

A graph: A subgraph:

Chris Taylor Algebras of incidence structures AustMS 2015 6 / 25

slide-20
SLIDE 20

Graphs

A graph: A subgraph:

Chris Taylor Algebras of incidence structures AustMS 2015 6 / 25

slide-21
SLIDE 21

Graphs

A graph: A subgraph:

Chris Taylor Algebras of incidence structures AustMS 2015 6 / 25

slide-22
SLIDE 22

Graphs

A graph: A subgraph:

Chris Taylor Algebras of incidence structures AustMS 2015 6 / 25

slide-23
SLIDE 23

Graphs

A graph: A subgraph:

Chris Taylor Algebras of incidence structures AustMS 2015 6 / 25

slide-24
SLIDE 24

Graphs

A graph: A subgraph:

Chris Taylor Algebras of incidence structures AustMS 2015 6 / 25

slide-25
SLIDE 25

Graphs

A graph: A subgraph:

Chris Taylor Algebras of incidence structures AustMS 2015 6 / 25

slide-26
SLIDE 26

Graphs

A graph: A subgraph:

Chris Taylor Algebras of incidence structures AustMS 2015 6 / 25

slide-27
SLIDE 27

Graphs

A graph: A subgraph:

Chris Taylor Algebras of incidence structures AustMS 2015 6 / 25

slide-28
SLIDE 28

Graphs

A graph: A subgraph:

Chris Taylor Algebras of incidence structures AustMS 2015 6 / 25

slide-29
SLIDE 29

The lattice of subgraphs

Let G = V, E be a graph. The set of all subgraphs of G induces a bounded distributive lattice, which we will call S(G), where V1, E1 ∨ V2, E2 = V1 ∪ V2, E1 ∪ E2 V1, E1 ∧ V2, E2 = V1 ∩ V2, E1 ∩ E2. Note that we permit the empty graph.

Chris Taylor Algebras of incidence structures AustMS 2015 7 / 25

slide-30
SLIDE 30

Graph complements

Chris Taylor Algebras of incidence structures AustMS 2015 8 / 25

slide-31
SLIDE 31

Graph complements

Chris Taylor Algebras of incidence structures AustMS 2015 8 / 25

slide-32
SLIDE 32

Graph complements

֒ →

Complement

Chris Taylor Algebras of incidence structures AustMS 2015 8 / 25

slide-33
SLIDE 33

Graph complements

֒ →

Complement

Chris Taylor Algebras of incidence structures AustMS 2015 9 / 25

slide-34
SLIDE 34

Graph complements

֒ →

Chris Taylor Algebras of incidence structures AustMS 2015 9 / 25

slide-35
SLIDE 35

Graph complements

֒ →

Chris Taylor Algebras of incidence structures AustMS 2015 10 / 25

slide-36
SLIDE 36

Graph complements

֒ →

Chris Taylor Algebras of incidence structures AustMS 2015 10 / 25

slide-37
SLIDE 37

Pseudocomplementation

Let L be a lattice and let x ∈ L. Then x has a pseudocomplement if there exists a largest element x∗ ∈ L such that x ∧ x∗ = 0.

Chris Taylor Algebras of incidence structures AustMS 2015 11 / 25

slide-38
SLIDE 38

Pseudocomplementation

Let L be a lattice and let x ∈ L. Then x has a pseudocomplement if there exists a largest element x∗ ∈ L such that x ∧ x∗ = 0. Example: The lattice of open sets of a topological space X. If U is an open set, then U∗ = int(X \ U).

Chris Taylor Algebras of incidence structures AustMS 2015 11 / 25

slide-39
SLIDE 39

Pseudocomplementation

Let L be a lattice and let x ∈ L. Then x has a pseudocomplement if there exists a largest element x∗ ∈ L such that x ∧ x∗ = 0. Example: The lattice of open sets of a topological space X. If U is an open set, then U∗ = int(X \ U). Let L be a lattice and let x ∈ L. Then x has a dual pseudocomplement if there exists a smallest element x+ ∈ L such that x ∨ x+ = 1.

Chris Taylor Algebras of incidence structures AustMS 2015 11 / 25

slide-40
SLIDE 40

Pseudocomplementation

Let L be a lattice and let x ∈ L. Then x has a pseudocomplement if there exists a largest element x∗ ∈ L such that x ∧ x∗ = 0. Example: The lattice of open sets of a topological space X. If U is an open set, then U∗ = int(X \ U). Let L be a lattice and let x ∈ L. Then x has a dual pseudocomplement if there exists a smallest element x+ ∈ L such that x ∨ x+ = 1. Example: The lattice of closed sets of a topological space X. If C is a closed set, then U+ = cl(X \ C).

Chris Taylor Algebras of incidence structures AustMS 2015 11 / 25

slide-41
SLIDE 41

Pseudocomplementation

Let L be a lattice and let x ∈ L. Then x has a pseudocomplement if there exists a largest element x∗ ∈ L such that x ∧ x∗ = 0. Example: The lattice of open sets of a topological space X. If U is an open set, then U∗ = int(X \ U). Let L be a lattice and let x ∈ L. Then x has a dual pseudocomplement if there exists a smallest element x+ ∈ L such that x ∨ x+ = 1. Example: The lattice of closed sets of a topological space X. If C is a closed set, then U+ = cl(X \ C).

Definition

An algebra A = A; ∨, ∧, 0, 1, ∗, + is a double p-algebra if A; ∨, ∧, 0, 1 is a bounded lattice, and ∗ and + are the pseudocomplement and dual pseudocomplement respectively.

Chris Taylor Algebras of incidence structures AustMS 2015 11 / 25

slide-42
SLIDE 42

The algebra of subgraphs

Pseudocomplement

Take the set complement of the subgraph and abandon the extra edges.

Chris Taylor Algebras of incidence structures AustMS 2015 12 / 25

slide-43
SLIDE 43

The algebra of subgraphs

Pseudocomplement

Take the set complement of the subgraph and abandon the extra edges.

Dual pseudocomplement

Just add the missing vertices back

Chris Taylor Algebras of incidence structures AustMS 2015 12 / 25

slide-44
SLIDE 44

The algebra of subgraphs

Pseudocomplement

Take the set complement of the subgraph and abandon the extra edges.

Dual pseudocomplement

Just add the missing vertices back Formally, for a graph G = V, E and a subgraph H = V ′, E′: H∗ = V\V ′, {e ∈ E\E′ | (∀x ∈ e) x ∈ V\V ′} H+ = V\V ′ ∪ {v ∈ V | (∃e ∈ E\E′) v ∈ e}, E\E′.

Chris Taylor Algebras of incidence structures AustMS 2015 12 / 25

slide-45
SLIDE 45

Pseudocomplement

H∗ = V\V ′, {e ∈ E\E′ | (∀x ∈ e) x ∈ V\V ′}

֒ →

Chris Taylor Algebras of incidence structures AustMS 2015 13 / 25

slide-46
SLIDE 46

Pseudocomplement

H∗ = V\V ′, {e ∈ E\E′ | (∀x ∈ e) x ∈ V\V ′}

֒ →

Chris Taylor Algebras of incidence structures AustMS 2015 13 / 25

slide-47
SLIDE 47

Pseudocomplements are not bijective

Boolean lattices: no two elements share a complement Double p-algebras: not true!

֒ →

Chris Taylor Algebras of incidence structures AustMS 2015 14 / 25

slide-48
SLIDE 48

Pseudocomplements are not bijective

Boolean lattices: no two elements share a complement Double p-algebras: not true!

֒ →

Chris Taylor Algebras of incidence structures AustMS 2015 14 / 25

slide-49
SLIDE 49

Pseudocomplements are not bijective

Boolean lattices: no two elements share a complement Double p-algebras: not true!

֒ →

Chris Taylor Algebras of incidence structures AustMS 2015 14 / 25

slide-50
SLIDE 50

Pseudocomplements are not bijective

Boolean lattices: no two elements share a complement Double p-algebras: not true!

֒ →

Chris Taylor Algebras of incidence structures AustMS 2015 14 / 25

slide-51
SLIDE 51

Regular double p-algebras

Let A be an algebra. We say that A is congruence regular if, for all α, β ∈ Con(A), we have ((∃x ∈ A) x/α = x/β) = ⇒ α = β. Example: groups

Chris Taylor Algebras of incidence structures AustMS 2015 15 / 25

slide-52
SLIDE 52

Regular double p-algebras

Let A be an algebra. We say that A is congruence regular if, for all α, β ∈ Con(A), we have ((∃x ∈ A) x/α = x/β) = ⇒ α = β. Example: groups

Theorem (Varlet, 1972)

Let A be a double p-algebra. Then the following are equivalent.

1

A is congruence regular.

2

(∀a, b ∈ A) if a∗ = b∗ and a+ = b+ then a = b.

3

(∀a, b ∈ A) a ∧ a+ ≤ b ∨ b∗.

Chris Taylor Algebras of incidence structures AustMS 2015 15 / 25

slide-53
SLIDE 53

A well-behaved structure

Theorem

Let G = V, E be a graph. Then S(G) is (the underlying lattice of) a regular double p-algebra.

Chris Taylor Algebras of incidence structures AustMS 2015 16 / 25

slide-54
SLIDE 54

A well-behaved structure

Theorem

Let G = V, E be a graph. Then S(G) is (the underlying lattice of) a regular double p-algebra.

Proof.

Let A = AV, AE and B = BV, BE be subgraphs of G. Recall that for a subgraph H = V ′, E′, H∗ = V\V ′, {e ∈ E\E′ | (∀x ∈ e) x ∈ V\V ′} (1) H+ = V\V ′ ∪ {v ∈ V | (∃e ∈ E\E′) v ∈ e}, E\E′. (2) Assume A∗ = B∗ and A+ = B+. Then from (1) we have V\AV = V\BV and from (2) we have E\AE = E\BE. Hence, A = B.

Chris Taylor Algebras of incidence structures AustMS 2015 16 / 25

slide-55
SLIDE 55

Are graphs enough?

→

Chris Taylor Algebras of incidence structures AustMS 2015 17 / 25

slide-56
SLIDE 56

Are graphs enough?

→

Chris Taylor Algebras of incidence structures AustMS 2015 17 / 25

slide-57
SLIDE 57

Are graphs enough?

→

Chris Taylor Algebras of incidence structures AustMS 2015 17 / 25

slide-58
SLIDE 58

Are graphs enough?

→

Chris Taylor Algebras of incidence structures AustMS 2015 17 / 25

slide-59
SLIDE 59

Are multigraphs enough?

→

Chris Taylor Algebras of incidence structures AustMS 2015 18 / 25

slide-60
SLIDE 60

Are multigraphs enough?

→

Chris Taylor Algebras of incidence structures AustMS 2015 18 / 25

slide-61
SLIDE 61

Are multigraphs enough?

→

Chris Taylor Algebras of incidence structures AustMS 2015 18 / 25

slide-62
SLIDE 62

Are multigraphs enough?

→

Chris Taylor Algebras of incidence structures AustMS 2015 18 / 25

slide-63
SLIDE 63

Are multigraphs enough?

→

Chris Taylor Algebras of incidence structures AustMS 2015 18 / 25

slide-64
SLIDE 64

Are multigraphs enough?

→

Chris Taylor Algebras of incidence structures AustMS 2015 18 / 25

slide-65
SLIDE 65

Incidence structures

Definition

An incidence structure is a triple P, L, I where P is a set of points, L is a set of lines and I ⊆ P × L is an incidence relation describing which points are incident to which lines.

Example

Let P = {1, 2, 3}, L = {x, y, z, a, b}, and let I = {1, 2, 3} × {x, y} ∪ {1, 2} × {z} ∪ {(1, a), (1, b)}

Chris Taylor Algebras of incidence structures AustMS 2015 19 / 25

slide-66
SLIDE 66

Incidence structures

Example

Let P = {1, 2, 3}, L = {x, y, z, a, b}, and let I = {1, 2, 3} × {x, y} ∪ {1, 2} × {z} ∪ {(1, a), (1, b)} 1 2 3 z a b y x

Chris Taylor Algebras of incidence structures AustMS 2015 20 / 25

slide-67
SLIDE 67

Point-preserving substructures

Definition

Let G = P, L, I be an incidence structure. A point-preserving substructure of G is a pair P′, L′ such that

1

P′ ⊆ P and L′ ⊆ L,

2

for all ℓ ∈ L′, if (p, ℓ) ∈ I then p ∈ P′. The incidence relation is defined implicitly from G.

Chris Taylor Algebras of incidence structures AustMS 2015 21 / 25

slide-68
SLIDE 68

Point-preserving substructures

Definition

Let G = P, L, I be an incidence structure. A point-preserving substructure of G is a pair P′, L′ such that

1

P′ ⊆ P and L′ ⊆ L,

2

for all ℓ ∈ L′, if (p, ℓ) ∈ I then p ∈ P′. The incidence relation is defined implicitly from G. Let S(G) denote the set of all point-preserving substructures of a structure G. This induces a double p-algebra in a similar way to graphs, where P′, L′∗ = P\P′, {ℓ ∈ L\L′ | (∀p ∈ P) (p, ℓ) ∈ I = ⇒ p ∈ P\P′} P′, L′+ = P\P′ ∪ {p ∈ P | (∃ℓ ∈ L\L′) (p, ℓ) ∈ I}, L\L′.

Chris Taylor Algebras of incidence structures AustMS 2015 21 / 25

slide-69
SLIDE 69

The main result (finite version)

Theorem

Let L be a finite lattice. Then the following are equivalent.

1

L is a boolean lattice,

2

L ∼ = P(B) for some set B,

3

L ∼ = 2n for some n ≥ 0.

Chris Taylor Algebras of incidence structures AustMS 2015 22 / 25

slide-70
SLIDE 70

The main result (finite version)

Theorem

Let L be a finite lattice. Then the following are equivalent.

1

L is a boolean lattice,

2

L ∼ = P(B) for some set B,

3

L ∼ = 2n for some n ≥ 0.

Theorem (Taylor, 2015)

Let L be a finite lattice. Then the following are equivalent.

1

L is (the underlying lattice of) a regular double p-algebra,

2

L ∼ = S(G) for some incidence structure G,

3

L ∼ = 2n × S(G) for some n ≥ 0 and some incidence structure G.

Chris Taylor Algebras of incidence structures AustMS 2015 22 / 25

slide-71
SLIDE 71

An infinite counterexample

The finite-cofinite algebra of N is a boolean algebra.

◮ FC(N) := {S ⊆ N | S is finite or N \ S is finite}. Chris Taylor Algebras of incidence structures AustMS 2015 23 / 25

slide-72
SLIDE 72

An infinite counterexample

The finite-cofinite algebra of N is a boolean algebra.

◮ FC(N) := {S ⊆ N | S is finite or N \ S is finite}.

FC(N) is countable.

Chris Taylor Algebras of incidence structures AustMS 2015 23 / 25

slide-73
SLIDE 73

An infinite counterexample

The finite-cofinite algebra of N is a boolean algebra.

◮ FC(N) := {S ⊆ N | S is finite or N \ S is finite}.

FC(N) is countable. Every powerset lattice has cardinality 2X for some set X.

Chris Taylor Algebras of incidence structures AustMS 2015 23 / 25

slide-74
SLIDE 74

An infinite counterexample

The finite-cofinite algebra of N is a boolean algebra.

◮ FC(N) := {S ⊆ N | S is finite or N \ S is finite}.

FC(N) is countable. Every powerset lattice has cardinality 2X for some set X. Thus FC(N) is not a powerset algebra.

Chris Taylor Algebras of incidence structures AustMS 2015 23 / 25

slide-75
SLIDE 75

The characterisation of powerset algebras

Theorem

Let B be a boolean lattice. Then the following are equivalent.

1

B ∼ = P(X) for some set X.

2

B is complete and atomic.

3

B is complete and completely distributive.

Chris Taylor Algebras of incidence structures AustMS 2015 24 / 25

slide-76
SLIDE 76

The main result

Theorem (Taylor, 2015)

Let A be a regular double p-algebra. Then the following are equivalent.

1

A ∼ = P(B) × S(G) for some set B and some incidence structure G.

2

A ∼ = S(G) for some incidence structure G.

3

A is complete, completely distributive and doubly atomic.

Chris Taylor Algebras of incidence structures AustMS 2015 25 / 25

slide-77
SLIDE 77

The main result

Theorem (Taylor, 2015)

Let A be a regular double p-algebra. Then the following are equivalent.

1

A ∼ = P(B) × S(G) for some set B and some incidence structure G.

2

A ∼ = S(G) for some incidence structure G.

3

A is complete, completely distributive and doubly atomic.

Theorem (Taylor, 2015)

Let A be a regular double p-algebra. Then there is an incidence structure G such that A is isomorphic to a subalgebra of S(G).

Chris Taylor Algebras of incidence structures AustMS 2015 25 / 25
