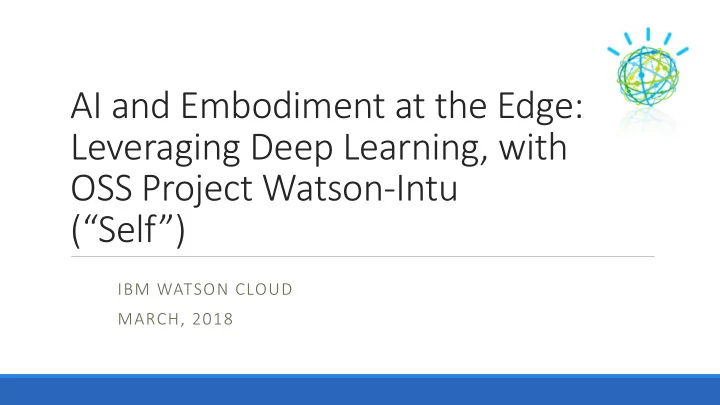

AI and Embodiment at the Edge: Leveraging Deep Learning, with OSS - - PowerPoint PPT Presentation

AI and Embodiment at the Edge: Leveraging Deep Learning, with OSS Project Watson-Intu (“Self”)

IBM WATSON CLOUD MARCH, 2018

AI

What are we talking about when we say “AI” Multiple uses of the term

AI: “Artificial Intelligence” – Replicating the human mind in artificial form AI: “Augmented Intelligence” – Augmenting human cognition with intelligent assistance

Distinction between AI and Deep Learning / NN’s

AI, in both cases, may be brought about by multiple contributing methods/technologies: Rule-based or “Expert” systems1 Knowledge Graphs2 / Semantic representations Machine Learning, Neural Network based Deep Learning (differentiable programming3)

1 “Rule-Based Expert Systems”, Crina Grosan, Ajith Abraham, “https://link.springer.com/chapter/10.1007/978-3-642-21004-4_7 2 “Towards a Definition of Knowledge Graphs”, Lisa Ehrlinger and Wolfram Wöß Institute for Application Oriented Knowledge Processing Johannes Kepler University Linz, Austria; http://ceur-ws.org/Vol-1695/paper4.pdf

Trea Knowledge Graph for IBM Inventors EKG Rule-Based System Deep Neural Network

Purpose / Motivation

Cognitive Systems are able to learn their behavior through education That support forms of expression which are more natural for human interaction Whose primary value is their expertise; and That continue to evolve as they experience new information, new scenarios, and new responses And do so at enormous scale

1 NVIDIA GTC 2016 Keynote, Rob High CTO IBM Watson Cloud: https://fudzilla.com/news/40407-ibm-cto-shows-off-gpu-accelerated-cognitive-computing

Human-System Interaction1 Data produced per day, projections1

Advancement

Rapidly advancing capabilities:

• Speech Processing
• Natural Language Understanding
• Computer Vision
• Image and Video Processing
• Physical Simulation
• Object Detection and Recognition
• Event Prediction

“A Historical Perspective of Speech Recognition” , By Xuedong Huang, James Baker, Raj Reddy; Communications of the ACM, Vol. 57 No. 1, Pages 94-103, 10.1145/2500887, “Fast human detection in crowded scenes by contour integration and local shape estimation”, Csaba Beleznai, Horst Bischof, 2009 in 2009 IEEE Conference on Computer Vision and Pattern Recognition

Jensen Huang, 2017 NVIDIA Keynote Human Detection in Crowded Scenes2

Historical Perspective of Speech Processing1

IBM Watson Natural Language

Project Intu1

An Open source project for embodied cognition

Embodied: An entity is in and of the world and that it can sense, react, and act in that world. Cognitive: An entity can reason and learn. An embodied cognitive entity has a identity that distinguishes itself from all other entities (and is to a degree aware of its own identity).

1 “Project Intu v1.0”, Grady Booch, IBM: https://ibm.box.com/v/IBMWatson-Intu-Self-Embodiment

Nao Robot and Hilton Concierge SoftBank “Pepper”

Project Intu1

Based on a cognitive architecture named “Self”.

Self is an agent-based architecture that combines connectionist and symbolic models of computation, using blackboards for opportunistic collaboration. Project Intu provides a framework for orchestrating cognitive services in a manner that brings higher level cognition to an embodied system.

1 “Project Intu v1.0”, Grady Booch, IBM: https://ibm.box.com/v/IBMWatson-Intu-Self-Embodiment

2 Image Credit: Global Digital Citizen: https://globaldigitalcitizen.org/category/global-digital-citizen

Credit: Global Digital Citizen2

Self Ontology

Models

• Self
• Others
• World

Within

• People
• Places
• Things
• Domain Knowledge

Knowledge graph maintained of historical events, interactions, representations

1 “Project Intu v1.0”, Grady Booch, IBM: https://ibm.box.com/v/IBMWatson-Intu-Self-Embodiment

Self [High-Level] Architecture

Agent-based blackboard system Sensors contribute data to topics published to blackboard Agents

• Agents subscribe to topics

(system health, question, identity, position, weather…)

• Agents carry out actions

according to Goals, fulfilling Plans

Skills are defined to interact with the user, and Gestures are the manifestation of the interaction

1 “Project Intu v1.0”, Grady Booch, IBM: https://ibm.box.com/v/IBMWatson-Intu-Self-Embodiment

Self Architecture

Agent-based blackboard system Sensors contribute data to topics published to blackboard Agents

• Agents subscribe to topics

(system health, question, identity, position, weather…)

• Agents carry out actions

according to Goals, fulfilling Plans

Skills are defined to interact with the user, and Gestures are the manifestation of the interaction

Self Startup Sequence

Self Flow

Agent-based blackboard system Sensors contribute data to topics published to blackboard Agents

• Agents subscribe to topics

(system health, question, identity, position, weather…)

• Agents carry out actions

according to Goals, fulfilling Plans

Skills are defined to interact with the user, and Gestures are the manifestation of the interaction

The Confluence of Cloud and Edge

The result of decades of foundational technologies, combined with emerging technologies Society of Mind Agent-based Blackboard Knowledge Graphs Neural Networks Deep Learning Edge Compute Distributed Systems Containerized Microservices GPU-accelerated Devices

Docker registry

Watson Services Image Credit: https://www.ibm.com/cloud-computing/bluemix/sites/default/files/assets/page/feature-cognitive_0_0.png

Ref: Docker Stack

Intu: Embodiment

* External repo for Self setup on NVIDIA Jetson TX2: https://github.com/chrod/self-jetsontx2/wiki/Getting-Started

Setup*:

Jetson TX2 Hardware: KB, Monitor, Webcam, Mic Set up IBM Edge (see previous WIoTP steps) Register Edge Device In IBM Watson Cloud:

Setup Watson Services: Conversation Conversation Setup: Intu Dialog Starter Copy Watson creds to local config folder on Jetson

“Self” Embodiment on Jetson TX2

Out-of-the box integration w/ Watson services Custom “Edge” plugin w/ basic Agent (DL Agent) Workload group:

Intu “Self” Aural2: command words Face-classification: emotion

Intu Self on Jetson TX2 (viewed from Mac)

/dev/video1 /dev/video5 /dev/video6

Face Classification AI Watson-Intu

Aural2

/Mic

Aural v2

NVIDIA GTC 2018 Session: 81037: Doing what the User Wants, Before They Finish Speaking Sound state classifier for human speech Long short-term memory (LSTM) model

Training: Upload ten-second audio clips for labeling & subsequent training Written using TensorFlow compute graph, golang ~30 times/second: Model outputs the probabilities for each state of the world Multiple vocabularies: (one model trained per vocabulary)

Words the user says: Recognized the word spoken “play” Intent (action the user wants performed): “play music” (as opposed to “I play ball”) *Emotional state of the user *Person who is currently talking (user or other)

Performance

Model Size: 5.4MB 10% CPU usage (800MHz x86 laptop). Can run on a Pi3, but slowly… 2.5 mins training time - 3000 mini batches, 1 hr of audio (GTX 1060) i.e. Train at home Negative Latency: Aural predicts the word/intent prior to the end of the word

Privacy

All data stays at the edge (inference and training on prem w/ consumer-grade equip)

Face-Emotion Classification (repo)

Github repo for open source face classification build: https://github.com/open-horizon/cogwerx-face-classification-tx2/ Face classification codebase with Intu publish: https://github.com/ig0r/face_classification/tree/intu

Face Classification Workload:

Keras 2.x Convolutional Neural Network Tensorflow 1.3; Computer Vision: OpenCV 3.1 Programming languages: Python 3, OpenCV native bindings Demos: Face emotion classification using a video, and webcam

Tie-in with Intu:

Service: Publishes messages to blackboard topic Emotion (“Angry”, 1) - W.I.P: Agent inspects topic msgs, persists user emotional state

Deep Learning Models:

Adaptive Boosting frontal face detector by Rainer Lienhart (OpenCV) Keras Xception Model with 7 classes (angry, disgust, fear, happy, sad, surprise, neutral)

Training:

Model trained with the Kaggle Facial Expression Recognition Challenge dataset (FER2013). Training time: 2 x NVidia GRID K2 GPU: 6-20 hours depending on training parameters settings

GRID K2: 2x2.2 GFlops (FP32)…. GTX1080: 1x9.0 TFLOPS (1080Ti: 1x11.3 TFLOPS)

Face-Classification from video file, publishing to Intu Topic

Intu: Embodiment

* External repo for Self setup on NVIDIA Jetson TX2: https://github.com/chrod/self-jetsontx2/wiki/Getting-Started

Setup*:

Jetson TX2 Hardware: KB, Monitor, Webcam, Mic Set up IBM Edge (see previous WIoTP steps) Register Edge Device In IBM Watson Cloud:

Setup Watson Services: Conversation Conversation Setup: Intu Dialog Starter Copy Watson creds to local config folder on Jetson

“Self” Embodiment on Jetson TX2

Out-of-the box integration w/ Watson services Custom “Edge” plugin w/ basic Agent (DL Agent) Workload group:

Intu “Self” Aural2: command words Face-classification: emotion

Intu Self on Jetson TX2 (viewed from Mac)

/dev/video1 /dev/video5 /dev/video6

Face Classification AI Watson-Intu

Aural2

/Mic

Video: See 2018 NVIDIA/IBM Edge Webinar

Deployment: IBM’s edge solution

Hardware

• x86_64 (CPU or GPU)
• Raspberry Pi (ARM)
• PPC64 (CPU or GPU)
• Jetson TX Series: ARM64 (AARCH64)

What you can do with IBM's Edge (Beta) Deploy Services to the Edge

• Deep-Learning support (GPU access / GPU Pass-Through)
• Securely: container & data protection
• Autonomously (no-ops)

Custom-Develop Services

• Leverage public Docker Hub or IBM’s Cloud repository
• Containerization model: supports any stack afforded by Linux in Docker
• Multi-container patterns

Collect Insights

• Data analytics at the Edge
• Stream Data to Watson IoT Platform (WIoTP) and further on to IBM Cloud Services

Docker registry

IBM is interested in your feedback: Visit us on discourse.bluehorizon.network

Edge Compute

Compute at the source of data (IoT and Beyond)

• Fully autonomous Edge Nodes (SBCs, cloud servers, etc.)
• Offering services, establishing formal agreements to collaborate
• Blockchain capable: Establishment of device-to-device agreements, ledger

Supporting cognitive edge deployment and development

• Developer-friendly: any language, any libraries, many Linux options

(Ubuntu, Debian, Raspbian)

• Cognitive-software-friendly: intelligence at the edge (NN, DL)
• Fully automated software lifecycle for the edge
• All containers are cryptographically signed, verified before being installed
• All code runs “sandboxed” on edge nodes for greater security
• Data unexposed unless formally agreed otherwise

Software Lifecycle

Getting Started: open-horizon examples and wiki: https://github.com/open-horizon/examples/wiki

Edge Nodes / Cloud

Cloud

Getting Started: open-horizon examples and wiki: https://github.com/open-horizon/examples/wiki

Software Components / Metdata

Getting Started: open-horizon examples and wiki: https://github.com/open-horizon/examples/wiki

Edge Node: Internal Stack

Getting Started: open-horizon examples and wiki: https://github.com/open-horizon/examples/wiki

Device registration

• 1. Cloud
• 2. Edge

Jetson TX2

MQTT

WIoTP Portal

MQTT

…. ….

Setup Steps

Edge Device Setup / Registration

• 1. Credentials and info from Cloud Setup step
• setenv.sh
• 2. Test MQTT publish/subscribe
• Pub-sub from device-device
• 3. Install Edge horizon and wiotp agent debs
• ID / Type / Token
• 4. Agent Setup for WIoTP
• Run wiotp_agent_setup ....
• 5. Add Device into gateway and inform WIoTP local agent
• wiotp_gwrlac_add_device ....
• 6. Check using local pub/sub that messages can be sent to the local agent and

forwarded on to WIoTP Cloud.

• Host: subscribe to cloud
• Pub: publish to edge node

(may need to wait a few seconds if the edge node has just been enabled and is coming up...)

Custom Container Development

Getting started

• Examples available at https://github.com/open-horizon/examples/wiki
• Edge service, then workload(s), then pattern
• Create Dockerfile using preferred linux distribution (Alpine, Ubuntu, Debian)

Develop edge services

• Edge service containers provide access to hardware (network, gps, camera

video, mic audio, cpu load), exposure to raw data

• Ex: cpu_percent example exposes data via RESTful API

Develop workloads

• Use Docker networks to bridge containers
• Workload accesses data from edge service containers, performs transforms,

analytics, deep learning inference, etc

• Workload definition requires edge services, hence restricting unauthorized

access to system hardware if not included at runtime

Develop pattern

• Pattern defines deployment across multiple system architectures

Development Lessons Learned

Examples; GPU & Display access via Docker

• Starter container images in cogwerx-jetson-tx2 repo and Docker hub
• Code: github.com/open-horizon/cogwerx-jetson-tx2
• Registry: hub.docker.com/u/openhorizon/
• Examples: CUDA/CUDNN, TensorRT; TF/Keras, Darknet, OpenCV, DIGITS
• GPU/Disp: --privileged; Vol mnt –v /dev:/dev –v /tmp/.X11-unix
• “xhost + && docker run …” for xserver (video display)

Best practices Docker container builds

• Foundational image (”base”) with libs
• Reference “base” in prod image (FROM: <base>)
• Docker –squash (experimental feature) 8.x GB à 4GB
• Split up discrete functions into separate containers:
• (1) Audio, (2) Video, (3) AI Application

Multi-container groups; on-device streams

• [testing*] docker network create <bridge-network>
• Duplicate device streams with kernel mod: ‘v4l2loopback’

/dev/video1 /dev/video5 /dev/video6 /dev/video7

*Edge agent creates Docker networks for patterned containers

Face Classification AI Application

*Image Attribution: https://success.docker.com/api/images/Docker_Reference_Architecture_Designing_Scalable,_Portable_Docker_Container_Networks%2F%2Fimages%2Fcnm.png

Face Classification

CUDA/ CUDNN

FROM: <CUDA/CUDNN>

Resources

Project Intu

• Github

https://github.com/watson-intu/self

• Slack1

https://intu-team.slack.com

IBM Watson IoT Platform

• Device Setup and Registration: IBM Watson IoT Platform
• https://bluehorizon.network/documentation/adding-your-device
• Code Examples
• Examples available at https://github.com/open-horizon/examples/wiki
• Discourse Forum
• https://discourse.bluehorizon.network

Single URL with all of the above:

• https://github.com/open-horizon/examples/wiki

1 Email egrady@booch.com for an invitation

Q & A

Questions ?

History: IBM’s WIoTP edge compute

History 2016-’17: Project Blue Horizon

• Decentralized, Autonomous Edge compute
• Ethereum Blockchain; Workloads via bitTorrent (“pull”, private repo)
• Agbots, Exchange: Device matchmaking & agreement handling
• RPi2/3, x86, Power8, Jetson TX1,2

Integration w/ IBM Watson Cloud

• “Exchange”: Centralized account handling / retained container “pull” model
• Services and workload delivery: defined via “patterns”
• Public/private org distinction; public or private Docker registry
• RPi2/3, x86, Jetson TX1,2, IBM Power
• Developers may develop and self-deploy simple or complex cognitive services

IBM Watson IoT Platform: https://www.ibm.com/internet-of-things/spotlight/watson-iot-platform

http://bluehorizon.network
