Advances in Type Systems for Functional Logic Programming Enrique - - PowerPoint PPT Presentation
Advances in Type Systems for Functional Logic Programming Advances in Type Systems for Functional Logic Programming Enrique Mart n Mart n Proyecto Fin de M aster en Programaci on y Tecnolog a Software M aster en

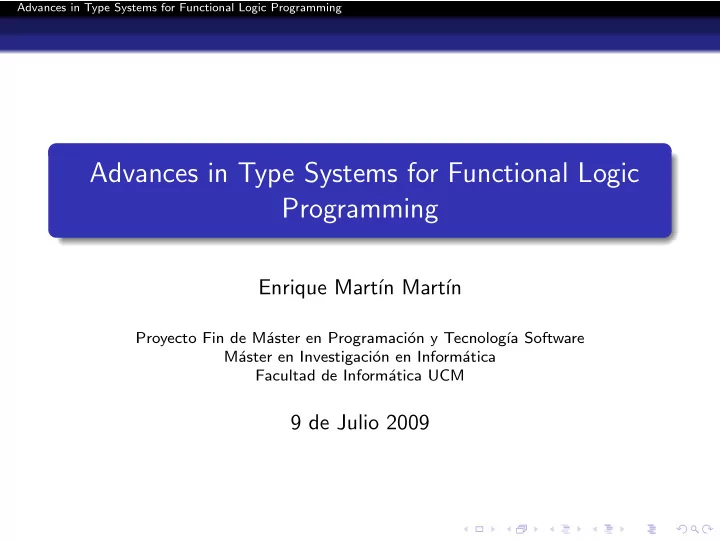

Advances in Type Systems for Functional Logic Programming
Enrique Mart´ ın Mart´ ın
Proyecto Fin de M´ aster en Programaci´
ıa Software M´ aster en Investigaci´
atica Facultad de Inform´ atica UCM
9 de Julio 2009
Advances in Type Systems for Functional Logic Programming Introduction
We propose a type system tackling two orthogonal aspects:
2) There are various grades of polymorphism for bound variables in let expressions.
Advances in Type Systems for Functional Logic Programming Introduction
Advances in Type Systems for Functional Logic Programming Introduction
Higher order pattern: pattern with partial application of constructors or functions
Examples: id, map id, snd X, and true Example ([GHR01] & Curry mailing list) snd :: A → B → B unpack :: (A → A) → B snd X Y → Y unpack (snd X) → X cast :: A → B and :: bool → bool → bool cast X → unpack (snd X) and true X → X and false X → false
Advances in Type Systems for Functional Logic Programming Introduction
The expression and (cast 0) true : bool is well-typed, since (cast 0) : bool. If we apply the rules of cast and unpack we obtain: and (cast 0) true cast − → and (unpack (snd 0)) true
unpack
− → and 0 true and 0 true is ill-typed ⇓ Well-typed programs can go wrong!
Advances in Type Systems for Functional Logic Programming Introduction
In function unpack. Knowing the type of its pattern (snd X) does not provide any information about the type of its subpattern X. Damas & Milner type systems treat this “opacity” as polymorphism, and this is the reason why they infer a type (A → A) → B for unpack.
Advances in Type Systems for Functional Logic Programming Introduction
a) Solution of [GHR01]: opaque patterns are forbidden. t is
FTV (τn) FTV (τ). Examples: With snd : A → B → B
Advances in Type Systems for Functional Logic Programming Introduction
a) Solution of [GHR01]: opaque patterns are forbidden. t is
FTV (τn) FTV (τ). Examples: With snd : A → B → B snd true ✘
Advances in Type Systems for Functional Logic Programming Introduction
a) Solution of [GHR01]: opaque patterns are forbidden. t is
FTV (τn) FTV (τ). Examples: With snd : A → B → B snd true ✘ snd zero ✘
Advances in Type Systems for Functional Logic Programming Introduction
a) Solution of [GHR01]: opaque patterns are forbidden. t is
FTV (τn) FTV (τ). Examples: With snd : A → B → B snd true ✘ snd zero ✘ snd X
Advances in Type Systems for Functional Logic Programming Introduction
b) Our solution: Making a distinction between transparent and
type is univocally fixed by the type of the pattern, and
We reject only opaque variables when they appear in the rest
In the example, X is opaque in (snd X) and appears in the right-hand side of the rule for unpack, so the program will be rejected. However, patterns like snd true or snd zero have not any
Advances in Type Systems for Functional Logic Programming Introduction
Another generalization for free We allow opaque data constructors, i.e., constructors with type τn → τ s.t. FTV (τn) FTV (τ).
Example: cont : α → container
These data constructors are not allowed in existing FP or FLP systems. In our framework we treat them the same way as HO patterns.
Advances in Type Systems for Functional Logic Programming Introduction
data container = cont A % cont : A → container code :: container -> string code (cont false) = "000" code (cont true) = "001" code (cont zero) = "010" code (cont (succ X)) = "011" ++ code (cont X) This program is not legal in [GHR01] or FLP systems.
Advances in Type Systems for Functional Logic Programming Introduction
There exist different grades of polymorphism for variables in let expressions. Different implementations have different grades of polymorphism. They do not usually document their choice. We explicitly formalize 3 kinds of let expressions let t = e1 in e2 in our type system.
Advances in Type Systems for Functional Logic Programming Introduction
letm t = e1 in e2 All the variables in t have a monomorphic type. Systems: Clean 2.0, T OY 2.3.11, PAKCS 1.9.1, KICS 0.81893. Examples: let F = id in (F 0, F 4) ✔ let F = id in (F true, F 0) ✘ let [F, G] = [id, id] in (F true, F 0, G 0, G false) ✘
1monomorphic where expressions
Advances in Type Systems for Functional Logic Programming Introduction
letp t = e1 in e2 All the variables in the pattern have a polymorphic type. Systems: Hugs Sept. 2006, Ocaml 3.10.2, F# Sept. 2008. Examples: let F = id in (F 0, F 4) ✔ let F = id in (F true, F 0) ✔ let [F, G] = [id, id] in (F true, F 0, G 0, G false) ✔
Advances in Type Systems for Functional Logic Programming Introduction
letpm t = e1 in e2 The polymorphism depends on the form of the pattern: a) If the pattern is a single variable, it is polymorphic. b) If the pattern is compound, the variables are monomorphic. Systems: GHC 6.8.2, Standard ML of New Jersey 110.67, Curry M¨ unster 0.9.11. Examples: let F = id in (F 0, F 4) ✔ let F = id in (F true, F 0) ✔ let [F, G] = [id, id] in (F true, F 0, G 0, G false) ✘
Advances in Type Systems for Functional Logic Programming Type System
Advances in Type Systems for Functional Logic Programming Type System
We have divided the type system into two parts: a) A basic typing relation ⊢ to give a type to an expression. b) An extended typing relation ⊢• that uses the previous and also checks the absence of critical variables.
Advances in Type Systems for Functional Logic Programming Type System
A - set of assumptions over symbols : {si : σi} e - expression τ - simple type
Advances in Type Systems for Functional Logic Programming Type System
[ID] A ⊢ s : τ if s ∈ DC ∪ FS ∪ DV ∧ (s : σ) ∈ A ∧ σ ≻ τ [APP] A ⊢ e1 : τ1 → τ A ⊢ e2 : τ1 A ⊢ e1e2 : τ [Λ] A ⊕ {Xi : τi} ⊢ t : τt A ⊕ {Xi : τi} ⊢ e : τ A ⊢ λt.e : τt → τ if {Xi} = var(t)
Advances in Type Systems for Functional Logic Programming Type System
[LETm] A ⊕ {Xi : τi} ⊢ t : τt A ⊢ e1 : τt A ⊕ {Xi : τi} ⊢ e2 : τ2 A ⊢ letm t = e1 in e2 : τ2 if {Xi} = var(t) [LETp] A ⊕ {Xi : τi} ⊢ t : τt A ⊢ e1 : τt A ⊕ {Xi : Gen(τi, A)} ⊢ e2 : τ2 A ⊢ letp t = e1 in e2 : τ2 if {Xi} = var(t)
Gen(τ, A) is the closure or generalization of τ wrt. A Formally: Gen(τ, A) = ∀αi.τ where {αi} = FTV (τ) FTV (A).
Advances in Type Systems for Functional Logic Programming Type System
[LETX
pm]
A ⊢ e1 : τ1 A ⊕ {X : Gen(τ1, A)} ⊢ e2 : τ2 A ⊢ letpm X = e1 in e2 : τ2 [LETh
pm]
A ⊕ {Xi : τi} ⊢ h t1 . . . tn : τt A ⊢ e1 : τt A ⊕ {Xi : τi} ⊢ e2 : τ2 A ⊢ letpm h t1 . . . tn = e1 in e2 : τ2 if {Xi} = var(t1 . . . tn) ∧ h ∈ DC ∪ FS
Advances in Type Systems for Functional Logic Programming Type System
Opaque variable “A variable of a pattern is opaque if its type is not univocally fixed by the type of the pattern.” Critical variable “A variable is critical if it is opaque in a pattern of a lambda or let expression and appears in the rest of the expression.” Examples:
X is opaque snd X X is not opaque in snd [X, true] X is critical in λ(snd X).X X is not critical in λ(snd X).true
Advances in Type Systems for Functional Logic Programming Type System
A - set of assumptions over symbols e - expression τ - simple type Forbids only expressions with critical variables.
[P] A ⊢ e : τ A ⊢• e : τ if critV arA(e) = ∅
Advances in Type Systems for Functional Logic Programming Type System
Well-typed program (wtA(P)). P is well-typed wrt. A iff for every rule f t1 . . . tn → e ∈ P:
a) A ⊢• λt1 . . . tn.e : τ b) τ is a variant of A(f)
Let-rewriting semantics [LRS08] Theorem (Subject reduction) If A ⊢• e : τ and wtA(P) and P ⊢ e →l e′ then A ⊢• e′ : τ.
Advances in Type Systems for Functional Logic Programming Type Inference
A - set of assumptions e - expression τ - most general type for e π - minimum type substitution which is needed to apply to A in
Intuition: a) wherever type derivation guesses types, type inference introduces fresh type variables. b) wherever type derivation forces equality of types, type inference computes a mgu. c) infer a variant for symbols.
Advances in Type Systems for Functional Logic Programming Type Inference
Theorem (Soundness of type inference) A e : τ|π = ⇒ Aπ ⊢ e : τ A • e : τ|π = ⇒ Aπ ⊢• e : τ Theorem (Completeness of wrt. ⊢) If Aπ′ ⊢ e : τ ′ then ∃τ, π, π′′. A e : τ|π ∧ Aππ′′ = Aπ′ ∧ τπ′′ = τ ′. Theorem (Maximality of •) a) •Πe
A ≡ {π ∈ T Subst | ∃τ ∈ SType. Aπ ⊢• e : τ} has a
maximum element ⇐ ⇒ ∃τg ∈ SType, πg ∈ T Subst. A • e : τg|πg. b) If Aπ′ ⊢• e : τ ′ and A • e : τ|π then exists a type substitution π′′ such that Aπ′ = Aππ′′ and τ ′ = τπ′′.
Advances in Type Systems for Functional Logic Programming Type Inference
Block inference. Procedure B to infer types for programs without explicit type declarations. B(A, {rule1, . . . , rulem}) = π Theorem (Soundness of B) If B(A, P) = π then wtAπ(P). Theorem (Maximality of B) If wtAπ′(P) and B(A, P) = π then ∃π′′ such that Aπ′ = Aππ′′. Stratified inference. Divides the program in mutually dependent blocks, infer types and generalizes.
Advances in Type Systems for Functional Logic Programming Conclusions and Future Work
We propose a type system tackling the type problem of HO patterns and the variety of polymorphism for let expressions. A paper containing the results of this work was presented in the 18th International Workshop on Functional and (Constraint) Logic Programming (WFLP) 2009, held in Brasilia on June 28; and it has been accepted to appear in the associated LNCS volume. We have a prototype of the stratified type inference for programs ready to be integrated in the T OY compiler.
Advances in Type Systems for Functional Logic Programming Conclusions and Future Work
When compared to [GHR01] we make the following contributions: More liberality in the treatment of opaque patterns. Consideration of local pattern bindings and λ-abstractions. Formalization of different possibilities for polymorphism in local bindings. Subject reduction is proved wrt. a small-step operational semantics (let-rewriting), closer to real computations. Algorithms for inferring types for programs without explicit type declarations.
Advances in Type Systems for Functional Logic Programming Conclusions and Future Work
Integrate the type inference for programs into the T OY compiler. Generalize the subject reduction property to narrowing, using let-narrowing reductions. Study the possible relation between opacity and existential types or GADTs. Extend the type system to support type classes and extra variables in the right-hand sides.
Advances in Type Systems for Functional Logic Programming Conclusions and Future Work
Advances in Type Systems for Functional Logic Programming
J.C. Gonz´ alez-Moreno, T. Hortal´ a-Gonz´ alez, and Rodr´ ıguez-Artalejo, M. Polymorphic types in functional logic programming. In Journal of Functional and Logic Programming, volume 2001/S01, pages 1–71, 2001. Special issue of selected papers contributed to the International Symposium on Functional and Logic Programming (FLOPS’99). F.J. L´
ıguez-Hortal´ a, and
anchez-Hern´ andez. Rewriting and call-time choice: the HO case. In Proc. 9th International Symposium on Functional and Logic Programming (FLOPS’08), volume 4989 of LNCS, pages 147–162. Springer, 2008.
