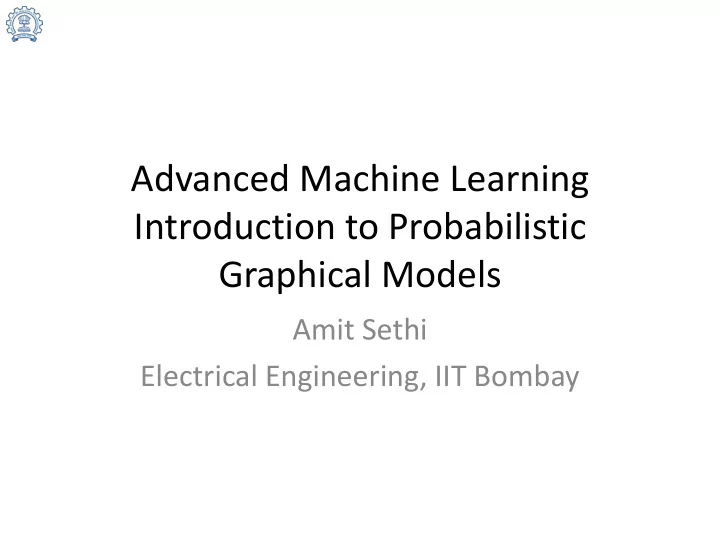

Advanced Machine Learning Introduction to Probabilistic Graphical Models

Amit Sethi Electrical Engineering, IIT Bombay

Objectives

• Learn about statistical dependency of

variables

• Understand how this dependency can be

coded in graphs

• Understand the basic intuition behind

Bayesian Networks

2

Bayesian models with which you are familiar

• Bayes theorem
• p(Ck|x) = p(Ck) p(x|Ck) / p(x)
• Posterior = prior x likelihood / evidence
• Naïve Bayes
• p(Ck|x) = p(Ck|x1,…,xn) α p(Ck) Пi p(xi|Ck)
• A decision about the class can now be based on:
• Prior, and
• Simplified class conditional densities of x
• Log of the posterior probability leads to a linear

discriminant for certain class conditionals from the exponential families

Consider an inference problem

• Trying to guess if the family is out:

– When wife leaves the house she leaves the outdoor light on (but sometimes leaves it on for a guest) – When wife leaves the house, she usually puts the dog

• ut

– When dog has a bowel problem, she goes to the backyard – If the dog is in the backyard, I will probably hear it (but it might be the neighbor's dog)

• If the dog is barking and the light is off, is the

family out?

4

Example source: “Bayesian Networks without Tears” by Eugene Charniak, AI Magazine, AAAI 1991

Some observations

• A lot of the events in the world are related
• The relations are not deterministic but

probabilistic

– Some events are the cause and others are effects – The effect usually has a sharper conditional distribution given the cause than if the cause is unknown

5

Bayesian Network definition

• A Bayesian network is a directed graph in which each node

(variable) is annotated with a conditional probability distribution that encodes statistical dependency:

– Each node corresponds to a random variable – If there is an arrow (edge) from node X to node Y , X is said to be a parent of Y – Each node Xi has a conditional probability distribution P(Xi| Parents(Xi)) that quantifies the effect of the parents on the node – The graph has no directed cycles (and hence is a directed acyclic graph, or DAG

6

Source: “Pattern Recognition and Machine Learning”, Book by Christopher Bishop

Back to our inference problem

• Trying to guess if the family is out, given that the

light is off and the dog is barking

• 1: Brute force (no independence assumption):

– P(fo) = Σbp Σdo p(fo, bp, do, lo=1, hb=1) = Σbp Σdo p(fo) p(bp|fo) p(do|fo,bp) …

• 2: Using Factorization property of BNs:

– P(fo) = Σbp Σdo p(fo) p(bp) p(lo|fo) p(do|fo,bp) p(hb|do) = p(fo) Σbp p(bp) p(lo|fo) Σdo p(do|fo,bp) p(hb|do)

7

Source: “Pattern Recognition and Machine Learning”, Book by Christopher Bishop

What have we gained, so far?

• 1. We have made it easier for us to visualize

relationships between variables

• 2. We have simplified joint distribution as a

product of lower dimensional conditional distributions

• 3. We have simplified marginalization of the joint

distribution by taking out terms that do not depend on the function being marginalized

8

Notion of D-separation

• Influence of x “flows through” z to y
• In which case the influence does not flow iff z is known (z D-

separates x and y, or the path becomes inactive given z)?

• Ans: (a), (b) and (c). For (d), iff z is unknown

9

Source: “Pattern Recognition and Machine Learning”, Book by Christopher Bishop

x z y y z x y z x y z x

Statistical independence in BNs

• Independence: (x|y), iff p(x,y) = p(x) p(y)
• Conditional independence:

(x|y | z), iff p(x,y | z) = p(x | z) p(y | z)

– x is conditionally independent of y given z

• In Bayesian Networks:

– (x | NonDescendants(x) | Parents(x) ) – x is conditionally independent of all its non- descendants given its parents

10

Markov Networks aka MRF

• Definition

– Graphical models with undirected edges – Variables are nodes – Relationships between variables are undirected edges

• Properties

– Notion of conditional independence is simpler – Joint distributions are represented by clique (largest fully connected subset of nodes) potentials

11

Source: “Pattern Recognition and Machine Learning”, Book by Christopher Bishop

Joint distributions in MRFs

• If there is no link between two nodes xi and xj, then conditional

independence can be expressed as: p(xi,xj|x\{i,j}) = p(xi|x\{i,j}) p(xj|x\{i,j})

• Due to Hammersley-Clifford theorem, the sets of distributions

represented by the MRF’s conditional independence structure is the same as those that can be represented by a product of maximal clique potentials. i.e. the joint distribution is written as a product of potential functions ψc(xc) over the maximal cliques of the graph p(x) = 1/Z Пc ψc(xc)

• Here Z is the partition function, which is ∑x Пc ψc(xc) , which is a

normalization constant

12

Source: “Pattern Recognition and Machine Learning”, Book by Christopher Bishop

This clique potential can be represented in terms of an energy function

13

• The clique potentials are strictly positive, hence

can be defined in terms of an energy ψc(xc) = exp(-E(xc))

• Now, product of clique potentials is equivalent to

sum of energies

• However, the clique potentials do not have a

specific probabilistic interpretation

In general, the BN and MRFs represent a non-overlapping set of distributions

• A directed graph whose

conditional independence cannot be expressed as an undirected graph

• An undirected graph whose

conditional independence cannot be expressed as an directed graph

Source: “Pattern Recognition and Machine Learning”, Book by Christopher Bishop

An example use of an MRF in image denoising or binary segmentation

• Objective:

– Find the underlying clean image

• Assumptions:

– Most of the pixels are not corrupt – Neighbouring pixels are likely to be same

• Define (with values {-1,+1}):

– xi to be underlying true pixel – yi to be observed pixels (iid | xi)

• Potentials:

– For observing: -ηxiyi – For spatial coherence: -βxixj – For prior: -hxi

• Total energy:

15

Source: “Pattern Recognition and Machine Learning”, Book by Christopher Bishop

Now, we minimize the energy to get the desired results

• Energy function:

E(x,y) = h ∑i xi – β ∑{i,j} xi xj – η ∑i xi yi

• And p(x,y) = 1/Z exp{-E(x,y)}
• We initialize yi and find xi such that the energy is minimized. The following

are results with two different energy minimization algorithms:

16

Source: “Pattern Recognition and Machine Learning”, Book by Christopher Bishop

Factor graphs are the most general form of Graphical Models

• Factor graphs make the relationship among variables

explicit by using Factor Nodes

• Factorization:

– If we can represent p(X) as a product of factors: p(x) = Пs fs(xs) = fa(x1,x2) fb(x1,x2) fc(x2,x3) fd(x3)

• Then, we can draw a Bipartite graph (undirected) such

that:

– Set of nodes V represent variables – Set of nodes F represent functions or factors – No node in V connected to another node in V – No node in F connected to another node in F

17

Source: “Pattern Recognition and Machine Learning”, Book by Christopher Bishop

Relation between the three PGMs

• In a Bayesian Network, co-parents need to be moralized (married) to form

edges in an MRF (because they are not independent given the children)

• For an MRF, every clique is represented by a function node
• Priors of parentless variables can also

be incorporated in factor graphs

• Loops can be avoided in factor graphs

by combining functions that form a loop

18

Source: “Pattern Recognition and Machine Learning”, Book by Christopher Bishop
