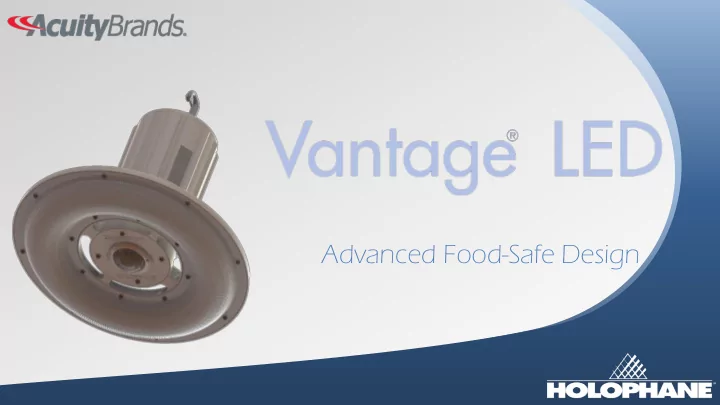

Advanced Food-Safe Design

Applications

Food processing & handling Poultry & meat processing Beverage processing Chemical processing Pharmaceutical plants Cold storage/freezers

Value Proposition

• Fully sealed LED high bay that delivers a lumen package from 12,000

to 23,000 lumens at up to 95lpw.

• Optical solution that features Acrylic PrismLED optics which

maximise light output and control glare – minimises hard shadowing ensuring excellent horizontal/vertical uniformity ratio.

• Designed specifically for stringent production environments where

durability, performance and reliability are critical.

• Range of control option available from DALI, 1-10V, integrated

HOLOS3 wireless nodes and constant lumen output.

Product Layout

Mounting via single suspension hook and 3m flying lead. Ease of installation using carabineer clip supplied. Aluminium extrusion housing drivers. One piece design ensuring IP65 is maintained and drivers are thermally managed = maintaining driver life. Single piece ‘flow through’ sleek

• design. Anti-corrosive finish that

allows water to run off and provide nowhere for dirt or debris to hide or accumulate. Acrylic prismatic refractor. Maximises light output and minimises glare with PrismaLED technology. Provides best in class horizontal/vertical uniformity ratio

5

Durability

• Strategically designed with a sloped, smooth,

corrosion-resistant finish ensuring a IP65 rating as standard.

• Acrylic ‘prismatic’ refractor ensuring

suitability for use in food processing/handling environments.

• Connection via factory fitted 3m flying lead to

ensure integrity of IP65 sealing.

Reliability & Control

• Integrated presence detector.
• 360o PIR.
• Mounting from 3 to 13 metres
• Factory set to dims down to 20% when

no occupancy after 10 minutes. Can be reprogrammed to suit site conditions.

• DALI, 1-10V and constant lumen output
• ptions available.
• Luminaire supplied with internal DC

fuse to accept 170-275 VDC. Dims luminaire to 15% when powered by VDC

7

Performance

• ‘Delivered’ lumens ranging from 12,000 to

23,000 at 94 lumens per watt or better.

• Two dedicated distributions using PrismaLED

technology.

• Volumetric lighting minimises hard

shadowing ensuring excellent horizontal/vertical uniformity ratio

• Achieves an average 200lux* with spacing's
• f up to 9m when mounted at 10m.

*Designed toBSEN12461-12011 ref 5.12.1

‘Volumetric illumination’ delivers optimal mix of light to walls, partitions, vertical and horizontal work surfaces. Results in reduced shadow and increased perceived volume of space.

Volumetric Lighting Principle

Vertical & horizontal lighting relation

Philips field studies indicate that increased lighting levels in horizontal and vertical illuminance increase the productivity up to 5.7 %.

• Luminaire assembly (Finland) 4.6%
• Luminaire assembly (Germany) 5.7%
• Electronic assembly (The Netherlands) 3%
• Machine repair (The Netherlands) 3%
• Luminaire assembly (The Netherlands) 5.5

Volumetric lighting in car manufacturing industry significantly reduces “write-ups” (deficiencies) (Source:Mack trucks, Pa. USA, EC&M, Hubbel lighting)

Benefits of Volumetric Lighting

Representation of a sample industrial building without

• bjects, using direct light high bay luminaires.

Volumetric lighting comparison

Representation of the same scene, using Haloprism/Vantage luminaires.

Representation of a sample industrial building with

• bjects, using direct light high bay luminaires.

Volumetric lighting comparison

Representation of the same scene, using Haloprism/Vantage luminaires. Hard shadowing and poor vertical uniformity = poor working environment. Excellent vertical uniformity = safer and visually comfortable environment .

L70B50 (40oC) achieved at 60,000 hours.

Performance

Product Code Drive Current No of LED’s Lumens+ Power Consumption* Luminaire Performance* Power Factor*

(Ø)

VAN.L124 700mA 56 12126 128W 95lpw 0.90 VAN.L184 700mA 84 17580 188W 94lpw 0.90 VAN.L234 700mA 112 23127 245W 94lpw 0.90

+ Average delivered lumens from distributions available.

* Subject to final testing

Competitors

All provide very low vertical/horizontal uniformity ratios.

Competitors

Product Lumen Range Power Usage LPW CRI Lifetime@ L70B50

(25oC)

Ta IP Rating

Emergency Option

Controls Option

DALI/1-10V

List Price Range

13,000 – 25,000 119W- 234W 106-109 >80 70,000

• 30oC

to 45oC IP65 Yes DALI and 1-10V £800 (€1550) 3250 – 11000* 32W- 100W 101-110 TBC TBC TBC IP65 Yes DALI and 1-10V £550-£600 11,000 – 26,500* 88W- 212W 125 75 100,000 (L70 only)

• 40oC

to 65oC IP66 No DALI and 1-10V) £800 - £900 (€900) 8000 – 20000* 61W- 196W 102-131 >80 50,000+

• 30oC

to 40oC IP65

• ption

No DALI and 1-10V £500 - £600 (€600 - 800) 12000 - 23000 128W- 245W 94-95 70 60,000

• 20oC

to 40oC IP65 Yes via VDC

• ption

DALI and 1-10V £700-£900 (€1000- €1200) *Not delivered. +L70 and ambient not specified.

Product Position

Applications: Factories, Warehouses, Aircraft Hangers, Exhibition areas, Gymnasiums, Large retail stores, Railway stations & Airports. Key Features: Glass optics with self cleaning. Ventilated design to thermally manage gear chamber. Up to 39,000 lumens. IP65 optics with option of wet location gear. System life of 88,000* hours (L70B50 @tq 40oC) List Price: £900 - £1000 Applications: Food processing & handling, Poultry & meat processing, Beverage processing, Chemical processing, Pharmaceutical plants & Pet-food production Key Features: Fully sealed luminaire optical and gear chambers. Prismatic acrylic lens = food safe Designed to be ‘hosed down’ within the installation. System life of 60,000* hours List Price: £700 - £850

* L70B50 @tq 40oC

Key Points

• Specifically developed for food processing/handling environments.
• Brochure available with key features and benefits.
• LED data sheet updated and available to download from the

Holophane Intranet.

• Website updated with the addition of VAN.
• Envision is already available for quotations.
• Photometry is available to download from Mobile Utilities.
