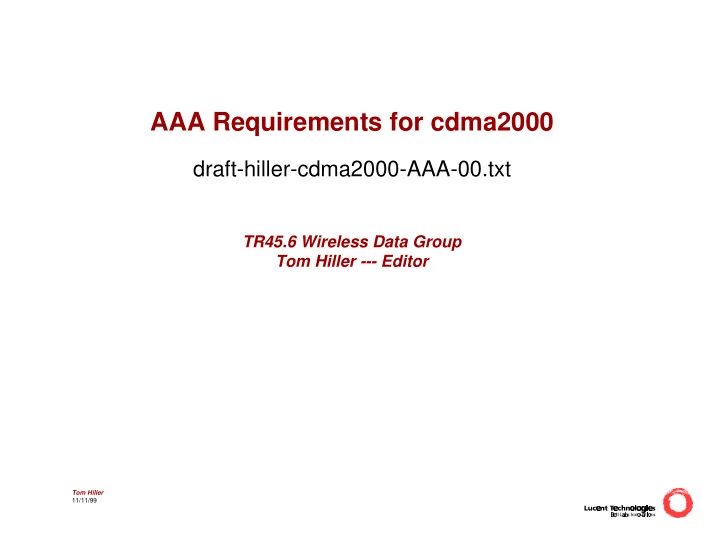

AAA Requirements for cdma2000 draft-hiller-cdma2000-AAA-00.txt TR45.6 Wireless Data Group Tom Hiller --- Editor Tom Hiller 11/11/99 Carriers and Vendors Involved... I US I Vendors Fujitsu Vodafone LGIC Ameritech Lucent
SLIDE 2
SLIDE 3
Tom Hiller 11/11/99
Introduction
I IP network access via cdma2000 carrier
– Traditional PPP (Simple IP ) – Mobile IP » Home Agent is located in wireless carrier network » Home Agent may be assigned by visited or home carrier
I Private Network or Home ISP access
– Home IP network authenticates and authorizes the user – Home Agent behind a firewall in a private network or ISP – Security support for low end devices that can not support IPsec and/or will not pay overhead on air interfaces
I Dual authentication of mobile by radio and IP networks
SLIDE 4
Tom Hiller 11/11/99
General Architecture
Home IP Network Home AAA Mobile Station HA Visited Access Provider Network VLR HLR Visited AAA SS7 Network IP Network PDSN Radio Network Home ISP Private Network Visited Provider Home Provider Home Access Provider Network AAA Server AAA Broker Network R-P Interface
SLIDE 5
Tom Hiller 11/11/99
Radio Network Authentication and Authorization
Mobile Station Visited Access Provider Network VLR HLR Radio Network R-P Interface
Mobile uses usual wireless interfaces and wireless authentication mechanisms to gain radio access
Home Access Provider Network
SLIDE 6
Tom Hiller 11/11/99
IP Network Authentication
Mobile Station Visited Access Provider Network Visited AAA Home AAA PDSN/FA RAN Home IP Network R-P Interface AAA Broker Network Broker AAA
Mobile uses CHAP for "Traditional PPP Service" Mobile uses the Foreign Agent Challenge for Mobile IP Same AAA infrastructure works for both authentication mechanisms PPP AAA Request/Response
SLIDE 7
Tom Hiller 11/11/99
Authentication and Authorization
I Mobile accesses data services after radio access
» Radio network authenticates mobile for radio access
I Authenticate mobile using CHAP or Foreign Agent
Challenge
– The NAI is used to route the AAA request to the home network based on the realm of the NAI – The AAA response provides assurance to the serving network that it will get paid for services rendered
SLIDE 8
Tom Hiller 11/11/99
General MIP/AAA Requirements
I Same AAA infrastructure must work for both Traditional
PPP service (limited mobility) and Mobile IP service
– Mobile Node and home network have a shared secret
I The serving and home network are not required to have a
direct security association
– The home network may be a private network that only has an association with a broker or home wireless carrier – Associations may be provided indirectly via brokers » TR45.6 has not studied the number of brokers required
SLIDE 9
Tom Hiller 11/11/99
AAA Transport Requirements
I User profiles
– Ability to transport a profile » Examples: Types of security and QoS services the home IP network authorizes
I AVP Encryption and Key Distribution
– Ability for Home AAA server to distribute keys » Pre-shared key for IKE » HA-FA key » MN-FA and MN-HA keys – Keys should be encrypted across multiple AAA server hops – Ability to transmit public key to facilitate encryption of AVPs or IP security
SLIDE 10
Tom Hiller 11/11/99
Key Distribution
I Reasons:
– To promote use of HA to FA authentication extension – To promote fast intradomain FA to FA handoffs – To promote dynamic HA assignment – To allow pre-shared key for IKE to avoid certificate processing in the FA and HA
SLIDE 11
Tom Hiller 11/11/99
AAA Reliability
I AAA protocol must provide carrier grade reliability
– Support reliable proxy chaining » Ability for the next hop AAA server to indicate delivery to the previous AAA server application – Support configurable retransmission and fail-over – Ability to detect silent failures of path to next AAA server
SLIDE 12
Tom Hiller 11/11/99
Minimize Latency
I Desirable:
– Single round trip for AAA and MIP – Should be able to encode a MIP registration request in the same message to avoid multiple round trips – Fast FA to FA handoff
SLIDE 13
Tom Hiller 11/11/99
Message Integrity and Non-repudiation
I Support
– Replay protection and optional non-repudiation capabilities for all authorization and accounting messages. – Ability for accounting messages to be matched with prior authorization messages. – Reliable transmission of accounting records » Accounting and settlement directly or via brokers. – Capability for AAA brokers to modify certain parts of AAA messages.
