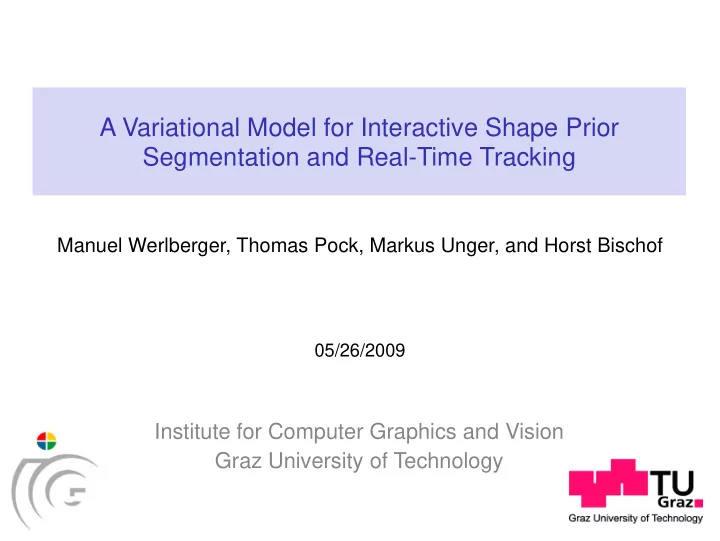

A Variational Model for Interactive Shape Prior Segmentation and Real-Time Tracking Manuel Werlberger, Thomas Pock, Markus Unger, and Horst Bischof 05/26/2009 Institute for Computer Graphics and Vision Graz University of Technology Motivation
SLIDE 2
SLIDE 3
Motivation
SLIDE 4
Even more difficult?
SLIDE 5
Outline
Shape Alignment Related Work Shape Prior Segmentation Conclusion and Outlook Applications and Results
SLIDE 6
Outline
Shape Alignment Related Work Shape Prior Segmentation Conclusion and Outlook Applications and Results
SLIDE 7
Geodesic Active Contour Model
- Based on Snake Model (Kass et al.)
- Minimizing weighted length:
|C| … Euclidean length of curve C g … Edge image: g 2 (0,1]
- Variational formulation – weighted TV:
[Caselles 1997; Bresson 2005; Leung 2005]
SLIDE 8
f … observed image u … piecewise smooth approximation ¡ … edges in u
- Does not pick up textured objects.
- Only objects featuring a homogeneous region inside the
boundary ¡.
Mumford-Shah Segmentation
[Mumford and Shah 1988]
SLIDE 9
Active Contours without Edges
- Special case of the Mumford-Shah model for Segmentation
proposed by Chan and Vese: f … input image c1, c2 … mean values of the fore- and background intensities
- Segmentation not bound to image gradients.
[Chan and Vese 2001]
SLIDE 10
Diffusion Snakes
- Mumford-Shah segmentation
- Incorporate statistical shape knowledge
[Cremers et al. 2002]
SLIDE 11
Outline
Shape Alignment Related Work Shape Prior Segmentation Conclusion and Outlook Applications and Results
SLIDE 12
Variational Segmentation & Shape Information
- Reconsider Chan-Vese Segmentation Model:
- Restated as TV functional:
[Chan et al. 2006]
SLIDE 13
- Data-Fidelity Term: Shape Force
s … Shape representation u … Segmentation result.
Shape Prior Segmentation
- Signed distance map as shape representation.
- Regularization: Weighted TV-norm
g … Edges of input image u … Segmentation result.
SLIDE 14
Shape Prior Transformation
- Transformation parameters Á = {t,R,S}
t … Translation R … Rotation S … Scale
- Parameter ¸ controls influence of the shape force.
SLIDE 15
Influence of ¸
¸ = 0.15 ¸ = 0.10 ¸ = 0.05 ¸ = 0.01 ¸ = 0.20
SLIDE 16
Solving the Shape Prior Segmentation Model
Updating segmentation u Update transformation parameters Á(t,R,S) Iterate
SLIDE 17
Solving the Shape Prior Segmentation Model
- Dual formulation of weighted TV-norm:
- Represents a typical saddle-point problem.
[Arrow, Hurwicz 1958; Zhu and Chan 2008]
SLIDE 18
Primal-Dual update scheme
- 1. Primal update:
- 2. Dual update:
- 3. Iterate until convergence.
Gradient descend Gradient ascend + reprojection Iterate
SLIDE 19
Primal-Dual Gap
SLIDE 20
Outline
Shape Alignment Related Work Shape Prior Segmentation Conclusion and Outlook Applications and Results
SLIDE 21
Optimizing Shape Transformation
- Transformation parameters Á = {t,R,S}
t … Translation R … Rotation S … Scale
- Brute force search:
– simple, but computationally costly. – Performance ok for local optimization. – Not reasonable for a global optimization: The complete subspace Ω has to be sampled.
[Cremers 2008]
SLIDE 22
Which position to take?
- Depending on the Primal energy.
EPrimal = -530 EPrimal = -430 EPrimal = -338
SLIDE 23
Outline
Shape Alignment Related Work Shape Prior Segmentation Conclusion and Outlook Applications and Results
SLIDE 24
Evaluation on hand-labeled data
Thresholding pure GAC Shape Prior
SLIDE 25
User Interaction + Shape Position Optimization
SLIDE 26
Low contrast image
Thresholding pure GAC Shape Prior
SLIDE 27
Occlusion
SLIDE 28
Tracking
SLIDE 29
Performance
- Use benefit of parallelization with CUDA. (Nvidia GTX 280)
- Shape Prior segmentation (using 200 iterations):
- Shape Alignment (optimizing Á(t,R,S)):
Image Size Shape Prior Size Performance 416x800 160x160 115 fps 2267x1558 600x600 20 fps Image Size Shape Prior Size Performance 416x800 160x160 25 fps 2267x1558 600x600 5 fps
SLIDE 30
Outline
Shape Alignment Related Work Shape Prior Segmentation Conclusion and Outlook Applications and Results
SLIDE 31
Conclusion
Segmentation Shape Alignment Tracking
SLIDE 32
Outlook
- Shape space instead of single prior.
- Use multiple shapes simultaneously.
- Optimizing elastic instead of rigid shape transformation.
- Use anisotropic regularization.
- Extend to 3D.
