SLIDE 1
BGP Blackholing
Blackholing is a DDoS mitigation technique signaled via BGP1.
AS 10 AS 20 AS 30
P: 192.0.2.0/24
1Rekhter, Li, and Hares, A Border Gateway Protocol 4 (BGP-4).

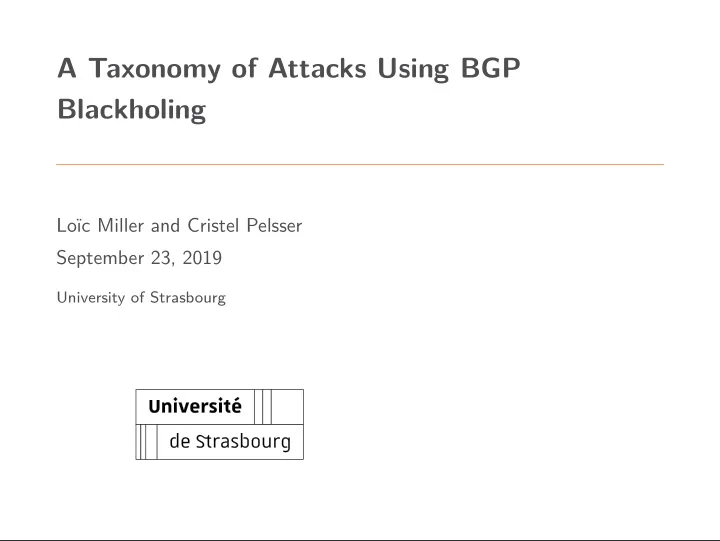

A Taxonomy of Attacks Using BGP Blackholing Loc Miller and Cristel - - PowerPoint PPT Presentation
A Taxonomy of Attacks Using BGP Blackholing Loc Miller and Cristel - - PowerPoint PPT Presentation
A Taxonomy of Attacks Using BGP Blackholing Loc Miller and Cristel Pelsser September 23, 2019 University of Strasbourg AS 20 AS 10 AS 30 P: 192.0.2.0/24 BGP Blackholing Blackholing is a DDoS mitigation technique signaled via BGP 1 . 1
SLIDE 2
SLIDE 3
BGP Blackholing
Blackholing is a DDoS mitigation technique signaled via BGP1. Internet is composed of Autonomous Systems (AS): one or more networks under the control of a single entity.
AS 10 AS 20 AS 30
P: 192.0.2.0/24
Figure 1: BGP Blackholing
1Rekhter, Li, and Hares, A Border Gateway Protocol 4 (BGP-4).
1/17
SLIDE 4
BGP Blackholing
Blackholing is a DDoS mitigation technique signaled via BGP1. Internet is composed of Autonomous Systems (AS): one or more networks under the control of a single entity.
AS 10 AS 20 AS 30
P: 192.0.2.0/24
Figure 1: BGP Blackholing
1Rekhter, Li, and Hares, A Border Gateway Protocol 4 (BGP-4).
1/17
SLIDE 5
BGP Blackholing
Blackholing is a DDoS mitigation technique signaled via BGP1. Internet is composed of Autonomous Systems (AS): one or more networks under the control of a single entity.
AS 10 AS 20 AS 30
P: 192.0.2.0/24 BLACKHOLE
Figure 1: BGP Blackholing
1Rekhter, Li, and Hares, A Border Gateway Protocol 4 (BGP-4).
1/17
SLIDE 6
BGP Blackholing
Blackholing is a DDoS mitigation technique signaled via BGP1. Internet is composed of Autonomous Systems (AS): one or more networks under the control of a single entity.
AS 10 AS 20 AS 30
P: 192.0.2.0/24 BLACKHOLE
Figure 1: BGP Blackholing
Blackholing has a double-edged sword effect: all traffic is dropped.
1Rekhter, Li, and Hares, A Border Gateway Protocol 4 (BGP-4).
1/17
SLIDE 7
Objectives
1/17
SLIDE 8
Objectives Can blackholing be used with malicious intent?
1/17
SLIDE 9
Objectives Can blackholing be used with malicious intent? Are there different types of attacks?
1/17
SLIDE 10
Objectives Can blackholing be used with malicious intent? Are there different types of attacks? Are there any existing and relevant security mechanisms?
1/17
SLIDE 11
Objectives Can blackholing be used with malicious intent? Are there different types of attacks? Are there any existing and relevant security mechanisms? Are these mechanisms enough?
1/17
SLIDE 12
Quick BGP Primer
AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16
Figure 2: BGP message propagation
2/17
SLIDE 13
Quick BGP Primer
AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16
10.1/16 AS5
Figure 2: BGP message propagation
2/17
SLIDE 14
Quick BGP Primer
AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16
10.1/16 AS3 AS5 10.1/16 AS3 AS5 10.1/16 AS3 AS5
Figure 2: BGP message propagation
2/17
SLIDE 15
Quick BGP Primer
AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16
10.1/16 AS1 AS3 AS5 10.1/16 AS4 AS3 AS5
Figure 2: BGP message propagation
2/17
SLIDE 16
Quick BGP Primer
AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16
Figure 2: BGP message propagation
2/17
SLIDE 17
BGP Hijacks
As BGP is a distributed protocol, lacking authentication of route origins and verification
- f paths, ASes can advertise
illegitimate routes for prefixes they do not own, attracting some or all of the traffic to these prefixes.
2/17
SLIDE 18
BGP Hijacks
AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16
Figure 3: BGP hijack
3/17
SLIDE 19
BGP Hijacks
AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16 10.1.0.0/16
Figure 3: BGP hijack
3/17
SLIDE 20
BGP Hijacks
AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16 10.1.0.0/16
10.1/16 AS6 10.1/16 AS6
Figure 3: BGP hijack
3/17
SLIDE 21
BGP Hijacks
AS 1 AS 2 AS 3 AS 5 AS 6 AS 4
10.1.0.0/16 10.1.0.0/16
10.1/16 AS4 AS6 10.1/16 AS4 AS6
Figure 3: BGP hijack
3/17
SLIDE 22
BGP Hijacks
AS 1 AS 3 AS 5 AS 6 AS 4 AS 2
10.1.0.0/16 10.1.0.0/16
10.1/16 AS2 AS4 AS6
Figure 3: BGP hijack
3/17
SLIDE 23
BGP Hijacks
AS 1 AS 3 AS 5 AS 6 AS 4 AS 2
10.1.0.0/16 10.1.0.0/16
Figure 3: BGP hijack (Type-02)
2Sermpezis et al., “ARTEMIS: Neutralizing BGP hijacking within a minute”.
3/17
SLIDE 24
BGP Hijacks - 5304 routing attacks in 2017 alone2.
AS 1 AS 3 AS 5 AS 6 AS 4 AS 2
10.1.0.0/16 10.1.0.0/16
Figure 3: BGP hijack (Type-0)
2Robachevsky, 14,000 Incidents: A 2017 Routing Security Year in Review.
3/17
SLIDE 25
BGP Blackjacks - Type-0 AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16
Figure 4: Type-0 blackjack
4/17
SLIDE 26
BGP Blackjacks - Type-0 AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16 10.1.0.0/16
Figure 4: Type-0 blackjack
4/17
SLIDE 27
BGP Blackjacks - Type-0 AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16 10.1.0.0/16
10.1/16 AS6 AS3:666 10.1/16 AS6 AS4:666 Figure 4: Type-0 blackjack
4/17
SLIDE 28
BGP Blackjacks - Type-0 AS 1 AS 2 AS 5 AS 6 AS 3 AS 4
10.1.0.0/16 10.1.0.0/16
Figure 4: Type-0 blackjack
4/17
SLIDE 29
Best practices for legitimate blackholing empower blackjacks
Best Practices for blackholing3 Give a higher priority to blackholing. Do not propagate the advertisement across AS borders.
3Cisco, Remotely Triggered Black Hole Filtering - Destination Based and Source
Based. 5/17
SLIDE 30
Best practices for legitimate blackholing empower blackjacks
Best Practices for blackholing3 Give a higher priority to blackholing. Do not propagate the advertisement across AS borders. Advantages of blackjacks Reach: Precedence over AS path length. Even ASes far away are vulnerable. No propagation: More disruption. Stealth: The attacker is not dropping traffic himself.
3Cisco, Remotely Triggered Black Hole Filtering - Destination Based and Source
Based. 5/17
SLIDE 31
RPKI - Resource Public Key Infrastructure4
The RPKI is a distributed, hierarchic public key infrastructure. It allows prefix holders to emit digitally signed objects attesting that a given AS is authorized to originate routes for a set of prefixes.
4Lepinski and Kent, An Infrastructure to Support Secure Internet Routing.
6/17
SLIDE 32
RPKI - Resource Public Key Infrastructure
AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16
RPKI pub. point
Figure 5: RPKI usage
7/17
SLIDE 33
RPKI - Resource Public Key Infrastructure
AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16
RPKI pub. point
10.1/16 AS5
Figure 5: RPKI usage
7/17
SLIDE 34
RPKI - Resource Public Key Infrastructure
AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16 10.1.0.0/16
RPKI pub. point
Figure 5: RPKI usage
7/17
SLIDE 35
RPKI - Resource Public Key Infrastructure
AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16 10.1.0.0/16
RPKI pub. point
10.1/16 AS6 AS3:666 10.1/16 AS6 AS4:666
Figure 5: RPKI usage
7/17
SLIDE 36
RPKI - Resource Public Key Infrastructure
AS 1 AS 2 AS 4 AS 5 AS 6 AS 3
10.1.0.0/16 10.1.0.0/16
RPKI pub. point
Figure 5: RPKI usage
7/17
SLIDE 37
BGP Blackjacks - Type-N AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16
RPKI pub. point
Figure 6: Type-N blackjack
8/17
SLIDE 38
BGP Blackjacks - Type-N AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16 10.1.0.0/16
RPKI pub. point
Figure 6: Type-N blackjack
8/17
SLIDE 39
BGP Blackjacks - Type-N AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16 10.1.0.0/16
RPKI pub. point
10.1/16 AS6 AS5 AS3:666 10.1/16 AS6 AS5 AS4:666 Figure 6: Type-N blackjack
8/17
SLIDE 40
BGP Blackjacks - Type-N AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16 10.1.0.0/16
RPKI pub. point
10.1/16 AS6 AS5 AS3:666 10.1/16 AS6 AS5 AS4:666 Figure 6: Type-N blackjack
8/17
SLIDE 41
BGP Blackjacks - Type-N AS 1 AS 2 AS 5 AS 6 AS 3 AS 4
10.1.0.0/16 10.1.0.0/16
RPKI pub. point
Figure 6: Type-N blackjack
8/17
SLIDE 42
BGPsec5
BGPsec modifies BGP to allow ASes to sign advertisements. This guarantees the AS path reflects the actual path the advertisement went through.
5Lepinski and Sriram, BGPsec Protocol Specification.
9/17
SLIDE 43
BGPsec
AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16 1 2 3 4 5 6
Figure 7: BGPsec message propagation
10/17
SLIDE 44
BGPsec
AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16 1 2 3 4 5 6
5 10.1/16 - AS3 AS5
Figure 7: BGPsec message propagation
10/17
SLIDE 45
BGPsec
AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16 1 2 3 4 5 6
5 10.1/16 - AS3 AS5 3 10.1/16 - AS1 AS3 AS5 5 10.1/16 - AS3 AS5 3 10.1/16 - AS4 AS3 AS5 5 10.1/16 - AS3 AS5 3 10.1/16 - AS6 AS3 AS5
Figure 7: BGPsec message propagation
10/17
SLIDE 46
BGPsec
AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16 1 2 3 4 5 6
5 10.1/16 - AS3 AS5 3 10.1/16 - AS1 AS3 AS5 1 10.1/16 - AS2 AS1 AS3 AS5 5 10.1/16 - AS3 AS5 3 10.1/16 - AS4 AS3 AS5 4 10.1/16 - AS6 AS4 AS3 AS5
Figure 7: BGPsec message propagation
10/17
SLIDE 47
BGPsec
AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16 1 2 3 4 5 6
Figure 7: BGPsec message propagation
10/17
SLIDE 48
BGP Blackjacks - Type-N AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16
RPKI pub. point 1 2 3 4 5 6
Figure 8: Type-N blackjack
11/17
SLIDE 49
BGP Blackjacks - Type-N AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16
RPKI pub. point 1 2 3 4 5 6
Figure 8: Type-N blackjack
11/17
SLIDE 50
BGP Blackjacks - Type-N AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16
RPKI pub. point 1 2 3 4 5 6
10.1/16 AS6 AS5 AS3:666 10.1/16 AS6 AS5 AS4:666 Figure 8: Type-N blackjack
11/17
SLIDE 51
BGP Blackjacks - Type-N AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16
RPKI pub. point 1 2 3 4 5 6
Figure 8: Type-N blackjack
11/17
SLIDE 52
BGP Blackjacks - On Path
AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16 1 2 3 4 5 6
Figure 9: On Path blackjack
12/17
SLIDE 53
BGP Blackjacks - On Path
AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16 1 2 3 4 5 6
5 10.1/16 - AS3 AS5
Figure 9: On Path blackjack
12/17
SLIDE 54
BGP Blackjacks - On Path
AS 1 AS 2 AS 4 AS 5 AS 6 AS 3
10.1.0.0/16 1 2 3 4 5 6
5 10.1/16 - AS3 AS5
Figure 9: On Path blackjack
12/17
SLIDE 55
BGP Blackjacks - On Path
AS 1 AS 2 AS 4 AS 5 AS 6 AS 3
10.1.0.0/16 1 2 3 4 5 6
5 10.1/16 - AS3 AS5 3 10.1/16 - AS1 AS3 AS5 5 10.1/16 - AS3 AS5 3 10.1/16 - AS4 AS3 AS5 5 10.1/16 - AS3 AS5 3 10.1/16 - AS6 AS3 AS5
Figure 9: On Path blackjack
12/17
SLIDE 56
BGP Blackjacks - On Path
AS 1 AS 2 AS 4 AS 5 AS 6 AS 3
10.1.0.0/16 1 2 3 4 5 6
5 10.1/16 - AS3 AS5 3 10.1/16 - AS1 AS3 AS5 AS1:666 5 10.1/16 - AS3 AS5 3 10.1/16 - AS4 AS3 AS5 5 10.1/16 - AS3 AS5 3 10.1/16 - AS6 AS3 AS5
Figure 9: On Path blackjack
12/17
SLIDE 57
BGP Blackjacks - On Path
AS 2 AS 4 AS 5 AS 6 AS 3 AS 1
10.1.0.0/16 1 2 3 4 5 6
5 10.1/16 - AS3 AS5 3 10.1/16 - AS4 AS3 AS5 4 10.1/16 - AS6 AS4 AS3 AS5
Figure 9: On Path blackjack
12/17
SLIDE 58
BGP Blackjacks - On Path
AS 2 AS 4 AS 5 AS 6 AS 3 AS 1
10.1.0.0/16 1 2 3 4 5 6
Figure 9: On Path blackjack
12/17
SLIDE 59
Attack Taxonomy
Security Deployment Type-0 Type-N NOP OP OP-GRV BGPsec (full) ■ ■ ■ □ □ BGPsec (partial) ◪ ◪ ◪ □ □ RPKI (full) ■ □ □ □ □ RPKI (partial) ◪ □ □ □ □ No security □ □ □ □ □ Table 1: Security deployments against exact prefix blackjacks
13/17
SLIDE 60
Attack Taxonomy
Security Deployment Type-0 Type-N NOP OP OP-GRV BGPsec (full) ■ ■ ■ □ □ BGPsec (partial) ◪ ◪ ◪ □ □ RPKI (full) ■ □ □ □ □ RPKI (partial) ◪ □ □ □ □ No security □ □ □ □ □ Table 1: Security deployments against exact prefix blackjacks
BGPsec: not yet deployed.
13/17
SLIDE 61
Attack Taxonomy
Security Deployment Type-0 Type-N NOP OP OP-GRV BGPsec (full) ■ ■ ■ □ □ BGPsec (partial) ◪ ◪ ◪ □ □ RPKI (full) ■ □ □ □ □ RPKI (partial) ◪ □ □ □ □ No security □ □ □ □ □ Table 1: Security deployments against exact prefix blackjacks
BGPsec: not yet deployed. RPKI: 16.44% of prefixes.
13/17
SLIDE 62
Attack Taxonomy
Security Deployment Type-0 Type-N NOP OP OP-GRV BGPsec (full) ■ ■ ■ □ □ BGPsec (partial) ◪ ◪ ◪ □ □ RPKI (full) ■ □ □ □ □ RPKI (partial) ◪ □ □ □ □ No security □ □ □ □ □ Table 1: Security deployments against exact prefix blackjacks
BGPsec: not yet deployed. RPKI: 16.44% of prefixes. ROV: 84 ASes (0.005 < certainty < 1)6
6Reuter et al., “Towards a rigorous methodology for measuring adoption of RPKI
route validation and filtering”. 13/17
SLIDE 63
Attack Taxonomy
Security Deployment Type-0 Type-N NOP OP OP-GRV BGPsec (full) ■ ■ ■ □ □ BGPsec (partial) ◪ ◪ ◪ □ □ RPKI (full) ■ □ □ □ □ RPKI (partial) ◪ □ □ □ □ No security □ □ □ □ □ Table 1: Security deployments against exact prefix blackjacks
BGPsec: not yet deployed. RPKI: 16.44% of prefixes. ROV: 84 ASes (0.005 < certainty < 1)6 - 0.13% of ASes7.
6Reuter et al., “Towards a rigorous methodology for measuring adoption of RPKI
route validation and filtering”.
7Bates, Smith, and Huston, CIDR REPORT for 22 Sep 19.
13/17
SLIDE 64
Attack Taxonomy
Security Deployment Type-0 Type-N NOP OP OP-GRV BGPsec (full) ■ ■ ■ □ □ BGPsec (partial) ◪ ◪ ◪ □ □ RPKI (full) ■ □ □ □ □ RPKI (partial) ◪ □ □ □ □ No security □ □ □ □ □ Table 1: Security deployments against exact prefix blackjacks
BGPsec: not yet deployed. RPKI: 16.44% of prefixes. ROV: 84 ASes (0.005 < certainty < 1)6 - 0.13% of ASes7.
6Reuter et al., “Towards a rigorous methodology for measuring adoption of RPKI
route validation and filtering”.
7Bates, Smith, and Huston, CIDR REPORT for 22 Sep 19.
13/17
SLIDE 65
Suggested Best Practices
Authorized origin: RPKI. Valid path: BGPsec. It is not enough!
14/17
SLIDE 66
Suggested Best Practices
Authorized origin: RPKI. Valid path: BGPsec. Direct connection: The AS sending the blackhole advertisement is directly connected to the local AS: only one AS in the AS path.
14/17
SLIDE 67
Suggested Best Practices
Direct connection: The AS sending the blackhole advertisement is directly connected to the local AS: only one AS in the AS path.
AS 1 AS 2 AS 3
10.1.0.0/16
Figure 10: Suggested Best Practices
14/17
SLIDE 68
Suggested Best Practices
Direct connection: The AS sending the blackhole advertisement is directly connected to the local AS: only one AS in the AS path.
AS 1 AS 2 AS 3
10.1.0.0/16
10.1/16 AS1 AS2:666
Figure 10: Suggested Best Practices
14/17
SLIDE 69
Suggested Best Practices
Direct connection: The AS sending the blackhole advertisement is directly connected to the local AS: only one AS in the AS path.
AS 1 AS 2 AS 3
10.1.0.0/16
10.1/16 AS2 AS1 AS3:666
Figure 10: Suggested Best Practices
14/17
SLIDE 70
Suggested Best Practices
Direct connection: The AS sending the blackhole advertisement is directly connected to the local AS: only one AS in the AS path.
AS 1 AS 2 AS 3
10.1.0.0/16
10.1/16 AS2 AS1 AS3:666
Figure 10: Suggested Best Practices
14/17
SLIDE 71
Suggested Best Practices
Direct connection: The AS sending the blackhole advertisement is directly connected to the local AS: only one AS in the AS path. Limits possible attacks to Type-0 and NOP blackjacks.
AS 1 AS 2 AS 3
10.1.0.0/16
Figure 10: Suggested Best Practices
14/17
SLIDE 72
Suggested Best Practices
Direct connection: The AS sending the blackhole advertisement is directly connected to the local AS: only one AS in the AS path. Limits possible attacks to Type-0 and NOP blackjacks.
AS 1 AS 2 AS 3
10.1.0.0/16
10.1/16 AS1 AS3:666
Figure 10: Suggested Best Practices
14/17
SLIDE 73
Suggested Best Practices
Legitimate peer: The peer sending the blackhole advertisement is legitimate if the leftmost AS in the AS path is the ASN specified in the BGP OPEN message that created the session.
AS 1 AS 2 AS 3
10.1.0.0/16
10.1/16 AS1 AS3:666
Figure 10: Suggested Best Practices
14/17
SLIDE 74
A BGPsec solution - Associate communities to ASes.
pCount Flags ASN pCount Flags ASN ... SKI Length Signature SKI Length Signature ... SKI Length Signature SKI Length Signature ... Secure_Path Sig_Block 1 Sig_Block 2
Figure 11: BGPsec_PATH attribute
pCount Flags ASN pCount Flags ASN ... AS:value AS:value ... AS:value AS:value ... ... SKI Length Signature SKI Length Signature ... SKI Length Signature SKI Length Signature ... Secure_Path Secure_Communities Sig_Block 1 Sig_Block 2
15/17
SLIDE 75
A BGPsec solution - Associate communities to ASes.
pCount Flags ASN pCount Flags ASN ... SKI Length Signature SKI Length Signature ... SKI Length Signature SKI Length Signature ... Secure_Path Sig_Block 1 Sig_Block 2
Figure 11: BGPsec_PATH attribute
pCount Flags ASN pCount Flags ASN ... AS:value AS:value ... AS:value AS:value ... ... SKI Length Signature SKI Length Signature ... SKI Length Signature SKI Length Signature ... Secure_Path Secure_Communities Sig_Block 1 Sig_Block 2
Figure 12: Modified attribute
15/17
SLIDE 76
A BGPsec solution - Associate communities to ASes.
AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16 1 2 3 4 5 6
Figure 13: BGPsec message propagation (modified)
16/17
SLIDE 77
A BGPsec solution - Associate communities to ASes.
AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16 1 2 3 4 5 6
5 10.1/16 - AS3 AS5 - C5
Figure 13: BGPsec message propagation (modified)
16/17
SLIDE 78
A BGPsec solution - Associate communities to ASes.
AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16 1 2 3 4 5 6
5 10.1/16 - AS3 AS5 - C5 3 10.1/16 - AS1 AS3 AS5 - C3 C5 5 10.1/16 - AS3 AS5 - C5 3 10.1/16 - AS4 AS3 AS5 - C3 C5 5 10.1/16 - AS3 AS5 - C5 3 10.1/16 - AS6 AS3 AS5 - C3 C5
Figure 13: BGPsec message propagation (modified)
16/17
SLIDE 79
A BGPsec solution - Associate communities to ASes.
AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16 1 2 3 4 5 6
5 10.1/16 - AS3 AS5 - C5 3 10.1/16 - AS1 AS3 AS5 1 10.1/16 - AS2 AS1 AS3 AS5 - C1 C3 C5 5 10.1/16 - AS3 AS5 - C5 3 10.1/16 - AS4 AS3 AS5 4 10.1/16 - AS6 AS4 AS3 AS5 - C4 C3 C5
Figure 13: BGPsec message propagation (modified)
16/17
SLIDE 80
A BGPsec solution - Associate communities to ASes.
AS 1 AS 2 AS 3 AS 4 AS 5 AS 6
10.1.0.0/16 1 2 3 4 5 6
Figure 13: BGPsec message propagation (modified)
16/17
SLIDE 81
Perspectives
Test remaining8 attacks in a real world setting.
8Streibelt et al., “BGP Communities: Even more Worms in the Routing Can”.
17/17
SLIDE 82
Perspectives
Test remaining8 attacks in a real world setting. Investigate ASes proposing blackholing services.
8Streibelt et al., “BGP Communities: Even more Worms in the Routing Can”.
17/17
SLIDE 83
Perspectives
Test remaining8 attacks in a real world setting. Investigate ASes proposing blackholing services. Extend the attack model.
8Streibelt et al., “BGP Communities: Even more Worms in the Routing Can”.
17/17
SLIDE 84
Takeway message
New BGP attacks: BGP blackjacks.
17/17
SLIDE 85
Takeway message
New BGP attacks: BGP blackjacks. Blackjack attack taxonomy.
17/17
SLIDE 86
Takeway message
New BGP attacks: BGP blackjacks. Blackjack attack taxonomy. Existing routing security mechanisms do not provide complete protection.
17/17
SLIDE 87
Takeway message
New BGP attacks: BGP blackjacks. Blackjack attack taxonomy. Existing routing security mechanisms do not provide complete protection. Additional mechanisms to properly defend against or mitigate those attacks.
17/17
SLIDE 88
Thank you!
17/17
SLIDE 89
[1] Tony Bates, Philip Smith, and Geoff Huston. CIDR REPORT for 22 Sep 19. 2019. url: https://www.cidr-report.org/as2.0/ (visited on 09/22/2019). [2]
- Cisco. Remotely Triggered Black Hole Filtering - Destination Based and Source Based. 2005. url:
https://www.cisco.com/c/dam/en/us/products/collateral/security/ios-network- foundation-protection-nfp/prod%5C_white%5C_paper0900aecd80313fac.pdf (visited on 09/22/2019). [3]
- M. Lepinski and S. Kent. An Infrastructure to Support Secure Internet Routing. RFC 6480. RFC Editor,
- Feb. 2012. url: http://www.rfc-editor.org/rfc/rfc6480.txt.
[4]
- M. Lepinski and K. Sriram. BGPsec Protocol Specification. RFC 8205. RFC Editor, Sept. 2017.
[5]
- Y. Rekhter, T. Li, and S. Hares. A Border Gateway Protocol 4 (BGP-4). RFC 4271.
http://www.rfc-editor.org/rfc/rfc4271.txt. RFC Editor, Jan. 2006. url: http://www.rfc-editor.org/rfc/rfc4271.txt. [6] Andreas Reuter et al. “Towards a rigorous methodology for measuring adoption of RPKI route validation and filtering”. In: ACM SIGCOMM Computer Communication Review 48.1 (2018), pp. 19–27. [7] Andrei Robachevsky. 14,000 Incidents: A 2017 Routing Security Year in Review. 2018. url: https://www.internetsociety.org/blog/2018/01/14000-incidents-2017-routing- security-year-review/ (visited on 09/22/2019). [8] Pavlos Sermpezis et al. “ARTEMIS: Neutralizing BGP hijacking within a minute”. In: IEEE/ACM Transactions on Networking (TON) 26.6 (2018), pp. 2471–2486. [9] Florian Streibelt et al. “BGP Communities: Even more Worms in the Routing Can”. In: Proceedings of the Internet Measurement Conference 2018. ACM. 2018, pp. 279–292.
SLIDE 90
Type-0: 10 - 20:666 - 192.0.2.0/24 Type-N: 10 30 - 20:666 - 192.0.2.0/24
AS 10 Attacker AS 20 Blackholer AS 30 Victim
P: 192.0.2.0/24 P P
Figure 14: Type-0 and Type-N blackjacks
SLIDE 91
P: 192.0.2.0/24 OP: 10 30 - 20:666 - 192.0.2.0/24 P
AS 10 Attacker AS 20 Blackholer AS 30 Victim
P P
Figure 15: On Path blackjacks
SLIDE 92
OP-GRV: 20 30 40 - 10:666 - 192.0.2.0/24 NOP: 40 - 30:666 - 192.0.2.0/24
AS 20 Attacker AS 40 Victim AS 30 Blackholer AS 10 Blackholer
P P P P: 192.0.2.0/24
Figure 16: OP-GRV and NOP blackjacks
SLIDE 93
