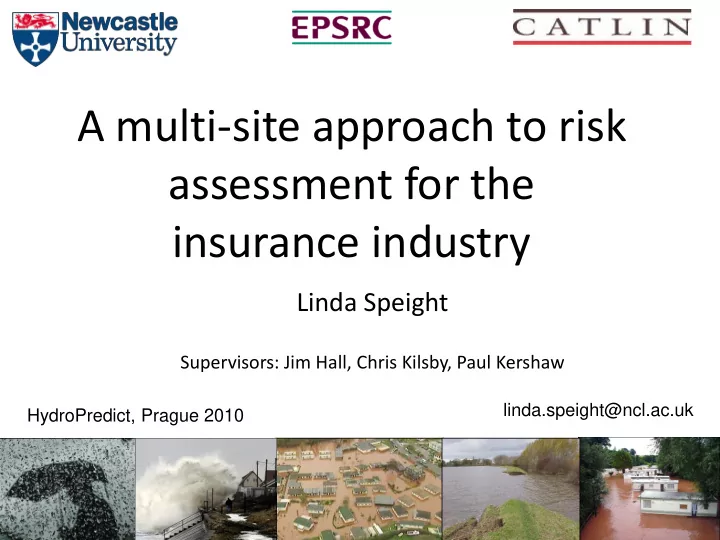

A multi-site approach to risk assessment for the insurance industry Linda Speight Supervisors: Jim Hall, Chris Kilsby, Paul Kershaw linda.speight@ncl.ac.uk HydroPredict, Prague 2010 Outline Introduction Methodology Modelling

slide-1
SLIDE 1

A multi-site approach to risk assessment for the insurance industry

Linda Speight

Supervisors: Jim Hall, Chris Kilsby, Paul Kershaw

linda.speight@ncl.ac.uk HydroPredict, Prague 2010

slide-2
SLIDE 2

Outline

  • Introduction
  • Methodology

– Modelling extreme events – Flood defences

  • Calculating Risk
  • Conclusions
slide-3
SLIDE 3

Catastrophe Models

Premium = AAL + Risk Load + Expense Load

AIR model output

slide-4
SLIDE 4

Aims and Objectives

To develop a method for multi-site concurrent damages due to weather related extremes

FLOODsite 2007 Flood (BBC News)

Spatial dependencies at multiple scales

slide-5
SLIDE 5

Methodology

Statistical modelling of extreme events Statistical modelling of flood defence failure Process based modelling of water level & floodplain inundation Multiple sites nested in national framework Deterministic calculation of damage

slide-6
SLIDE 6

For each site

Damage per site conditional on event

For each event

Repeat until P(breach sequence) → 0

Sample breach widths Simulate crest height and defence reliability Sample breach failure state Sample sequence of defence failure. Hydraulic modelling

  • f water level and

flow through breach Estimate peak flows and hydrographs Simulate extreme event across network Hydraulic modelling for breach sequence Calculate damage Floodplain inundation modelling Estimate probability of breach sequences Hydraulic modelling of water level assuming no breaching

slide-7
SLIDE 7

For each site

Damage per site conditional on event

For each event

Repeat until P(breach sequence) → 0

Sample breach widths Simulate crest height and defence reliability Sample breach failure state Sample sequence of defence failure. Hydraulic modelling

  • f water level and

flow through breach Estimate peak flows and hydrographs Simulate extreme event across network Hydraulic modelling for breach sequence Calculate damage Floodplain inundation modelling Estimate probability of breach sequences Hydraulic modelling of water level assuming no breaching

slide-8
SLIDE 8

Modelling extreme events

  • Aim

– Spatial dependency between events – Large scale model for UK – Good representation of extremes

  • Method

– Conditional dependence model of Heffernan and Tawn (2004) applied by Keef et al (2009) Y|X, x > ux

a = strength of dependences b = changing dependence Z = residuals

Y = a(x) + b(x)Z

Y = set of gauges X = conditional gauge x = daily mean flow ux = threshold

slide-9
SLIDE 9

Example application

· = observed

below threshold

  • = observed
  • = simulated

55026 55023 55008 54022 54019 54002 54001 28046 28018

slide-10
SLIDE 10

For each site

Damage per site conditional on event

For each event

Repeat until P(breach sequence) → 0

Sample breach widths Simulate crest height and defence reliability Sample breach failure state Sample sequence of defence failure. Hydraulic modelling

  • f water level and

flow through breach Estimate peak flows and hydrographs Simulate extreme event across network Hydraulic modelling for breach sequence Calculate damage Floodplain inundation modelling Estimate probability of breach sequences Hydraulic modelling of water level assuming no breaching

slide-11
SLIDE 11

Estimating peak flows at site

Peak flow conversion methods

  • Shape of hydrograph
  • Catchment characteristics

5 10 15 20 25 30 35 40 2 4 6 8 10 12 14 16 18 20 22 24

Flow(m3/s) Time (h) Daily mean flow Hydrograph Flood Peak

Ungauged site transfer methods

  • Analogue sites
  • Weighted by distance and

catchment characteristics

slide-12
SLIDE 12

For each site

Damage per site conditional on event

For each event

Repeat until P(breach sequence) → 0

Sample breach widths Simulate crest height and defence reliability Sample breach failure state Sample sequence of defence failure. Hydraulic modelling

  • f water level and

flow through breach Estimate peak flows and hydrographs Simulate extreme event across network Hydraulic modelling for breach sequence Calculate damage Floodplain inundation modelling Estimate probability of breach sequences Hydraulic modelling of water level assuming no breaching

slide-13
SLIDE 13

Flood defence system

Characterised by

  • Design standard
  • Construction

type

Defence wall SOP = 100 years Embankment SOP = 25 years Embankment SOP = 5 years

d1 d2 d3

High ground Floodplain

Novel aspects

  • No restriction on

length

  • Consideration of

upstream breaches

slide-14
SLIDE 14

Sampling crest heights

Autocorrelation function for crest height = f (defence type, age, condition, data quality)

6 6,1 6,2 6,3 6,4 6,5 6,6 6,7 6,8 6,9 7 10 20 30 40 50 60 70 80 90 100

Crest height (m) Chainage (m)

design crest level defence A - old embankment Defence B - sea wall

slide-15
SLIDE 15

Defence reliability

  • Initiation

– Fragility curves – Type

Photos from FLOODsite

Fragility curve from Hall et al (2003)

– Condition – Sequencing

slide-16
SLIDE 16

Sampling breaches

0,1 0,2 0,3 0,4 0,5 0,6 0,7 0,8 0,9 1 6 6,1 6,2 6,3 6,4 6,5 6,6 6,7 6,8 6,9 7 20 40 60 80 100

P(failure) Elevation (m) Chainage (m) P(varying failure) crest height water level breaches

Autocorrelation function for strength = f (defence type, age, condition)

slide-17
SLIDE 17

Breach widths

FLOODsite

  • Growth Rate

– Materials – Floodplain type – Amount of water – Sequencing

  • Max width

Case study Observed values Assumed values Source Elbe 20m to 200m Median 20m Log normal width mean of 64m De Kok and Grossmann 2010 Lower Rhine Width 100 – 400m Apel et al 2004 Lower Rhine Width 50 - 150m Kamrath et al 2006 UK RASP method Function of load and defence length Hall et all 2003 Netherlands Largest 520m wide and 36m deep Muir-Wood and Bateman 2005 River Po Normal Width: 100m - 300m Depth: 0.5m - 4m Govi and Turitto 2000

slide-18
SLIDE 18

For each site

Damage per site conditional on event

For each event

Repeat until P(breach sequence) → 0

Sample breach widths Simulate crest height and defence reliability Sample breach failure state Sample sequence of defence failure. Hydraulic modelling

  • f water level and

flow through breach Estimate peak flows and hydrographs Simulate extreme event across network Hydraulic modelling for breach sequence Calculate damage Floodplain inundation modelling Estimate probability of breach sequences Hydraulic modelling of water level assuming no breaching

slide-19
SLIDE 19

For each site

Damage per site conditional on event

For each event

Repeat until P(breach sequence) → 0

Sample breach widths Simulate crest height and defence reliability Sample breach failure state Sample sequence of defence failure. Hydraulic modelling

  • f water level and

flow through breach Estimate peak flows and hydrographs Simulate extreme event across network Hydraulic modelling for breach sequence Calculate damage Floodplain inundation modelling Estimate probability of breach sequences Hydraulic modelling of water level assuming no breaching

slide-20
SLIDE 20

Damage

  • Raster based floodplain inundation model

depths

  • Depth-damage curves

damage

  • 1
  • 0,75
  • 0,5
  • 0,25

0,25 0,5 0,75 1 1,25 1,5 1,75 2 2,25 2,5 2,75 3 50 100 150 200 250 300 350 400 450 500

Depth Metres Damage £/m2

Penning-Roswell et al (2006)

BBC News

slide-21
SLIDE 21

Risk

Risk = Probability x Consequence P(Imax,i,j|Fi,j|OTi,j ,Bi,j , BWi,j|Lj,i,Ci,j,Ri,j |Qi,j | Xi ) Imax,i,j = maximum inundation depth across site j for event i

slide-22
SLIDE 22

Risk

Risk = Probability x Consequence P(OTi,j) = f(Ci,j, Li,j) P(Bi,j) = f(Ci,j, Li,j , Ri,j , OTi,j) P(BWi,j) = f(type, material, Li,j) Fi,j = Flow over or through defence P(Imax,i,j|Fi,j|OTi,j ,Bi,j , BWi,j|Lj,i,Ci,j,Ri,j |Qi,j | Xi )

slide-23
SLIDE 23

Risk

Risk = Probability x Consequence Xi = Large scale spatial event P(Li) = f(upstream breaches, Qi,j) Ci, Ri = f(type, age, condition) Qi,j = Inflow to hydraulic model P(Imax,i,j|Fi,j|OTi,j ,Bi,j , BWi,j|Lj,i,Ci,j,Ri,j |Qi,j | Xi )

slide-24
SLIDE 24

Conclusions

  • Integrated system model
  • Detail nested in national scale
  • Consider risk load

– If modelling of flood defences is poor how much impact does this have? – Which areas could flood at the same time / where are we over exposed?

  • Future...

– Sensitivity testing – Resilience measurers Informed decision!

slide-25
SLIDE 25

Thank you

Linda Speight Civil Engineering & Geosciences Newcastle University, UK Linda.speight@ncl.ac.uk

slide-26
SLIDE 26
  • 1. Extreme data at conditional gauge
  • 2. Extreme dependence between gauges

Fit Generalised Pareto

  • Shape (β)
  • Scale (ε)
  • threshold

Modelling extreme events (2)

Solid lines: parametric Dashed lines: nonparametric (residuals)

Fit dependence model

slide-27
SLIDE 27

References
