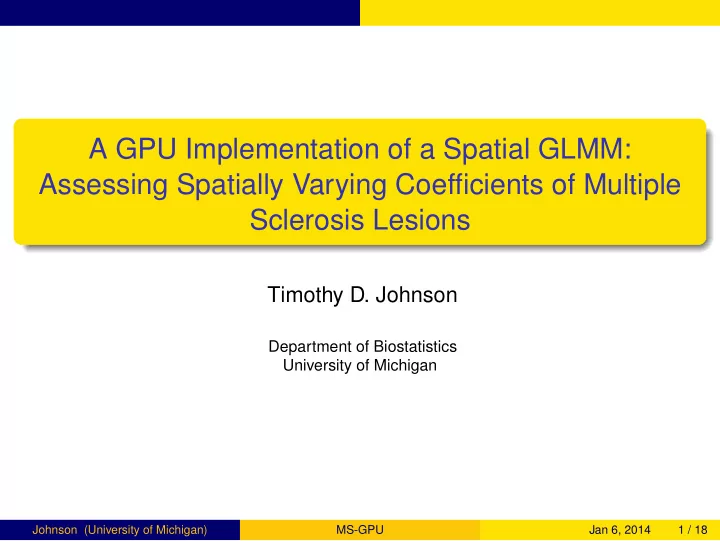

A GPU Implementation of a Spatial GLMM: Assessing Spatially Varying - - PowerPoint PPT Presentation

A GPU Implementation of a Spatial GLMM: Assessing Spatially Varying Coefficients of Multiple Sclerosis Lesions

Timothy D. Johnson

Department of Biostatistics University of Michigan

Johnson (University of Michigan) MS-GPU Jan 6, 2014 1 / 18

Outline

1

Disease Background

2

The Model

3

Intro to GPUs

4

Results

5

Acknowledgements

Johnson (University of Michigan) MS-GPU Jan 6, 2014 2 / 18

Disease Background

Multiple Sclerosis

Autoimmune disease affecting the central nervous system

Johnson (University of Michigan) MS-GPU Jan 6, 2014 3 / 18

Disease Background

Multiple Sclerosis

Autoimmune disease affecting the central nervous system Affects women more than men

Johnson (University of Michigan) MS-GPU Jan 6, 2014 3 / 18

Disease Background

Multiple Sclerosis

Autoimmune disease affecting the central nervous system Affects women more than men Commonly diagnosed between 20 and 40 years of age.

Johnson (University of Michigan) MS-GPU Jan 6, 2014 3 / 18

Disease Background

Multiple Sclerosis

Autoimmune disease affecting the central nervous system Affects women more than men Commonly diagnosed between 20 and 40 years of age. Immune system attacks the myelin sheath surrounding axons

Slows nerve impulse

Johnson (University of Michigan) MS-GPU Jan 6, 2014 3 / 18

Disease Background

Multiple Sclerosis

Autoimmune disease affecting the central nervous system Affects women more than men Commonly diagnosed between 20 and 40 years of age. Immune system attacks the myelin sheath surrounding axons

Slows nerve impulse

Immune system attacks the myelin

Johnson (University of Michigan) MS-GPU Jan 6, 2014 3 / 18

Disease Background

Multiple Sclerosis

Autoimmune disease affecting the central nervous system Affects women more than men Commonly diagnosed between 20 and 40 years of age. Immune system attacks the myelin sheath surrounding axons

Slows nerve impulse

Immune system attacks the myelin Causes inflammation visible on MRI

Johnson (University of Michigan) MS-GPU Jan 6, 2014 3 / 18

Disease Background

Multiple Sclerosis

Autoimmune disease affecting the central nervous system Affects women more than men Commonly diagnosed between 20 and 40 years of age. Immune system attacks the myelin sheath surrounding axons

Slows nerve impulse

Immune system attacks the myelin Causes inflammation visible on MRI Cause of autoimmune disease is unknown, theories include

Viral infection Genetics Environmental factors

Johnson (University of Michigan) MS-GPU Jan 6, 2014 3 / 18

Disease Background

Multiple Sclerosis

Autoimmune disease affecting the central nervous system Affects women more than men Commonly diagnosed between 20 and 40 years of age. Immune system attacks the myelin sheath surrounding axons

Slows nerve impulse

Immune system attacks the myelin Causes inflammation visible on MRI Cause of autoimmune disease is unknown, theories include

Viral infection Genetics Environmental factors

No known cure

Johnson (University of Michigan) MS-GPU Jan 6, 2014 3 / 18

Disease Background

Multiple Sclerosis Functional Systems Scores

FSS

Johnson (University of Michigan) MS-GPU Jan 6, 2014 4 / 18

Disease Background

Multiple Sclerosis Functional Systems Scores

FSS Visual function — blind spots, decrease in visual acuity

Johnson (University of Michigan) MS-GPU Jan 6, 2014 4 / 18

Disease Background

Multiple Sclerosis Functional Systems Scores

FSS Visual function — blind spots, decrease in visual acuity Cerebellar function — coordination

Johnson (University of Michigan) MS-GPU Jan 6, 2014 4 / 18

Disease Background

Multiple Sclerosis Functional Systems Scores

FSS Visual function — blind spots, decrease in visual acuity Cerebellar function — coordination Brainstem function — difficulty in speech, swallowing, ...

Johnson (University of Michigan) MS-GPU Jan 6, 2014 4 / 18

Disease Background

Multiple Sclerosis Functional Systems Scores

FSS Visual function — blind spots, decrease in visual acuity Cerebellar function — coordination Brainstem function — difficulty in speech, swallowing, ... Pyramidal function — walking

Johnson (University of Michigan) MS-GPU Jan 6, 2014 4 / 18

Disease Background

Multiple Sclerosis Functional Systems Scores

FSS Visual function — blind spots, decrease in visual acuity Cerebellar function — coordination Brainstem function — difficulty in speech, swallowing, ... Pyramidal function — walking Sensory function — touch and pain

Johnson (University of Michigan) MS-GPU Jan 6, 2014 4 / 18

Disease Background

Multiple Sclerosis Functional Systems Scores

FSS Visual function — blind spots, decrease in visual acuity Cerebellar function — coordination Brainstem function — difficulty in speech, swallowing, ... Pyramidal function — walking Sensory function — touch and pain Bowel and Bladder function

Johnson (University of Michigan) MS-GPU Jan 6, 2014 4 / 18

Disease Background

Multiple Sclerosis Functional Systems Scores

FSS Visual function — blind spots, decrease in visual acuity Cerebellar function — coordination Brainstem function — difficulty in speech, swallowing, ... Pyramidal function — walking Sensory function — touch and pain Bowel and Bladder function Cerebral function — memory, mood, dementia

Johnson (University of Michigan) MS-GPU Jan 6, 2014 4 / 18

Disease Background

Multiple Sclerosis Functional Systems Scores

FSS Visual function — blind spots, decrease in visual acuity Cerebellar function — coordination Brainstem function — difficulty in speech, swallowing, ... Pyramidal function — walking Sensory function — touch and pain Bowel and Bladder function Cerebral function — memory, mood, dementia PASAT score Paced auditory serial addition test

Assesses auditory speed/flexibility + calculation ability

Johnson (University of Michigan) MS-GPU Jan 6, 2014 4 / 18

Disease Background

MS high-resolution imaging

Data are T2 hyperintense lesions

Johnson (University of Michigan) MS-GPU Jan 6, 2014 5 / 18

Disease Background

MS high-resolution imaging

Data are T2 hyperintense lesions

Johnson (University of Michigan) MS-GPU Jan 6, 2014 5 / 18

The Model

Notation

sj, j = 1, . . . , M will denote the jth voxel at location (x, y, z) (lexicographical ordering)

Johnson (University of Michigan) MS-GPU Jan 6, 2014 6 / 18

The Model

Notation

sj, j = 1, . . . , M will denote the jth voxel at location (x, y, z) (lexicographical ordering) Yi(sj) ∈ {0, 1}: outcome for subject i = 1, . . . , N at voxel, or site, sj

Johnson (University of Michigan) MS-GPU Jan 6, 2014 6 / 18

The Model

Notation

sj, j = 1, . . . , M will denote the jth voxel at location (x, y, z) (lexicographical ordering) Yi(sj) ∈ {0, 1}: outcome for subject i = 1, . . . , N at voxel, or site, sj Xi: subject specific covariate vector.

Johnson (University of Michigan) MS-GPU Jan 6, 2014 6 / 18

The Model

Notation

sj, j = 1, . . . , M will denote the jth voxel at location (x, y, z) (lexicographical ordering) Yi(sj) ∈ {0, 1}: outcome for subject i = 1, . . . , N at voxel, or site, sj Xi: subject specific covariate vector. β(sj): parameter vector at voxel sj.

Johnson (University of Michigan) MS-GPU Jan 6, 2014 6 / 18

The Model

Notation

sj, j = 1, . . . , M will denote the jth voxel at location (x, y, z) (lexicographical ordering) Yi(sj) ∈ {0, 1}: outcome for subject i = 1, . . . , N at voxel, or site, sj Xi: subject specific covariate vector. β(sj): parameter vector at voxel sj. MRF (Markov Random Field) model

Johnson (University of Michigan) MS-GPU Jan 6, 2014 6 / 18

The Model

Notation

sj, j = 1, . . . , M will denote the jth voxel at location (x, y, z) (lexicographical ordering) Yi(sj) ∈ {0, 1}: outcome for subject i = 1, . . . , N at voxel, or site, sj Xi: subject specific covariate vector. β(sj): parameter vector at voxel sj. MRF (Markov Random Field) model

Voxels are rectangular prisms (commonly cubes)

Johnson (University of Michigan) MS-GPU Jan 6, 2014 6 / 18

The Model

Notation

sj, j = 1, . . . , M will denote the jth voxel at location (x, y, z) (lexicographical ordering) Yi(sj) ∈ {0, 1}: outcome for subject i = 1, . . . , N at voxel, or site, sj Xi: subject specific covariate vector. β(sj): parameter vector at voxel sj. MRF (Markov Random Field) model

Voxels are rectangular prisms (commonly cubes) If sj and sk are neighboring sites, we denote this by sj ∼ sk

Johnson (University of Michigan) MS-GPU Jan 6, 2014 6 / 18

The Model

Notation

sj, j = 1, . . . , M will denote the jth voxel at location (x, y, z) (lexicographical ordering) Yi(sj) ∈ {0, 1}: outcome for subject i = 1, . . . , N at voxel, or site, sj Xi: subject specific covariate vector. β(sj): parameter vector at voxel sj. MRF (Markov Random Field) model

Voxels are rectangular prisms (commonly cubes) If sj and sk are neighboring sites, we denote this by sj ∼ sk The set of neighbors of sj is denoted by ∂sj

Johnson (University of Michigan) MS-GPU Jan 6, 2014 6 / 18

The Model

Notation

sj, j = 1, . . . , M will denote the jth voxel at location (x, y, z) (lexicographical ordering) Yi(sj) ∈ {0, 1}: outcome for subject i = 1, . . . , N at voxel, or site, sj Xi: subject specific covariate vector. β(sj): parameter vector at voxel sj. MRF (Markov Random Field) model

Voxels are rectangular prisms (commonly cubes) If sj and sk are neighboring sites, we denote this by sj ∼ sk The set of neighbors of sj is denoted by ∂sj The number of neighbors of sj is N(sj)

Johnson (University of Michigan) MS-GPU Jan 6, 2014 6 / 18

The Model

Notation

sj, j = 1, . . . , M will denote the jth voxel at location (x, y, z) (lexicographical ordering) Yi(sj) ∈ {0, 1}: outcome for subject i = 1, . . . , N at voxel, or site, sj Xi: subject specific covariate vector. β(sj): parameter vector at voxel sj. MRF (Markov Random Field) model

Voxels are rectangular prisms (commonly cubes) If sj and sk are neighboring sites, we denote this by sj ∼ sk The set of neighbors of sj is denoted by ∂sj The number of neighbors of sj is N(sj) Two voxels are neighbors if they shared a common face

each voxel has at most 6 neighbors

Johnson (University of Michigan) MS-GPU Jan 6, 2014 6 / 18

The Model

Notation

sj, j = 1, . . . , M will denote the jth voxel at location (x, y, z) (lexicographical ordering) Yi(sj) ∈ {0, 1}: outcome for subject i = 1, . . . , N at voxel, or site, sj Xi: subject specific covariate vector. β(sj): parameter vector at voxel sj. MRF (Markov Random Field) model

Voxels are rectangular prisms (commonly cubes) If sj and sk are neighboring sites, we denote this by sj ∼ sk The set of neighbors of sj is denoted by ∂sj The number of neighbors of sj is N(sj) Two voxels are neighbors if they shared a common face

each voxel has at most 6 neighbors

If two voxels are not neighbors, they are cond. indep. given their neighbors (Markov property)

Johnson (University of Michigan) MS-GPU Jan 6, 2014 6 / 18

The Model

The Multivariate Gaussian MRF

Let βT = (βT(s1), . . . , βT(sM)) where each β(si) is a p-col vector

Johnson (University of Michigan) MS-GPU Jan 6, 2014 7 / 18

The Model

The Multivariate Gaussian MRF

Let βT = (βT(s1), . . . , βT(sM)) where each β(si) is a p-col vector Following Mardia (1988) the full conditionals are given by [β(si) | β(s−i), Σ] ∼ MVN

• sj∈∂si β(sj)

N(si) , Σ N(si)

• Johnson (University of Michigan)

MS-GPU Jan 6, 2014 7 / 18

The Model

The Multivariate Gaussian MRF

Let βT = (βT(s1), . . . , βT(sM)) where each β(si) is a p-col vector Following Mardia (1988) the full conditionals are given by [β(si) | β(s−i), Σ] ∼ MVN

• sj∈∂si β(sj)

N(si) , Σ N(si)

• By Brook’s lemma the joint dist has form

π [β | Σ] ∝ exp   −1 2

• si∼sj
• β(si) − β(sj)

T Σ−1 β(si) − β(sj)

• 

 

Johnson (University of Michigan) MS-GPU Jan 6, 2014 7 / 18

The Model

The Multivariate Gaussian MRF

Let βT = (βT(s1), . . . , βT(sM)) where each β(si) is a p-col vector Following Mardia (1988) the full conditionals are given by [β(si) | β(s−i), Σ] ∼ MVN

• sj∈∂si β(sj)

N(si) , Σ N(si)

• By Brook’s lemma the joint dist has form

π [β | Σ] ∝ exp   −1 2

• si∼sj
• β(si) − β(sj)

T Σ−1 β(si) − β(sj)

• 

  We write [β | Σ] ∼ G-MRF(Σ)

Johnson (University of Michigan) MS-GPU Jan 6, 2014 7 / 18

The Model

Spatially Varying Coefficient Model

Probit Regression Model Φ−1 Pr(Yi(sj) = 1 | ·)

• =

X T

i α + X T i β(sj)

Johnson (University of Michigan) MS-GPU Jan 6, 2014 8 / 18

The Model

Spatially Varying Coefficient Model

Probit Regression Model Φ−1 Pr(Yi(sj) = 1 | ·)

• =

X T

i α + X T i β(sj)

Xi: vector of p covariates α: associated parameter vector (fixed effects, intercepts and slopes)

Johnson (University of Michigan) MS-GPU Jan 6, 2014 8 / 18

The Model

Spatially Varying Coefficient Model

Probit Regression Model Φ−1 Pr(Yi(sj) = 1 | ·)

• =

X T

i α + X T i β(sj)

Xi: vector of p covariates β(sj): associated parameter vector (spatial random effects) Let βT = (βT(s1), . . . , βT(sM))

Johnson (University of Michigan) MS-GPU Jan 6, 2014 8 / 18

The Model

Spatially Varying Coefficient Model

Probit Regression Model Φ−1 Pr(Yi(sj) = 1 | ·)

• =

X T

i α + X T i β(sj)

= X T

i β∗(sj)

Xi: vector of p covariates Reparametrize: β∗(sj) = α + β(sj)—aids in mixing Let β∗T = (β∗T(s1), . . . , β∗T(sM)) [β∗ | Σ] ∼ G-MRF(Σ) Σ−1 ∼ W(ν, I) ν = 0 gives an improper, uninformative prior

Johnson (University of Michigan) MS-GPU Jan 6, 2014 8 / 18

The Model

Latent Variable Representation

We use the Latent Variable rep introduced by Albert & Chib (1993)

1

Introduce latent variable di(sj) ∼ N(X T

i β∗(sj), 1)

Johnson (University of Michigan) MS-GPU Jan 6, 2014 9 / 18

The Model

Latent Variable Representation

We use the Latent Variable rep introduced by Albert & Chib (1993)

1

Introduce latent variable di(sj) ∼ N(X T

i β∗(sj), 1)

2

Define Pr[Yi(sj) = 1 | di(sj)] = 1 : di(sj) > 0 : di(sj) ≤ 0

binary regression transformed into a cont. regression problem

Johnson (University of Michigan) MS-GPU Jan 6, 2014 9 / 18

The Model

Latent Variable Representation

We use the Latent Variable rep introduced by Albert & Chib (1993)

1

Introduce latent variable di(sj) ∼ N(X T

i β∗(sj), 1)

2

Define Pr[Yi(sj) = 1 | di(sj)] = 1 : di(sj) > 0 : di(sj) ≤ 0

binary regression transformed into a cont. regression problem

3

Given the di(sj) our model now a spatial (continuous) mixed effects model with normal errors.

Johnson (University of Michigan) MS-GPU Jan 6, 2014 9 / 18

The Model

Latent Variable Representation

We use the Latent Variable rep introduced by Albert & Chib (1993)

1

Introduce latent variable di(sj) ∼ N(X T

i β∗(sj), 1)

2

Define Pr[Yi(sj) = 1 | di(sj)] = 1 : di(sj) > 0 : di(sj) ≤ 0

binary regression transformed into a cont. regression problem

3

Given the di(sj) our model now a spatial (continuous) mixed effects model with normal errors.

4

Update the full conditional of each di(sj) from its truncated normal distribution

Johnson (University of Michigan) MS-GPU Jan 6, 2014 9 / 18

The Model

Latent Variable Representation

We use the Latent Variable rep introduced by Albert & Chib (1993)

1

Introduce latent variable di(sj) ∼ N(X T

i β∗(sj), 1)

2

Define Pr[Yi(sj) = 1 | di(sj)] = 1 : di(sj) > 0 : di(sj) ≤ 0

binary regression transformed into a cont. regression problem

3

Given the di(sj) our model now a spatial (continuous) mixed effects model with normal errors.

4

Update the full conditional of each di(sj) from its truncated normal distribution

5

Given di(sj), model parameters can be drawn from full conditionals due to conjugacy

Johnson (University of Michigan) MS-GPU Jan 6, 2014 9 / 18

The Model

Latent Variable Representation

We use the Latent Variable rep introduced by Albert & Chib (1993)

1

Introduce latent variable di(sj) ∼ N(X T

i β∗(sj), 1)

2

Define Pr[Yi(sj) = 1 | di(sj)] = 1 : di(sj) > 0 : di(sj) ≤ 0

binary regression transformed into a cont. regression problem

3

Given the di(sj) our model now a spatial (continuous) mixed effects model with normal errors.

4

Update the full conditional of each di(sj) from its truncated normal distribution

5

Given di(sj), model parameters can be drawn from full conditionals due to conjugacy

6

Marginalizing over di(sj), retrieve probit regression model.

Johnson (University of Michigan) MS-GPU Jan 6, 2014 9 / 18

The Model

Why GPU?

15 Subject Specific Covariates 7 functional system scores, PASAT score MS subtype (4 distinct subtypes) age, disease duration, gender—nuisance parameters

Johnson (University of Michigan) MS-GPU Jan 6, 2014 10 / 18

The Model

Why GPU?

15 Subject Specific Covariates 7 functional system scores, PASAT score MS subtype (4 distinct subtypes) age, disease duration, gender—nuisance parameters Problem Size 3D image Approx 66 million observed outcomes

275K voxels times 239 subjects

Approx 41 million spatially varying coefficients

275K voxels times 15 covariates

Johnson (University of Michigan) MS-GPU Jan 6, 2014 10 / 18

Intro to GPUs

CPU/GPU Comparison

• CPUs dedicate more space to Cache/Control

GPUs dedicate more space to ALUs

Johnson (University of Michigan) MS-GPU Jan 6, 2014 11 / 18

Intro to GPUs

GPU Memory Structure

• Johnson (University of Michigan)

MS-GPU Jan 6, 2014 12 / 18

Intro to GPUs

GPU Coding Guidelines

Three basic strategies for performance optimization

1

maximize parallel execution

find parts of code that can execute in parallel

Johnson (University of Michigan) MS-GPU Jan 6, 2014 13 / 18

Intro to GPUs

GPU Coding Guidelines

Three basic strategies for performance optimization

1

maximize parallel execution

find parts of code that can execute in parallel

2

• ptimize memory usage

restructure data reduce memory transfers (esp CPU ⇐ ⇒ GPU) load global into shared memory and process

Johnson (University of Michigan) MS-GPU Jan 6, 2014 13 / 18

Intro to GPUs

GPU Coding Guidelines

Three basic strategies for performance optimization

1

maximize parallel execution

find parts of code that can execute in parallel

2

• ptimize memory usage

restructure data reduce memory transfers (esp CPU ⇐ ⇒ GPU) load global into shared memory and process

3

• ptimize instruction usage

avoid conditional statements (if, switch, do, for, while) replace regular functions by intrinsic functions

e.g. replace x/y by fdividef(x, y) however a little less precise

Johnson (University of Michigan) MS-GPU Jan 6, 2014 13 / 18

Intro to GPUs

SGLMM Implementation

My GPU has 2496 processors 5 Gb DRAM All data and parameters fit in 0.53 Gb DRAM Combination of GPU/CPU computation

Johnson (University of Michigan) MS-GPU Jan 6, 2014 14 / 18

Intro to GPUs

Parallelization of Spatial Coefficient Updates

2 4 6 8 2 4 6 8 Johnson (University of Michigan) MS-GPU Jan 6, 2014 15 / 18

Intro to GPUs

Increase in Computation Efficiency

Update CPU (ms) GPU (ms) Efficiency Gain Latent Var 25059 56 447

• Spat. Coef

10944 130 84

• Spat. Prec

870 24 36

• Post. Prb.

301 14 22 Total 37174 224 166 Times are per iteration For 30K iterations

CPU approx 13 days GPU approx 2 hrs 25 minutes

Johnson (University of Michigan) MS-GPU Jan 6, 2014 16 / 18

Results

Spatially Varying Coefficients: PASAT Score

Coronal View β

Johnson (University of Michigan) MS-GPU Jan 6, 2014 17 / 18

Results

Spatially Varying Coefficients: PASAT Score

Coronal View β

Johnson (University of Michigan) MS-GPU Jan 6, 2014 17 / 18

Acknowledgements

Acknowledgements

Tian Ge

Department of Computer Science, University of Warwick

Thomas E. Nichols

Department of Statistics, University of Warwick

Ernst Wilhelm Rad¨ u

Department of Neurology, University Hospital Basel

US NIH/NINDS grant: 1 R01 NS075066-01A1

Johnson (University of Michigan) MS-GPU Jan 6, 2014 18 / 18
