A Correlated Worker Model for Grouped, Imbalanced and Multitask Data - - PowerPoint PPT Presentation

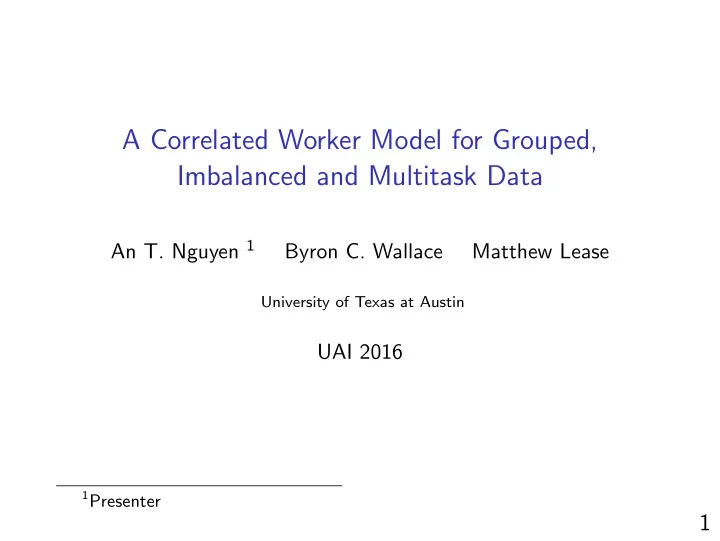

A Correlated Worker Model for Grouped, Imbalanced and Multitask Data

An T. Nguyen 1 Byron C. Wallace Matthew Lease

University of Texas at Austin

UAI 2016

1Presenter

1

Overview

◮ A model of workers in crowdsourcing.

2

Overview

◮ A model of workers in crowdsourcing. ◮ Idea: Transfer knowledge of worker quality.

2

Overview

◮ A model of workers in crowdsourcing. ◮ Idea: Transfer knowledge of worker quality. ◮ Variational EM learning.

2

Overview

◮ A model of workers in crowdsourcing. ◮ Idea: Transfer knowledge of worker quality. ◮ Variational EM learning. ◮ Apply to two datasets:

◮ Biomed Citation Screening: imbalanced, grouped.

2

Overview

◮ A model of workers in crowdsourcing. ◮ Idea: Transfer knowledge of worker quality. ◮ Variational EM learning. ◮ Apply to two datasets:

◮ Biomed Citation Screening: imbalanced, grouped. ◮ Galaxy Classification: multiple tasks.

2

Background

◮ Crowdsourcing: collect labels quickly at low cost.

3

Background

◮ Crowdsourcing: collect labels quickly at low cost. ◮ But (usually) lower quality.

3

Background

◮ Crowdsourcing: collect labels quickly at low cost. ◮ But (usually) lower quality. ◮ Common solution: collect 5 labels for each instance ... ◮ ... then aggregate them.

3

Background

◮ Crowdsourcing: collect labels quickly at low cost. ◮ But (usually) lower quality. ◮ Common solution: collect 5 labels for each instance ... ◮ ... then aggregate them. ◮ Most previous work: improve (the estimates of) labels.

3

Background

◮ Crowdsourcing: collect labels quickly at low cost. ◮ But (usually) lower quality. ◮ Common solution: collect 5 labels for each instance ... ◮ ... then aggregate them. ◮ Most previous work: improve (the estimates of) labels. ◮ Our work: improve (the estimates of) worker qualities.

3

Motivation

for estimating worker qualities

4

Motivation

for estimating worker qualities

Diagnostic insights.

4

Motivation

for estimating worker qualities

Diagnostic insights. Help workers improve.

4

Motivation

for estimating worker qualities

Diagnostic insights. Help workers improve. Intelligent task routing (assign work to workers).

4

Worker Quality Measure

Accurary: simple but not enough.

5

Worker Quality Measure

Accurary: simple but not enough. → Confusion matrix: Pr(worker label|true label)

5

Worker Quality Measure

Accurary: simple but not enough. → Confusion matrix: Pr(worker label|true label) Binary task (this work):

◮ Sensitivity:

Pr(positive|positive).

◮ Specificity:

Pr(negative|negative).

5

Setting

Input

◮ Crowd labels for each instance. ◮ No instance-level features (future work).

6

Setting

Input

◮ Crowd labels for each instance. ◮ No instance-level features (future work).

Output

◮ For each worker: sensitivity and specificity.

6

Setting

Input

◮ Crowd labels for each instance. ◮ No instance-level features (future work).

Output

◮ For each worker: sensitivity and specificity.

• Eval. Metric

◮ RMSE on sen. and spe.

6

Setting

Input

◮ Crowd labels for each instance. ◮ No instance-level features (future work).

Output

◮ For each worker: sensitivity and specificity.

• Eval. Metric

◮ RMSE on sen. and spe. ◮ gold sen. spe.: gold labels in whole dataset.

6

Challenges

Sparsity: many workers do only a few instances.

7

Challenges

Sparsity: many workers do only a few instances. Data is imbalanced:

◮ A lot more negative than positive ◮ Difficult to estimate sensitivity

7

Idea

Transfer knowledge of worker quality

◮ Between classes. ◮ Within group. ◮ In multiple tasks.

8

Previous models

(Raykar et. al. 2010; Liu & Wang 2012; Kim & Ghahramani 2012)

Hidden vars:

◮ True label for each instance. ◮ Confusion mat. (sen. + spe.) for each worker.

9

Previous models

(Raykar et. al. 2010; Liu & Wang 2012; Kim & Ghahramani 2012)

Hidden vars:

◮ True label for each instance. ◮ Confusion mat. (sen. + spe.) for each worker.

Assumptions:

◮ Sen. & Spe. are independent params. ◮ A single group of workers. ◮ Multiple tasks: independent models.

9

Our Model

Assumptions:

◮ Sen. & Spe. are correlated. ◮ Multiple groups of workers (group membership is known). ◮ Sen. & Spe. in multiple tasks are correlated.

10

The Base Model

(i indexes instances, j indexes workers)

Uj, Vj ∼ N(µ, C)

11

The Base Model

(i indexes instances, j indexes workers)

Uj, Vj ∼ N(µ, C) Zi ∼ Ber(θ)

11

The Base Model

(i indexes instances, j indexes workers)

Uj, Vj ∼ N(µ, C) Zi ∼ Ber(θ) Lij|Zi = 1 ∼ Ber(S(Uj))

11

The Base Model

(i indexes instances, j indexes workers)

Uj, Vj ∼ N(µ, C) Zi ∼ Ber(θ) Lij|Zi = 1 ∼ Ber(S(Uj)) Lij|Zi = 0 ∼ Ber(S(Vj))

11

Extensions

• 1. Worker Groups:

◮ Know group membership. ◮ Model each group k = a Normal dist (µk, Ck).

12

Extensions

• 1. Worker Groups:

◮ Know group membership. ◮ Model each group k = a Normal dist (µk, Ck).

• 2. Multiple tasks:

◮ Assume two tasks.

12

Extensions

• 1. Worker Groups:

◮ Know group membership. ◮ Model each group k = a Normal dist (µk, Ck).

• 2. Multiple tasks:

◮ Assume two tasks. ◮ (Sen1, Spe1) correlates with (Sen2, Spe2).

12

Extensions

• 1. Worker Groups:

◮ Know group membership. ◮ Model each group k = a Normal dist (µk, Ck).

• 2. Multiple tasks:

◮ Assume two tasks. ◮ (Sen1, Spe1) correlates with (Sen2, Spe2). ◮ (U1, V1, U2, V2) ∼ N(µ, C)

12

Inference

For the Base Model

Approach: Variational EM

◮ E-step: infer Pr(U1..m, V1..m, Z1..n|L).

13

Inference

For the Base Model

Approach: Variational EM

◮ E-step: infer Pr(U1..m, V1..m, Z1..n|L). ◮ M-step: maximize parameters µ, C, θ.

13

Inference

For the Base Model

Approach: Variational EM

◮ E-step: infer Pr(U1..m, V1..m, Z1..n|L). ◮ M-step: maximize parameters µ, C, θ.

Variational Inference:

◮ Approximate the (complex) posterior Pr(|)... ◮ ... by a simpler function q.

13

Inference

For the Base Model

Approach: Variational EM

◮ E-step: infer Pr(U1..m, V1..m, Z1..n|L). ◮ M-step: maximize parameters µ, C, θ.

Variational Inference:

◮ Approximate the (complex) posterior Pr(|)... ◮ ... by a simpler function q. ◮ Minimize KL(q||p) ... ◮ ... equivalent to maximize a log-likelihood lower bound.

13

Inference

Meanfield Assumptions:

◮ q factorizes:

q(U1..m, V1..m, Z1..n) =

m

• j=1

q(Uj)q(Vj)

n

• i=1

q(Zi)

14

Inference

Meanfield Assumptions:

◮ q factorizes:

q(U1..m, V1..m, Z1..n) =

m

• j=1

q(Uj)q(Vj)

n

• i=1

q(Zi)

◮ Factors:

q(Uj) = N(˜ µuj, ˜ σ2

uj)

q(Vj) = N(˜ µvj, ˜ σ2

vj)

q(Zi) = Ber(˜ θi)

14

Inference

Meanfield Assumptions:

◮ q factorizes:

q(U1..m, V1..m, Z1..n) =

m

• j=1

q(Uj)q(Vj)

n

• i=1

q(Zi)

◮ Factors:

q(Uj) = N(˜ µuj, ˜ σ2

uj)

q(Vj) = N(˜ µvj, ˜ σ2

vj)

q(Zi) = Ber(˜ θi)

◮ Optimize with respect to

{˜ µuj, ˜ σ2

uj, ˜

µvj, ˜ σ2

vj|j = 1...m} and {˜

θi|i = 1...n}

14

Optimization

Coordinate Descent: update one var at a time.

15

Optimization

Coordinate Descent: update one var at a time. Update Zi: q∗(Zi = 1) ∝ exp

• log Ber(1|θ) +
• EUj∼q(Uj) log Ber(Lij|S(Uj))
• q∗(Zi = 0) ∝ exp
• log Ber(0|θ) +
• EVj∼q(Vj) log Ber(Lij|S(Vj))
• 15

Optimization

Coordinate Descent: update one var at a time. Update Zi: q∗(Zi = 1) ∝ exp

• log Ber(1|θ) +
• EUj∼q(Uj) log Ber(Lij|S(Uj))
• q∗(Zi = 0) ∝ exp
• log Ber(0|θ) +
• EVj∼q(Vj) log Ber(Lij|S(Vj))
• Intuition:

◮ Zi ≈ Prior + E(Crowd labels for i)

15

Optimization

Coordinate Descent: update one var at a time. Update Zi: q∗(Zi = 1) ∝ exp

• log Ber(1|θ) +
• EUj∼q(Uj) log Ber(Lij|S(Uj))
• q∗(Zi = 0) ∝ exp
• log Ber(0|θ) +
• EVj∼q(Vj) log Ber(Lij|S(Vj))
• Intuition:

◮ Zi ≈ Prior + E(Crowd labels for i) ◮ E wrt worker quality.

15

Optimization

Update Uj: q∗(Uj) ∝ exp

• EVj∼q(Vj) log N(Uj, Vj|µ, C)+
• q(Zi = 1) log Ber(Lij|S(Uj))
• 16

Optimization

Update Uj: q∗(Uj) ∝ exp

• EVj∼q(Vj) log N(Uj, Vj|µ, C)+
• q(Zi = 1) log Ber(Lij|S(Uj))
• Intuition:

◮ Uj = logit sensitivity of worker j.

16

Optimization

Update Uj: q∗(Uj) ∝ exp

• EVj∼q(Vj) log N(Uj, Vj|µ, C)+
• q(Zi = 1) log Ber(Lij|S(Uj))
• Intuition:

◮ Uj = logit sensitivity of worker j. ◮ Uj ≈ E(correlation with specificity) + ...

16

Optimization

Update Uj: q∗(Uj) ∝ exp

• EVj∼q(Vj) log N(Uj, Vj|µ, C)+
• q(Zi = 1) log Ber(Lij|S(Uj))
• Intuition:

◮ Uj = logit sensitivity of worker j. ◮ Uj ≈ E(correlation with specificity) + ... ◮ ... instances that worker j has labeled.

16

Optimization

Update Uj: q∗(Uj) ∝ exp

• EVj∼q(Vj) log N(Uj, Vj|µ, C)+
• q(Zi = 1) log Ber(Lij|S(Uj))
• Intuition:

◮ Uj = logit sensitivity of worker j. ◮ Uj ≈ E(correlation with specificity) + ... ◮ ... instances that worker j has labeled.

(Similar equation for Vj)

16

Optimization

Problem: E() difficult to compute.

17

Optimization

Problem: E() difficult to compute. Solution: Laplace Variational Inference (Wang & Blei, 2013)

◮ Approximate these update equations... ◮ ... by Laplace approximation.

17

Optimization

Problem: E() difficult to compute. Solution: Laplace Variational Inference (Wang & Blei, 2013)

◮ Approximate these update equations... ◮ ... by Laplace approximation. ◮ Details in the paper.

17

Learning

E-step: Infer posterior distribution over hidden vars.

18

Learning

E-step: Infer posterior distribution over hidden vars. M-step: maximize µ, C, θ under posterior.

◮ µ, C: sample mean and Covariance. ◮ θ: average of {˜

θi|i = 1...n}.

18

Evaluation

Citizen Science:

19

Evaluation

Citizen Science:

◮ Workers volunteer ... ◮ ... to help science. ◮ Different from traditional crowdsourcing:

◮ large scale. ◮ (usually) higher quality.

19

Evaluation

Citizen Science:

◮ Workers volunteer ... ◮ ... to help science. ◮ Different from traditional crowdsourcing:

◮ large scale. ◮ (usually) higher quality.

Two real world scenarios:

◮ Biomedical Citation Screening. ◮ Galaxy Morphological Classification.

19

Scenario 1

Biomedical Citation Screening:

◮ Motivation: biomedical literature is huge. ◮ Need to find relevant citations.

20

Scenario 1

Biomedical Citation Screening:

◮ Motivation: biomedical literature is huge. ◮ Need to find relevant citations.

The RCT dataset:

◮ Identify Randomized Control Trials reports.

20

Scenario 1

Biomedical Citation Screening:

◮ Motivation: biomedical literature is huge. ◮ Need to find relevant citations.

The RCT dataset:

◮ Identify Randomized Control Trials reports. ◮ Very imbalanced (3% positive).

20

Scenario 1

Biomedical Citation Screening:

◮ Motivation: biomedical literature is huge. ◮ Need to find relevant citations.

The RCT dataset:

◮ Identify Randomized Control Trials reports. ◮ Very imbalanced (3% positive). ◮ Workers: from in 2 groups... ◮ ... experts and novices

20

Scenario 1

Baselines:

◮ Majority Vote. ◮ Two Coin (Raykar et. al. 2010).

21

Scenario 1

Baselines:

◮ Majority Vote. ◮ Two Coin (Raykar et. al. 2010).

Our method: two versions

◮ Full-Cov: the full model.

21

Scenario 1

Baselines:

◮ Majority Vote. ◮ Two Coin (Raykar et. al. 2010).

Our method: two versions

◮ Full-Cov: the full model. ◮ Diag-Cov: constrain C to be diagonal.

21

Scenario 1

Baselines:

◮ Majority Vote. ◮ Two Coin (Raykar et. al. 2010).

Our method: two versions

◮ Full-Cov: the full model. ◮ Diag-Cov: constrain C to be diagonal.

◮ only model worker groups ... ◮ ... but not model sen-spec correlation.

21

Results: Sensitivity

22

Results: Specificity

23

Discussion

Our method has two parts: group and correlation.

24

Discussion

Our method has two parts: group and correlation.

◮ Group provides most improvement.

24

Discussion

Our method has two parts: group and correlation.

◮ Group provides most improvement. ◮ Correlation gives additional boost for sen.

24

Scenario 2

Galaxy Morphological Classification:

◮ Motivation: Few astronomers, lot of galaxies.

25

Scenario 2

Galaxy Morphological Classification:

◮ Motivation: Few astronomers, lot of galaxies.

Galaxy Zoo 2 dataset:

◮ Multiple questions: galaxy shape? number of spiral arms?... ◮ Have volunteers answering questions.

25

Scenario 2

Setting:

◮ Given all labels in source task ... ◮ ... and some labels in target task. ◮ Predict worker sen. and spe. in target task.

26

Scenario 2

Setting:

◮ Given all labels in source task ... ◮ ... and some labels in target task. ◮ Predict worker sen. and spe. in target task.

Compare:

◮ Single: only consider target labels. ◮ Accum: merge source labels to target. ◮ Multi: our multi-task model.

26

Result: Sensitivity

27

Result: Specificity

28

Discussion

Multi is surprisingly bad.

◮ Tasks are different, naive merge is bad.

29

Discussion

Multi is surprisingly bad.

◮ Tasks are different, naive merge is bad.

Our method

◮ has good improvement ... ◮ ... although sometimes modest.

29

Discussion

Multi is surprisingly bad.

◮ Tasks are different, naive merge is bad.

Our method

◮ has good improvement ... ◮ ... although sometimes modest. ◮ Again, tasks are different... ◮ Many workers better in source task ... ◮ ... but worse in target task.

29

Discussion

Multi is surprisingly bad.

◮ Tasks are different, naive merge is bad.

Our method

◮ has good improvement ... ◮ ... although sometimes modest. ◮ Again, tasks are different... ◮ Many workers better in source task ... ◮ ... but worse in target task. ◮ Our method still as good as the baseline.

29

Conclusion

Summary

◮ Model correlation to transfer knowledge. ◮ Empirically improve estimates of worker quality.

30

Conclusion

Summary

◮ Model correlation to transfer knowledge. ◮ Empirically improve estimates of worker quality.

Future work

◮ Extend: instance-level features. ◮ Application: tasks/instances routing.

30

Conclusion

Summary

◮ Model correlation to transfer knowledge. ◮ Empirically improve estimates of worker quality.

Future work

◮ Extend: instance-level features. ◮ Application: tasks/instances routing.

Question?

30
