SLIDE 1

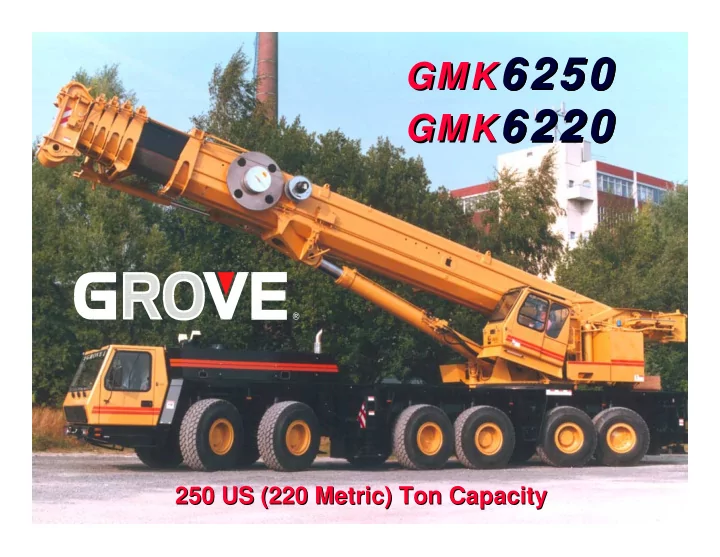

250 US (220 Metric) Ton Capacity 250 US (220 Metric) Ton Capacity
GMK6250 GMK6220 GMK6250
6250
GMK6220
6220
SLIDE 2 Dimensions Dimensions
- 53 ft 11 in (16.42 m) overall length
- 49 ft 7 in (15.1 m) bumper to bumper
- 13 ft 1 in (4 m) Height [+7 in (170 mm) / -5 in (130 mm)]
- 34 ft 8 in (10.6 m)wheelbase
- 53 ft 11 in (16.42 m) overall length
- 49 ft 7 in (15.1 m) bumper to bumper
- 13 ft 1 in (4 m) Height [+7 in (170 mm) / -5 in (130 mm)]
- 34 ft 8 in (10.6 m)wheelbase
GMK6250
6250
SLIDE 3
GMK6220 / 6250 Superstructure Common with GMK5200 / 5240 GMK6220 / 6250 Superstructure Common with GMK5200 / 5240
SLIDE 4
- 44-197 ft (13.5m-60m)
- 6-Section full-power
- Quick-reeve boom nose
- 197 ft (60m) Maximum
- hook height
- 175 ft (54m) Maximum
- working radius
- 44-197 ft (13.5m-60m)
- 6-Section full-power
- Quick-reeve boom nose
- 197 ft (60m) Maximum
- hook height
- 175 ft (54m) Maximum
- working radius
Boom MEGAFORMTM Boom MEGAFORMTM GMK6250
6250
TWINLOCKTM
SLIDE 5
Boom shape Boom shape Wear pad positions Wear pad positions
GMK6250
6250
Boom MEGAFORMTM Boom MEGAFORMTM
SLIDE 6 Boom Benefits Boom Benefits
TWINLOCKTM Boom Telescoping System
Pre-selection of boom extension mode, provides 32 different main boom configurations for optimum strength & stability set-ups Eliminates multiple air/electrical cable drums mounted on boom Lower center of gravity...cylinder stays in base section
TWINLOCKTM Boom Telescoping System
Pre-selection of boom extension mode, provides 32 different main boom configurations for optimum strength & stability set-ups Eliminates multiple air/electrical cable drums mounted on boom Lower center of gravity...cylinder stays in base section
GMK6250
6250
SLIDE 7
1 1 5 5 3 3 4 4 2 2 6 6
GMK6250
6250
TWINLOCKTM Telescoping System TWINLOCKTM Telescoping System
SLIDE 8 Jib Jib
- 43-125 ft (13.1 m-38 m) with Hydraulic Luffing
- 321.5 ft (98 m) Maximum tip height
- 255 ft (76 m) Maximum working radius
- 43-125 ft (13.1 m-38 m) with Hydraulic Luffing
- 321.5 ft (98 m) Maximum tip height
- 255 ft (76 m) Maximum working radius
2 x 26 ft (8m) Inserts 2 x 26 ft (8m) Inserts 43-72 ft (13-22m) Bi-Fold 43-72 ft (13-22m) Bi-Fold
GMK6250
6250
SLIDE 9
Luffs Luffs from 5° to 40° from 5° to 40°
Quick disconnects Quick disconnects Swingaway stowed Swingaway stowed Swingaway installed Swingaway installed
Hydraulic Power Luffing Hydraulic Power Luffing
SLIDE 10
40° 40° 20° 20° 5° 5° Hydraulic Power Luffing Hydraulic Power Luffing
SLIDE 11
- EKS 4 LMI
- Dual-axis joysticks
- Sliding left-side window
- Opening shatter-resistant
skylight
- Opening windscreen
- Sliding rear window
- Ergonomic interior
- EKS 4 LMI
- Dual-axis joysticks
- Sliding left-side window
- Opening shatter-resistant
skylight
- Opening windscreen
- Sliding rear window
- Ergonomic interior
Optional Digital pad loads Optional Digital pad loads
GMK GMK GMK GMK6250
6250 6250 6250 6250 6250 6250 6250
Superstructure Cab Superstructure Cab
SLIDE 12
Cab tiltable by approx 20° Cab tiltable by approx 20°
GMK GMK GMK GMK6250
6250 6250 6250 6250 6250 6250 6250
Superstructure Cab Superstructure Cab
SLIDE 13
Superstructure Standard: Cummins 6BTA 5.9-C 165 HP (123 kW) Superstructure Optional: Mercedes-Benz OM904LA 166 Horsepower (122 kW) Superstructure Standard: Cummins 6BTA 5.9-C 165 HP (123 kW) Superstructure Optional: Mercedes-Benz OM904LA 166 Horsepower (122 kW)
GMK GMK GMK GMK6250
6250 6250 6250 6250 6250 6250 6250
Superstructure Engine Superstructure Engine
SLIDE 14
crane operation
displacement pumps
- Tank capacity: 259 gal (980L)
- 3 Separate circuits for
crane operation
displacement pumps
- Tank capacity: 259 gal (980L)
GMK GMK GMK GMK6250
6250 6250 6250 6250 6250 6250 6250
Hydraulic System Hydraulic System
SLIDE 15
- 154,300 lbs (69 990 kg)
- 7 sections for transport ease
- Hydraulic cylinders are incorporated
into the counterweights for installation/removal
- 154,300 lbs (69 990 kg)
- 7 sections for transport ease
- Hydraulic cylinders are incorporated
into the counterweights for installation/removal
GMK GMK GMK GMK6250
6250 6250 6250 6250 6250 6250 6250
Counterweight Counterweight
SLIDE 16
GMK6250 / 6220 Carrier GMK6250 / 6220 Carrier GMK6250 / 6220 Carrier GMK6250 / 6220 Carrier Common with GMK6300B / 6250 GMK6250 / 6220 Carrier GMK6250 / 6220 Carrier GMK6250 / 6220 Carrier GMK6250 / 6220 Carrier Common with GMK6300B / 6250
SLIDE 17
Features proven MEGATRAKTM independent suspension Features proven MEGATRAKTM independent suspension
GMK GMK GMK GMK6250
6250 6250 6250 6250 6250 6250 6250
Suspension Suspension
SLIDE 18
Carrier Engine: Standard: Cummins N14-525 E+ 525 HP (392 kW) Optional: Mercedes OM502LA 571 HP (420 kW) Transmission: Allison CLT 755 5-speed automatic transmission Carrier Engine: Standard: Cummins N14-525 E+ 525 HP (392 kW) Optional: Mercedes OM502LA 571 HP (420 kW) Transmission: Allison CLT 755 5-speed automatic transmission
GMK GMK GMK GMK6250
6250 6250 6250 6250 6250 6250 6250
Engine / Transmission Engine / Transmission
SLIDE 19
Carrier Driveline Carrier Driveline
Drive axles: 1,2,4 & 5 Drive axles: 1,2,4 & 5 Drive / Steer: 12 x 8 x 12 The ONLY 6-axle all-wheel steer AT on the market Drive / Steer: 12 x 8 x 12 The ONLY 6-axle all-wheel steer AT on the market
GMK GMK GMK GMK6250
6250 6250 6250 6250 6250 6250 6250
SLIDE 20
standard
- Controls located on each side
- f carrier
- Self-stowing outrigger pads
- Digital level
- 50% and 100% extension
standard
- Controls located on each side
- f carrier
- Self-stowing outrigger pads
- Digital level
GMK GMK GMK GMK6250
6250 6250 6250 6250 6250 6250 6250
Outriggers Outriggers
SLIDE 21
- Removable rear outrigger box
- Cummins power only
- Developed for North American
roading laws
GMK GMK GMK GMK6250
6250 6250 6250 6250 6250 6250 6250
Outriggers Outriggers
SLIDE 22
Tires Tires Tires: 20.5 R 25 Tires: 20.5 R 25 GMK GMK GMK GMK6250
6250 6250 6250 6250 6250 6250 6250
