6 WHY DYNAMIC UI ** app - - PowerPoint PPT Presentation

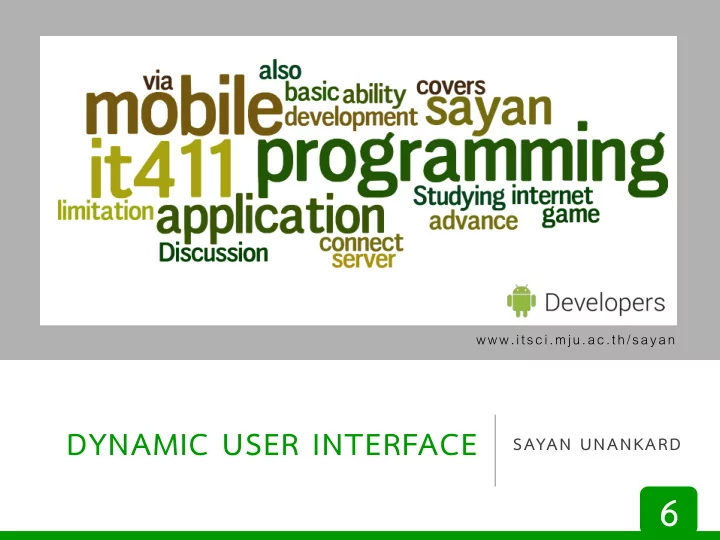

www.itsci.mju.ac.th/sayan DYNAMIC USER INTERFACE SAYAN UNANKARD 6 WHY DYNAMIC UI ** app * User interface Dynamic *
www.itsci.mju.ac.th/sayan
2
3
LinearLayout r = (LinearLayout) findViewById(R.id.mainlayout); for (int i = 0; i< 5; i++) { EditText t1 = new EditText(this); t1.setText("test " + i); r.addView(t1); } <LinearLayout android:layout_width="match_parent" android:layout_height="wrap_content" android:id="@+id/mainlayout" android:orientation="vertical"> </LinearLayout>
4
5
public void onBtnOkClick(View view) { LinearLayout r = (LinearLayout) findViewById(R.id.mainlayout); for (int i = 0; i< r.getChildCount(); i++){ EditText t = (EditText) r.getChildAt(i); Toast.makeText(Main2Activity.this, "t" + i + " = " + t.getText().toString(), Toast.LENGTH_SHORT).show(); } }
6
Layout.xml Layout inflater Java widget objects
<LinearLayout <ImageView ... /> <TextView ... /> </LinearLayout>
7
<?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:orientation="vertical" android:layout_width="match_parent" android:layout_height="match_parent"> <ImageView android:layout_width="wrap_content" android:layout_height="wrap_content" android:id="@+id/img_sweet" android:layout_gravity="center_horizontal" android:src="@drawable/chocolate_cake" /> <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="chocolate cake" android:id="@+id/txt_name" android:layout_gravity="center_horizontal" android:textSize="16dp" /> <CheckBox android:layout_width="wrap_content" android:layout_height="wrap_content" android:id="@+id/chb_sweet" android:layout_gravity="center_horizontal" /> </LinearLayout>
sweets_layout.xml
8
<?xml version="1.0" encoding="utf-8"?> <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" android:paddingBottom="@dimen/activity_vertical_margin" android:paddingLeft="@dimen/activity_horizontal_margin" android:paddingRight="@dimen/activity_horizontal_margin" android:paddingTop="@dimen/activity_vertical_margin" tools:context="com.example.sayan.lec6.MainActivity"> <GridLayout android:columnCount="1" android:layout_width="match_parent" android:layout_height="match_parent" android:id="@+id/mainlayout"> </GridLayout> </RelativeLayout>
สร*าง layout ที่ต*องการ สร*างให*เปJน template
9
private static int[] sweets = {R.drawable.chocolate_cake, R.drawable.cream_cake, R.drawable.muffin, R.drawable.tart, R.drawable.tartlet }; GridLayout r = (GridLayout) findViewById(R.id.mainlayout); for (int i = 0; i< sweets.length; i++) { View sweet = getLayoutInflater().inflate( R.layout.sweets_layout,null); ImageView img = (ImageView) sweet.findViewById(R.id.img_sweet); img.setImageResource(sweets[i]); TextView txt = (TextView) sweet.findViewById(R.id.txt_name); txt.setText(sweets[i]); String str = txt.getText().toString(); txt.setText(str.substring(str.lastIndexOf("/")+1,str.indexOf("."))); r.addView(sweet); }
กำหนด layout ที่ต*องการ สร*างเปJน template เปลี่ยนรูปภาพตาม array เปลี่ยนข*อความใต*ภาพให* เปJนชื่อไฟลn เพิ่ม template ลงไปใน layout
10
<ScrollView android:layout_width="fill_parent" android:layout_height="wrap_content" android:id="@+id/scrollView" android:fillViewport="false" android:orientation="vertical" android:padding="10dp"> <GridLayout android:columnCount="3" android:layout_width="match_parent" android:layout_height="match_parent" android:id="@+id/mainlayout"> </GridLayout> </ScrollView>
11
public void onBtnOkClick(View view) { GridLayout r = (GridLayout) findViewById(R.id.mainlayout); for (int i = 0; i< r.getChildCount(); i++){ View sweet = (View) r.getChildAt(i); CheckBox chb = (CheckBox) sweet.findViewById(R.id.chb_sweet); Toast.makeText(MainActivity.this, "t" + i + " = " + chb.isChecked(), Toast.LENGTH_SHORT).show(); } }
