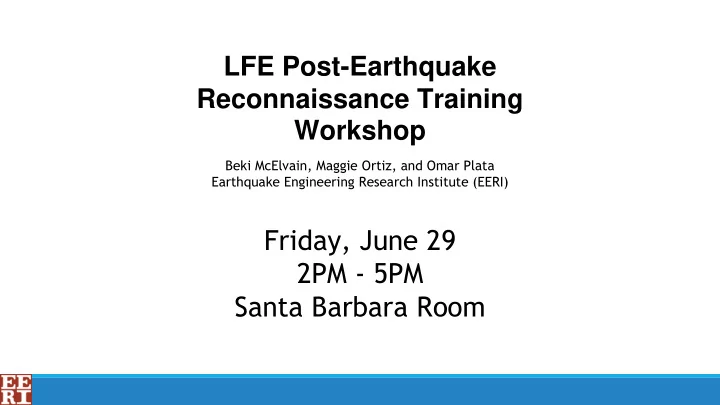

LFE Post-Earthquake Reconnaissance Training Workshop

Beki McElvain, Maggie Ortiz, and Omar Plata Earthquake Engineering Research Institute (EERI)

Friday, June 29 2PM - 5PM Santa Barbara Room

slide-2
SLIDE 2

Outline

  • Welcome & Introductions
  • About EERI & The Learning From Earthquake Program
  • New Programs Overview, LFE Website
  • Post-Earthquake Reconnaissance and Clearinghouses:
  • What is Post-Earthquake Reconnaissance
  • EERI’s Earthquake Response
  • Q&A
  • Tools Training & Demonstration
  • EERI Photo Upload Tool
  • Fulcrum App
  • 15 Minute Break
  • Instructions for Simulated Field Exercise
  • Simulated Field Exercise & Data Visualization
  • LFE Field Protocols
  • How to get involved with LFE
  • New Program Details
  • Q&A
slide-3
SLIDE 3

Workshop Purpose

  • Provide an overview of EERI’s Learning From Earthquakes Program
  • Provide training on EERI’s field data collection tools
slide-4
SLIDE 4

About EERI

slide-5
SLIDE 5

About EERI

  • Global Earthquake engineering institute
  • Non-profit, technical membership society with:
  • 3,000 members, 14 Regional Chapters
  • 65 Student Chapters
  • 6 Full-time Staff
  • Dedicated to reducing earthquake risk
slide-6
SLIDE 6

Who are EERI Members?

EERI Members Include:

  • Geoscientists:
  • Geologists
  • Seismologist
  • Engineers:
  • Structural
  • Geotechnical
  • Transportation
  • Lifelines
  • Architects/Planners
  • Social Scientist
  • Public Officials
  • Emergency Managers
  • Tsunami Scientists
  • Economists & Business

Analysts Who work as:

  • Researchers
  • Scientists
  • Practicing professionals
  • Professors
  • Educators
  • Government Officials
  • Building Code Regulators

Members are organized into committees, projects, and chapters to implement EERI’s mission

slide-7
SLIDE 7

EERI’s Mission

EERI’s mission is to reduce earthquake risk by:

  • Advancing the science and practice of earthquake

engineering

  • Improving understanding of the impact of earthquakes
  • Advocating comprehensive and realistic measures for

reducing earthquake effects

slide-8
SLIDE 8

EERI Regional Chapters

  • Alaska
  • British Columbia
  • Central CA/Sacramento
  • Great Lakes
  • National Capital
  • New England
  • New Madrid
  • New York - Northeast
  • Northern California
  • Oregon
  • San Diego
  • Southern California
  • Utah
  • Washington
slide-9
SLIDE 9

About Learning from Earthquakes Program (LFE)

slide-10
SLIDE 10

LFE Mission

The mission of the Learning from Earthquakes (LFE) Program is to accelerate and increase learning from earthquake-induced disasters that affect the natural, built, social and political environments worldwide.

slide-11
SLIDE 11

LFE Executive Committee

Led by a dedicated group of expert volunteers!

slide-12
SLIDE 12

LFE Collaborators

And More!

slide-13
SLIDE 13

LFE Activities

  • Post-Earthquakes Reconnaissance
  • Earthquake Clearinghouses and

Reconnaissance Coordination

  • Virtual Earthquake Reconnaissance Team
  • LFE Travel Study Program
  • Resilience Reconnaissance
slide-14
SLIDE 14

LFE Travel Study Program

Barbara Simpson, UC Berkeley, climbs out a basement of a home in Chile during the 2017 LFE Travel Study trip.

Creating Learning Opportunities for the Next Generation

slide-15
SLIDE 15

Resilience Reconnaissance

The 2017 Housner Fellows are exploring ways to integrate resilience reconnaissance into the LFE program.

Developing New Tools for Resilience Reconnaissance

slide-16
SLIDE 16

Virtual Earthquake Reconnaissance Team

VERT members created rapid summaries of impacts 48-hours after the September 7, Chiapas, Mexico Earthquake by reviewing news articles and social media posts

Engaging Younger Members to Support Earthquake Reconnaissance

slide-17
SLIDE 17

LFE Products

  • Clearinghouse Websites with:

○ Resource libraries ○ Photo Galleries ○ Data Maps

  • Reconnaissance Reports
  • Briefing Webinars
  • EQ Spectra special issues
slide-18
SLIDE 18

Post-Earthquake Reconnaissance and Clearinghouses

slide-19
SLIDE 19

What is Post-Earthquake Reconnaissance?

What it is...

  • Scientific or engineering

investigation aimed at documenting important

  • bservations and

identifying research topics and lessons for practice. What it is not…

  • Emergency response
  • Post-earthquake building

tagging

  • Support for detailed

analysis, repairs, or reconstruction.

slide-20
SLIDE 20

EERI’s Response to Earthquakes

  • Virtual Clearinghouse Websites
  • The Virtual Earthquake Response Team (VERT)
  • EERI reconnaissance teams
  • Participate in physical clearinghouses
  • Coordination of international reconnaissance teams
  • Topic-focused teams
slide-21
SLIDE 21

Physical Clearinghouse Operations

  • A physical clearinghouse is a location

where field investigators can come together to coordinate and share

  • bservations
  • Set up & running within 24 hours after an

earthquake

  • As near to area of earthquake as practical
  • Co-located with FEMA’s DFO or other local

response field office if possible

Clearinghouse Exercise, Nov. 2004

slide-22
SLIDE 22

Virtual Clearinghouse Operations

  • A virtual clearinghouse website will be activated ~24 hours after an earthquake
  • Main location for disseminating reconnaissance photos, data, and reports
  • 24 virtual earthquake clearinghouses established since 2009
slide-23
SLIDE 23

2014 South Napa Activation Timeline

  • August 24, 2014
  • 3:20 AM:

: Earthquake

  • 4:11 AM:

M: Clearinghouse Management notified of EQ

  • 5:00 AM:

: Following Clearinghouse call-down procedures, conference call scheduled for 7:00 AM

  • 7:00 AM:

: Clearinghouse activated during call

  • 10:00

0 AM: M: Physical Clearinghouse location provided by Caltrans near central Napa (w/ satellite communications truck)

  • 2:00 PM:

: EERI Virtual Clearinghouse website live

  • 3:00 PM:

: Physical clearinghouse location

  • perational
  • August 26, 2014
  • 8:00 PM:

: Physical clearinghouse location deactivated

Nightly Physical Clearinghouse briefing at a Caltrans facility in Napa Caltrans mobile satellite communications equipment at the physical Clearinghouse

slide-24
SLIDE 24

2017 Puebla, Mexico Earthquake

  • Launched new Virtual Clearinghouse website to support

information sharing, which includes improved:

  • Resource Library
  • Data Map
  • Photo Gallery
  • Served in a coordination role to support collaboration

among more than 20 international and U.S. reconnaissance teams

  • Regular coordination calls
  • Team tracking
  • Deployed topic-focused team on Earthquake Early

Warning

  • Selected and deployed two reconnaissance Co-Leads
  • Activated the Virtual Earthquake Reconnaissance Team
slide-25
SLIDE 25

Virtual Clearinghouse Photo Gallery

slide-26
SLIDE 26

Virtual Clearinghouse Data Map

slide-27
SLIDE 27

Questions?

slide-28
SLIDE 28

Tools Training & Demonstration

Omar Plata Earthquake Engineering Research Institute (EERI)

slide-29
SLIDE 29

How is Reconnaissance Data Collected?

  • EERI encourages members to use one of two data

collection methods:

  • Batch Upload Tool: desktop app for uploading

batches of geotagged photos

  • Fulcrum Data Collection App: smart phone app for

use in the field

  • Both methods feed into virtual clearinghouse photo

gallery and data map

slide-30
SLIDE 30

EERI Photo Upload Tool:Photo Gallery

  • Photo Gallery is EERI’s main tool for

post-reconnaissance

  • Each Clearinghouse has its own Photo Gallery
  • Users can upload pictures to the Photo

Gallery

  • Users can also download the Photo

Gallery as a CSV file.

slide-31
SLIDE 31

Introduction to Fulcrum and Its Uses

  • Data Collection Mobile App
  • Easy for users to access and use
  • users can upload pictures
  • Great for field data collection
  • GPS enabled
  • Has an array of “Record Types”
  • Fulcrum data is synced to the

Photo Gallery website

  • Ideal for situations, when

internet is not available

slide-32
SLIDE 32

Fulcrum Format

  • “User’s Information”
  • “User Information” will be auto-

populated after the first entry

  • Form Type
  • Detail
  • “Basic Information” and relevant

record questions

  • Quick
  • Only requires “Basic Information”
  • Record Types
slide-33
SLIDE 33

Different Record Types

There are 9 different record types in EERI’s Fulcrum Form:

  • Buildings
  • Lifelines (Electric, Water, Communications, etc.)
  • Bridges
  • Observed Emergency Response Activity
  • Liquefaction
  • Landslide
  • Fault Ruptures
  • Tsunami
  • Other Observations
slide-34
SLIDE 34

Different Record Types (Detailed Form) Continued

  • Each record type has relevant

questions for that specific record

  • For example...
  • Bridges record type ask for the

number of lanes, length of the bridge, and width of bridge

  • Building record type ask for number
  • f stories above and below ground,

and etc.

slide-35
SLIDE 35

EERI’s Photo Gallery and Fulcrum App

  • Photo Gallery Batch uploader is for desktops
  • Fulcrum App for mobile data collection
  • Both feed to the same virtual clearinghouse photo gallery and data

map

slide-36
SLIDE 36

Fulcrum Login Info

Use these e-mail accounts to login to the Fulcrum App only...

Group Name Username Password Group A, B Group C, D Group E, F

...But use your own e-mail accounts when recording observations!

slide-37
SLIDE 37

Quick Form Walkthrough

slide-38
SLIDE 38

Detailed Form Walkthrough

slide-39
SLIDE 39

Questions?

slide-40
SLIDE 40

15 minute Break

slide-41
SLIDE 41

Field Exercise Instructions

slide-42
SLIDE 42

Activity Instructions

  • Find your Group!
  • Head out to your first stop
  • Continu

inue e clockwise ise around the room spending 10 minutes at each poster

  • Talk with your group!
  • Use Fulcru

rum to collect your data

slide-43
SLIDE 43

How to get Involved in LFE

slide-44
SLIDE 44

Travel Study Program

The LFE Travel Study Program aims to inspire early-career participants to become future leaders in the field of earthquake engineering and earthquake risk reduction.

  • First Trip: 2017 Santiago, Chile

Next trip:

  • Early May 2019
  • New Zealand (Christchurch,

Kaikoura earthquakes)

  • Applications open Fall 2018
slide-45
SLIDE 45

Business Resilience Survey Working Group

Develops new surveys to record physical damage and cascading economic impacts to business that have experienced a major US earthquake at various points throughout the response and recovery phase to track business impacts and recovery after future earthquake. Current working group current efforts

  • Create an initial survey set (Physical Building Damage and Business Impacts)
  • Create an implementation protocol for effective survey deployment
  • Consider intermediate and final surveys that will focus on broader resilience questions
slide-46
SLIDE 46

Virtual Earthquake Reconnaissance (VERT)

VERT Team supports EERI’s response to an earthquake by:

  • Creating rapid summaries of impacts for virtual clearinghouse websites
  • Assisting EERI reconnaissance teams prepare for deployment
  • Assisting EERI reconnaissance teams members with post-process data

Managed by the Younger Members Committee and the LFE program

Join Vert!

https://ymc.eeri.org/virtual-earthquake-reconnaissance-team-vert/

slide-47
SLIDE 47

Conduct Reconnaissance Trainings

Workshop modules available to allow student and regional chapters to conduct their own workshops Will prepare members to be able to self- deploy for local earthquakes

Plan a workshop:

http://learningfromearthquakes.org/training-earthquake/

slide-48
SLIDE 48

New LFE Website

EERI’s Flagship Earthquake Reconnaissance Program

Conducting earthquake reconnaissance for over 70 years

Check out our new website!

learningfromearthquakes.org

slide-49
SLIDE 49

Questions?
