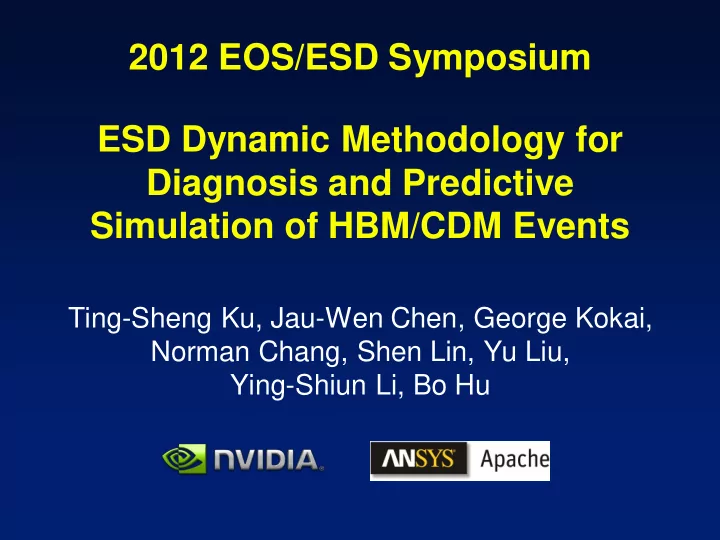

2012 EOS/ESD Symposium ESD Dynamic Methodology for Diagnosis and Predictive Simulation of HBM/CDM Events Ting-Sheng Ku, Jau-Wen Chen, George Kokai, Norman Chang, Shen Lin, Yu Liu, Ying-Shiun Li, Bo Hu Outline Introduction ESD dynamic


  1. 2012 EOS/ESD Symposium ESD Dynamic Methodology for Diagnosis and Predictive Simulation of HBM/CDM Events Ting-Sheng Ku, Jau-Wen Chen, George Kokai, Norman Chang, Shen Lin, Yu Liu, Ying-Shiun Li, Bo Hu

  2. Outline ● Introduction ● ESD dynamic analysis methodology ● Requirements for ESD dynamic simulation ● Application Examples ● Summary Slide 2

  3. Worsening Trend in ESD Thinner oxide, lower junction ● thermal breakdown voltages Reduced failure current ● density limit Worsening CDM issue for ● high-frequency designs White paper 2: A case for lowering component level CDM Slide 3 ESD specifications and requirements, April, 2010

  4. ESD Dynamic Analysis Methodology ● Perform diagnosis of potential failure mechanisms when silicon failures occurred ● Verify fixed solution robustness by comparing differential stressed values of the failed junctions ● Strategic check on potential CDM design weaknesses before tape-out on mixed-signal / IO blocks Slide 4

  5. Target Applications for ESD Dynamic Analysis ● Initial target users are ESD experts ● Eventual usage by mixed-signal macros designers ● Transistor count per macro : ~200K in most cases and can go up to ~1M ● What can a dynamic ESD check provide beyond a static one? ● Physically correct modeling of CDM discharging behavior ● Explicit detection of worst transient voltage stressed junctions ● Evaluation of clamp transient effectiveness related to design and placement ● Ability to perform trade-off on peak versus duration device failure mode Slide 5

  6. Cross-domain Check and Possible CDM Failure Mechanism • + VDD1 VDD2 Power Power Clamp Clamp 1 1 Vgs VSS1 VSS2 GND Rbus for possible Vgs junction failure due to disparate discharging rate from gate and source nodes to CDM grounded pin. See more CDM checks in “ESD Electronic Design Automation Checks”, Technical report # TR 18.0-01-11

  7. Outline ● Introduction ● ESD dynamic analysis methodology ● Requirements for ESD dynamic simulation ● Application Examples ● HBM event ● CDM event ● Summary Slide 7

  8. Requirements for ESD Dynamic Simulation ● Modeling ● Handling of snap-back behavior in clamp ● P/g RLC and coupled signal RC ● Substrate R/C and Well diodes ● Nonlinear devices modeling w/ high voltage consideration ● High performance and large capacity for the post-layout macro designs

  9. Metal Grid RLC and Substrate Model • Metal grid L extraction needed in addition to RC for fast slew rate • Extraction of substrate well diodes and RC grid • Modeling of distributive effect due to substrate P-well N-well P-substrate Slide 9

  10. Modeling of Capacitance between Chip Substrate to Charging Plate ● Cdut is defined as between the silicon die and metal lid that is separated by Thermal Interface Material (TIM) ● This figure of merit can be used to tune the Ipeak of Pogo pin to match user’s expected Ipeak in simulation Courtesy of J. Karp, EOS/ESD Sym 2008 Slide 10

  11. The Impact of Simulated Block Size on the Stress Ranking and Value It was observed that the target CDM and HBM simulation block size can be reduced from full-chip to a smaller circuit block containing the zapping pin. The requirements are 1. Primary ESD discharge paths must be included 2. Simulation coverage is limited to the simulated circuit block only 3. The Pogo pin peak current can be maintained through tuning of substrate_to_gnd_cap to satisfy JEDEC standard Following these steps ensure consistent absolute stress value. More importantly little impact on failure junction ranking Slide 11 Smaller circuit block Bigger circuit block

  12. Block-based ESD Dynamic Flow Import DSPF (Detailed Standard Parasitic Format) of coupled signal ● RC netlist and create P/G contact pins Extract metal grid RLC, substrate RC, and well diodes ● Hook up the two netlist above through contact pins and create test ● bench for HBM or CDM zapping condition Perform the simulation on the final netlist above and generate ● junction stress report Slide 12

  13. Outline ● Introduction ● ESD dynamic analysis methodology ● Requirements for ESD dynamic simulation ● Application Examples ● HBM event ● CDM event ● Summary Slide 13

  14. HBM Case Comparison : Failed/Passed Test due to Grounded vs. Floating P-well Guard Ring in RC-based Clamp • Both test cases with AGND -2000V HBM zap and AVDD grounded • Case with P-well guard ring grounded failed HBM test, while case with P-well guard ring floating passed AVDD AVDD Pwell guard ring Pwell guard ring grounded floating sig sig _ _ AGND AGND Passed clamp Failed clamp Slide 14

  15. Snapshot of HBM Failure Case AVDD P-well guard ring grounded sig _ AGND Failed clamp Lab de-processed result of failed HBM test on I/O with P-well guard ring grounded Slide 15

  16. HBM Test Case • Device count : 12K subckt (xmos), 6K Diodes • Extracted elements: 5.79M RLCs • Simulation Conditions: Initialized at -2000V (HBM test) 3.0u Zap 1525ohm AGND Init at -2000V VDD P/G RLC 100pf 0.1f Macro Block AVDD GND w/ coupled signal RC Substrate RC w/ Well diode HBM Analysis setup – 48min simulation : 16hr Peak memory – 15 GB Slide 16

  17. HBM Failure on Melt-down of Center Finger of RC-based Clamp Due to Parasitic BJT Turn-on • Center finger furthest from Pwell grounded guard ring resulting in largest resistance from the AGND zap point • Vbs of finger higher due to substrate node distance from Pwell guard ring • Higher Vbs of center finger with higher Ids current may turn on parasitic bipolar earlier than other fingers, causing center finger melt down AGND X Slide 17 AVDD Center Finger of RC-based Clamp

  18. D/G/S/B Node Waveforms of the RC-based Clamp Fingers with Substrate Pwell Guard Ring Grounded 1.37ns Vd Vg Vb of different fingers w/ the center finger having largest Vbs Vs Vbs of different clamp fingers are very different in amplitude, with center finger having largest Vbs making non-uniform turn-on of the center finger, and triggering its parasitic BJT Slide 18

  19. D/G/S/B Node Waveforms of the RC-based Clamp Fingers with Substrate Pwell Guard Ring Floating 1.37ns Vd Vg Vb of different fingers Vs Vbs of different clamp fingers are similar in amplitude, making the uniform turn-on among all fingers Slide 19

  20. Worst Stress Movie for HBM AGND -2000V Zap with Hot Spot on Center Finger of RC-based Clamp Hot spot at 1.37nsec of the HBM zap at the center RC-based clamp finger Slide 20

  21. Outline ● Introduction ● ESD dynamic analysis methodology ● Requirements for ESD dynamic simulation ● Application Examples ● HBM event ● CDM event ● Summary Slide 21

  22. Example CDM Test Case • Device count : 62,256 subckt (xmos), 541 Diodes • Extracted elements: 3,709,648 RLCs • Simulation Conditions: Initialized at -500V (CDM test) Lpogo Rpogo IOP ION VDD VDDP P/G RLC Zap Cpogo Macro Block w/ coupled signal RC GND Substrate RC w/ well diode CDM Analysis setup - 1hr20m simulation : 8hr25m Peak memory – 25 GB Cdut of 3pF evenly distributed among substrate and can be tuned to match Slide 22 expected pogo pin peak current

  23. Example CDM Failure due to Race Condition in Discharging Paths Worst Junction Worst junction voltage waveform Pogo pin current waveform • Impedance mismatch between I/O (sig) and LDO bias net caused large Vgd junction stress on -500V zap due to bias net being heavily referenced to ground Slide 23

  24. Stress Movie on the CDM Test Case : IOP Zap at -500V -500V Zap at IO Pin Highest stress occurred at failed junction (Vgd) on the top around 137psec; the 2 nd ranked stressed junction with the similar design issue except the IO transistor size is much larger Slide 24

  25. Failure Emission Image for the CDM Test Case emission site Lab emission result of failed CDM test on high-speed I/O Slide 25

  26. Addition of PMOS Passgate as Proposed Fix for Failed Junction Stress Reduction PMOS passgate inserted Worst junction voltage waveform • PMOS passgate inserted at gate of failed NMOS serves to isolate junction from loading the bias net, which allows junction voltage delta to stay within device tolerance Slide 26

  27. Summary ● With tighter design margin in 65/45/28/20nm technology nodes, ESD verification is a must for SoC, mixed-signal design, and custom designs ● A comprehensive ESD dynamic methodology outlined for diagnosis and predictive simulation of HBM/CDM discharging events ● Example test cases with failure point correlation between simulation and silicon measurement provided Slide 27
