10/4/2006 Massachusetts Institute of Technology Diagnosing Complex Systems MERS Rover Testbed Model-based Monitoring and Diagnosis of Systems with Software-Extended Behavior Mars Polar Lander Tsoline Mikaelian Brian C. Williams, Martin

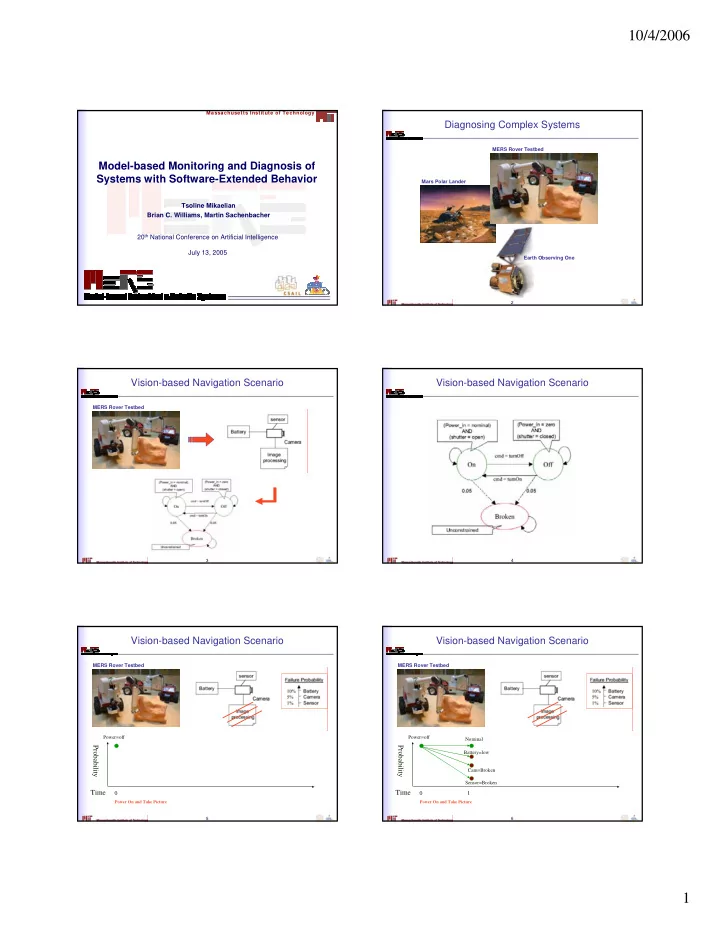

slide-1
SLIDE 1

10/4/2006 1

Massachusetts Institute of Technology

Model-based Monitoring and Diagnosis of Systems with Software-Extended Behavior

Tsoline Mikaelian Brian C. Williams, Martin Sachenbacher 20th National Conference on Artificial Intelligence July 13, 2005

2

Diagnosing Complex Systems

Mars Polar Lander MERS Rover Testbed Earth Observing One

3

Vision-based Navigation Scenario

MERS Rover Testbed

4

Vision-based Navigation Scenario

5

Vision-based Navigation Scenario

MERS Rover Testbed

Probability Time

Power=off

Power On and Take Picture 6

Vision-based Navigation Scenario

MERS Rover Testbed

Probability Time

Power=off

Power On and Take Picture

1

Nominal Cam=Broken Battery=low Sensor=Broken

slide-2
SLIDE 2

10/4/2006 2

7

Vision-based Navigation Scenario

MERS Rover Testbed

Probability Time

Power=off

1

Nominal Cam=Broken Battery=low

Power On and Take Picture

2

Observe Sensor voltage = low

Battery=low Sensor=Broken Cam=Broken Sensor=Broken

8

Vision-based Navigation Scenario

MERS Rover Testbed

Probability Time

Power=off

1

Nominal Cam=Broken Battery=low

Power On and Take Picture

2

Observe Sensor voltage = low

Battery=low Sensor=Broken Cam=Broken Sensor=Broken

9

Vision-based Navigation Scenario

MERS Rover Testbed

Probability Time

Power=off

1

Nominal Cam=Broken Battery=low

Power On and Take Picture

2

Observe Sensor voltage = low

Battery=low Sensor=Broken Cam=Broken Sensor=Broken

………………..……………. 6

Image not corrupt S/W => Sensor=Broken Battery=low Cam=Broken

10

Problem and Challenges

Problem: Given observations, commands, and behavior models: Track the most likely state trajectories of the software-extended system over time Challenges: 1. Monitor complex behavior 2. Delayed symptoms 3. Efficiency

11

Modeling Framework

Probabilistic, Hierarchical Constraint Automata (PHCA) [Williams, Chung, Gupta 2001]

12

Modeling Framework

slide-3
SLIDE 3

10/4/2006 3

13

Diagnosis Process

PHCA H/W models S/W specs

(code)

[Williams, Chung, Gupta 2001]

Complex Behavior

14

Diagnosis Process

Offline compilation phase

N-Stage COP PHCA H/W models S/W specs

(code)

Delayed Symptoms

parameter N

Online solution phase

15

Encoding PHCA as COP

Valued Constraint Optimization Problem (COP):

  • Variables
  • Location variables, PHCA variables, Auxiliary variables
  • Domains
  • Example: {Marked, Unmarked} for location variables
  • Valued constraints*
  • Encode PHCA + Execution semantics
  • Solve for Location Variables, maximizing value of State Trajectory

N-Stage COP PHCA

*[Schiex, Fargier, Verfaillie,1995] 16

Valued COP

Value of solution: Probabilistic Valuation:

17

PHCA Encoding Example

18

PHCA Encoding Constraints

(AND) (AND)

T1 <source1,guard1,targets1, probability1> T2 <source1, guard2, targets2, probability2>

choice targets1 targets2 (XOR)

(AND)

Categories of Constraints: 1. State consistency and transition guard consistency 2. Initial (t=0) constraints 3. Transition constraints 4. Marking constraints ⇒ We derive a total of 14 constraints (rules) ⇒ Instantiated for any PHCA, for any N-Stage time horizon

slide-4
SLIDE 4

10/4/2006 4

19

Diagnosis Process

Tree Decomposition

Offline compilation phase

N-Stage COP PHCA H/W models S/W specs

(code)

Efficiency

[Gottlob, Leone, Scarcello 2000; Kask, Dechter, Larossa 2003]

Online solution phase

20

Diagnosis Process

Tree Decomposition

  • bservations

commands

Offline compilation phase Online solution phase

N-Stage COP Optimal Constraint Solver Dynamic update of COP PHCA H/W models S/W specs

(code) 21

Online Diagnosis Phase

  • Trellis diagram showing PHCA State Evolutions
  • Online Loop

– Update the COP – Solve the COP – Repeat t0 t1 t2 t5 t6 t3 … t4

22

Online Diagnosis Phase

  • N-Stage K-Best Trajectory Enumeration

N=3 time steps; K=2 trajectories t0 t1 t2 t5 t6 t3 … t4

Obs1, Cmd1 Obs2, Cmd2 Obs3 Obs0, Cmd0 1st Iteration – Update COP

23

Online Diagnosis Phase

  • N-Stage K-Best Trajectory Enumeration

N=3 time steps; K=2 trajectories

1st Iteration – Solve COP

t0 t1 t2 t5 t6 t3 … t4

Obs1, Cmd1 Obs2, Cmd2 Obs3 Obs0, Cmd0

24

Online Diagnosis Phase

  • N-Stage K-Best Trajectory Enumeration

N=3 time steps; K=2 trajectories

2nd Iteration – Update COP

t0 t1

Obs1, Cmd1 Obs2, Cmd2 Obs3, Cmd3

t2 t5 t6 t3 … t4

Obs4

slide-5
SLIDE 5

10/4/2006 5

25

Online Diagnosis Phase

  • N-Stage K-Best Trajectory Enumeration

N=3 time steps; K=2 trajectories

2nd Iteration – Solve COP

t0 t1

Obs1, Cmd1 Obs2, Cmd2 Obs3, Cmd3

t2 t5 t6 t3 … t4

Obs4

26

Online Diagnosis Phase

  • N-Stage K-Best Trajectory Enumeration

N=3 time steps; K=2 trajectories

3rd Iteration – Update COP

t0 t1

Obs2, Cmd2

t2

Obs3, Cmd3 Obs5 Obs4, Cmd4

t5 t6 t3 … t4 Delayed Symptom

27

Online Diagnosis Phase

  • N-Stage K-Best Trajectory Enumeration

N=3 time steps; K=2 trajectories

3rd Iteration – Solve COP

t0 t1

Obs2, Cmd2

t2 t5 t6 t3 … t4

Obs3, Cmd3 Obs5 Obs4, Cmd4

Delayed Symptom

28

Demonstration Scenarios

29

Demonstration Scenarios

MIT SPHERES Testbed Models NASA Earth Observing One (EO-1) Models

  • Advanced Land Imager
  • Hyperion Instrument
  • Wideband Advanced Recorder Processor

EO-1 (12 components)

  • Global Metrology Subsystem

SPHERES 1 (5 components) SPHERES 2 (18 components)

30

Results: Offline

slide-6
SLIDE 6

10/4/2006 6

31

Results: Online

(1.6 GHz Pentium M) Solver: [Sachenbacher and Williams, 2004]

32

Summary and Related Work

Tree Decomposition

  • bservations

commands

Offline compilation phase Online solution phase

N-Stage COP Optimal Constraint Solver Dynamic update of COP PHCA H/W models S/W specs

(code)

PHCA: [Williams, Chung, Gupta] Delayed Symptoms: Livingstone2 [Kurien and Nayak] Structure: [Darwiche and Provan; Dechter et al.]
