The Java programming environment Introduction to JVM Based on material produced by Bill Venners 1 2 The Java platform The role of the virtual machime byte code generated by the Java front-end is an intermediate representation (IR)


slide-1

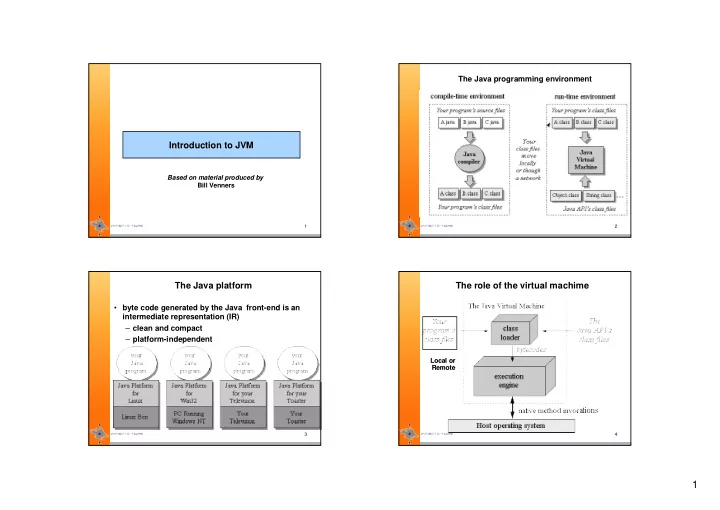

SLIDE 1

1

1

Introduction to JVM

Based on material produced by Bill Venners

2

The Java programming environment

3

The Java platform

  • byte code generated by the Java front-end is an

intermediate representation (IR) – clean and compact – platform-independent

4

The role of the virtual machime

Local or Local or Remote Remote

slide-2
SLIDE 2

2

5

Java compilation model

6

Java bytecode format

  • void spin () { int i; for (i = 0; i < 100; i++) {;} }

0 iconst_0 // push int constant 0 1 istore_1 // store into var 1 "i=0" 2 goto 8 // first time: don't incr 5 iinc 1 1 // incr var 1 by 1 "i++" 8 iload_1 // push local var 1 "i" 9 bipush 100 // push byte const "100" 11 if_icmplt 5 // loop if less "i < 100" 14 return // return void when done

  • branch instructions use relative displacement, i.e.,

add/subtract from PC => easy combination

  • disassembled code uses absolute pseudo-labels

7

Java bytecode basics

  • no run-time tag checking (but objects have metadata)
  • "untyped" local variables, reused for different types
  • type tags are carried along the instructions
  • the verification phase of class loading ensures

validity: types are OK, no operand stack overflow..

  • bytecode categories

– arithmetic: add, sub, mul, rem, div (typed versions) – operand stack management: load/store, dup, swap – control transfer: goto <offset>, if_icmpeq, ifeq, .. – type conversions: i2l, i2f, l2f, f2i, d2i, int2byte, etc. – method invocation and return: invokevirtual, invokestatic, ireturn, lreturn, return, etc. – throwing exceptions, monitors, etc..

8

Back-end transformation and execution

(1) simple JVM – byte code interpretation, including resolution of symbolic references:

  • finding the entity identified by a text symbol

and replacing it with a direct reference (2) JIT (Just-In-Time) compiler – method byte codes are compiled into native machine code the first time they are invoked – the machine code is cached for subsequent invocation – compilation overhead & requires more memory (3) adaptive optimization: the interpreter monitors the program, compiling only heavily used parts..

slide-3
SLIDE 3

3

9

The Java Virtual Machine

10

Shared data areas

  • each JVM has one of each:

– method area: byte code and class (static) data storage – heap: object storage

11

Example representation of objects in heap:

  • or can use handle

ptrs pointing to an inderect handle pool

  • the heap is garbage collected
  • each JVM has its own heap - supports isolation

12

Frame in Frame in Execution Execution

Thread data areas

  • every thread has its own stack of call frames
  • in a frame, a fixed-sized stack for expr evaluation
