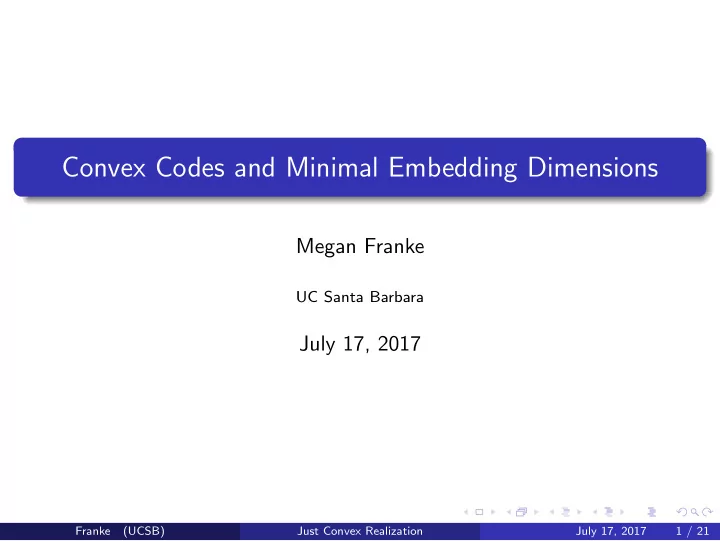

SLIDE 1 Convex Codes and Minimal Embedding Dimensions
Megan Franke
UC Santa Barbara
July 17, 2017
Franke (UCSB) Just Convex Realization July 17, 2017 1 / 21
SLIDE 2 Neural Codes
2014 Nobel Prize in Physiology or Medicine: Place Cells
Franke (UCSB) Just Convex Realization July 17, 2017 2 / 21
SLIDE 3 Neural Codes
2014 Nobel Prize in Physiology or Medicine: Place Cells Each place cell corresponds to a receptive field
Franke (UCSB) Just Convex Realization July 17, 2017 2 / 21
SLIDE 4 Neural Codes
2014 Nobel Prize in Physiology or Medicine: Place Cells Each place cell corresponds to a receptive field The receptive fields from a set of neurons give us a neural code
Figure: Place Cells
Franke (UCSB) Just Convex Realization July 17, 2017 2 / 21
SLIDE 5 Neural Code Example
Convex Code: {∅, 1, 2, 12} U1 U2
Franke (UCSB) Just Convex Realization July 17, 2017 3 / 21
SLIDE 6 Convex Neural Codes
Definition
We say that a code C is a convex code on n neurons if there exists a collection of sets U = {U1, U2, . . . , Un} such that for each i ∈ [n], Ui is a convex subset of Rd and C(U) = C. A code C = C(U) is open convex or closed convex if the Ui ∈ U are all open or all closed.
Franke (UCSB) Just Convex Realization July 17, 2017 4 / 21
SLIDE 7 When are codes just convex?
Goal
Classify which codes are convex open, convex closed, just convex, or not convex at all.
Franke (UCSB) Just Convex Realization July 17, 2017 5 / 21
SLIDE 8 When are codes just convex?
Goal
Classify which codes are convex open, convex closed, just convex, or not convex at all.
Theorem (F., Muthiah)
Every neural code is just convex.
Franke (UCSB) Just Convex Realization July 17, 2017 5 / 21
SLIDE 9 Definitions
Definition
Let X1, X2, . . . , Xn be subsets of Rd. Define the convex hull of X1, X2, . . . , Xn to be the smallest convex set in Rd containing X1, X2, . . . , Xn, denoted by conv(X1, X2, . . . , Xn).
Franke (UCSB) Just Convex Realization July 17, 2017 6 / 21
SLIDE 10 Definitions
Definition
Let X1, X2, . . . , Xn be subsets of Rd. Define the convex hull of X1, X2, . . . , Xn to be the smallest convex set in Rd containing X1, X2, . . . , Xn, denoted by conv(X1, X2, . . . , Xn). Let X1 = (0, 0, 0), X2 = (1, 0, 0), X3 = (0, 1, 0), and X4 = (0, 0, 1).
Franke (UCSB) Just Convex Realization July 17, 2017 6 / 21
SLIDE 11 Definitions
Definition
Let X1, X2, . . . , Xn be subsets of Rd. Define the convex hull of X1, X2, . . . , Xn to be the smallest convex set in Rd containing X1, X2, . . . , Xn, denoted by conv(X1, X2, . . . , Xn). Let X1 = (0, 0, 0), X2 = (1, 0, 0), X3 = (0, 1, 0), and X4 = (0, 0, 1). Then the convex hull of {X1, X2, X3, X4} is X2 X3 X4 X1
Franke (UCSB) Just Convex Realization July 17, 2017 6 / 21
SLIDE 12 Just Convex Construction
Let C be a code on n neurons where C \ {∅} = {σ1, σ2, . . . , σk} and let {e1, ..., ek−1} be the standard basis for Rk−1.
Franke (UCSB) Just Convex Realization July 17, 2017 7 / 21
SLIDE 13 Just Convex Construction
Let C be a code on n neurons where C \ {∅} = {σ1, σ2, . . . , σk} and let {e1, ..., ek−1} be the standard basis for Rk−1. Take σ1. Then for every j ∈ [n], if j ∈ σ1 define V 1
j to be the closed point
at the origin. V 1
j
Otherwise, define V 1
j = ∅.
Franke (UCSB) Just Convex Realization July 17, 2017 7 / 21
SLIDE 14 Just Convex Construction
Take σ2. Then for every j ∈ [n], if j ∈ σ2 define V 2
j to be
conv{0, e1} − {0}. V 2
j
e1 Otherwise, define V 2
j = ∅.
Franke (UCSB) Just Convex Realization July 17, 2017 8 / 21
SLIDE 15 Just Convex Construction
Next take σ3. Then for every j ∈ [n], if j ∈ σ3 define V 3
j to be
conv{0, e1, e2}, but open along its intersection with conv{0, e1}. V 3
j
e1 e2 Otherwise, define V 3
j = ∅.
Franke (UCSB) Just Convex Realization July 17, 2017 9 / 21
SLIDE 16 Just Convex Construction
Continuing in this way, for all j ∈ [n], if j ∈ σm, define V m
j
to be conv{0, e1, e2, . . . , em−1}, but open along its intersection with conv{0, e1, e2, . . . , em−2}. Otherwise, define V m
j
= ∅.
Franke (UCSB) Just Convex Realization July 17, 2017 10 / 21
SLIDE 17 Just Convex Construction
When this has been completed for all σj ∈ C, define Uj =
V i
j = V 1 j ∪ V 2 j ∪ . . . ∪ V k j
for all j ∈ [n].
Franke (UCSB) Just Convex Realization July 17, 2017 11 / 21
SLIDE 18 Example
Let C = {∅, 12, 13, 23}.
Franke (UCSB) Just Convex Realization July 17, 2017 12 / 21
SLIDE 19 Example
Let C = {∅, 12, 13, 23}. Then σ1 = 12, σ2 = 13, σ3 = 23.
Franke (UCSB) Just Convex Realization July 17, 2017 12 / 21
SLIDE 20 Example
Let C = {∅, 12, 13, 23}. Then σ1 = 12, σ2 = 13, σ3 = 23. V codeword#
neuron
Franke (UCSB) Just Convex Realization July 17, 2017 12 / 21
SLIDE 21 Example
Let C = {∅, 12, 13, 23}. Then σ1 = 12, σ2 = 13, σ3 = 23. V codeword#
neuron
V 1
1
V 1
2
V 1
3 = ∅
Franke (UCSB) Just Convex Realization July 17, 2017 12 / 21
SLIDE 22 Example
Let C = {∅, 12, 13, 23}. Then σ1 = 12, σ2 = 13, σ3 = 23. V codeword#
neuron
V 1
1
V 1
2
V 1
3 = ∅
V 2
1
V 2
2 = ∅
V 2
3
Franke (UCSB) Just Convex Realization July 17, 2017 12 / 21
SLIDE 23 Example
Let C = {∅, 12, 13, 23}. Then σ1 = 12, σ2 = 13, σ3 = 23. V codeword#
neuron
V 1
1
V 1
2
V 1
3 = ∅
V 2
1
V 2
2 = ∅
V 2
3
V 3
1 = ∅
V 3
2
V 3
3
Franke (UCSB) Just Convex Realization July 17, 2017 12 / 21
SLIDE 24 Example
C = {∅, 12, 13, 23} U1 U2 U3
Franke (UCSB) Just Convex Realization July 17, 2017 13 / 21
SLIDE 25 Minimal Embedding Dimension
{∅, 1, 2, 3, 4, 5, 12, 15, 23, 24, 25, 34, 45, 56, 125, 234, 245}
Franke (UCSB) Just Convex Realization July 17, 2017 14 / 21
SLIDE 26 Minimal Embedding Dimension
{∅, 1, 2, 3, 4, 5, 12, 15, 23, 24, 25, 34, 45, 56, 125, 234, 245}
Franke (UCSB) Just Convex Realization July 17, 2017 14 / 21
SLIDE 27 Minimal Embedding Dimension
Definition
Let C be a convex code on n neurons. Suppose C is realized by U = {U1, U2, . . . , Un} where each Ui ⊂ Rd is convex. The minimal such d is the minimal embedding dimension of C. If we require all Ui ∈ U to be open, the minimal such d is the minimal open embedding dimension of C. If we require all Ui ∈ U to be closed, the minimal such d is the minimal closed embedding dimension of C.
Franke (UCSB) Just Convex Realization July 17, 2017 15 / 21
SLIDE 28 Minimal Embedding Dimension
Definition
Define Cn to be the code on n neurons containing all codewords of length n − 1, Cn = {σ | σ ⊆ [n], |σ| = n − 1}. Note that |Cn| = n
n−1
Franke (UCSB) Just Convex Realization July 17, 2017 16 / 21
SLIDE 29 Minimal Embedding Dimension
Definition
Define Cn to be the code on n neurons containing all codewords of length n − 1, Cn = {σ | σ ⊆ [n], |σ| = n − 1}. Note that |Cn| = n
n−1
Theorem (F., Muthiah)
For every n, Cn has minimal embedding dimension n − 1.
Franke (UCSB) Just Convex Realization July 17, 2017 16 / 21
SLIDE 30 Example
Let C3 = {∅, 12, 13, 23} and U = {U1, U2, U3} be a realization of C3.
Franke (UCSB) Just Convex Realization July 17, 2017 17 / 21
SLIDE 31 Example
Let C3 = {∅, 12, 13, 23} and U = {U1, U2, U3} be a realization of C3. Then there exists points a12, a13, and a23 such that a12 ∈ U1 ∩ U2, a13 ∈ U1 ∩ U3, a23 ∈ U2 ∩ U3.
Franke (UCSB) Just Convex Realization July 17, 2017 17 / 21
SLIDE 32 Example
Let C3 = {∅, 12, 13, 23} and U = {U1, U2, U3} be a realization of C3. Then there exists points a12, a13, and a23 such that a12 ∈ U1 ∩ U2, a13 ∈ U1 ∩ U3, a23 ∈ U2 ∩ U3. Suppose toward contradiction that C3 has a realization in 1 dimension. Then, a12, a13, and a23 must be collinear.
Franke (UCSB) Just Convex Realization July 17, 2017 17 / 21
SLIDE 33
Example
C3 = {∅, 12, 13, 23} a12 ∈ U1 ∩ U2 a13 ∈ U1 ∩ U3 a23 ∈ U2 ∩ U3
SLIDE 34
Example
C3 = {∅, 12, 13, 23} a12 ∈ U1 ∩ U2 a13 ∈ U1 ∩ U3 a23 ∈ U2 ∩ U3 a12
SLIDE 35
Example
C3 = {∅, 12, 13, 23} a12 ∈ U1 ∩ U2 a13 ∈ U1 ∩ U3 a23 ∈ U2 ∩ U3 a12 a13
SLIDE 36
Example
C3 = {∅, 12, 13, 23} a12 ∈ U1 ∩ U2 a13 ∈ U1 ∩ U3 a23 ∈ U2 ∩ U3 a12 a13
SLIDE 37
Example
C3 = {∅, 12, 13, 23} a12 ∈ U1 ∩ U2 a13 ∈ U1 ∩ U3 a23 ∈ U2 ∩ U3 a12 a13 a23
SLIDE 38
Example
C3 = {∅, 12, 13, 23} a12 ∈ U1 ∩ U2 a13 ∈ U1 ∩ U3 a23 ∈ U2 ∩ U3 a12 a13 a23 ⊆ U2
SLIDE 39
Example
C3 = {∅, 12, 13, 23} a12 ∈ U1 ∩ U2 a13 ∈ U1 ∩ U3 a23 ∈ U2 ∩ U3 a12 a13 a23 ⊆ U2 a23
SLIDE 40 Example
C3 = {∅, 12, 13, 23} a12 ∈ U1 ∩ U2 a13 ∈ U1 ∩ U3 a23 ∈ U2 ∩ U3 a12 a13 a23 ⊆ U2 a23 ⊆ U3
Franke (UCSB) Just Convex Realization July 17, 2017 18 / 21
SLIDE 41 Discussion
New Questions: Since every code is convex, what is the minimal embedding dimension
When is the minimal open/closed embedding dimension strictly greater than the minimal embedding dimension of a code? When is the minimal open/closed embedding dimension equal to the minimal embedding dimension of a code?
Franke (UCSB) Just Convex Realization July 17, 2017 19 / 21
SLIDE 42 Acknowledgements
I would like to thank: Advisor: Dr. Anne Shiu Graduate Student Mentor: Ola Sobieska Project Partner: Samuel Muthiah Funding: National Science Foundation Host: Texas A&M University
Franke (UCSB) Just Convex Realization July 17, 2017 20 / 21
SLIDE 43 Thank you!
Franke (UCSB) Just Convex Realization July 17, 2017 21 / 21
