Source: BGS (2005) “Britain Beneath Our Feet” website

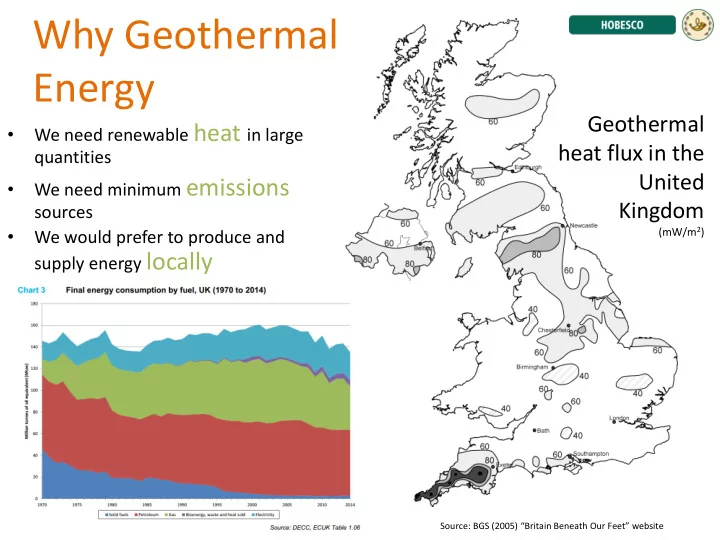

Why Geothermal Energy

• We need renewable heat in large

quantities

• We need minimum emissions

sources

• We would prefer to produce and

supply energy locally

Geothermal heat flux in the United Kingdom

(mW/m2)

Geothermal Energy at Banchory

• Public/Private Consortium investigating potential for

Geothermal energy at Banchory

• One of 5 projects funded by the Scottish Government

under the Geothermal Energy Challenge Fund

• Potential connection to existing and expanded Hill of

Banchory Biomass Heat Network

• Report will be published in Spring 2016

Hot water use

Boulder clay Whin Sill Sedimentary strata Pump (novel fibre-glass deep riser to 900m with air-lift injection at 100m)

Cooled water reinjection Recirculate and reheat through diffuse fracture network in granite

~700m

Geothermal Production

Source: The Geothermal Opportunity for Scotland, SKM Report to Scottish Government (2012)

Newcastle upon Tyne Durham

90 Fathom Fault Northumberland Basin Alston Block

90 Fm Fault Cheviot Granite Northumberland Basin Weardale Granite North Pennine Orefield S N

Geothermal in NE England

Drilling of Eastgate No 2
