Western States Forum June 2008 ODOT Traveler Information Systems Galen McGill PE 1 ATIS Vision Create Traveler Information Portal for Oregon Focus on usability Technology platform for aggregating and sharing ATIS data Share

slide-1

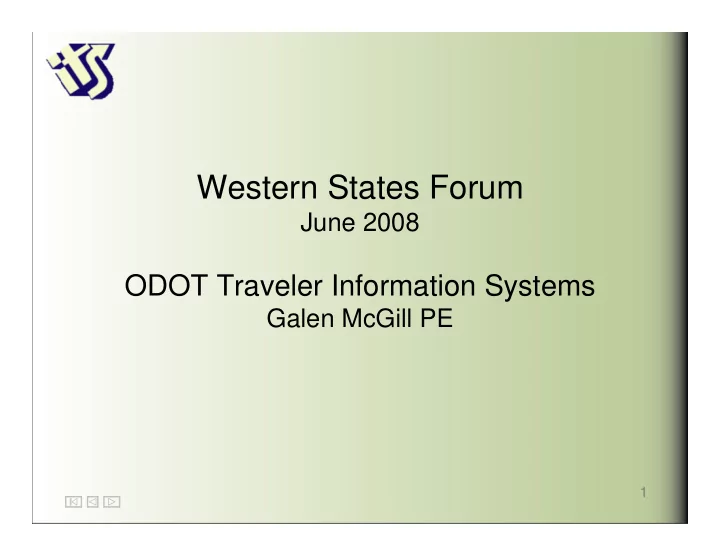

SLIDE 1

1

Western States Forum

June 2008

ODOT Traveler Information Systems

Galen McGill PE

slide-2
SLIDE 2

2

ATIS Vision

  • Create Traveler Information Portal for Oregon

– Focus on usability

  • Technology platform for aggregating and sharing ATIS

data

  • Share Information through multiple outlets
  • Partnerships with other organizations

– Public & Private

slide-3
SLIDE 3

3

ODOT ATIS History

  • 1995 – OSP transfers

976-PASS to ODOT

  • 1997 – Toll free phone

line & Travel Advisor web site

  • 1998 – Bend Cable TV

system

  • 2000 – TripCheck web

site

  • 2001 – Automated phone

system

slide-4
SLIDE 4

4

ODOT ATIS History

  • Dec. 2003 – 511 Service
  • May 2005 – TripCheck 2.0
  • April 2006 – TTIP System
  • May 2006 Cable TV upgrade
  • Feb. 2007 – Transportation Options System

(Transit)

  • July 2007 – TripCheck Mobile system
  • 2008 – 511 System replacement
slide-5
SLIDE 5

5

ODOT Traveler Information Services

  • TripCheck

– web site – Mobile web site

  • 511 System
  • Cable TV
  • Rest area system

– Audio using 511 system

  • TripCheck Traveler Information Portal (TTIP)

– XML data for other agencies and private sector

slide-6
SLIDE 6

6

Benefits of ATIS

  • Demand Management

– Shift route – Shift time of travel – Shift mode – 2003 survey, 38% definitely change travel plans based on ATIS data

  • Improve safety
  • Reduce calls to ODOT offices
  • Customer Service
slide-7
SLIDE 7

7

ATIS Usage

slide-8
SLIDE 8

8

slide-9
SLIDE 9

9

  • Alerts
  • Incidents
  • Portland SpeedMap
  • Road Conditions
  • Chain Requirements
  • Truck Restrictions
  • Cameras
  • Weather

TripCheck Features

  • Construction
  • Maintenance
  • Transit
  • Travel Services
  • Scenic Byways
  • Rest Areas & Sno-

parks

slide-10
SLIDE 10

10 Images Incidents SpeedMap Alerts

slide-11
SLIDE 11

11 Transit Motor Carrier Travel Services Weather

slide-12
SLIDE 12

12

  • 50 Servers
  • 15 Systems
  • 50 Applications
  • 100+ Components

Infrastructure Summary

slide-13
SLIDE 13

13

System Architecture Overview

slide-14
SLIDE 14

14

ODOT ATIS

slide-15
SLIDE 15

15

External Data

slide-16
SLIDE 16

16

About Authentication

  • Trusted subsystem concept
  • Security

– Login ID & Password – System Administrator sets agency permission level – Agency Administrator sets user permission level

  • Isolation of web site from database

through business tier

slide-17
SLIDE 17

17

Travel Services Admin.

slide-18
SLIDE 18

18

Transportation Options Admin.

slide-19
SLIDE 19

19

Weather Data

slide-20
SLIDE 20

20

About the Scheduler

  • ODOT Custom application

– .Net/C#

  • One application on multiple servers

– Initiates file update processes

  • Server Sitter application to monitor

Scheduler and restart as necessary

slide-21
SLIDE 21

21

About the Scheduler

  • Traveler Information update cycles

– RWIS – 5 minutes – HTCIS – 3 minutes – TTIP – 3 minutes – OTIC/Travel Services – Once per day – NOAA Forecast – Once per day – NOAA Alert – 1 minute – Transit – Once per day

slide-22
SLIDE 22

22

RWIS Data

slide-23
SLIDE 23

23

CCTV Images

slide-24
SLIDE 24

24

  • VB and .Net/C# Applications

– Processes Images – Creates Templates – Creates individual “Published Images” – Supports Editing of Images – Distributes Images

About Camera Services

slide-25
SLIDE 25

25

Camera Services

slide-26
SLIDE 26

26

slide-27
SLIDE 27

27

Incident Data

slide-28
SLIDE 28

28

  • Client/Server VB application

– Highway Travel Condition Reporting System (HTCRS)

  • Client Software for distributed entry of

– Incidents – Alerts – Construction – Road & Weather Reports

– Highway Travel Condition Information System (HTCIS)

  • SQL database

About HTCRS

slide-29
SLIDE 29

29

HTCRS

slide-30
SLIDE 30

30

HTCRS

slide-31
SLIDE 31

31

HTCRS

slide-32
SLIDE 32

32

HTCRS

slide-33
SLIDE 33

33

OnStar Incident Data

slide-34
SLIDE 34

34

Weather Warning Systems

slide-35
SLIDE 35

35

Cable TV

slide-36
SLIDE 36

36

  • Third party software Harris/Inscriber
  • Receives processes data and images
  • Three components
  • Player
  • Creation / Player
  • Network Manager
slide-37
SLIDE 37

37

Creation

Stills Crawl Roll Digital Clock Video Analog Clock

slide-38
SLIDE 38

38

Creation

slide-39
SLIDE 39

39

Network Manager

slide-40
SLIDE 40

40

Player

Demo

slide-41
SLIDE 41

41

TripCheck Traveler Information Portal

slide-42
SLIDE 42

42

TripCheck Local Entry

slide-43
SLIDE 43

43

TripCheck & Mobile Web Sites

slide-44
SLIDE 44

44

TripCheck Mobile

slide-45
SLIDE 45

45

511 Mobile Voice

slide-46
SLIDE 46

46

About the Web Infrastructure

  • Staging Cluster

– Clustered for redundancy – Manages & simplifies replication of data to web servers

  • Web Server Cluster

– 3 servers in cluster

  • Load balancing
  • Redundancy
slide-47
SLIDE 47

47

Systems Monitoring

  • Argent

– Cost

  • $800/year Server license
  • $200/year/server monitored

– Monitor

  • Services
  • File updates
  • Log files

– Notification

  • Pager & Email on failure and on recovery
  • Camera Services

– Monitor image file updates

  • Replace image after 2 hours

– Notification

  • Email notification after 1 hour
slide-48
SLIDE 48

48

Systems Monitoring

  • Web Pulse

– External web site monitoring

  • Run script against web site

– Frequency

  • TTIP System – 15 minutes
  • TripCheck – 30 minutes
  • Forced monitoring on failure – 1 min. until recovery

– Cost

  • $90/month

– Email notification on failure and recovery

slide-49
SLIDE 49

49

Systems Monitoring

  • AT&T Business Direct

– Monitoring of phone line status – Cost

  • $200/month

– Email notification on failure

  • Custom Software Components

– Monitor

  • Write file
  • Receive file

– Notification

  • Email on failure
slide-50
SLIDE 50

50

Staffing and Support

  • System Admin/Support ($370,000/biennium)

– TripCheck Support – 1.5 FTE – ITS Operations Coordinator

  • System Maintenance ($300,000/biennium)

– ITS Staff

  • 2 fulltime (lead, programmer) and 1 contracted
  • Data Base Analyst

– Tech Management

  • Server support
  • Network support

– Web Infrastructure

  • 2 ODOT, multiple at State Data Center
slide-51
SLIDE 51

51

Lessons Learned

  • Build business process first
  • Public expectations are high
  • Plan for 24 x 7 support

– Build redundancy where possible

  • Automated system monitoring is essential

– Build systems with monitoring in mind

  • Performance measures help improve data quality
