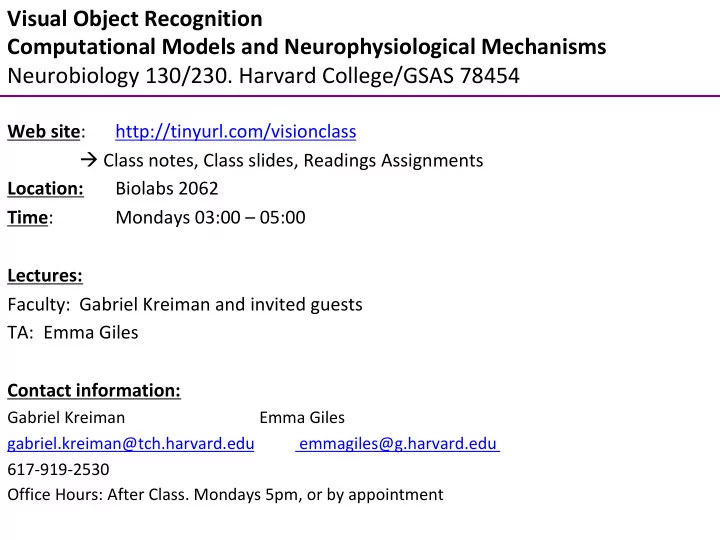

Visual Object Recognition Computational Models and Neurophysiological Mechanisms Neurobiology 130/230. Harvard College/GSAS 78454

Web site: http://tinyurl.com/visionclass à Class notes, Class slides, Readings Assignments Location: Biolabs 2062 Time: Mondays 03:00 – 05:00 Lectures: Faculty: Gabriel Kreiman and invited guests TA: Emma Giles Contact information:

Gabriel Kreiman Emma Giles gabriel.kreiman@tch.harvard.edu emmagiles@g.harvard.edu 617-919-2530 Office Hours: After Class. Mondays 5pm, or by appointment

Visual Object Recognition Computational Models and Neurophysiological Mechanisms Neurobiology 230. Harvard College/GSAS 78454

Class 1 [09/10/2018]. Introduction to pattern recognition [Kreiman] Class 2 [09/17/2018]. Why is vision difficult? Natural image statistics. The retina. [Kreiman] Class 3 [09/24/2018]. Lesions and neurological studies [Kreiman]. Class 4 [10/01/2018]. Psychophysics of visual object recognition [Sarit Szpiro] October 8: University Holiday Class 5 [10/15/2018]. Primary visual cortex [Hartmann] Class 6 [10/22/2018]. Adventures into terra incognita [Frederico Azevedo] Class 7 [10/29/2018]. High-level visual cognition [Diego Mendoza-Haliday] Class 8 [11/05/2018]. Correlation and causality. Electrical stimulation in visual cortex [Kreiman] Class 9 [11/12/2018]. Visual consciousness [Kreiman] Class 10 [11/19/2018]. Computational models of neurons and neural networks. [Kreiman] Class 11 [11/26/2018]. Computer vision. Artificial Intelligence in Visual Cognition [Bill Lotter] Class 12 [12/03/2018]. The operating system for vision. [Xavier Boix] FINAL EXAM, PAPER DUE 12/13/2018. No extensions.

Visual Object Recognition Computational Models and Neurophysiological Mechanisms Neurobiology 230. Harvard College/GSAS 78454

Class 1. Introduction to pattern recognition [Kreiman] Class 2. Visual input. Natural image statistics. The retina. [Kreiman] Class 3. Lesion and neurological studies of visual deficits in animals and humans. [Kreiman] Class 4. Psychophysics of visual object recognition [Jiye Kim] October 9: University Holiday Class 5. Introduction to the thalamus and primary visual cortex [Camille Gomez-Laberge] Class 6. Adventures into terra incognita. Neurophysiology beyond V1 [Frederico Azevedo] Class 7. First steps into inferior temporal cortex [Carlos Ponce] Class 8. From the highest echelons of visual processing to cognition [Leyla Isik] Class 9. Correlation and causality. Electrical stimulation in visual cortex [Kreiman]. Class 10. Theoretical neuroscience. Computational models of neurons and neural networks. [Kreiman] Class 11. Computer vision. Towards artificial intelligence systems for cognition [Bill Lotter] Class 12. Vision and Language. [Andrei Barbu] Class 13. [Extra class] Towards understanding subjective visual perception. Visual consciousness. [Kreiman] FINAL EXAM

OUTLINE

• 1. Why build computational models?
• 2. Single neuron models
• 3. Network models
• 4. Algorithms and methods for data analysis

Why bother with computational models?

• Quantitative models force us to think about and formalize hypotheses and

assumptions

• Models can integrate and summarize observations across experiments, resolutions

and laboratories

• A good model can lead to (non-intuitive) experimental predictions
• A quantitative model, implemented through simulations, can be useful from an

engineering viewpoint (e.g. face recognition)

• A model can point to important missing data, critical information and decisive

experiments

What is a model, anyway?

F = m a

Which hand was the person using? What is the shape/color/material of the object? What day of the week is it? What type of surface is it? What is the temperature/humidity? What is the force exerted by the person? What is the weight of the object? What is the force of gravity on this object? Where is the force exerted? What is the person wearing? How much contact is there between the object and the surface?

A model for orientation tuning in simple cells

A feed-forward model for orientation selectivity in V1 (by no means the only model)

Hubel and Wiesel. J. Physiology (1962)

OUTLINE

• 1. Why build computational models?
• 2. Single neuron models
• 3. Network models
• 4. Algorithms and methods for data analysis

A nested family of single neuron models

Filter

• perations

Integrate- and-fire circuit Hodgkin- Huxley units Multi- compartmental models Spines, channels Biological accuracy Lack of analytical solutions Computational complexity

Geometrically accurate models vs. spherical cows with point masses

A central question in Theoretical Neuroscience: What is the “right” level of abstraction?

The leaky integrate-and-fire model

• Lapicque 1907
• Below threshold, the voltage

is governed by:

• A spike is fired when V(t)>Vthr

(and V(t) is reset)

• A refractory period tref is

imposed after a spike.

• Simple and fast.
• Does not consider spike-rate

adaptation, multiple compartments, sub-ms biophysics, neuronal geometry C dV(t) dt = − V(t) R + I(t)

Vrest=-65 mV Vth =-50 mV Τm = 10 ms Rm = 10 MΩ

Line = I&F model Circles = cortex first 2 spikes adapted

The leaky integrate-and-fire model

• Lapicque 1907
• Below threshold, the voltage is governed by:
• A spike is fired when V(t)>Vthr (and V(t) is reset)
• A refractory period tref is imposed after a spike
• Simple and fast
• Does not consider:

– spike-rate adaptation – multiple compartments – sub-ms biophysics – neuronal geometry

C dV(t) dt = − V(t) R + I(t)

function [V,spk]=simpleiandf(E_L,V_res,V_th,tau_m,R_m,I_e,dt ,n) % ultra-simple implementation of integrate-and-fire model % inputs: % E_L = leak potential [e.g. -65 mV] % V_res = reset potential [e.g. E_L] % V_th = threshold potential [e.g. -50 mV] % tau_m = membrane time constant [e.g. 10 ms] % R_m = membrane resistance [e.g. 10 MOhm] % I_e = external input [e.g. white noise] % dt = time step [e.g. 0.1 ms] % n = number of time points [e.g. 1000] % % returns % V = intracellular voltage [n x 1] % spk = 0 or 1 indicating spikes [n x 1] V(1)=V_res; % initial voltage spk=zeros(n,1); for t=2:n V(t)=V(t-1)+(dt/tau_m) * (E_L - V(t-1) + R_m * I_e(t)); % Key line computing the change in voltage at time t if (V(t)>V_th) % Emit a spike if V is above threshold V(t)=V_res; % And reset the voltage spk(t)=1; end end

Interlude: MATLAB is easy

function [V,spk]=simpleiandf(E_L,V_res,V_th,tau_m,R_m,I_e,dt,n)

% ultra-simple implementation of integrate-and-fire model % inputs: % E_L = leak potential [e.g. -65 mV] % V_res = reset potential [e.g. E_L] % V_th = threshold potential [e.g. -50 mV] % tau_m = membrane time constant [e.g. 10 ms] % R_m = membrane resistance [e.g. 10 MOhm] % I_e = external input [e.g. white noise] % dt = time step [e.g. 0.1 ms] % n = number of time points [e.g. 1000] % % outputs: % V = intracellular voltage [n x 1] % spk = 0 or 1 indicating spikes [n x 1]

V(1)=V_res; % initial voltage spk=zeros(n,1); for t=2:n V(t)=V(t-1)+(dt/tau_m) * (E_L - V(t-1) + R_m * I_e(t)); % Change in voltage at time t if (V(t)>V_th)

% Emit a spike if V is above threshold

V(t)=V_res;

% And reset the voltage

spk(t)=1; end end

All of these lines are comments This is the key line integrating the differential equation

C dV(t) dt = − V(t) R + I(t)

The Hodgkin-Huxley Model

) ( ) ( ) ( ) (

3 4 Na Na K K L L

E V h m g E V n g E V g dt dV C t I − + − + − + =

where: im = membrane current V = voltage L = leak channel K = potassium channel Na = sodium channel g = conductances (e.g. gNa=120 mS/cm2; gK=36 mS/cm2; gL=0.3 mS/cm2) E = reversal potentials (e.g. ENa=115mV, EK=-12 mV, EL = 10.6 mV) n, m, h = “gating variables”, n=n(t), m=m(t), h=h(t)

Hodgkin, A. L., and Huxley, A. F. (1952). A quantitative description of membrane current and its application to conduction and excitation in nerve. Journal of Physiology 117, 500-544.

The Hodgkin-Huxley Model

% Gabbiani & Cox, Mathematics for Neuroscientists % clamp.m % Simulate a voltage clamp experiment % usage: clamp(dt,Tfin) % e.g. clamp(.01,15) function clamp(dt,Tfin) vK = -6; % mV GK = 36; % mS/(cm)^2 vNa = 127; % mV GNa = 120; % mS/(cm)^2 for vc = 8:10:90, j = 2;t(1) = 0;v(1) = 0; n(1) = an(0)/(an(0)+bn(0)); % 0.3177; m(1) = am(0)/(am(0)+bm(0)); % 0.0529; h(1) = ah(0)/(ah(0)+bh(0)); % 0.5961; gK(1) = GK*n(1)^4; gNa(1) = GNa*m(1)^3*h(1); while j*dt < Tfin, t(j) = j*dt; v(j) = vc*(t(j)>2)*(t(j)<Tfin); n(j) = ( n(j-1) + dt*an(v(j)) )/(1 + dt*(an(v(j)) +bn(v(j))) ); m(j) = ( m(j-1) + dt*am(v(j)) )/(1 + dt*(am(v(j)) +bm(v(j))) ); h(j) = ( h(j-1) + dt*ah(v(j)) )/(1 + dt*(ah(v(j)) +bh(v(j))) ); gK(j) = GK*n(j)^4; gNa(j) = GNa*m(j)^3*h(j); j = j + 1; end subplot(3,1,1); plot(t,v); hold on subplot(3,1,2); plot(t,gK); hold on subplot(3,1,3); plot(t,gNa); hold on end subplot(3,1,1);ylabel('v','fontsize',16);hold off subplot(3,1,2);ylabel('g_K','fontsize',16);hold off subplot(3,1,3);xlabel('t (ms)','fontsize', 16);ylabel('g_{Na}','fontsize',16);hold off function val = an(v) val = .01*(10-v)./(exp(1-v/10)-1); function val = bn(v) val = .125*exp(-v/80);

Simulated voltage-clamp experiments of Hodgkin and Huxley (1952). From Gabbiani and Cox 2010.

OUTLINE

• 1. Why build computational models?
• 2. Single neuron models
• 3. Network models
• 4. Algorithms and methods for data analysis

From neurons to circuits

• Single neurons can perform many interesting and important

computations (e.g. Gabbiani et al (2002). Multiplicative computation in a visual neuron

sensitive to looming. Nature 420, 320-324)

• Neurons are not isolated. They are part of circuits. A typical

cortical neuron receives input from ~104 other neurons.

• It is not always trivial to predict circuit-level properties from single

neuron properties. There could be interesting properties emerging at the network level.

Circuits – some basic definitions

Notes: 1. Connectivity does not need to be all-to-all 2. There are excitatory neurons and inhibitory neurons (and many types of inhibitory neurons) 3. Most models assume balance between excitation and inhibition 4. Most models do not include layers and the anatomical separation of forward and back pathways 5. There are many more recurrent+feedback connections than feed-forward connections (the

• pposite is true about models…)

Firing rate network models – A simple feedforward circuit

• Time scales > ~ 1 ms
• Analytic calculations in

some cases

• Fewer free parameters

than spiking models

• Easier/faster to

simulate

Is = wb dτKs(t − τ)ub(τ)

−∞ t

∫

b=1 N

∑

τ s dIs dt = −Is + wbub

b=1 N

∑

Ks(t) = (1/τ s)exp(−t /τ s)

Is = total synaptic current N = total number of inputs wb = synaptic weights Ks(t) = synaptic kernel ub = input firing rates

if

) (

s

I F v =

+

− = ] [ ) ( γ

s s

I I F

F can be a sigmoid function Or a threshold linear function:

Learning from examples – The perceptron

Imagine that we want to classify the inputs u into two groups “+1” and “-1” w → w +  2 vm − v(um)

( )um

Perceptron learning rule Training examples: {um,vm} Linear separability: can attain zero error Cross-validation: use separate training and test data There are several more sophisticated learning algorithms

Learning from examples – Gradient descent

Now imagine that v is a real value (as opposed to binary) u = f(s) v(s) = w.u We want to choose the weights so that the output approximates some function h(s) w → w + ε∇wE ∇wE = ∂E ∂wb ⎡ ⎣ ⎢ ⎤ ⎦ ⎥

E = 1 2 h(sm) − v(sm)

( )

2 m=1 NS

∑

Example: digit recognition in a feed-forward network trained by gradient descent

LeCun, Y., L. Bottou, Y. Bengio, and P. Haffner. 1998. Gradient-based learning applied to document

• recognition. Proc of the IEEE 86:2278-2324.

Example of hand- written digits (MINT database) Classification error rates Misclassified examples

The “blue brain” modeling project

• http://bluebrain.epfl.ch
• IBM’s Blue gene supercomputer
• “Reverse engineer” the brain in a “biologically accurate” way
• November 2007 milestone: 30 million synapses in “precise” locations to model

a neocortical column

• Compartmental simulations for neurons
• Needs another supercomputer for visualization (10,000 neurons, high quality

mesh, 1 billion triangles, 100 Gb) QUESTION: What is the “right” level of abstraction needed to understand the function of cortical circuitry?

A case study in collective computation

Hopfield, J. J. 1982. Neural networks and physical systems with emergent collective computational abilities. PNAS 79:2554-2558. Tank, D., and J. Hopfield. 1987. Collective computation in neuron-like circuits. Scientific American 257:104-114

Primer on Hopfield networks

• Hopfield. Hopfield Networks. Scholarpedia

OUTLINE

• 1. Why theoretical neuroscience?
• 2. Single neuron models
• 3. Network models
• 4. Algorithms and methods for data analysis

Some examples of computational algorithms and methods

• Different techniques for time-frequency analysis of neural signals (e.g. Pesaran

et al 2002, Fries et al 2001)

• Spike sorting (e.g. Lewicki 1998)
• Machine learning approaches to decoding neuronal responses (e.g. Hung et al

2005, Wilson et al 1993, Musallam et al 2004)

• Information theory (e.g. Abbott et al 1996, Bialek et al 1991, )
• Neural coding (e.g. Gabbiani et al 1998, Bialek et al 1991)
• Definition of spatio-temporal receptive fields, phenomenological models,

measures of neuronal synchrony, spike train statistics

Further reading

• Abbott and Dayan. Theoretical Neuroscience - Computational and

Mathematical Modeling of Neural Systems [2001] (ISBN 0-262-04199-5). MIT Press.

• Koch. Biophysics of computation [1999] (ISBN 0-19-510491-9).

Oxford University Press.

• Hertz, Krogh, and Palmer, Introduction to the theory of neural
• computation. [1991] (ISBN 0-20151560-1). Santa Fe Institute Studies

in the Sciences of Complexity.

• Gabbiani and Cox. [2010]. Mathematics for Neuroscientists

(London: Academic Press).
