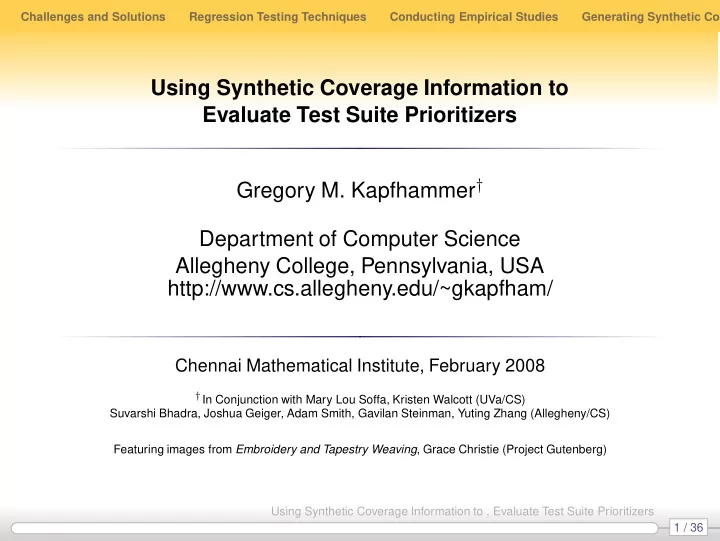

Using Synthetic Coverage Information to Evaluate Test Suite Prioritizers Gregory M. Kapfhammer† Department of Computer Science Allegheny College, Pennsylvania, USA http://www.cs.allegheny.edu/~gkapfham/

Chennai Mathematical Institute, February 2008

†In Conjunction with Mary Lou Soffa, Kristen Walcott (UVa/CS)

Suvarshi Bhadra, Joshua Geiger, Adam Smith, Gavilan Steinman, Yuting Zhang (Allegheny/CS) Featuring images from Embroidery and Tapestry Weaving, Grace Christie (Project Gutenberg) 1 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Presentation Outline

1

Challenges and Solutions

2

Regression Testing Techniques

3

Conducting Empirical Studies

4

Generating Synthetic Coverage

5

Empirical Evaluation

6

Future Work

7

Conclusions

2 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

The Challenge of Software Testing

I shall not deny that the construction of these testing programs has been a major intellectual effort: to convince oneself that one has not overlooked “a relevant state” and to convince oneself that the testing programs generate them all is no simple matter. The encouraging thing is that (as far as we know!) it could be done. Edsger W. Dijkstra, Communications of the ACM, 1968 Additional Challenge: empirically evaluating the efficiency and effectiveness of software testing techniques

3 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Important Contributions

Synthetic Coverage Generators

sss − covers

ssm − covers

ssl − covers

Detailed Experimental Results

A comprehensive framework that supports the empirical evaluation of regression test suite prioritizers

4 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Presentation Outline

1

Challenges and Solutions

2

Regression Testing Techniques

3

Conducting Empirical Studies

4

Generating Synthetic Coverage

5

Empirical Evaluation

6

Future Work

7

Conclusions

5 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Approaches to Software Testing

Testing Structural

Input Space

Testing Random Specification Testing

Regression Testing

Testing isolates defects and establishes a confidence in the correctness of a software application

6 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

What is a Test Case?

Input Method Under Test Output Test Oracle Expected Output Verdict Tear Down Set Up

Overview

Test suite executor runs each test case independently Each test invokes a method within the program and then compares the actual and expected output values

7 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Test Coverage Monitoring

Program Instrumentation Adequacy Criterion Residual Test Requirements Cummulative Adequacy Calculator Instrumented Program Test Suite Execution Covered Requirements

Overview

Structural adequacy criteria focus on the coverage of nodes, edges, paths, and definition-use associations Instrumentation probes track the coverage of test requirements

8 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Finding the Overlap in Coverage

T2 T3 T6 T9 R R1 R2 T4 T8 R3 T12 T1 R4 T11 T5 R5 R6 T7 R7 T10

Rj → Ti means that requirement Rj is covered by test Ti T = T2, T3, T6, T9 covers all of the test requirements Include the remaining tests so that they can redundantly cover the requirements

9 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Regression Test Suite Prioritization

Begin Coverage Report End VSRT Repeat Program Test Suite Prioritization Original Test Suite Modified Test Suite Test Suite Execution Testing Results GRT Repeat

Overview

Prioritization re-orders the tests so that they cover the requirements more effectively Researchers and practitioners need to determine whether the prioritized test suite is better than the original ordering

10 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Presentation Outline

1

Challenges and Solutions

2

Regression Testing Techniques

3

Conducting Empirical Studies

4

Generating Synthetic Coverage

5

Empirical Evaluation

6

Future Work

7

Conclusions

11 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Using Real World Applications

Regression Test Suite Program Under Test

It is difficult to systematically study the efficiency and effectiveness trade-offs because coverage overlap varies

12 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Coverage Effectiveness Metric

Testing Time

. . .

Covered Test Reqs

T1 Done Tn−1 Done Tn Done Cover R(T1) Cover n−1

i=1 R(Ti)

Cover R(T) Area t(n) C(T, t)

C(T,t)

(t)

Prioritize to increase the CE of a test suite CE = Actual Ideal ∈ [0, 1]

13 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Characterizing a Test Suite

Test Information

Test Case Cost (sec) Requirements R1 R2 R3 R4 R5 T1 5

• T2

10

• T3

4

• Total Testing Time = 19 seconds

Formulating the Metrics CE considers the execution time of each test while CEu assumes that all test cases execute for a unit cost

14 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Coverage Effectiveness Values

Calculating CE and CEu

Ordering CE CEu T1 T2 T3 .3789 .4 T1 T3 T2 .5053 .4 T2 T1 T3 .3789 .5333 T2 T3 T1 .4316 .6 T3 T1 T2 .5789 .4557 T3 T2 T1 .5789 .5333

Observations

Including test case costs does impact the CE metric Depending upon the characteristics of the test suite, we may see CE = CEu, CE > CEu, or CE < CEu

15 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Comparing Prioritization Techniques

GPO GPC GPV GPR RVP ORP RAP 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 Coverage Effectiveness Prioritization Technique Comparing Test Suite Prioritizers

Does this result generalize to other applications?

16 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Presentation Outline

1

Challenges and Solutions

2

Regression Testing Techniques

3

Conducting Empirical Studies

4

Generating Synthetic Coverage

5

Empirical Evaluation

6

Future Work

7

Conclusions

17 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Test Suites and Requirements

Regression Test Suite T = T1, . . . , Tn Ti ∈ T Test Requirements R = {R1, . . . , Rm} Rj ∈ R covers(i) denotes the set of requirements that Ti covers coveredby(j) denotes the set of test cases that cover Rj Goal: automatically generate a synthetic regression test suite T that covers the requirements in R

18 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Coverage Overlap Metrics

T1 R1 R2 R3 T2 R4 R5 R6 T3 R7 R8 R9 T4

NCO(i, k) = (R \ covers(i)) ∩ (R \ covers(k)) NCO(1, 2) = {R7, R8, R9} JCO(i, k) = covers(i) ∩ covers(k) JCO(1, 2) = {R2, R3, R4} TCO(i, k) = NCO(i, k) ∪ JCO(i, k) TCO(1, 2) = {R2, R3, R4, R7, R8, R9}

19 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Standard Coverage Generation

# Tests (n)

Coverage Generator

# Requirements (m) # Coverage Points (p) Balancing Approach (b) Synthetic Test Suite (T,R,time)

Generation Procedure

Guarantee that each requirement is covered by a test case and that all tests cover at least one requirement Balance the coverage information according to the cardinality of either the covers(i) or the coveredby(j) sets

20 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Configuring the Standard Generator

Number Small Medium Large Tests (n) 10 50 100 Requirements (m) 2 × n 5 × n 10 × n Coverage Points (p) (n × m)/5 (n × m)/3 (n × m)/2 Generating Coverage

Configuration sss generates 10 tests, 20 requirements, and 40 coverage points Configuration lll generates 100 tests, 1000 requirements, and 50, 000 coverage points For all of the above configurations, the generation procedure consumes less than one second of execution time

21 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

“Greedy Fooling” Coverage Generation

T1 R1 R2 R3 T2 T3 T4 Generation Procedure

The greedy test prioritizer iteratively selects test cases according to the (coverage / cost) ratio Goal: generate coverage and timing information that will fool the greedy technique into creating T ′ = Tn, . . . , T1 even though CE(T ′) < CE(T) for T = T1, . . . , Tn Inspiration: Vazirani’s construction of a tight example for the greedy minimal set cover algorithm

22 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Constructing “Greedy Fooling” Test Suites

T1 R1 R2 R3 T2 T3 T4

Approach: use one dimensional optimization (e.g., golden section search and successive parabolic interpolation) to pick a value for cost(Tn) Construction: set cost(T1) = cost(T2) = cost(T3) = 1 and then determine the bounds for cost(T4) ∈ [Cmin, Cmax] Example: cost(T4) ∈ [2.138803, 2.472136] so that CEmin(T ′) = .5838004 CEmin(T) = .6108033 CEmax(T ′) = .5482172 CEmax(T) = .6345125

23 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Presentation Outline

1

Challenges and Solutions

2

Regression Testing Techniques

3

Conducting Empirical Studies

4

Generating Synthetic Coverage

5

Empirical Evaluation

6

Future Work

7

Conclusions

24 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Overlap Metrics - Small Test Suite

NCO JCO TCO 0.0 0.2 0.4 0.6 0.8 1.0 Overlap Metric Overlap Score

sss − covers

NCO JCO TCO 0.0 0.2 0.4 0.6 0.8 1.0 Overlap Metric Overlap Score

ssm − covers

NCO JCO TCO 0.0 0.2 0.4 0.6 0.8 1.0 Overlap Metric Overlap Score

ssl − covers

Increasing the value of p changes the coverage overlap metrics

25 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Overlap Metrics - Large Test Suite

NCO JCO TCO 0.0 0.2 0.4 0.6 0.8 1.0 Overlap Metric Overlap Score

lls − covers

NCO JCO TCO 0.0 0.2 0.4 0.6 0.8 1.0 Overlap Metric Overlap Score

llm − covers

NCO JCO TCO 0.0 0.2 0.4 0.6 0.8 1.0 Overlap Metric Overlap Score

lll − covers

Increasing test suite size tightens the coverage overlap metrics

26 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Greedy Fooling Time - Small Test Suite

10 20 30 40 50 60 70 80 90 100 1.0 1.5 2.0 2.5 Size of the Test Suite (n) Execution Time (sec) Generation of Greedy Fooling Test Suites

The generation of a small test suite takes less than 3 seconds

27 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Greedy Fooling Time - Large Test Suite

100 200 300 400 500 600 700 800 900 1000 10 20 30 40 50 Size of the Test Suite (n) Execution Time (sec) Generation of Greedy Fooling Test Suites

The generation of a large test suite takes up to 50 seconds

28 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Greedy Fooling Iterations - Small Test Suite

10 20 30 40 50 60 70 80 90 100 8 9 10 11 12 13 Number of Iterations (count) Size of the Test Suite (n) Generation of Greedy Fooling Test Suites

Finding a bound for cost(Tn) requires few iterations of the optimizer

29 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Greedy Fooling Iterations - Large Test Suite

100 200 300 400 500 600 700 800 900 1000 13 14 15 16 17 18 Number of Iterations (count) Size of the Test Suite (n) Generation of Greedy Fooling Test Suites

Increasing the value of n does not markedly increase the iteration count

30 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Cost of Coverage Generation

Testing Time

. . .

Covered Test Reqs

T1 Done Tn−1 Done Tn Done Cover R(T1) Cover n−1

i=1 R(Ti)

Cover R(T) Area t(n) C(T, t)

C(T,t)

(t)

The cost of generation is dominated by numerical integration’s cost

31 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Fooling the Greedy Prioritizer

n Cmin Cmax CEmin(T ′) CEmax(T ′) CEmin(T) CEmax(T) 10 5.2786 8.541 0.63031 0.51308 0.64983 0.71519 20 10.1320 18.885 0.65222 0.50150 0.65670 0.73680 30 15.1970 28.967 0.65616 0.50000 0.66076 0.74138 40 20.2630 38.622 0.65809 0.50243 0.66256 0.74239 50 25.3290 48.936 0.65922 0.50000 0.66354 0.74490 60 30.0610 58.723 0.66246 0.50117 0.66320 0.74514 70 35.1090 68.510 0.66276 0.50178 0.66377 0.74551 80 40.1240 78.948 0.66318 0.50000 0.66429 0.74684 90 45.1400 88.816 0.66347 0.50000 0.66448 0.74693 100 50.1550 98.684 0.66374 0.50000 0.66460 0.74707

32 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Presentation Outline

1

Challenges and Solutions

2

Regression Testing Techniques

3

Conducting Empirical Studies

4

Generating Synthetic Coverage

5

Empirical Evaluation

6

Future Work

7

Conclusions

33 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Search-Based Test Suite Prioritization

20 40 60 80 100 120 0.50 0.55 0.60 0.65 0.70 0.75 Test Prioritization Index Coverage Effectiveness Value Coverage Effectiveness Values

Use heuristic search (HC, SANN, GA) to prioritize the test suite

34 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Detailed Empirical Evaluations

Synthetic Test Suites Real World Programs

Systematically study the efficiency and effectiveness trade-offs with synthetic coverage and then conduct further experimental studies with real world applications

35 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers

Challenges and Solutions Regression Testing Techniques Conducting Empirical Studies Generating Synthetic Coverage

Concluding Remarks

# Tests (n)

Coverage Generator

# Requirements (m) # Coverage Points (p) Balancing Approach (b) Synthetic Test Suite (T,R,time)

Synthetic Coverage Generators

sss − covers

ssm − covers

ssl − covers

Detailed Experimental Results

A comprehensive framework that furnishes a new perspective

• n the empirical evaluation of regression test suite prioritizers

http://www.cs.allegheny.edu/~gkapfham/

36 / 36 Using Synthetic Coverage Information to , Evaluate Test Suite Prioritizers
