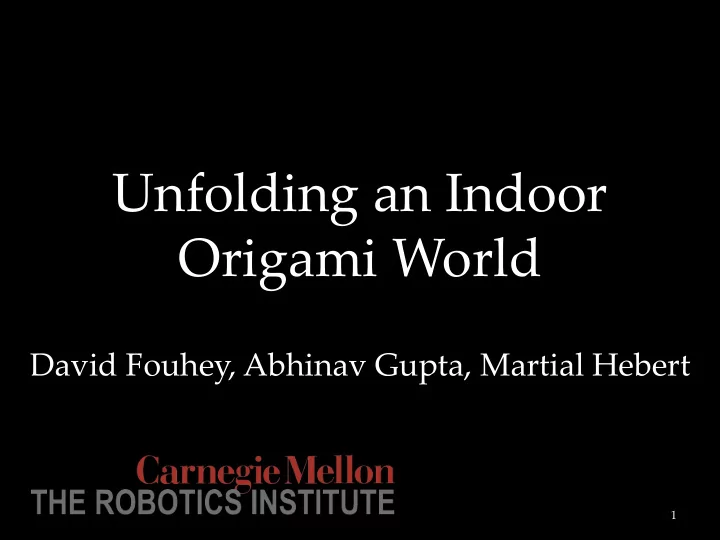

Unfolding an Indoor Origami World
David Fouhey, Abhinav Gupta, Martial Hebert
1
2
Unfolding an Indoor Origami World David Fouhey, Abhinav Gupta, - - PowerPoint PPT Presentation
Unfolding an Indoor Origami World David Fouhey, Abhinav Gupta, - - PowerPoint PPT Presentation
Unfolding an Indoor Origami World David Fouhey, Abhinav Gupta, Martial Hebert 1 2 3 Local Evidence Hoiem et al. 2005, Saxena et al. 2005, Fouhey et al. 2013, etc. 4 Constraints 5 Constraints for Single Image 3D Local Smoothness Low
SLIDE 2
SLIDE 3
3
SLIDE 4
Local Evidence
4
Hoiem et al. 2005, Saxena et al. 2005, Fouhey et al. 2013, etc.
SLIDE 5
Constraints
5
SLIDE 6
Constraints for Single Image 3D
6
Local Smoothness
Low Level, Generic
Hoiem et al. 2005, Saxena et al. 2005, 2008, Munoz et al., 2009, etc.
SLIDE 7
Constraints for Single Image 3D
7
Local Smoothness
Low Level, Generic
Hoiem et al. 2005, Saxena et al. 2005, 2008, Munoz et al., 2009, etc.
SLIDE 8
Constraints for Single Image 3D
8
Low Level, Generic High Level, Physical
SLIDE 9
High Level, Physical
Constraints for Single Image 3D
9
Local Smoothness
Low Level, Generic
Coughlan and Yuille 2000, etc.
SLIDE 10
High Level, Physical
Constraints for Single Image 3D
10
Local Smoothness
Low Level, Generic
Hedau et al. 2009, Del Pero et al., 2011, Wang et al., 2012, Schwing et al. 2012, etc.
SLIDE 11
High Level, Physical
Constraints for Single Image 3D
11
Local Smoothness
Low Level, Generic
Lee et al. 2010, Xiao et al. 2012, Zhao et al. 2013, Schwing et al., 2013, etc.
SLIDE 12
High Level, Physical
Constraints for Single Image 3D
12
Low Level, Generic
SLIDE 13
Mid-level in the Past
13
Huffman 71, Clowes 71, Kanade 80, 81 Sugihara 86, Malik 87, etc.
SLIDE 14
Our Mid-Level Constraints
14
SLIDE 15
This Work
15
Input: Single Image Output: Discrete Scene Parse
SLIDE 16
Overview
16
Parameterization Formulation Experimental Results
SLIDE 17
Overview
17
Parameterization Formulation Experimental Results
SLIDE 18
Parameterization
18
SLIDE 19
Parameterization
19
vp1 vp2 vp3
VP Estimator from Hedau et al., 2009
SLIDE 20
Parameterization
20
Two VPs give grid cell
SLIDE 21
Encoding Surface Normals
21
SLIDE 22
Encoding Surface Normals
22
SLIDE 23
Encoding Surface Normals
23
SLIDE 24
Encoding Surface Normals
24
x1,…, x400 x401,…, x800 x801,…, x1200
SLIDE 25
Related Parameterizations
25
vp1 vp3
x2 x1 x3 x4
Hedau et al., 2009; Wang et al. 2010, Schwing et al., 2012, 2013
vp2
SLIDE 26
Overview
26
Parameterization Formulation Experimental Results
SLIDE 27
Parameterization
27
SLIDE 28
Formulation
28
SLIDE 29
Unaries
29
SLIDE 30
Unaries
30
Low c Any 3D Evidence High c
SLIDE 31
Unaries
31
…
Input 3D Primitive Bank
Local: Data-Driven 3D Primitives
Fouhey, Gupta, Hebert, 2013
SLIDE 32
Unaries
32
Hedau, Hoiem, Forsyth, 2009
Global: Cuboid Fit + Clutter Mask
Input Predicted Walls Clutter Mask
SLIDE 33
Binaries
33
SLIDE 34
Convex/Concave Constraints
34
Convex (+) Concave (-)
SLIDE 35
Convex/Concave Constraints
35
Detected Concave (-)
SLIDE 36
Convex/Concave Constraints
36
Detected Concave (-)
SLIDE 37
Convex/Concave Constraints
37
Detected Concave (-)
SLIDE 38
Convex/Concave Constraints
38
Detected Concave (-)
SLIDE 39
Convex/Concave Constraints
39
Detected Concave (-)
SLIDE 40
Detecting Convex/Concave
40
Ground-Truth Discontinuities similar to Gupta, Arbelaez, Malik, 2013 3DP from Fouhey, Gupta, Hebert, 2013
Input 3D Primitive Bank
…
Use 3DP to Transfer Discontinuities
SLIDE 41
Smoothness
41
SLIDE 42
Constraints
42
SLIDE 43
Solving the Model
43
SLIDE 44
Overview
44
Parameterization Formulation Experimental Results
SLIDE 45
Dataset
NYU Depth v2: 795 Train, 654 Test
45
SLIDE 46
Qualitative Results
46
SLIDE 47
Qualitative Results
47
SLIDE 48
Qualitative Results
48
SLIDE 49
Qualitative Results
49
SLIDE 50
Surface Connection Graphs
50
Convex Concave
SLIDE 51
Baseline
Primary Baseline: 3D Primitives
51
Fouhey, Gupta, Hebert, 2013
Output Input
SLIDE 52
Quantitative Results
52
Summary Stats (⁰) (Lower Better) % Good Pixels (Higher Better)
11.25⁰ 22.5⁰ 30⁰ Mean Median
3DP 35.9 52.0 57.8 36.0 20.5 49.4 Hedau et al. 34.2 49.3 54.4 40.0 23.5 54.1
RMSE
Lee et al. 18.6 38.6 49.9 43.3 36.3 54.6 Proposed 37.6 53.3 58.9 35.1 19.2 48.7
SLIDE 53
Quantitative Results
53
SLIDE 54
Failure Modes
Mistaken but Confident Evidence
54
SLIDE 55
Failure Modes
55
Missing High-Level Modeling
SLIDE 56
Conclusions
56
Single Image Parameterization Formulation Discrete Parse
SLIDE 57
Thank You
