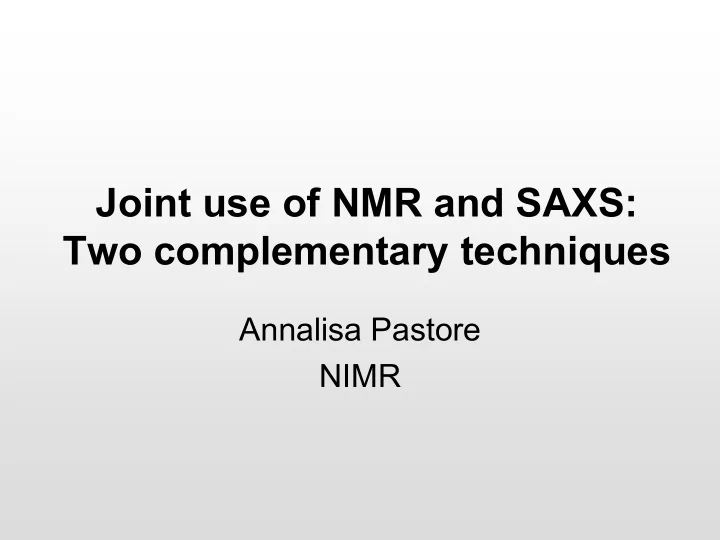

Joint use of NMR and SAXS: Two complementary techniques

Annalisa Pastore NIMR

slide-2
SLIDE 2

We need both…

Details Full picture

slide-3
SLIDE 3

The main techniques to solve structure

Nuclear Magnetic Resonance X-ray crystallography Electron Microscopy

slide-4
SLIDE 4

Today number of structures in PDB

02/05/13 90206 structures NMR EM 538 9905 X-ray 79,541

slide-5
SLIDE 5

We all have limits…

slide-6
SLIDE 6

The limits of X-ray…

slide-7
SLIDE 7

The linewidth is roughly proportional to the correlation time

We are limited in the molecular size we can afford…

slide-8
SLIDE 8

We think of proteins as globular

  • bjects…

Instead….

slide-9
SLIDE 9

…combinatorial possibilities

A limited number of building blocks is sufficient to produce different proteins...

slide-10
SLIDE 10

Proteins are like tangrams…

A limited number of building blocks is sufficient to produce different figures

slide-11
SLIDE 11

A cut-and-paste approach

slide-12
SLIDE 12

Cut-and-paste…

Solve the structures of individual parts… …and riconstruct the overall picture by SAXS

slide-13
SLIDE 13

Some examples

  • Titin: how to obtain the overall shape
  • Ataxin 3: how to validate a structure
  • High molecular weight complexes
slide-14
SLIDE 14

The Sarcomere

slide-15
SLIDE 15

How can we solve the structure

  • f titin?
  • It is 3 Million Da (ca. 27,000 residues)
  • It is a filament ca. 1 m long
slide-16
SLIDE 16

Selection of three modules as:

A71

slide-17
SLIDE 17

What is their relative orientation?

slide-18
SLIDE 18

Titin modules are assembled as beads in a necklace

slide-19
SLIDE 19

Bases of passive elasticity

Von Castelmur et al., PNAS 2007

slide-20
SLIDE 20

The case of ataxin-3

slide-21
SLIDE 21

It leads to great motor disability, without ever altering the intellect, until the death of the patient.

Spinocerebellar ataxia type-3 (SCA3) or Joseph-Machado disease (MJD) is hereditary and dominant

Thought to have originated from founders in the Iberia Peninsula, who migrated to the Azores and to other countries including Japan It is caused by polyQ expansion in ataxin 3, a small protein (42 kDa) mapped on chromosome 14 (14q32.1)

slide-22
SLIDE 22

PolyQ diseases are dominant hereditary pathologies caused by a trinucleotide expansion

CAG Expansion in coding regions (CAG)n (Gln)n n<35 folded protein n>35 Toxic aggregates

At least 8 Polyglutamine (polyQ) expansion diseases

Apoptosis

slide-23
SLIDE 23

The solution structure of ataxin-3

…consists of the Josephin domain and of an unstructured tail which comprises polyQ

Masino et al. (2002) Febs Lett. 513, 267-272 Josephin

polyQ

slide-24
SLIDE 24

GST-Ub52 Glu9 Cys14 His119 Asn134

Josephin is a polyUb cysteine protease

Josephin 1-182

polyQ

slide-25
SLIDE 25

The hairpin behaves as a waving hand

MD simulations

slide-26
SLIDE 26

One month later…

Which is the correct structure?

2aga 1yzb

slide-27
SLIDE 27

Small angle scattering

Only one structure fits the data: ours!!!

slide-28
SLIDE 28

Structure of the josephin/Ubiquitin complex

Complex josephin/ distal Ub

slide-29
SLIDE 29

Friedreich’s ataxia

A lethal neurodegenerative disease

  • Is the most frequent hereditary ataxia
  • 1 in 50,000 affected individuals

but (being recessive)

  • 1 in 120 carriers in European population!!!

Associated with: – Progressive gait and limb ataxia – Lack of leg reflexes – Disarthria – Diabetes mellitus

  • Death often caused by cardio-hypertrophy
slide-30
SLIDE 30

and partial silencing of frataxin

Friedreich’s ataxia is caused by expansion of the trinucleotide GAA

Campuzzano et al., 1996

slide-31
SLIDE 31

What is frataxin function?

A thick fog…

slide-32
SLIDE 32

Increasing evidence links frataxin to Fe-S cluster assembly…

Bioinformatic evidence Huynen et al. (2001) Hum. Mol.

  • Genet. 10, 2463-2468

Genetic and biochemical evidence Gerber et al. (2003) EMBO reports 9, 906 Layer et al. (2006) JBC 10,1074 Muhlenhoff et al. (2002) EMBO J. 22, 4815 Ramazzotti et al. (2004) FEBS Lett. 557, 215 Yoon and Cowan (2003) JACS 125, 6078

GST-pull down

slide-33
SLIDE 33

Iron sulfur clusters

Iron sulphur clusters are the eldest response to the problem of storing iron and sulfur in a non-toxic form

slide-34
SLIDE 34

2Cys 2Ala + S-S Converts Cys into Ala

Fe-S assembly is centred on a desulphurase and a transient acceptor

IscS dimer = desulphurase IscS iscU Cys Ala Fe2+ IscS iscU IscS iscU

+

slide-35
SLIDE 35

Frataxin binds IscS weakly but stoichiometrically

Kd 27+/- 2 uM N 0.97 +/- 0.05 Calorimetry studies

We pull-down endogenous IscS IscS is bound to IscU

Frataxin

slide-36
SLIDE 36

We have the structures of all three components…

What is the structure of the complex?

slide-37
SLIDE 37

Getting crystals of IscS/IscU or IscS/frataxin complexes

A different approach… based on NMR, SAXS and mutagenesis

slide-38
SLIDE 38

SAXS (Small-angle X-ray Scattering)

slide-39
SLIDE 39

SAXS on IscS

slide-40
SLIDE 40

SAXS DATA on IscS+IscU IscS – IscU

slide-41
SLIDE 41

SAXS of IscS+frataxin

slide-42
SLIDE 42

How can we get the interaction surfaces?

IscS frataxin IscU

slide-43
SLIDE 43

The interacting surface maps

  • nto a conserved region of CyaY

the residues involved are those necessary for iron binding!

slide-44
SLIDE 44

180° IscU

Interacting surface on IscU

slide-45
SLIDE 45

HADDOCK calculations

slide-46
SLIDE 46

OUR SAXS + NMR model…

slide-47
SLIDE 47

pdb: 3LVL

slide-48
SLIDE 48

The crystal structure in our model…

slide-49
SLIDE 49

The low resolution structure of the CyaY/IscS complex

R220 R223 R225

slide-50
SLIDE 50

The ternary IscS/IscU/CyaY complex

The interaction is iron independent

slide-51
SLIDE 51

Validating the model…

slide-52
SLIDE 52

Search for a complementary patch of residues on IscS

slide-53
SLIDE 53

Only IscS_R220ER223ER225E mutant abolishes binding to frataxin

slide-54
SLIDE 54

We are now using this approach…

110 kDa complexes and more…

slide-55
SLIDE 55

Saxs and NMR as complementary techniques! To model big multidomain proteins and complexes To validate a structure

slide-56
SLIDE 56

Acknowledgements

Titin project: Sabina Improta, Mark Pfuhl, Claudia Muhle, Catherine Joseph Siegfried Labeit (EMBL), Mathias Gautel (EMBL), Jill Trewhella (Los Alamos) Ataxin-3 project: Giuseppe Nicastro, Laura Masino Dmitri Svergun (EMBL) Frataxin project: Filippo Prischi, Salvatore Adinolfi, Clara Iannuzzi, Peter Konarev and Dmitri Svergun (EMBL)

slide-57
SLIDE 57

Experimental Hutch

slide-58
SLIDE 58

Nuclear Overhauser Effect (NOE) for protons at distance not > 5 A

slide-59
SLIDE 59

Distance restraints

slide-60
SLIDE 60

NOESY

2D NOE map (NOESY): a distance map of the molecule

slide-61
SLIDE 61

A distance map of the protein

slide-62
SLIDE 62

NMR SAXS

A pact of friendship...

slide-63
SLIDE 63

We need both…
