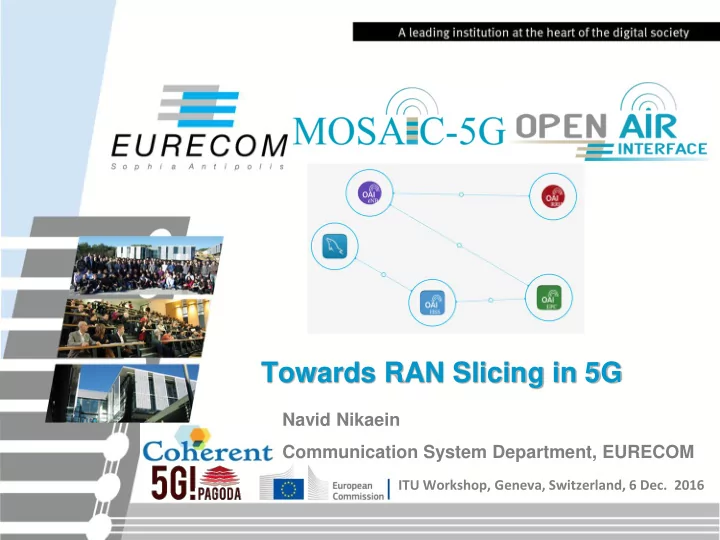

Towards RAN Slicing in 5G Navid Nikaein Communication System - - PowerPoint PPT Presentation

Navid Nikaein Communication System Department, EURECOM

Towards RAN Slicing in 5G

ITU Workshop, Geneva, Switzerland, 6 Dec. 2016

Demo Setup

• p 2

ITU workshop, Geneva, Switzerland 2016

RAN Slicing and Sharing Sample Results

• 3 slices:
• Slice-specific scheduling
• Dynamic Slice Resource management

– Enforce different policies over time

ITU workshop, Geneva, Switzerland 2016

• p 3

1000 2000 3000 4000 5000 6000 0.1 0.2 0.3 0.4 0.5 0.6 0.7 Rate(KB/s) Complementary CDF DL Throughput

eMBB Slice DL Throughput URLLC Slice DL Throughput mMTC Slice DL Throughput

1 2 3 4 5 6 x 10

4

1000 2000 3000 4000 5000 6000 Time(ms) DL Throughput (kB/s) DL Rate

eMBB Slice DL Throughput URLLC Slice DL Throughput mMTC Slice DL Throughput

Backhaul Control Channel Requirements Measurement Results

Agent-to-controller Controller-to-agent Control-channel- latency

• Realtime Control requires low-latency high capacity

backhaul

• p 4

ITU workshop, Geneva, Switzerland 2016

Fronthaul Requirements Measurement results

5MHZ, SISO, FDD 10MHZ, SISO, FDD

• Fronthaul capacity depends on man factors
• Split, compression, protocol, BW, #RE/UE/RRU, #Antenna/Sectors,

#CC

• p 5

ITU workshop, Geneva, Switzerland 2016

Converged Flexhaul for 5G

• Tow type of xhaul
• Low latency
• High latency
• Various topologies
• multi-tier – flat
• Mesh – tree
• Switching vs

routing

• Aggregation
• Distribution
• Data-plane

accelerations

• DPDK, NETMAP
• p 6

“RAN” Cloud Heterogeneous PDCP

LTE-PHY Radio

LTE-RLC LTE-MAC LTE-PHY 5G-RLC 5G-MAC 5G-PHY 5G-PHY Radio 5G-RLC 5G-MAC 5G-PHY

5G CORE and Control Low latency FH Split

LTE-RLC LTE-MAC LTE-PHY WIFI MAC WIFI PHY

Higher latency FH Split RRC MME High capacity Backhaul Capacity-Limited Backhaul MME RRC

ITU workshop, Geneva, Switzerland 2016

Want to know more about RAN slicing demo?

Please feel free to come and checkout the demo

ITU workshop, Geneva, Switzerland 2016
