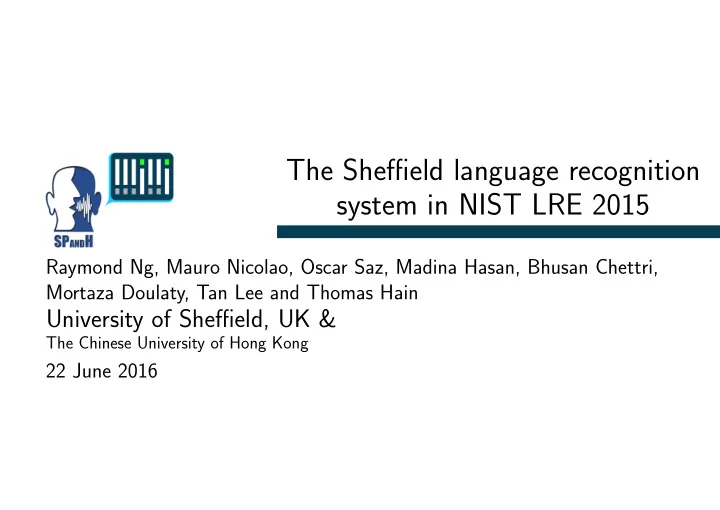

The Sheffield language recognition system in NIST LRE 2015

Raymond Ng, Mauro Nicolao, Oscar Saz, Madina Hasan, Bhusan Chettri, Mortaza Doulaty, Tan Lee and Thomas Hain

University of Sheffield, UK &

The Chinese University of Hong Kong

22 June 2016

Introduction Segmentation Component systems System fusion Conclusion

2 of 24

Introduction

Background: Classical approaches with acoustic-phonetic and phonotactic features [Zissman 1996;

Ambikairajah et al. 2011; Li et al. 2013]

Shifted-delta cepstral coefficient [Torres-Carrasquillo et al. 2002] I-vectors [Dehak, Torres-Carrasquillo, et al. 2011; Martinez et al. 2012], DNN [Ferrer et al. 2014;

Richardson et al. 2015] and their combination [Ferrer et al. 2016]

Sheffield LRE system: four LR systems I-vector Phonotactic “Direct” DNN Bottleneck + I-vector 3 of 24

Data and target language

Training data Switchboard 1, Switchboard Cellular Part 2 LRE 2015 Training data

Cluster Target languages Arabic Egyptian (ara-arz), Iraqi (ara-acm), Levantine (ara-apc), Maghrebi (ara-ary), Modern Standard (ara-arb) English British (eng-gbr), General American (eng-usg), Indian (eng-sas) French West African (fre-waf), Haitian Creole (fre-hat) Slavic Polish (qsl-pol), Russian (qsl-rus) Iberian Caribbean Spanish (spa-car), European Spanish (spa-eur), Latin American Spanish (spa-lac), Brazilian Portuguese (por-brz) Chinese Cantonese (zho-yue), Mandarin (zho-cmn), Min (zho-cdo), Wu (zho-wuu)

4 of 24

Voice activity detection

Training data: CTS data: CMLLR+BMMI SWB model → alignment → SIL vs non-SIL BNBS data: VAD reference from 1% of VOA2, VOA3 files Class balancing: add more non-speech data

Duration Dataset (Speech) (Non–speech) Switchboard 1 210h 288h VOA2 55h 61h VOA3 93h 72h Total 358h 421h

5 of 24

Voice activity detection

DNN frame-based Speech / non-speech classifier Features: Filterbank (23D) ±15 frames, DCT across time → 368 Framewise classification: DNN 368-1000-1000-2, lr: 0.001, newbob Sequence alignment: 2-state HMM, minimum state-duration 20 frames (200ms) Smoothing: Merging heuristics to bridge non-speech gaps < 2 seconds Results (collar:10ms)

Dataset Duration Miss False alarm SER Switchboard 1 17.3h 2.21% 2.63% 4.84% VOA2-test 7.9h 19.43% 78.61% 98.04%

6 of 24

Segmentation of LRE data

V1 (30s) and V3 (3s, 10s, 30s) V1 data VAD, sequence alignment, smoothing Filtering (20s ≤ segment length < 45s) Total 147.8h V3 data Phone decoding with SWB tokeniser (and V1 segmentation) Resegmentation (30s) 320.5h (10s) 262.0h (3s) 308.4h Data partition 80% train, 10% development, 10% internal test 7 of 24

NIST LRE 2015 primary system

I-­‑vector ¡ DNN ¡ Phonotac0c ¡ Switchboard ¡ tokeniser ¡ SVM ¡classifier ¡ VAD ¡ Frame-­‑based ¡ Language ¡DNN ¡ BoCleneck ¡ features ¡ SVM ¡/ ¡LogReg ¡ UBM ¡/ ¡Tv ¡ training ¡ Gaussian ¡backend ¡ Gaussian ¡backend ¡ System ¡fusion ¡

8 of 24

I-vector LR system

Feature processing Normalisation: VTLN Shifted delta cepstrum: 7 + 7-1-3-7 [Torres-carrasquillo et al. 2002] Mean normalisation and frame-based VAD UBM and total variability UBM: 2048, full-covariance GMM Total variability: 114688 × 600 [Dehak, Kenny, et al. 2011] Language classifier Support vector machine Logistic regression classifier Focus of study Data in UBM, total variability matrix training Language classifier Global / within-cluster classifier 9 of 24

I-vector LR system: results on V1 data

Configurations:

A: UBM & total variability (Tv) matrix trained on 148h selected data B: Augmenting the UBM & Tv training data in A to full training set (884h) C: Using Logistic regression (LogReg) instead of SVM as LR classifier D: Augmenting LogReg training data in C to full training set (884h)

Observations: Within-cluster classifier outperforms

global classifier;

Best training data (UBM and Tv): 887h;

4 5 6 7 8 9 10 A A B C D Global Within-cluster Configurations Min DCF (%)

10.75 6.35 6.00 4.54 4.42

10 of 24

I-vector LR system: results on V3 data

Configurations:

B: Augmenting the UBM & Tv training data in A to full training set (884h) C: Using Logistic regression (LogReg) instead of SVM as LR classifier D: Augmenting LogReg training data in C to full training set (884h)

Observations: Within-cluster classifier outperforms

global classifier;

Best training data (LR classifier): 332h; Logistic regression outperforms SVM.

4 5 6 7 8 9 10 B C(V1) C C D Global Within-cluster Configurations Min DCF (%)

7.90 7.74 6.78 6.09 7.48

11 of 24

Phonotactic LR system

DNN phone tokeniser LDA, Speaker CMLLR 400-2048(× 6)-64-3815 DNN Phone-bigram LM (scale factor = 0.5) (Optional) sequence training on SWB data Langauge classifier: phone n-gram tf-idf statistics: Phone bi-gram / phone tri-gram ( 5M dimension) 12 of 24

Phonotactic LR system: results

Test on V1 30-second internal test data:

9 9.5 10 10.5 11 2-gram 3-gram DNN fMPE DNN Min DCF (%)

9.0 9.8 9.8 10.7

Observations 3-gram tf-idf outperforms 2-gram Discriminatively trained DNN ✗ Test on V3 30s data → 11.3% 13 of 24

DNN LR system

Features: 64-dimensional bottleneck features from the Switchboard tokeniser Feature splicing ± 4 frames Language recogniser: 576 - 750 × 4 - 20 Prior normalisation: Test probabilities multiplied by inverse of language

prior (train)

Decision: Frame-based language likelihood averaged over whole utterance 14 of 24

DNN LR system: results

Test on V1 and V3 (internal test) data with different durations

5 10 15 20 25 V1 V3 30 sec 10 sec 3 sec Test data Min DCF (%)

15.96 18.74 21.55 18.07 21.71

15 of 24

Enhanced system

I-­‑vector ¡ DNN ¡ Phonotac0c ¡ Switchboard ¡ tokeniser ¡ SVM ¡ VAD ¡ ASR-­‑based ¡silence ¡ detec0on ¡ Frame-­‑based ¡ Language ¡ DNN ¡ BoCleneck ¡ features ¡ Log ¡Reg ¡ UBM ¡/ ¡Tv ¡ training ¡ Gaussian ¡backend ¡ Gaussian ¡backend ¡ System ¡fusion ¡ BoCleneck ¡I-­‑vector ¡ Log ¡Reg ¡ UBM ¡/ ¡Tv ¡ training ¡ BoCleneck ¡ features ¡

16 of 24

Bottleneck I-vector system

Feature processing 64-dimensional bottleneck features from the Switchboard tokeniser No VTLN, No SDC, No mean/variance normalisation Frame-based VAD UBM and total variability UBM: 2048, full-covariance GMM Total variability: 131072 × 600 [Dehak, Kenny, et al. 2011] Language classifier Logistic regression classifier 17 of 24

Bottleneck I-vector system: results

i-vector v.s. bottleneck i-vector systems on internal test data

6.09 ¡ 12.23 ¡ 17.2 ¡ 5.13 ¡ 9.06 ¡ 13.69 ¡ 4 ¡ 6 ¡ 8 ¡ 10 ¡ 12 ¡ 14 ¡ 16 ¡ 18 ¡ 30s ¡ 10s ¡ 3s ¡

ivector ¡ bn-­‑ivector ¡

minDCF ¡

18 of 24

System calibration and fusion

Gaussian backend applied on single system output GMM (4/8/16 components) trained on the score vectors from training data (30s) GMMs are target language dependent Logistic regresion Log-likelihood-ratio conversion System combination weight trained on dev data (10%) [Br¨

ummer et al. 2006]

19 of 24

System calibration results

Overall min DCF on internal test - 30s

12.48 ¡ 26.54 ¡ 29.51 ¡ 20.17 ¡ 22.5 ¡ 22 ¡

10 ¡ 15 ¡ 20 ¡ 25 ¡ 30 ¡ Ivector ¡ DNN ¡ Phonotac:c ¡

No ¡calibra:on ¡ Gaussain ¡backend ¡

minDCF ¡(global ¡Thr) ¡

20 of 24

System fusion results

min ¡DCF ¡(Global ¡Thr) ¡

10.21 ¡ 19.97 ¡ 19.21 ¡ 9.42 ¡ 10.84 ¡ 8.87 ¡ 5 ¡ 10 ¡ 15 ¡ 20 ¡ 25 ¡ 30 ¡ Ivector ¡ DNN ¡ PhonotacCc ¡ 3-­‑sys ¡ bn-­‑ivector ¡ 4-­‑sys ¡

Internal ¡test ¡– ¡30s ¡

min ¡DCF ¡(Global ¡Thr) ¡

22.83 ¡ 21.81 ¡ 36.11 ¡ 17.7 ¡ 18.47 ¡ 15.53 ¡ 5 ¡ 10 ¡ 15 ¡ 20 ¡ 25 ¡ 30 ¡ 35 ¡ 40 ¡ Ivector ¡ DNN ¡ PhonotacCc ¡ 3-­‑sys ¡ bn-­‑ivector ¡ 4-­‑sys ¡

Internal ¡test ¡– ¡3s ¡

21 of 24

System fusion results - LR2015EVAL

Overal eval system results

32.92 ¡ 40.16 ¡ 36.93 ¡ 32.44 ¡ 29.56 ¡ 29.2 ¡

25 ¡ 30 ¡ 35 ¡ 40 ¡ Ivector ¡ DNN ¡ Phonotac8c ¡ 3-­‑sys ¡ bn-­‑ivector ¡ 4-­‑sys ¡

min ¡DCF ¡(Global ¡Thr) ¡

22 of 24

Pairwise system contribution

Results shown on eval 30s data System fusion always improves performance except for fusion with DNN For any given system, pairwise system fusion with a better sysetm

generally gives better results.

23 of 24

Conclusion

Introduction to 3 LR component systems submitted to NIST LRE 2015 Descriptions to segmentation, data selection plans and classifier training An enhanced bottleneck i-vector system demonstrated good performance Future work Data selection and augmentation multi-lingual NN, bottleneck Variability compensation Suggestions and collaborations welcome 24 of 24

Reference (1)

• E. Ambikairajah et al. “Language Identification: A Tutorial”. In:

Circuits and Systems Magazine, IEEE 11.2 (secondquarter 2011),

• pp. 82–108. issn: 1531-636X. doi: 10.1109/MCAS.2011.941081.

Niko Br¨ ummer and Johan du Preez. “Application-independent evaluation of speaker detection”. In: Comput. Speech Lang. 20.2-3 (2006), pp. 230–275.

• N. Dehak, P. Kenny, et al. “Front-end factor analysis for speaker

verification”. In: IEEE Transactions on Speech and Audio Processing 19.4 (May 2011).

25 of 24

Reference (2)

• N. Dehak, P. A. Torres-Carrasquillo, et al. “Language recognition via

Ivectors and dimensionality reduction”. In: Proc. Interspeech. 2011,

• pp. 857–860.

Luciana Ferrer et al. “Spoken language recognition based on senone posteriors”. In: Proc. Interspeech. 2014, pp. 2150–2154. Luciana Ferrer et al. “Study of Senone-based Deep Neural Network Approaches for Spoken Language Recognition”. In: IEEE/ACM

• Trans. Audio, Speech and Lang. Proc. 24.1 (Jan. 2016),
• pp. 105–116. issn: 2329-9290.

26 of 24

Reference (3)

Haizhou Li, Bin Ma, and Kong Aik Lee. “Spoken Language Recognition: From Fundamentals to Practice”. In: Proceedings of the IEEE 101.5 (May 2013), pp. 1136–1159.

• D. Martinez et al. “IVECTOR-based prosodic system for language

identification”. In: 2012, pp. 4861–4864.

• F. Richardson, D. Reynolds, and N. Dehak. “Deep Neural Network

Approaches to Speaker and Language Recognition”. In: Signal Processing Letters, IEEE 22.10 (Oct. 2015), pp. 1671–1675.

• P. A. Torres-Carrasquillo et al. “Approaches to language

identification using Gaussian mixture models and shifted delta cepstral features”. In: Proc. ICSLP. 2002.

27 of 24

Reference (4)

Pedro A. Torres-carrasquillo, Douglas A. Reynolds, and J.R. Deller Jr. “Language Identification Using Gaussian Mixture Model Tokenization”. In: Proc. IEEE ICASSP. 2002, pp. 757–760.

• M. A. Zissman. “Comparison of four approaches to automatic

language identification of telephone speech”. In: IEEE Transactions

• n Speech and Audio Processing 4.1 (Jan. 1996), pp. 31–44.

28 of 24

Logistic regression

To find a linear transformation of the i-vector to maximise the log

likelihood ratio log P(y|w) 1 − P(y|w) = βT

1 w + β0

P(y|w) 1 − P(y|w) = exp (β1w) exp (β0) P(y|w) = 1 1 + exp (−βT

1 w − β0)

Useful when the target variable is bounded or discrete To transform i-vector into language recognition score To combine multiple system scores into one 29 of 24

System performance

System performance on LR 2015 Eval data 24 ¡ 26 ¡ 28 ¡ 30 ¡ 32 ¡ 34 ¡ 36 ¡ 38 ¡ 40 ¡ 30-­‑sec ¡ 10-­‑sec ¡ 3-­‑sec ¡

• verall ¡

I-­‑vector ¡ DNN ¡ Phonotac9c ¡ 3-­‑sys ¡ BN-­‑IV ¡ 4-­‑sys ¡ 30 of 24
