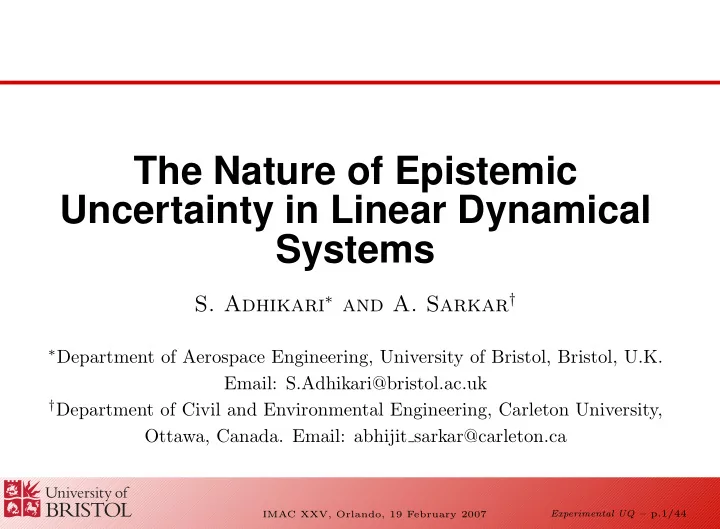

The Nature of Epistemic Uncertainty in Linear Dynamical Systems S. - - PowerPoint PPT Presentation

IMAC XXV, Orlando, 19 February 2007

The Nature of Epistemic Uncertainty in Linear Dynamical Systems

• S. Adhikari∗ and A. Sarkar†

∗Department of Aerospace Engineering, University of Bristol, Bristol, U.K.

Email: S.Adhikari@bristol.ac.uk

†Department of Civil and Environmental Engineering, Carleton University,

Ottawa, Canada. Email: abhijit sarkar@carleton.ca

Experimental UQ – p.1/44

IMAC XXV, Orlando, 19 February 2007

Outline of the presentation

The origin of epistemic uncertainty in linear dynamical systems Modeling of epistemic uncertainty Random matrix models Wishart random matrices Uncertainty propagation using random matrix theory Numerical example Conclusions

Experimental UQ – p.2/44

IMAC XXV, Orlando, 19 February 2007

Acknowledgments

S Adhikari acknowledges the support of the UK Engineering and Physical Sciences Research Council (EPSRC) through the award of an Advanced Research Fellowship and the Royal Society of London for the award

• f a visiting fellowship at Carleton University, Canada.

A Sarkar acknowledges the support of a Discovery Grant from National Sciences and Engineering Research Council (NSERC) of Canada and the Canada Research Chair Program.

Experimental UQ – p.3/44

IMAC XXV, Orlando, 19 February 2007

Epistemic uncertainty

Uncertainties can be broadly divided into two categories: The first type is due to the inherent variability in the system parameters. This is often referred to as aleatoric uncertainty or parametric uncertainty. If enough samples are present, it is possible to characterize the variability using well established statistical methods. The second type of uncertainty is mainly due to the lack

• f knowledge regarding a system, referred to as

epistemic uncertainty or non-parametric uncertainty. This generally arise in the modelling of complex systems. Due to its very nature, it is comparatively difficult to quantify.

Experimental UQ – p.4/44

IMAC XXV, Orlando, 19 February 2007

The origins of epistemic uncertainty

In the modelling of complex systems, such as the marine (e.g. ships and submarines) and aerospace systems (e.g. helicopters, aircrafts and space shuttles), modeling uncertainty arises naturally due to the lack of complete knowledge of the system. We assume that modeling uncertainty can be represented by random subsystems attached to the ‘master system’. For typical marine and aerospace structures, the cargo, piping, fuel, control cables, electronics and avionic systems, hydraulics and bulkheads constitute such subsystems.

Experimental UQ – p.5/44

IMAC XXV, Orlando, 19 February 2007

The origins of epistemic uncertainty

The ‘lack of knowledge’ may arise due to, but not restricted to: the lack of knowledge regarding the presence of such subsystems at the first place, the lack of knowledge regarding their spatial locations with respect to the primary structure, imprecise and incomplete information about their constitutive and geometric properties. unknown coupling characteristics.

Experimental UQ – p.6/44

IMAC XXV, Orlando, 19 February 2007

Modeling of epistemic uncertainty

For many complex dynamical systems, the main structural parts (often known as the primary or master structure) can often be modeled deterministically using the conventional finite element method. On the other hand, the substructures (often known as the secondary systems) attached to the primary structure may not be practically accessible for conventional finite element modeling due to the lack of knowledge of such subsystems. Here we use random oscillators to model this lack of knowledge arising in the context of linear dynamical systems.

Experimental UQ – p.7/44

IMAC XXV, Orlando, 19 February 2007

Modeling of epistemic uncertainty

Randomly distributed sprung-masses can be used to simulate the effect of uncertain secondary systems whose spatial attachment locations and dynamic characteristics are not available a priori. In contrast to the case of data uncertainty (traditionally modeled in the framework of stochastic finite element method), the model uncertainty arising from the sprung-mass oscillators gives rise to new variety of dynamical system for each sample. This can be

• bserved from the variation in the sparsity structure of

the mass, stiffness and damping matrices of the total system from sample to sample.

Experimental UQ – p.8/44

IMAC XXV, Orlando, 19 February 2007

Variation in the sparsity pattern

In the frequency domain equation of motion can be expressed as A(ω)¯ q(ω) = ¯ f(ω) (1) where A(ω) = −ω2M + iωC + K is known as the dynamic stiffness matrix Suppose ¯ qm denotes the degrees-of-freedom of baseline system and ¯ qu denotes the degrees-of-freedom of secondary systems.

Experimental UQ – p.9/44

IMAC XXV, Orlando, 19 February 2007

Variation in the sparsity pattern

• Eq. (1) can be partitioned as

 Amm Amu Aum Auu      ¯ qm ¯ qu    =    ¯ f    . (2) In reality, one only knows ¯ qm and Amm using the conventional finite element method. In most cases, no information regarding ¯ qu is available. The uncertainty associated with these ‘unknown’ DOFs include their dimension, nature and locations. As a result Auu and the coupling matrix Aum are also unknown.

Experimental UQ – p.10/44

IMAC XXV, Orlando, 19 February 2007

Variation in the sparsity pattern

Eliminating ¯ qu from Eq. (2) by condensation, one has

• Amm − AmuA−1

uuAum

• ¯

qm = ¯ f (3)

• r

[Amm + ∆A] ¯ qm = ¯ f (4) where ∆A = −AmuA−1

uuAum ∈ Rn×n.

This equation shows that whatever may be the nature of uncertainty associated with the DOFs arising from the secondary systems, they randomly perturb the condensed ‘baseline’ matrix Amm by ∆A. Moreover, from

• Eq. (4) it is clear that sparsity structures associated with

deterministic matrix Amm and Amm + ∆A are different.

Experimental UQ – p.11/44

IMAC XXV, Orlando, 19 February 2007

Modeling of epistemic uncertainty

Change in the sample-wise sparsity pattern cannot be modeled by data uncertainty alone. In the case of data uncertainty, the actual configuration of dynamical system remains unchanged, just its local parameters change from sample to sample. Our conjecture: Episematic or non-parametric uncertainty leads to the variation in the sparsity structure of the system matrices.

Experimental UQ – p.12/44

IMAC XXV, Orlando, 19 February 2007

Modeling of epistemic uncertainty

Question 1: What global probabilistic model can be used which will result in the difference in the sparsity structure

• f the system matrices?

Question 2: How much information regarding uncertainty we need to model epistemic uncertainty? We investigate the feasibility of using random matrix theory to address these issues.

Experimental UQ – p.13/44

IMAC XXV, Orlando, 19 February 2007

Structural dynamics

The objective : To have a general method to model epistemic uncertainty in discrete linear dynamical systems. The equation of motion: M¨ x(t) + C ˙ x(t) + Kx(t) = p(t) Due to the presence of uncertainty M, C and K become random matrices.

Experimental UQ – p.14/44

IMAC XXV, Orlando, 19 February 2007

Random Matrix Method (RMM)

The methodology : Derive the matrix variate probability density functions of M, C and K Propagate the uncertainty (using Monte Carlo simulation or analytical methods) to

• btain the response statistics (or pdf)

Experimental UQ – p.15/44

IMAC XXV, Orlando, 19 February 2007

Matrix variate distributions

The probability density function of a random matrix can be defined in a manner similar to that of a random variable. If A is an n × m real random matrix, the matrix variate probability density function of A ∈ Rn,m, denoted as pA(A), is a mapping from the space of n × m real matrices to the real line, i.e., pA(A) : Rn,m → R.

Experimental UQ – p.16/44

IMAC XXV, Orlando, 19 February 2007

Gaussian random matrix

The random matrix X ∈ Rn,p is said to have a matrix variate Gaussian distribution with mean matrix M ∈ Rn,p and covariance matrix Σ ⊗ Ψ, where Σ ∈ R+

n and Ψ ∈ R+ p provided

the pdf of X is given by pX (X) = (2π)−np/2 |Σ|−p/2 |Ψ|−n/2 etr

• −1

2Σ−1(X − M)Ψ−1(X − M)T

• (5)

This distribution is usually denoted as X ∼ Nn,p (M, Σ ⊗ Ψ).

Experimental UQ – p.17/44

IMAC XXV, Orlando, 19 February 2007

Wishart matrix

A n × n symmetric positive definite random matrix S is said to have a Wishart distribution with parameters p ≥ n and Σ ∈ R+

n , if its pdf is given by

pS (S) =

• 2

1 2np Γn

1 2p

• |Σ|

1 2p

−1 |S|

1 2(p−n−1)etr

• −1

2Σ−1S

• (6)

This distribution is usually denoted as S ∼ Wn(p, Σ).

Experimental UQ – p.18/44

IMAC XXV, Orlando, 19 February 2007

Matrix variate Gamma distribution

A n × n symmetric positive definite matrix random W is said to have a matrix variate gamma distribution with parameters a and Ψ ∈ R+

n , if its pdf is given by

pW (W) =

• Γn (a) |Ψ|−a−1 |W|a− 1

2(n+1) etr {−ΨW} ;

ℜ(a) > 1 2(n− (7) This distribution is usually denoted as W ∼ Gn(a, Ψ). Here the multivariate gamma function: Γn (a) = π

1 4n(n−1)

n

• k=1

Γ

• a − 1

2(k − 1)

• ; for ℜ(a) > (n−1)/2 (8)

Experimental UQ – p.19/44

IMAC XXV, Orlando, 19 February 2007

Distribution of the system matrices

The distribution of the random system matrices M, C and K should be such that they are symmetric positive-definite, and the moments (at least first two) of the inverse of the dynamic stiffness matrix D(ω) = −ω2M + iωC + K should exist ∀ ω

Experimental UQ – p.20/44

IMAC XXV, Orlando, 19 February 2007

Matrix Factorization Approach (MFA)

Suppose G denotes any one of the system matrices. Because G is a symmetric and positive-definite random matrix, it can be always factorized as G = XXT (9) where X ∈ Rn×p, p ≥ n is in general a rectangular matrix. The simplest case is when the mean of X is O ∈ Rn×p, p ≥ n and the covariance tensor of X is given by Σ ⊗ Ip ∈ Rnp×np where Σ ∈ R+

n .

X is a Gaussian random matrix with mean O ∈ Rn×p, p ≥ n and covariance Σ ⊗ Ip ∈ Rnp×np.

Experimental UQ – p.21/44

IMAC XXV, Orlando, 19 February 2007

Wishart Pdf

After some algebra it can be shown that G is a Wn(p, Σ) Wishart random matrix, whose pdf is given given by pG (G) =

• 2

1 2np Γn

1 2p

• |Σ|

1 2p

−1 |G|

1 2(p−n−1)etr

• −1

2Σ−1G

• (10)

Experimental UQ – p.22/44

IMAC XXV, Orlando, 19 February 2007

Parameter Estimation of Wishart Distribution

The distribution of G must be such that E [G] and E

• G−1

should be closest to G and G

−1 respectively.

Since G ∼ Wn (p, Σ), there are two unknown parameters in this distribution, namely, p and Σ. This implies that there are in total 1 + n(n + 1)/2 number of unknowns. We define and subsequently minimize ‘normalized errors’: ε1 =

• G − E [G]
• F /
• G
• F

ε2 =

• G

−1 − E

• G−1
• F /
• G

−1

• F

Experimental UQ – p.23/44

IMAC XXV, Orlando, 19 February 2007

MFA Distribution

Solving the optimization problem we have: Theorem 1. If ν-th order inverse-moment of a system matrix G ≡ {M, C, K} exists and only the mean of G is available, say G, then the distribution

• f G follows the Wishart distribution with parameters

p = (2ν + n + 1) and Σ = G/

• 2ν(2ν + n + 1), that

is G ∼ Wn

• 2ν + n + 1, G/
• 2ν(2ν + n + 1)
• .

Experimental UQ – p.24/44

IMAC XXV, Orlando, 19 February 2007

Simulation Algorithm: Dynamical Systems

Obtain θ = 1 δ2 G   1 + {Trace

• G
• }2

Trace

• G

2

   − (n + 1) If θ < 4, then select θ = 4. Calculate α =

• θ(n + 1 + θ)

Generate samples of G ∼ Wn

• n + 1 + θ, G/α
• (Matlab command wishrnd can be used to generate

the samples) Repeat the above steps for all system matrices and solve for every samples

Experimental UQ – p.25/44

IMAC XXV, Orlando, 19 February 2007

Example 1: A cantilever Plate

0.2 0.4 0.6 0.8 1 0.2 0.4 0.6 0.8 −0.5 0.5 1 Output X direction (length) Input Y direction (width) Fixed edge

The Finite Element (FE) model of a steel cantilever plate: 21 × 14 elements, 330 nodes, 945 degrees-of-freedom, ¯ E = 200 × 109N/m2, ¯ µ = 0.3, ¯ ρ = 7860kg/m3, ¯ t = 3.0mm, Lx = 0.9m, Ly = 0.6m, 2% modal damping for all modes. Ten randomly placed sprung-mass oscillators having natural frequencies uniformly distributed between (1 − 2) KHz are considered.

Experimental UQ – p.26/44

IMAC XXV, Orlando, 19 February 2007

Comparison of Amplitude

1000 2000 3000 4000 5000 6000 7000 8000 −220 −200 −180 −160 −140 −120 −100 −80 −60 Frequency (Hz) Amplitude (dB) of H(778,625) (ω) Ensemble mean: Direct Simulation Ensemble mean: Wishart Standard deviation: Direct Simulation Standard deviation: Wishart

Comparison of the mean and standard deviation of the amplitude of the cross-FRF, n = 945 and δK = 0.1699.

Experimental UQ – p.27/44

IMAC XXV, Orlando, 19 February 2007

Comparison of Amplitude: Low Freq

50 100 150 200 250 300 350 400 450 500 −220 −200 −180 −160 −140 −120 −100 −80 −60 Frequency (Hz) Amplitude (dB) of H(778,625) (ω) Ensemble mean: Direct Simulation Ensemble mean: Wishart Standard deviation: Direct Simulation Standard deviation: Wishart

Comparison of the mean and standard deviation of the amplitude of the cross-FRF, n = 945 and δK = 0.1699.

Experimental UQ – p.28/44

IMAC XXV, Orlando, 19 February 2007

Comparison of Amplitude: Mid Freq

500 1000 1500 2000 2500 3000 3500 4000 4500 −220 −200 −180 −160 −140 −120 −100 −80 −60 Frequency (Hz) Amplitude (dB) of H(778,625) (ω) Ensemble mean: Direct Simulation Ensemble mean: Wishart Standard deviation: Direct Simulation Standard deviation: Wishart

Comparison of the mean and standard deviation of the amplitude of the cross-FRF, n = 945 and δK = 0.1699.

Experimental UQ – p.29/44

IMAC XXV, Orlando, 19 February 2007

Comparison of Amplitude: High Freq

4500 5000 5500 6000 6500 7000 7500 8000 −220 −200 −180 −160 −140 −120 −100 −80 −60 Frequency (Hz) Amplitude (dB) of H(778,625) (ω) Ensemble mean: Direct Simulation Ensemble mean: Wishart Standard deviation: Direct Simulation Standard deviation: Wishart

Comparison of the mean and standard deviation of the amplitude of the cross-FRF, n = 945 and δK = 0.1699.

Experimental UQ – p.30/44

IMAC XXV, Orlando, 19 February 2007

Comparison of Amplitude

1000 2000 3000 4000 5000 6000 7000 8000 −220 −200 −180 −160 −140 −120 −100 −80 −60 Frequency (Hz) Amplitude (dB) of H(778,625) (ω) 5% points: Direct Simulation 5% points: Wishart 95% points: Direct Simulation 95% points: Wishart

Comparison of the 5% and 95% probability points of the amplitude of the cross-FRF.

Experimental UQ – p.31/44

IMAC XXV, Orlando, 19 February 2007

Comparison of Amplitude: Low Freq

50 100 150 200 250 300 350 400 450 500 −220 −200 −180 −160 −140 −120 −100 −80 −60 Frequency (Hz) Amplitude (dB) of H(778,625) (ω) 5% points: Direct Simulation 5% points: Wishart 95% points: Direct Simulation 95% points: Wishart

Comparison of the 5% and 95% probability points of the amplitude of the cross-FRF.

Experimental UQ – p.32/44

IMAC XXV, Orlando, 19 February 2007

Comparison of Amplitude: Mid Freq

500 1000 1500 2000 2500 3000 3500 4000 4500 −220 −200 −180 −160 −140 −120 −100 −80 −60 Frequency (Hz) Amplitude (dB) of H(778,625) (ω) 5% points: Direct Simulation 5% points: Wishart 95% points: Direct Simulation 95% points: Wishart

Comparison of the 5% and 95% probability points of the amplitude of the cross-FRF.

Experimental UQ – p.33/44

IMAC XXV, Orlando, 19 February 2007

Comparison of Amplitude: High Freq

4500 5000 5500 6000 6500 7000 7500 8000 −220 −200 −180 −160 −140 −120 −100 −80 −60 Frequency (Hz) Amplitude (dB) of H(778,625) (ω) 5% points: Direct Simulation 5% points: Wishart 95% points: Direct Simulation 95% points: Wishart

Comparison of the 5% and 95% probability points of the amplitude of the cross-FRF.

Experimental UQ – p.34/44

IMAC XXV, Orlando, 19 February 2007

Comparison of phase

1000 2000 3000 4000 5000 6000 7000 8000 −4 −3 −2 −1 1 2 3 4 Frequency (Hz) Phase of H(778,625) (ω) Ensemble mean: Direct Simulation Ensemble mean: Wishart Standard deviation: Direct Simulation Standard deviation: Wishart

Comparison of the mean and standard deviation of the phase of the cross-FRF, n = 945 and δK = 0.1699.

Experimental UQ – p.35/44

IMAC XXV, Orlando, 19 February 2007

Comparison of phase: Low Freq

50 100 150 200 250 300 350 400 450 500 −4 −3 −2 −1 1 2 3 4 Frequency (Hz) Phase of H(778,625) (ω) Ensemble mean: Direct Simulation Ensemble mean: Wishart Standard deviation: Direct Simulation Standard deviation: Wishart

Comparison of the mean and standard deviation of the phase of the cross-FRF, n = 945 and δK = 0.1699.

Experimental UQ – p.36/44

IMAC XXV, Orlando, 19 February 2007

Comparison of phase: Mid Freq

500 1000 1500 2000 2500 3000 3500 4000 4500 −4 −3 −2 −1 1 2 3 4 Frequency (Hz) Phase of H(778,625) (ω) Ensemble mean: Direct Simulation Ensemble mean: Wishart Standard deviation: Direct Simulation Standard deviation: Wishart

Comparison of the mean and standard deviation of the phase of the cross-FRF, n = 945 and δK = 0.1699.

Experimental UQ – p.37/44

IMAC XXV, Orlando, 19 February 2007

Comparison of phase: High Freq

4500 5000 5500 6000 6500 7000 7500 8000 −4 −3 −2 −1 1 2 3 4 Frequency (Hz) Phase of H(778,625) (ω) Ensemble mean: Direct Simulation Ensemble mean: Wishart Standard deviation: Direct Simulation Standard deviation: Wishart

Comparison of the mean and standard deviation of the phase of the cross-FRF, n = 945 and δK = 0.1699.

Experimental UQ – p.38/44

IMAC XXV, Orlando, 19 February 2007

Comparison of phase

1000 2000 3000 4000 5000 6000 7000 8000 −4 −3 −2 −1 1 2 3 4 Frequency (Hz) Phase of H(778,625) (ω) 5% points: Direct Simulation 5% points: Wishart 95% points: Direct Simulation 95% points: Wishart

Comparison of the 5% and 95% probability points of the phase of the cross-FRF.

Experimental UQ – p.39/44

IMAC XXV, Orlando, 19 February 2007

Comparison of phase: Low Freq

50 100 150 200 250 300 350 400 450 500 −4 −3 −2 −1 1 2 3 4 Frequency (Hz) Phase of H(778,625) (ω) 5% points: Direct Simulation 5% points: Wishart 95% points: Direct Simulation 95% points: Wishart

Comparison of the 5% and 95% probability points of the phase of the cross-FRF.

Experimental UQ – p.40/44

IMAC XXV, Orlando, 19 February 2007

Comparison of phase: Mid Freq

500 1000 1500 2000 2500 3000 3500 4000 4500 −4 −3 −2 −1 1 2 3 4 Frequency (Hz) Phase of H(778,625) (ω) 5% points: Direct Simulation 5% points: Wishart 95% points: Direct Simulation 95% points: Wishart

Comparison of the 5% and 95% probability points of the phase of the cross-FRF.

Experimental UQ – p.41/44

IMAC XXV, Orlando, 19 February 2007

Comparison of phase: High Freq

4500 5000 5500 6000 6500 7000 7500 8000 −4 −3 −2 −1 1 2 3 4 Frequency (Hz) Phase of H(778,625) (ω) 5% points: Direct Simulation 5% points: Wishart 95% points: Direct Simulation 95% points: Wishart

Comparison of the 5% and 95% probability points of the phase of the cross-FRF.

Experimental UQ – p.42/44

IMAC XXV, Orlando, 19 February 2007

Conclusions

We attempted to represent model uncertainty in linear dynamical systems using Random Matrix Theory (RMT). The study explored practical means to represent an ensemble of dynamical systems derived from model perturbation of a baseline system. We have shown that episematic or non-parametric uncertainty leads to the sample-wise variation in the sparsity structure of the system matrices. Using a Matrix Factorization Approach (MFA), it was shown that Wishart matrices may be used as the model for the random system matrices in structural dynamics.

Experimental UQ – p.43/44

IMAC XXV, Orlando, 19 February 2007

Conclusions

Only the mean matrix and the normalized standard deviation is required to model the system. As an illustration, we considered model uncertainty in a vibrating plate due to disorderly attached sprung-mass

• scillators having random natural frequencies.

The encouraging agreements (in the mid and high frequency region) between the results obtained the from Wishart matrix model and direct Monte Carlo simulation suggest that it may be a practical method to represent the statistical dispersion observed in the response of dynamical systems arising from model uncertainty.

Experimental UQ – p.44/44
