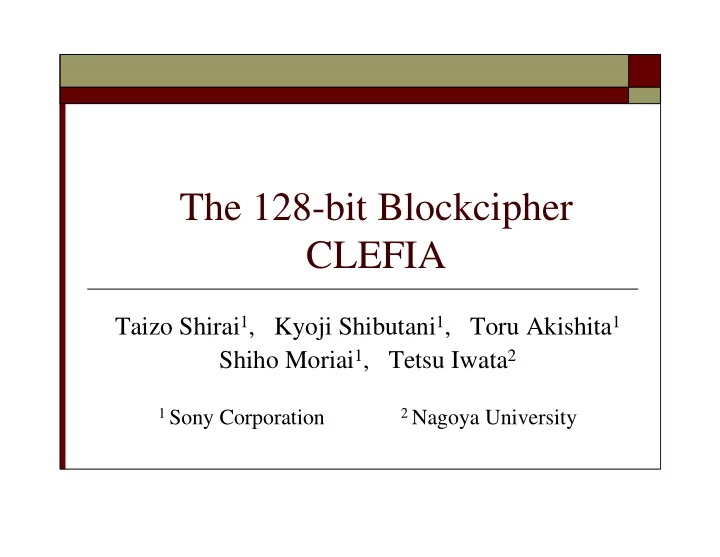

The 128-bit Blockcipher CLEFIA

Taizo Shirai1, Kyoji Shibutani1, Toru Akishita1 Shiho Moriai1, Tetsu Iwata2

1 Sony Corporation 2 Nagoya University

slide-2
SLIDE 2

Direction for designing a new blockcipher

Security Low cost Speed

Priority for Choosing an algorithm 1. Security 2. Implementation cost and Encryption speed

Security Low cost Speed Algorithm X Algorithm Y

slide-3
SLIDE 3

Target Category of CLEFIA

Software Oriented

  • Servers for Huge Data Processing
  • RC6, SEA, Streamciphers

Balanced (general-purpose)

  • Widely used in many products
  • AES, Serpent, Camellia, FOX,…

Hardware Oriented

  • Smartcard, RFID
  • HIGHT, ICEBERG,

Streamciphers

slide-4
SLIDE 4

The Blockcipher CLEFIA

Basic Information

Block Length : 128-bit Key Length : 128-bit, 192-bit, 256-bit Structure : 4-branch generalized Feistel (Type-II) Number of Rounds : 18 (128-bit key),

22 (192-bit key), 26 (256-bit key)

slide-5
SLIDE 5

Key Scheduling Part Data Processing Part

F0 F1 F0 F1 F0 F1 F0 F1 F0 F1

： ： ： ：

Plaintext Key

Bit Permutation

Reduced Data Processing Part

Bit Permutation Bit Permutation Bit Permutation Bit Permutation Bit Permutation Bit Permutation

Ciphertext

slide-6
SLIDE 6

SP-type F-functions

F0 F1

RK2i RK2i+1

Round function F-functions F0 F1

S0 S1 S0 S1 S0 S1 S0 S1

32 32 32 32

8 8 8 8 8 8 8 8

32 32

⎟ ⎟ ⎟ ⎟ ⎟ ⎠ ⎞ ⎜ ⎜ ⎜ ⎜ ⎜ ⎝ ⎛ 01 02 04 06 02 01 06 04 04 06 01 02 06 04 02 01 ⎟ ⎟ ⎟ ⎟ ⎟ ⎠ ⎞ ⎜ ⎜ ⎜ ⎜ ⎜ ⎝ ⎛ 01 08 02 08 01 02 02 01 08 02 08 01 a a a a

slide-7
SLIDE 7

What’s New in CLEFIA

1.

Combination of

  • Diffusion Switching Mechanism (DSM) , and
  • Type-II generalized Feistel structure (GFN)

2.

Two S-boxes System

3.

Enhanced Key Scheduling Part

slide-8
SLIDE 8

2-branch Feistel VS. 4-branch Feistel

F F F F F F F F + Better Diffusion

  • Large F-function
  • Slow diffusion requires more rounds

+Compact F-function Feistel Structure 4-branch type-II generalized Feistel Structure (GFN)

64 64 32 32 32 32

slide-9
SLIDE 9

M1

What is Diffusion Switching Mechanism (DSM)?

  • DSM enhance the diffusion

efficiency of Feistel structure

  • To strengthen against
  • differential attack, and
  • linear attack

by switching plural diffusion matrices in F-functions

  • References
  • Shirai, Shibutani@FSE04
  • Shirai, Preneel@Asiacrypt04
  • Shirai, Shibutani@FSE06

Optimal Diffusion Mappings (MDS matrices) M1, M2

M2 M2 M1

concatenation M1 || M2 is also an optimal diffusion mapping

M1 M1

slide-10
SLIDE 10

4-branch GFN + DSM

  • DSM is suitable to 4-branch GFN
  • No need for round depending Switching
  • Effect of reducing the number of rounds
  • Reducing about 30% of number of rounds in CLEFIA’s case

F F F F F F F F F F F F F F F F F F F F

Without DSM With DSM

F0 F0 F0 F0 F0 F1 F1 F1 F1 F1

: : : : : : : :

slide-11
SLIDE 11

Estimation of active S-boxes

Minimum Requirement 128-bit key 192-bit key 256-bit key

128 4 . 131 30 38 . 4 2 128 76 . 130 28 67 . 4 2

38 . 4 max 67 . 4 max

> = × = > = × =

− −

LP DP

S-box : S0

slide-12
SLIDE 12

2 S-box system

CLEFIA employs 2 different 8-bit S-boxes

⎟ ⎟ ⎠ ⎞ ⎜ ⎜ ⎝ ⎛ 1 2 2 1

S0 S1

  • Based on 4-bit S-boxes

(Whirlpool, FOX)

  • Based on Inversion over GF(28)

(AES, Camellia)

SS0 SS1 SS2 SS3

f

Inversion Over GF(28) g 8 8

S S

All Const = 0

S0 S1

All Balance

Byte oriented saturation transition

38 . 4 max 67 . 4 max

2 2

− −

= = LP DP

6 max 6 max

2 2

− −

= = LP DP

⎟ ⎟ ⎠ ⎞ ⎜ ⎜ ⎝ ⎛ 1 2 2 1

slide-13
SLIDE 13

Key Scheduling Part of CLEFIA (Concept)

Key

Bit Permutation

Reduced-round Data Processing Part

Bit Permutation Bit Permutation Bit Permutation Bit Permutation Bit Permutation

RK0 ,..,RK3 RK4 ,..,RK7 RK8,..,RK11 RK12 ,..,RK15 RK16 ,..,RK19 RK20 ,..,RK23

: : :

:

slide-14
SLIDE 14

Key Scheduling Part of CLEFIA (128-bit key)

Key

Bit Permutation Bit Permutation Bit Permutation Bit Permutation Bit Permutation Bit Permutation

RK0 ,..,RK3 RK4 ,..,RK7 RK8,..,RK11 RK12 ,..,RK15 RK16 ,..,RK19 RK20 ,..,RK23

: : :

:

F F F F F F F F F F F0 F0 F0 F0 F0 F1 F1 F1 F1 F1

: : : :

12-round 4-branch GFN 28 diff. Active S-boxes A B C D D B C A “DoubleSwap” function

slide-15
SLIDE 15

Key Scheduling Part of CLEFIA (192,256-bit key)

Key

Bit Permutation Bit Permutation Bit Permutation Bit Permutation

RK0 ,..,RK7 RK8 ,..,RK15 RK16,..,RK31 RK32 ,..,RK47

: : :

:

F0 F0 F1 F1 F0 F0 F1 F1 F0 F0 F1 F1 F0 F0 F1 F1 F0 F0 F1 F1 F0 F0 F1 F1

: : : : : : :

10-round 8-branch GFN 29 diff. Active S-boxes

slide-16
SLIDE 16

1. Differential Cryptanalysis 2. Linear Cryptanalysis 3. Differential-Linear Cryptanalysis 4. Boomerang Attack 5. Amplified Boomerang Attack 6. Rectangle Attack 7. Truncated Differential Cryptanalysis 8. Truncated Linear Cryptanalysis 9. Impossible Differential Cryptanalysis 10. Saturation Cryptanalysis 11. Higher Order Differential Cryptanalysis 12. Interpolation Cryptanalysis 13. XSL Attack 14. Chi-Square Cryptanalysis 15. Slide Attack 16. Related-Cipher Cryptanalysis 17. Related-Key Cryptanalysis 18. Related-Key Boomerang Cryptanalysis 19. Related-Key Rectangle Cryptanalysis 20. Collision Attack

Security Evaluation (excerpt)

[Data Processing Part]

  • Differential Attack
  • 12-round has 28 differential active S-boxes
  • Linear Attack
  • 12-round has 29 linear active S-boxes
  • Impossible Differential Attack
  • Found 9-round Impossible Diff paths
  • Saturation Attack
  • Found 6-round Saturation paths,

10-round attack [Key Scheduling Part]

  • Related-key type Attacks
  • Expected to be difficult due to many active S-boxes
slide-17
SLIDE 17

Performance : Software

Estimation

  • 90% of AES operations + dependency
  • 144 S-boxes in CLEFIA vs. 160 S-boxes in AES (128-bit key)

Current Experimental Results on Athlon 64 in assembly

slide-18
SLIDE 18

Performance : Hardware

Reasons for the Compactness

  • 4-branch GFN
  • F-functions can be shared by Data Processing Part and Key

Scheduling Part

  • Small footprint S-box and Matrices

0.13 μm 0.13 μm 0.09 μm 0.13 μm 0.13 μm 0.09 μm Process Rule [20] [20] [20] [20] Ref

235 1,424 6,061 18 CLEFIA

Speed

202.5* 1,691 12,454 11 AES 75* 325 6,511 44 Camellia Camellia AES CLEFIA

Algorithm

971 311 677

Throughput [Mbps]

132* 10,993 22 85.5* 5,398 54 135 4,993 36

Compact

Efficiency * [Throughput / gate] Gate Size Cycle Type of Implementation

*The values of efficiency are adjusted by multiplying 1.5 by taking the difference of process into account

slide-19
SLIDE 19

Conclusion

  • Proposed a new blockcipher CLEFIA
  • DSM + 4-branch Feistel, Two S-boxes, Enhanced Key Schedule, etc..
  • Confirmed Potential ability for compact and fast

implementations

  • Software – One of the fastest ciphers
  • Hardware – Achieved the best efficiency

among known general-purpose blockciphers.

  • Keeping enough security margin against all known attacks

Analysis of CLEFIA is very welcome!
