Modeling & Simulation, Testing & Validation Evaluating Mobility Performance of Unmanned Ground Vehicles Michael P. Cole 1 Cory M. Crean 1 David J. Gorsich, PhD 1 Paramsothy Jayakumar, PhD 1 Abhinandan Jain, PhD 2 Tulga Ersal, PhD 3 1. US

slide-1
SLIDE 1

Modeling & Simulation, Testing & Validation

Evaluating Mobility Performance of Unmanned Ground Vehicles

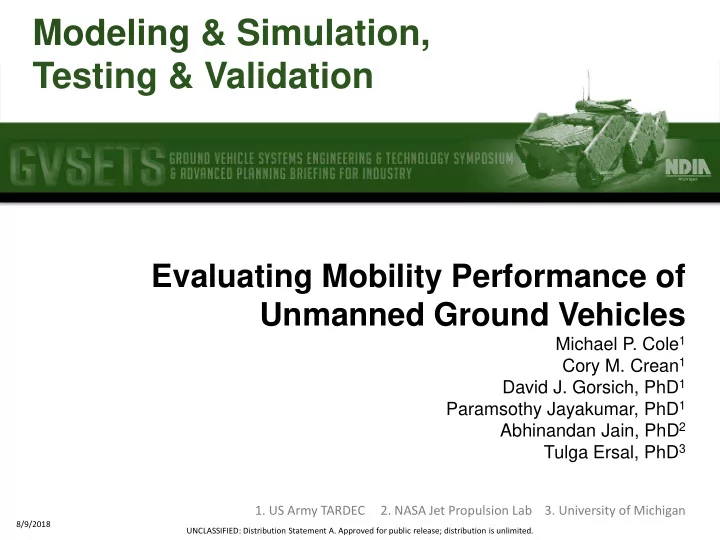

Michael P. Cole1 Cory M. Crean1 David J. Gorsich, PhD1 Paramsothy Jayakumar, PhD1 Abhinandan Jain, PhD2 Tulga Ersal, PhD3

  • 1. US Army TARDEC 2. NASA Jet Propulsion Lab 3. University of Michigan

8/9/2018 UNCLASSIFIED: Distribution Statement A. Approved for public release; distribution is unlimited.

slide-2
SLIDE 2

Modeling & Simulation, Testing & Validation

Motivation

  • Military is highly interested in autonomy-enabled systems
  • Army currently uses NATO Reference Mobility Model

(NRMM) to evaluate vehicle mobility both on & off-road [1]

– Shortcoming: cannot evaluate UGV technologies such as autonomy, remote control with latency, ABS, traction control, etc.

  • Task: How to evaluate unmanned ground vehicle (UGV)

mobility performance in simulation?

8/9/2018 UNCLASSIFIED: Distribution Statement A. Approved for public release; distribution is unlimited.

slide-3
SLIDE 3

Modeling & Simulation, Testing & Validation Notional Relationship for Teleoperation

8/9/2018 UNCLASSIFIED: Distribution Statement A. Approved for public release; distribution is unlimited.

slide-4
SLIDE 4

Modeling & Simulation, Testing & Validation

Background

  • Years of research in field of teleoperation

– Undersea robots [2], ground robots [3-6], manipulators [7-10], vehicles [12-13]

  • Literature review highlighted lack of research at high

speeds (>25 mph) over range of latencies [12-14]

  • Developed testbed for UGV simulations
  • Performed baseline experiment using testbed:

teleoperation of Polaris MRZR 4 military vehicle

8/9/2018 UNCLASSIFIED: Distribution Statement A. Approved for public release; distribution is unlimited.

slide-5
SLIDE 5

Modeling & Simulation, Testing & Validation

Simulation Environment

  • JPL Rover Analysis Modeling & Simulation (ROAMS) [15]

– High fidelity dynamics engine – Latency injection – User input via steering wheel & pedals

Teleoperation Schematic Driver Visual Feedback

8/9/2018 UNCLASSIFIED: Distribution Statement A. Approved for public release; distribution is unlimited.

User

Time Delay x(t – 𝜐(t))

slide-6
SLIDE 6

Modeling & Simulation, Testing & Validation

UGV Modes of Teleoperation

  • Pure teleoperation

– No driver aids – Latency: 0 to 1000ms by 200 ms

  • Enhanced teleoperation [13]

– Model free predictor – First order time delay system – Latency: 0 to 1000ms by 200 ms

Teleoperation Predictor Schematic [13]

8/9/2018 UNCLASSIFIED: Distribution Statement A. Approved for public release; distribution is unlimited.

slide-7
SLIDE 7

Modeling & Simulation, Testing & Validation

Participants and Test Procedure

Participants

  • Internal research team, 7 users
  • Little to no prior experience

using vehicle simulators

Test Procedure

  • Task: drive along centerline of curvy roadway
  • Guidance: maximize speed while minimizing path deviations
  • Training phase prior to testing phase
  • Run failure criteria

– Two wheel lift off – Drive off roadway for >5 seconds

Course Layout in ROAMS

8/9/2018 UNCLASSIFIED: Distribution Statement A. Approved for public release; distribution is unlimited.

slide-8
SLIDE 8

Modeling & Simulation, Testing & Validation

Simulation Results

  • As latency increases, average speed decreases and RMS

error increases.

8/9/2018 UNCLASSIFIED: Distribution Statement A. Approved for public release; distribution is unlimited.

slide-9
SLIDE 9

Modeling & Simulation, Testing & Validation Performance Effects of Training Phase

Post training, drivers achieved higher average speeds and higher RMS error (path deviation). Drove more aggressively.

8/9/2018 UNCLASSIFIED: Distribution Statement A. Approved for public release; distribution is unlimited.

slide-10
SLIDE 10

Modeling & Simulation, Testing & Validation Enhanced Teleoperation Performance

Enabling predictor increased performance. Statistically significant increase in average speed. Statically significant decrease in RMS error.

8/9/2018 UNCLASSIFIED: Distribution Statement A. Approved for public release; distribution is unlimited.

slide-11
SLIDE 11

Modeling & Simulation, Testing & Validation Mobility-Latency Relationship

8/9/2018 UNCLASSIFIED: Distribution Statement A. Approved for public release; distribution is unlimited.

  • Overlaid TARDEC teleoperation simulation results

– 3 different vehicles – 3 different path following scenarios

  • Exponential regression used to develop functional relationship
slide-12
SLIDE 12

Modeling & Simulation, Testing & Validation

Conclusions

  • Mobility performance worsens with increased latency.
  • Functional relationship provides capability to predict

teleoperation mobility performance for path following scenarios.

8/9/2018 UNCLASSIFIED: Distribution Statement A. Approved for public release; distribution is unlimited.

slide-13
SLIDE 13

Modeling & Simulation, Testing & Validation

Future Work

  • Investigating autonomy-enabled systems
  • Semi & Full autonomy

– Human/Machine collaboration – Waypoint following – MPC-based autonomy

  • Soft soil terrains

– Sand, grass, mud

  • V&V using test data

8/9/2018 UNCLASSIFIED: Distribution Statement A. Approved for public release; distribution is unlimited.

slide-14
SLIDE 14

Modeling & Simulation, Testing & Validation

8/9/2018 UNCLASSIFIED: Distribution Statement A. Approved for public release; distribution is unlimited.
