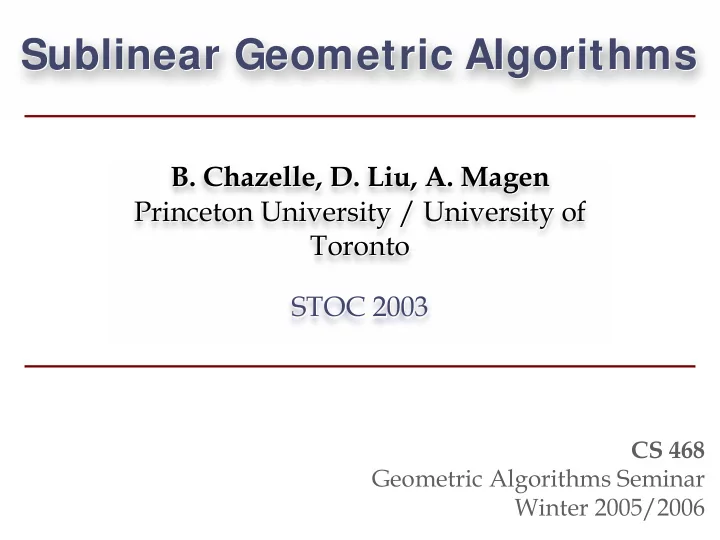

Sublinear Geometric Algorithms Sublinear Geometric Algorithms B. - - PowerPoint PPT Presentation

Sublinear Geometric Algorithms Sublinear Geometric Algorithms

• B. Chazelle, D. Liu, A. Magen

Princeton University / University of Toronto STOC 2003

• B. Chazelle, D. Liu, A. Magen

Princeton University / University of Toronto STOC 2003

CS 468 Geometric Algorithms Seminar Winter 2005/2006

2 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Overview Overview

What is this paper about? Sublinear geometric algorithms, for convex polygons (2D) and convex polyhedra (3D):

• Intersection
• Ray shooting
• Volume approximation
• Shortest path approximation

What is this paper about? Sublinear geometric algorithms, for convex polygons (2D) and convex polyhedra (3D):

• Intersection
• Ray shooting
• Volume approximation
• Shortest path approximation

3 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Sublinear Algorithms Sublinear Algorithms

What means sublinear?

• Not reading the complete input
• Hence: No preprocessing
• Assuming “standard” input formats
• Randomized Las-Vegas algorithms
• No wrong answers, but run time may vary
• Expected runtimes are sublinear

What means sublinear?

• Not reading the complete input
• Hence: No preprocessing
• Assuming “standard” input formats
• Randomized Las-Vegas algorithms
• No wrong answers, but run time may vary
• Expected runtimes are sublinear

4 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Overview Overview

Overview:

• Basic technique
• Sublinear search algorithm
• Optimality
• Polygons / polyhedra intersection
• Ray shooting & applications
• Volume approximation
• Shortest path approximation

Overview:

• Basic technique
• Sublinear search algorithm
• Optimality
• Polygons / polyhedra intersection
• Ray shooting & applications
• Volume approximation
• Shortest path approximation

5 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Overview Overview

Overview:

• Basic technique
• Sublinear search algorithm
• Optimality
• Polygons / polyhedra intersection
• Ray shooting & applications
• Volume approximation
• Shortest path approximation

Overview:

• Basic technique
• Sublinear search algorithm
• Optimality
• Polygons / polyhedra intersection
• Ray shooting & applications
• Volume approximation
• Shortest path approximation

each new technique builds upon previous techniques each new technique builds upon previous techniques

6

Basic Technique Basic Technique

7 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Search Problem Search Problem

Successor Search:

• Given a sorted doubly-linked list of numbers
• And a search value k
• Find first element greater than k
• List stored in continuous memory block

(allowing sampling of list elements) Successor Search:

• Given a sorted doubly-linked list of numbers
• And a search value k
• Find first element greater than k
• List stored in continuous memory block

(allowing sampling of list elements)

8 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Data Structure Data Structure

Looks like this: Memory Layout: Looks like this: Memory Layout:

1 3 7 8 9 1 3 9 7 8

9 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

The Search Algorithm The Search Algorithm

Search Algorithm:

• Pick √n random list elements
• Determine closest predecessor and successor
• f k (within the random sample)
• Perform plain, linear search towards k

(starting from these two elements) Search Algorithm:

• Pick √n random list elements
• Determine closest predecessor and successor
• f k (within the random sample)
• Perform plain, linear search towards k

(starting from these two elements)

10 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

The Search Algorithm (2) The Search Algorithm (2)

Looks like this: Looks like this:

• list -
• random sample -

succ(k)

• linear search -

11 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Analysis Analysis

The Algorithm:

• Takes expected O(√n ) time.
• This is optimal.

The Algorithm:

• Takes expected O(√n ) time.
• This is optimal.

12 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Why? Why?

Runtime: Runtime:

Sampling: Good case: Bad case:

13 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Runtime Runtime

Runtime Analysis Runtime depends on “empty” block around succ(k) Probability of no hit within Factor c√n of target is O(exp(-c)) Hence: Expected distance O(√n ) after √n trials. Runtime Analysis Runtime depends on “empty” block around succ(k) Probability of no hit within Factor c√n of target is O(exp(-c)) Hence: Expected distance O(√n ) after √n trials.

factor c away

14 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Optimality Optimality

Why can’t we do O(any better)? The proof employs Yao’s minimax principle:

The expected running time of an optimal deterministic algorithm for any chosen input distribution is a lower bound

• n the expected running time of the optimal Las Vegas

randomized algorithm.

Why can’t we do O(any better)? The proof employs Yao’s minimax principle:

The expected running time of an optimal deterministic algorithm for any chosen input distribution is a lower bound

• n the expected running time of the optimal Las Vegas

randomized algorithm.

15 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Constructing the Bound Constructing the Bound

A Lower Bound for an Opt. Determ. Algorithm Choose the following scenario:

• Input: Random permutation
• Search for last element

What can the algorithm do?

• Op. “A”: Visit neighbor of known node
• Op. “B”: Go to unknown node in memory

A Lower Bound for an Opt. Determ. Algorithm Choose the following scenario:

• Input: Random permutation
• Search for last element

What can the algorithm do?

• Op. “A”: Visit neighbor of known node
• Op. “B”: Go to unknown node in memory

16 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

( )

b

n b a n n ⎟ ⎟ ⎠ ⎞ ⎜ ⎜ ⎝ ⎛ + + − ≥ 1 " elem. last not saw " Pr

Constructing the Bound (2) Constructing the Bound (2)

Random input:

• Consider the question: How likely is it, to

discover one of the last √n elements?

• With every newly visited node, the chance of

discovery increases

• After a A-Op’s and b B-Op’s:

Random input:

• Consider the question: How likely is it, to

discover one of the last √n elements?

• With every newly visited node, the chance of

discovery increases

• After a A-Op’s and b B-Op’s:

17 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Constructing the Bound (3) Constructing the Bound (3)

Looks like this: Looks like this:

( )

b

n b a n n ⎟ ⎟ ⎠ ⎞ ⎜ ⎜ ⎝ ⎛ + + − ≥ 1 " elem. last not saw " Pr

A A B B A A A B A B unknown target: last √n

n a b

b

Pr(“no discovery”) new random choice no-go

18 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Constructing the Bound (3) Constructing the Bound (3)

Number of B-Ops:

• Expected value of A and B-op’s until visiting
• ne of the last √n is O(√n).
• If last √n elements have not been visited

⇒ √n more A-Ops necessary Number of B-Ops:

• Expected value of A and B-op’s until visiting
• ne of the last √n is O(√n).
• If last √n elements have not been visited

⇒ √n more A-Ops necessary

19 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

What’s next? What’s next?

Now: Construct sublinear geometric algorithms

• Similar basic idea
• All with O(√n ) time complexity
• Some problems are “more general” than

successor-searching Thus: run-time also optimal Now: Construct sublinear geometric algorithms

• Similar basic idea
• All with O(√n ) time complexity
• Some problems are “more general” than

successor-searching Thus: run-time also optimal

20

Polygon I ntersection Polygon I ntersection

21 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Problem Statement Problem Statement

Polygon Intersection:

• Given two polygons A, B
• Encoded as densely stored

linked lists of vertices (same as before)

• Do they intersect?
• If so, report one intersection point.

Polygon Intersection:

• Given two polygons A, B
• Encoded as densely stored

linked lists of vertices (same as before)

• Do they intersect?
• If so, report one intersection point.

A B

22 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

I dea of the Algorithm I dea of the Algorithm

Idea: Employ the same sampling approach Idea: Employ the same sampling approach

two input polygons simplified by random subsampling

23 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

I dea of the Algorithm I dea of the Algorithm

Two step Approach: Two step Approach:

(I) test for simplified polys intersection (II) test potentially overlapping remaining region

24 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

First Step First Step

First Step:

• Random subsampling
• Choose O(√n ) sample points
• Compute intersection in linear time

First Step:

• Random subsampling
• Choose O(√n ) sample points
• Compute intersection in linear time

A B

25 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

First Step (2) First Step (2)

First Step:

• If no intersection found:
• Compute separating plane
• Go to step 2

First Step:

• If no intersection found:
• Compute separating plane
• Go to step 2

A B

26 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Second Step Second Step

Second Step:

• Compute expected O(√n ) vertices of A

exceeding separating plane

• Test intersection with simplified B

Second Step:

• Compute expected O(√n ) vertices of A

exceeding separating plane

• Test intersection with simplified B

A B

27 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Second Step (2) Second Step (2)

Second Step:

• If no intersection is found:
• Compute new separating plane
• Test against corresponding part of B

Second Step:

• If no intersection is found:
• Compute new separating plane
• Test against corresponding part of B

A B

28 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Second Step (3) Second Step (3)

Second Step:

• If no intersection is found:
• Compute new separating plane
• Test against corresponding part of B

Second Step:

• If no intersection is found:
• Compute new separating plane
• Test against corresponding part of B

A B

29 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Second Step (4) Second Step (4)

Second Step:

• If no intersection is found:
• Compute new separating plane
• Test against corresponding part of B

Second Step:

• If no intersection is found:
• Compute new separating plane
• Test against corresponding part of B

A B

30 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Second Step (5) Second Step (5)

Second Step:

• Report intersection if found
• Otherwise repeat second step

with A and B exchanged for final answer Second Step:

• Report intersection if found
• Otherwise repeat second step

with A and B exchanged for final answer

A B

31

Polyhedra I ntersection Polyhedra I ntersection

32 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Polyhedral I ntersection Polyhedral I ntersection

Intersection of Two Convex Polyhedra

• Same approach as for polygons
• Some additional technical problems...

Intersection of Two Convex Polyhedra

• Same approach as for polygons
• Some additional technical problems...

33 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

First Step First Step

First Step:

• Simplify Polyhedra
• Take O(√n ) sample vertices

First Step:

• Simplify Polyhedra
• Take O(√n ) sample vertices

34 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

First Step First Step

First Step:

• Test for intersection (lin. programming)
• If no intersection: Compute separating plane

First Step:

• Test for intersection (lin. programming)
• If no intersection: Compute separating plane

35 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Second Step Second Step

Second Step:

• Compute full resolution part of B

which exceeds separating plane

• Test with simplified A

Second Step:

• Compute full resolution part of B

which exceeds separating plane

• Test with simplified A

A B

36 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Second Step Second Step

Second Step:

• If no intersection is found:

Compute new supporting plane... Second Step:

• If no intersection is found:

Compute new supporting plane...

A B

37 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Second Step Second Step

Second Step:

• Test for intersection with full resolution piece of A
• n B-side of plane
• If no intersection found: repeat second step with

A and B swapped (as for polygons) Second Step:

• Test for intersection with full resolution piece of A
• n B-side of plane
• If no intersection found: repeat second step with

A and B swapped (as for polygons)

A B

38 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Additional Problem Additional Problem

Additional Problem for 3D-Polyhedra

• How compute full resolution

cut-off pieces?

• Start at a low-res point
• Adjacency search
• Problem: Starting vertex

with large out-degree Additional Problem for 3D-Polyhedra

• How compute full resolution

cut-off pieces?

• Start at a low-res point
• Adjacency search
• Problem: Starting vertex

with large out-degree

39 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Solution Solution

Handle Vertices with Large Out-Degree

• First, sample O(√n ) edges randomly from

polyhedron (only global sampling possible!)

• If out-degree larger than O(√n ), then one can

expect to find some of those edges

• Hence: Start linear search at edges closest

to plane (c.f. successor search)

• Otherwise (small out-degree): All edges can be

searched linearly Handle Vertices with Large Out-Degree

• First, sample O(√n ) edges randomly from

polyhedron (only global sampling possible!)

• If out-degree larger than O(√n ), then one can

expect to find some of those edges

• Hence: Start linear search at edges closest

to plane (c.f. successor search)

• Otherwise (small out-degree): All edges can be

searched linearly

40 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Complexity Complexity

Complexity

• The cut-off caps are O(√n )
• Intuition: Similar to successor searching
• Formal proof: See paper
• All other steps are also O(√n )
• Yields O(√n ) overall complexity
• The problem is a generalization of successor
• searching. Hence: Optimal complexity.

Complexity

• The cut-off caps are O(√n )
• Intuition: Similar to successor searching
• Formal proof: See paper
• All other steps are also O(√n )
• Yields O(√n ) overall complexity
• The problem is a generalization of successor
• searching. Hence: Optimal complexity.

41

Ray Shooting & Applications Ray Shooting & Applications

42 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Ray Shooting Ray Shooting

Same Technique Can Handle Ray Shooting:

• Rays are very skinny polyhedra
• Can use the same algorithm
• Computes intersections in O(√n ) time
• This is also optimal

Same Technique Can Handle Ray Shooting:

• Rays are very skinny polyhedra
• Can use the same algorithm
• Computes intersections in O(√n ) time
• This is also optimal

43 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Applications Applications

Point Location

• Point location in Delaunay triangulations
• Shoot vertical ray towards

convex hull of (x, y, x2 + y2)

• Similar construction also works for Voronoi

Diagrams

• Yields point location algorithms with optimal

O(√n ) complexity Point Location

• Point location in Delaunay triangulations
• Shoot vertical ray towards

convex hull of (x, y, x2 + y2)

• Similar construction also works for Voronoi

Diagrams

• Yields point location algorithms with optimal

O(√n ) complexity

44 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Other Applications Other Applications

Nearest Neighbor Search:

• Find nearest neighbor in polyhedron to a

given point in space in O(√n ) time

• Uses (slightly) modified polyhedron

intersection algorithm Nearest Neighbor Search:

• Find nearest neighbor in polyhedron to a

given point in space in O(√n ) time

• Uses (slightly) modified polyhedron

intersection algorithm

45 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Other Applications (2) Other Applications (2)

Direction Search

• Find point with maximum

projection on a line

• Find point with maximum

projection on a line restricting input polyhedron to a plane

• Both in O(√n )

Direction Search

• Find point with maximum

projection on a line

• Find point with maximum

projection on a line restricting input polyhedron to a plane

• Both in O(√n )

46

Volume Approximation Volume Approximation

47 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Volume Approximation Volume Approximation

The Task:

• Determine volume of polyhedron
• With accuracy up to factor ε

Main Idea:

• Dudley approximation
• Non-uniform rescaling to be able

to guarantee ε-precision The Task:

• Determine volume of polyhedron
• With accuracy up to factor ε

Main Idea:

• Dudley approximation
• Non-uniform rescaling to be able

to guarantee ε-precision

48 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Dudley Approximation Dudley Approximation

Dudley Approximation of Convex Polyhedra

• Given a convex

polygon /polyhedron enclosed in a unit sphere

• An approximation of

complexity O(1/ε (d-1)/2) with max. Hausdorff-distance ε can be constructed Dudley Approximation of Convex Polyhedra

• Given a convex

polygon /polyhedron enclosed in a unit sphere

• An approximation of

complexity O(1/ε (d-1)/2) with max. Hausdorff-distance ε can be constructed

49 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Dudley Approximation (2) Dudley Approximation (2)

Dudley Approximation of Convex Polyhedra Dudley Approximation of Convex Polyhedra O(1/ε (d-1)/2) uniformely distributed sample points O(1/ε (d-1)/2) uniformely distributed sample points

50 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Dudley Approximation (3) Dudley Approximation (3)

Dudley Approximation of Convex Polyhedra Dudley Approximation of Convex Polyhedra find nearest neighbor of each point find nearest neighbor of each point

51 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Dudley Approximation (4) Dudley Approximation (4)

Dudley Approximation of Convex Polyhedra Dudley Approximation of Convex Polyhedra convex hull of “supporting” planes convex hull of “supporting” planes

52 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Dudley Approximation (5) Dudley Approximation (5)

Dudley Approximation of Convex Polyhedra Dudley Approximation of Convex Polyhedra convex hull of “supporting” planes convex hull of “supporting” planes

maximum error: ε (with respect to unit sphere)

53 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Volume Approximation Volume Approximation

Volume Approximation using Dudley Construction

• Observation: All steps in Dudley Construction

can be peformed in O(√n ) time

• Remaining problem: Poor approximation

for skinny polyhedra Volume Approximation using Dudley Construction

• Observation: All steps in Dudley Construction

can be peformed in O(√n ) time

• Remaining problem: Poor approximation

for skinny polyhedra

bounded absolute error larger relative volume error

54 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Rescaling Rescaling

Solution: Non-Uniform Rescaling Solution: Non-Uniform Rescaling

1 2 3 4

• riginal polyhedron

main axis transform helper polyhedron

vol.

≥

c· original vol.

enclosed ellipsoid

55 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Result Result

Rescaling:

• Enclosed ellipsoid has

volume ≥ c·original volume

• Volume can be measured with arbitrary,

constant accuracy by rescaling Overall:

• Sublinear operations only
• Overall: O(ε -1√n ) running time for

ε -approximation of volume Rescaling:

• Enclosed ellipsoid has

volume ≥ c·original volume

• Volume can be measured with arbitrary,

constant accuracy by rescaling Overall:

• Sublinear operations only
• Overall: O(ε -1√n ) running time for

ε -approximation of volume

56

Shortest-Path Approximation Shortest-Path Approximation

57 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

• Approx. Shortest Path
• Approx. Shortest Path

The Task:

• Compute shortest path between

two surface points on convex polyhedron

• Approximate up to factor ε
• Allow path to leave surface of polyhedron

(otherwise, any path might be

• f complexity Ω(n))

The Task:

• Compute shortest path between

two surface points on convex polyhedron

• Approximate up to factor ε
• Allow path to leave surface of polyhedron

(otherwise, any path might be

• f complexity Ω(n))

58 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

How does it work? How does it work?

Main Idea:

• Same basic idea: Dudley approximation
• Construct simplified polyhedron
• Constant number of faces

⇒ Can then use standard algorithm to compute shortest path

• Problem: Guaranteeing accuracy (again)
• Solution: Clipping to O(path-length)-Box

Main Idea:

• Same basic idea: Dudley approximation
• Construct simplified polyhedron
• Constant number of faces

⇒ Can then use standard algorithm to compute shortest path

• Problem: Guaranteeing accuracy (again)
• Solution: Clipping to O(path-length)-Box

59 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Using the Dudley Approx. Using the Dudley Approx.

Dudley Approximation:

• Simplify polyhedron (Dudley)
• Build path along simplified w. std. method

Dudley Approximation:

• Simplify polyhedron (Dudley)
• Build path along simplified w. std. method
• riginal

simplified approximate path

60 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

The Problem The Problem

Remaining Problem: Relative Accuracy

• ε-approx for long paths
• Larger relative error for short paths

Remaining Problem: Relative Accuracy

• ε-approx for long paths
• Larger relative error for short paths

long path – smaller relative error short path – large relative error

ε ε

61 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Solution Solution

Clipping before Dudleying

• Estimate length of shortest

path up to factor 8

• Place box of side length

16·est around start point

• Clip simplified polyhedron to box (additional

constraints during computation)

• By scaling ε correspondingly, this guarantees

ε-approximation of shortest path Clipping before Dudleying

• Estimate length of shortest

path up to factor 8

• Place box of side length

16·est around start point

• Clip simplified polyhedron to box (additional

constraints during computation)

• By scaling ε correspondingly, this guarantees

ε-approximation of shortest path

new ε

62 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Result Result

Overall result:

• Can approximate shortest path

up to factor (1+ε)

• Using time O(ε -5/4 √n ) + f(ε -5/4)

where f is time for exact solution

• Known: f(k) ∈ O(k log2 k)
• Authors use modified Dudley construction to

achieve given bounds; see paper for details. Overall result:

• Can approximate shortest path

up to factor (1+ε)

• Using time O(ε -5/4 √n ) + f(ε -5/4)

where f is time for exact solution

• Known: f(k) ∈ O(k log2 k)
• Authors use modified Dudley construction to

achieve given bounds; see paper for details.

63

Conclusions Conclusions

64 CS 468 – Geometric Algorithms Seminar – Winter 2005/2006

Conclusions Conclusions

Sublinear Algorithms for Geometric Problems

• Convex polygons / polyhedra intersection
• Ray shooting (convex P’s, and similar problems)
• Volume approximation (convex P’s)
• Shortest path approximation (convex P’s)

Properties

• All in O(√n )
• Techniques are generalizations of

the successor searching algorithm Sublinear Algorithms for Geometric Problems

• Convex polygons / polyhedra intersection
• Ray shooting (convex P’s, and similar problems)
• Volume approximation (convex P’s)
• Shortest path approximation (convex P’s)

Properties

• All in O(√n )
• Techniques are generalizations of

the successor searching algorithm
