STAT 213 Cross-Validation (and Multifactor ANOVA?) Colin Reimer - - PowerPoint PPT Presentation

Outline Last Time Cross-Validation

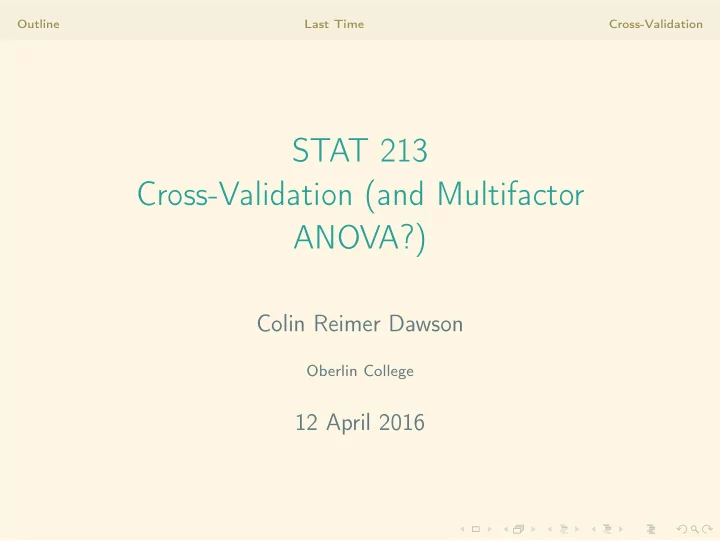

STAT 213 Cross-Validation (and Multifactor ANOVA?)

Colin Reimer Dawson

Oberlin College

12 April 2016

Outline Last Time Cross-Validation

Outline

Last Time Cross-Validation

Outline Last Time Cross-Validation

Reflection Questions

How do you decide among all these predictor-selection methods?

Outline Last Time Cross-Validation

For Thursday

• Read: see last time
• Write: finish today’s worksheet
• Answer: see last time

Outline Last Time Cross-Validation

Outline

Last Time Cross-Validation

Outline Last Time Cross-Validation

Multicollinearity

When one predictor is highly predictable from the other predictors, the model suffers from multicollinearity

Outline Last Time Cross-Validation

Multicollinearity

When one predictor is highly predictable from the other predictors, the model suffers from multicollinearity One measure: R2 from a model predicting Xj using X1, . . . , Xj−1, Xj+1, . . . , Xk.

Outline Last Time Cross-Validation

Multicollinearity

When one predictor is highly predictable from the other predictors, the model suffers from multicollinearity One measure: R2 from a model predicting Xj using X1, . . . , Xj−1, Xj+1, . . . , Xk. Rough rule: If this R2 is > 0.80, test/intervals for coefficients may not be meaningful.

Outline Last Time Cross-Validation

Multicollinearity

When one predictor is highly predictable from the other predictors, the model suffers from multicollinearity One measure: R2 from a model predicting Xj using X1, . . . , Xj−1, Xj+1, . . . , Xk. Rough rule: If this R2 is > 0.80, test/intervals for coefficients may not be meaningful. Equivalently: VIF =

1 1−R2 > 5

Outline Last Time Cross-Validation

Variance Inflation Factor

m.midterm <- lm(Midterm ~ Quiz, data = Scores) summary(m.midterm)$r.squared [1] 0.9498368 m.quiz <- lm(Quiz ~ Midterm, data = Scores) summary(m.quiz)$r.squared [1] 0.9498368 vif(m.both) Midterm Quiz 19.93495 19.93495 vif(m.rotated) V1 V2 1 1

Outline Last Time Cross-Validation

Remedies for Multicollinearity

• 1. Remove redundant predictors
• 2. Combine predictors into a scale
• 3. Use the multicollinear model anyway, just don’t use

tests/intervals for individual coefficients.

Outline Last Time Cross-Validation

Model Selection

“Scoring”

• Adj. R2

Mallow’s Cp “Search” Domain Knowledge Best Subset Forward Selection Backward Selection Stepwise Selection

Outline Last Time Cross-Validation

Criteria to "score" models

• 1. Adj. R2: balances fit and complexity for a model in

isolation

Outline Last Time Cross-Validation

Criteria to "score" models

• 1. Adj. R2: balances fit and complexity for a model in

isolation

• 2. Mallow’s Cp / Akaike Information Criterion (AIC):

estimates mean squared prediction error based on ˆ σ2

ε from

a “full” model

Outline Last Time Cross-Validation

Mallow’s Cp / AIC

For a model with p coefficients (including the intercept), selected from a pool of predictors, fit using n observations: Cp = SSEreduced MSEfull + 2p − n (1) = p + SSEdiff MSEfull (2) Smaller values correspond to better fit and simpler models.

Outline Last Time Cross-Validation

Methods to Explore the Space of Combinations

• 1. Domain Knowledge: Only build models that make sense
• 2. Best subset: consider all possible combinations (2k)
• 3. Forward selection: start with null model, and consider

adding one predictor at a time

• 4. Backward elimination: start with full model and consider

removing one predictor at a time

• 5. Stepwise regression: consider steps in both directions at

each iteration Note: Choose best step based on adj-R2 or Cp/AIC, not based

• n P-values

Outline Last Time Cross-Validation

Outline

Last Time Cross-Validation

Outline Last Time Cross-Validation

A third dimension

What data should we use to (a) Fit the models? (b) Evaluate the models?

Outline Last Time Cross-Validation

A third dimension

What data should we use to (a) Fit the models? (b) Evaluate the models? Two answers

• 1. Use all the data for both (what we’ve done so far)
• 2. Separate the data set into distinct “training” and

“validation” sets.

Outline Last Time Cross-Validation

In-Sample vs. Out of Sample Prediction

• Idea: A good model should make accurate predictions on

data it hasn’t seen

Outline Last Time Cross-Validation

In-Sample vs. Out of Sample Prediction

• Idea: A good model should make accurate predictions on

data it hasn’t seen

• Evaluating in-sample is subject to overfitting: Since we

try to minimize SSE (and maximize SSM), we are liable to extract too much “signal”. Some of the SSM will really be “noise”.

Outline Last Time Cross-Validation

In-Sample vs. Out of Sample Prediction

• Idea: A good model should make accurate predictions on

data it hasn’t seen

• Evaluating in-sample is subject to overfitting: Since we

try to minimize SSE (and maximize SSM), we are liable to extract too much “signal”. Some of the SSM will really be “noise”.

• This is particularly likely if we have lots of model d

f.

Outline Last Time Cross-Validation

In-Sample vs. Out of Sample Prediction

• Idea: A good model should make accurate predictions on

data it hasn’t seen

• Evaluating in-sample is subject to overfitting: Since we

try to minimize SSE (and maximize SSM), we are liable to extract too much “signal”. Some of the SSM will really be “noise”.

• This is particularly likely if we have lots of model d

f.

• Approaches such as adjusted R2 and Mallow’s Cp try to

account for overfitting, but why not actually try to predict on different data than used for fitting?

Outline Last Time Cross-Validation

Cross-Validation

Cross-validation is a technique whereby the full dataset is divided into training and validation (held-out) sets. The first is used for fitting parameters; the second for evaluating predictive power.

Outline Last Time Cross-Validation

Cross-Validation

Cross-validation is a technique whereby the full dataset is divided into training and validation (held-out) sets. The first is used for fitting parameters; the second for evaluating predictive power. Versions:

• 1. Two-fold: Divide data (randomly) in half. Fit two models,

exchanging roles of training and validation.

• 2. k-fold: Divide data into k equal sized sets, fit k models letting

each set as the validation set.

• 3. Leave-one-out (n-fold): Let each observation be its own

validation set. Requires fitting n models.

Can “score” a model form using average predictive accuracy on
