SLIDE 1

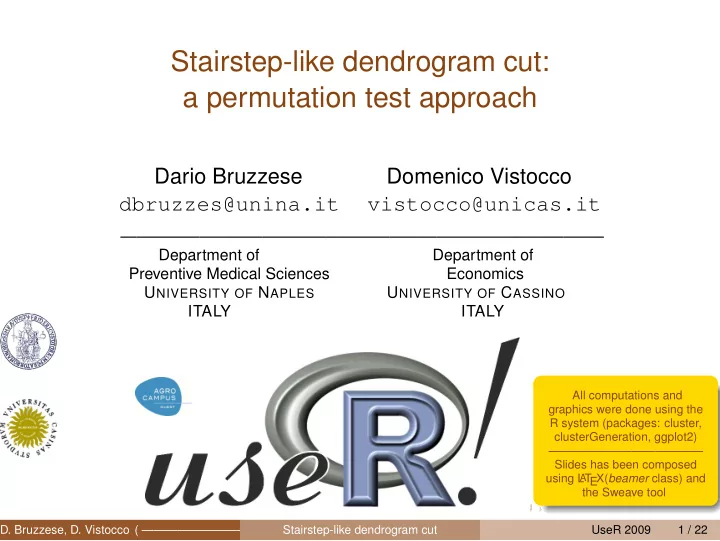

Stairstep-like dendrogram cut: a permutation test approach

Dario Bruzzese Domenico Vistocco dbruzzes@unina.it vistocco@unicas.it

——————————————————————————————– Department of Department of Preventive Medical Sciences Economics UNIVERSITY OF NAPLES UNIVERSITY OF CASSINO ITALY ITALY

All computations and graphics were done using the R system (packages: cluster, clusterGeneration, ggplot2) ————————————— Slides has been composed using L

A

T EX(beamer class) and the Sweave tool

D. Bruzzese, D. Vistocco ( ——————————————————————————————–

Department of Stairstep-like dendrogram cut UseR 2009 1 / 22

SLIDE 2

Stairstep-like dendrogram cut: a permutation test approach

Dario Bruzzese Domenico Vistocco dbruzzes@unina.it vistocco@unicas.it

——————————————————————————————– Department of Department of Preventive Medical Sciences Economics UNIVERSITY OF NAPLES UNIVERSITY OF CASSINO ITALY ITALY

All computations and graphics were done using the R system (packages: cluster, clusterGeneration, ggplot2) ————————————— Slides has been composed using L

A

T EX(beamer class) and the Sweave tool

D. Bruzzese, D. Vistocco ( ——————————————————————————————–

Department of Stairstep-like dendrogram cut UseR 2009 1 / 22

(a not necessarily regular cut for a dendrogram)

SLIDE 3

Motivation

The rep1HighNoise dataset

Yeung KY, Medvedovic M, Bumgarner KY: Clustering gene-expression data with repeated measurements. Genome Biology, 2003, 4:R34

n = 200 p = 20

It is a synthetic data set with error distributions derived from real array data.

D. Bruzzese, D. Vistocco ( ——————————————————————————————–

Department of Stairstep-like dendrogram cut UseR 2009 2 / 22

SLIDE 4

Motivation

Horizontal cut

k = 2

D. Bruzzese, D. Vistocco ( ——————————————————————————————–

Department of Stairstep-like dendrogram cut UseR 2009 2 / 22

SLIDE 5

Motivation

Horizontal cut

k = 2 (red clusters)

D. Bruzzese, D. Vistocco ( ——————————————————————————————–

Department of Stairstep-like dendrogram cut UseR 2009 2 / 22

SLIDE 6

Motivation

Horizontal cut

k = 2 (red clusters) k = 3

D. Bruzzese, D. Vistocco ( ——————————————————————————————–

Department of Stairstep-like dendrogram cut UseR 2009 2 / 22

SLIDE 7

Motivation

Horizontal cut

k = 2 (red clusters) k = 3 (green clusters)

D. Bruzzese, D. Vistocco ( ——————————————————————————————–

Department of Stairstep-like dendrogram cut UseR 2009 2 / 22

SLIDE 8

Motivation

Horizontal cut

k = 2 (red clusters) k = 3 (green clusters) k = 4

D. Bruzzese, D. Vistocco ( ——————————————————————————————–

Department of Stairstep-like dendrogram cut UseR 2009 2 / 22

SLIDE 9

Motivation

Horizontal cut

k = 2 (red clusters) k = 3 (green clusters) k = 4 (blue clusters)

D. Bruzzese, D. Vistocco ( ——————————————————————————————–

Department of Stairstep-like dendrogram cut UseR 2009 2 / 22

SLIDE 10

Motivation

Horizontal cut

k = 2 (red clusters) k = 3 (green clusters) k = 4 (blue clusters) . . . k = 7

D. Bruzzese, D. Vistocco ( ——————————————————————————————–

Department of Stairstep-like dendrogram cut UseR 2009 2 / 22

SLIDE 11

Motivation

Horizontal cut

k = 2 (red clusters) k = 3 (green clusters) k = 4 (blue clusters) . . . k = 7 (brown clusters)

D. Bruzzese, D. Vistocco ( ——————————————————————————————–

Department of Stairstep-like dendrogram cut UseR 2009 2 / 22

SLIDE 12

Motivation

Horizontal cut

k = 2 (red clusters) k = 3 (green clusters) k = 4 (blue clusters) . . . k = 7 (brown clusters)

An alternative cut

k = 3 (rainbow clusters)

D. Bruzzese, D. Vistocco ( ——————————————————————————————–

Department of Stairstep-like dendrogram cut UseR 2009 2 / 22

SLIDE 13

Motivation

Horizontal cut

k = 2 (red clusters) k = 3 (green clusters) k = 4 (blue clusters) . . . k = 7 (brown clusters)

An alternative cut

k = 3 (rainbow clusters)

D. Bruzzese, D. Vistocco ( ——————————————————————————————–

Department of Stairstep-like dendrogram cut UseR 2009 2 / 22

SLIDE 14

Motivation

Horizontal cut

k = 2 (red clusters) k = 3 (green clusters) k = 4 (blue clusters) . . . k = 7 (brown clusters)

An alternative cut

k = 4 (rainbow clusters)

D. Bruzzese, D. Vistocco ( ——————————————————————————————–

Department of Stairstep-like dendrogram cut UseR 2009 2 / 22

SLIDE 15

Motivation

Horizontal cut

k = 2 (red clusters) k = 3 (green clusters) k = 4 (blue clusters) . . . k = 7 (brown clusters)

An alternative cut

k = 4 (rainbow clusters)

D. Bruzzese, D. Vistocco ( ——————————————————————————————–

Department of Stairstep-like dendrogram cut UseR 2009 2 / 22

SLIDE 16

Motivation

Horizontal cut

k = 2 (red clusters) k = 3 (green clusters) k = 4 (blue clusters) . . . k = 7 (brown clusters)

α = 0.01

5 clusters

D. Bruzzese, D. Vistocco ( ——————————————————————————————–

Department of Stairstep-like dendrogram cut UseR 2009 2 / 22

SLIDE 17

Motivation

Horizontal cut

k = 2 (red clusters) k = 3 (green clusters) k = 4 (blue clusters) . . . k = 7 (brown clusters)

α = 0.01

5 clusters

An alternative cut

k = 5 (rainbow clusters)

D. Bruzzese, D. Vistocco ( ——————————————————————————————–

Department of Stairstep-like dendrogram cut UseR 2009 2 / 22

SLIDE 18

Motivation

Horizontal cut

k = 2 (red clusters) k = 3 (green clusters) k = 4 (blue clusters) . . . k = 7 (brown clusters)

α = 0.01

5 clusters

An alternative cut

k = 5 (rainbow clusters)

D. Bruzzese, D. Vistocco ( ——————————————————————————————–

Department of Stairstep-like dendrogram cut UseR 2009 2 / 22

SLIDE 19

The reference framework

Tools

Statistics R

SLIDE 20

The reference framework

Tools

Statistics

Hierarchi- cal clustering Permuta- tion tests

R

SLIDE 21

The reference framework

Tools

Statistics

Hierarchi- cal clustering Permuta- tion tests

R

hclust plot.hclust {stats} genRandom- Clust {cluster- Generation} qplot ggplot {ggplot2}

SLIDE 22

La Carte

1

A (? simple ?) idea

2

A (? not so ?) simple procedure

3

Some results

4

The Wishlist
