SSS: An Implementation of Key-value Store based MapReduce Framework Hirotaka Ogawa (AIST, Japan) Hidemoto Nakada Ryousei Takano Tomohiro Kudoh MapReduce A promising programming tool for implementing large- scale data-intensive apps

slide-1
SLIDE 1

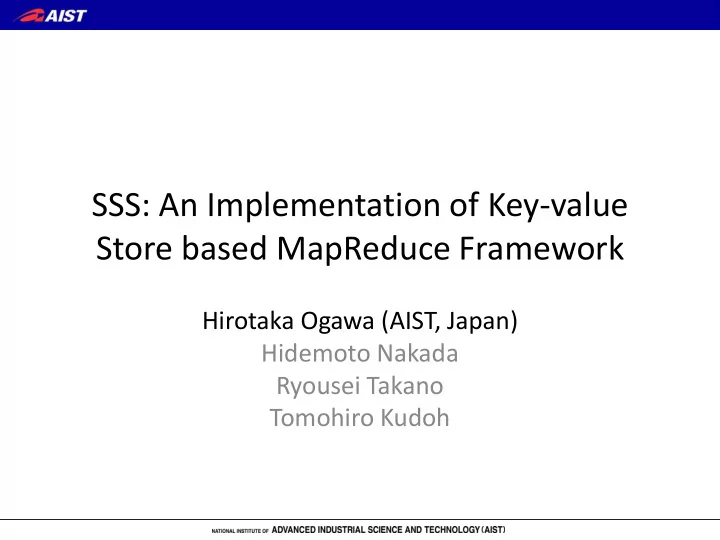

SSS: An Implementation of Key-value Store based MapReduce Framework

Hirotaka Ogawa (AIST, Japan) Hidemoto Nakada Ryousei Takano Tomohiro Kudoh

slide-2
SLIDE 2

MapReduce

  • A promising programming tool for implementing large-

scale data-intensive apps

  • Essentially provides a data-parallel computing model

– Map

  • Spreads a segment of a single array computation over multiple

processors

  • Performs each computation on the relevant processor

– Reduce

  • Aggregates distributed reduction variables
  • Performs computation over them
  • (Theoretically) most SPMD-type apps can be realized

by MR model

slide-3
SLIDE 3

Extends MapReduce to HPC

  • User can develop HPC apps faster and easier than

ever!

– Provides a higher level programming model than parallel programming languages, e.g., HPF, OpenMP – Provides simpler communication topologies and synchronization model than message-passing libraries, e.g., MPI

  • But there are limitations in MapReduce

– Sacrificing runtime performance – Fixed workflow

slide-4
SLIDE 4

Why?

  • Semantic gap between MR data model and the

input/output data format

– MR apps handle KV data – Backend DFS provides an interface to large data files

  • No opportunity to

reuse the internal KV data

– These KV data exist

  • nly in the MR runtime

Considerable overhead for reading/writing large amount of data, in particular, iterative apps Flexible workflows, e.g., reusing KV data (incl. the

  • int. KV data) across multiple maps and reduces, are

infeasible!

slide-5
SLIDE 5

Related Work

  • Twister

– Map tasks can read input data from:

  • Distributed in-memory cache
  • Local disks
  • MRAP

– Map tasks can read input data from:

  • Preprocessed files optimized to efficient access
  • Original files
  • →Partial Solutions

– Cannot handle the intermediate KV data – Users need to determine which data is cacheable (immutable)

slide-6
SLIDE 6

Our Solution

File System MapReduce Runtime Task Manager M M M R R Internal Data (Cache) Manager KV KV KV KV KV KV KV KV KV Serialized Files KV KV KV KV Storage System MapReduce Runtime Task Manager M M M R R KV KV KV KV KV KV KV KV Storage-side Cache KV KV KV KV

slide-7
SLIDE 7

SSS: Distributed KVS based MapReduce

  • Our first prototype of KVS-based MapReduce
  • Hadoop-compatible API
  • Distributed KVS-centric

– Scale-out

  • Horizontally adding new nodes

– Owner computes

  • Each map and reduce is distributed to the node where the target KV

data is stored

– Shuffle-and-Sort phase is not required – On-memory cache

  • Enables reuse of KV data across multiple maps and reduces

– Flexible workflows are supported

  • Any combination of map and reduce, including iterative apps, are

available

Why?

slide-8
SLIDE 8

KVS KVS

KV KV KV KV KV KV KV KV KV

Map Map Map

iKV iKV iKV iKV iKV iKV iKV iKV iKV

KVS

iKV iKV iKV iKV iKV iKV iKV iKV iKV

groupin g groupin g groupin g

Reduce Reduce Reduce

KV KV KV KV KV KV KV

How MapReduce runs in SSS

slide-9
SLIDE 9

SSS: Distributed KVS based MapReduce

  • Our first prototype of KVS-based MapReduce
  • Hadoop-compatible API
  • Distributed KVS-based

– Scale-out

  • Horizontally adding new nodes

– Owner computes

  • Each map and reduce is distributed to the node where the target KV

data is stored

– Shuffle-and-Sort phase is not required – On-memory cache

  • Enables reuse of KV data across multiple maps and reduces

– Flexible workflows are supported

  • Any combination of map and reduce, including iterative apps, are

available

How?

slide-10
SLIDE 10

Input Key-value Data Map Map Map Map Map Output Key-value Data Intermediate Key-value Data Red Red Red Red Red

Iterative Application

Map Map Map Map Map Output Key-value Data Intermediate Key-value Data Red Red Red Red Red Map Map Map Map Map Intermediate Key-value Data Red Red Red Red Red Output Key-value Data

Reuse the Int. Key-value Data

slide-11
SLIDE 11

SSS: Architectural Overview

slide-12
SLIDE 12

SSS Map Thread Pipeline

  • To limit the memory usage and hide the

latency of KVS, SSS runtime employs pipelining technique

slide-13
SLIDE 13

Packed-SSS Map Thread Pipeline

  • To reduce the number of KV data

– Stores KV data into thread-local buffer – Converts them to a single large KV data – Stores it to the KVS

slide-14
SLIDE 14

Preliminary Evaluation

  • Environment

– Number of nodes: 16 + 1 (master) – CPUs per node: Intel Xeon W5590 3.33GHz x 2 – Memory per node: 48GB – OS: CentOS 5.5 x86_64 – Storage: Fusion-io ioDrive Duo 320GB – NIC: Mellanox ConnectX-II 10G

  • MapReduce implementations

– SSS – Packed-SSS – Hadoop (replica count is 1, to avoid unintended replications)

slide-15
SLIDE 15

Benchmarks

  • Word count

– 128 text files

  • Total file size: 12.5GiB
  • Each file size: almost 100MiB

– No combiners employed – Input: Coarse grain, Output: Fine grain

  • Iterative identity map and reduce

– Both of map and reduce generate a set of KV data same as their inputs – Iteratively 8 times applied – 8 million keys

  • Total amount of KV data: almost 128MiB

– Input/Output: Fine grain

slide-16
SLIDE 16

DistCopy: Distributing 12.5GiB text files for WordCount

20 40 60 80 100 120 140 160 180 200 Hadoop (serial) SSS (serial) SSS (parallel)

DistCopy [sec]

DistCopy [sec] 17% faster 90% faster

Our KVS is not slower than HDFS Parallelization is very effective due to ioDrive + 10GbE

slide-17
SLIDE 17

20 40 60 80 100 120 140 160 1 2 3 4 5 Hadoop SSS packed-SSS Trials Running Time [sec]

WordCount

12% faster 3x faster

slide-18
SLIDE 18

50 100 150 200 250 300 350 1 2 3 4 5 6 7 8 Hadoop SSS packed-SSS Iteration Count Running Time [sec]

Iterative Identity Map/Reduce

2.9x faster 10x faster

slide-19
SLIDE 19

Numbers of KV data/files

  • WordCount
  • Iterative Identity Map/Reduce

# Map Inputs # Intermediate # Reduce Outputs SSS 128 1.5 billion 2.7 million Packed-SSS 128 2,048 16 Hadoop 128 files ~256 files 16 files # Map Inputs # Intermediate # Reduce Outputs SSS 8 million 8 million 8 million Packed-SSS 128 128 128 Hadoop 128 files 128 files 128 files

slide-20
SLIDE 20

Conclusion

  • SSS is our first prototype of KVS-based MapReduce
  • Distributed KVS centric

– Scale-out – Owner computes – Shuffle-and-Sort phase is not required – On-memory cache – Flexible workflows are supported

  • Hadoop-compatible API
  • Runtime performance is better than Hadoop, but not

enough (we think)

slide-21
SLIDE 21

Future Work

  • Performance
  • Fault-tolerance
  • More comprehensive benchmarks

– To identify the characteristics and feasibility to various class of HPC and data-intensive apps

  • Higher-level programming tool

– Pig, Szl, DryadLINQ, HAMA, R, etc. – We have already implemented our own Sawzall- clone running on top of Hadoop and SSS

slide-22
SLIDE 22

Thank you!

slide-23
SLIDE 23

1,1 1,2 1,3 1,4 2,1 2,2 2,3 2,4 3,1 3,2 3,3 3,4 4,1 4,2 4,3 4,4

Matrix A (blocked)

1,1 1,2 1,3 1,4 2,1 2,2 2,3 2,4 3,1 3,2 3,3 3,4 4,1 4,2 4,3 4,4

Matrix B (blocked) Block multiply …

<C11, A11*B11> <C11, A12*B21> <C11, A13*B31> <C11, A14*B41> <C12, A11*B12> <C12, A12*B22> <C12, A13*B32> <C12, A14*B42> <C13, A11*B13> <C11, A11*B11 + A12*B21 + A13*B31 + A14*B41> <C12, A11*B12 + A12*B22 + A13*B32 + A14*B42> <C13, A11*B13 + A12*B23 + A13*B33 + A14*B43>

… Block add

Matrix Multiply by MR

map red
